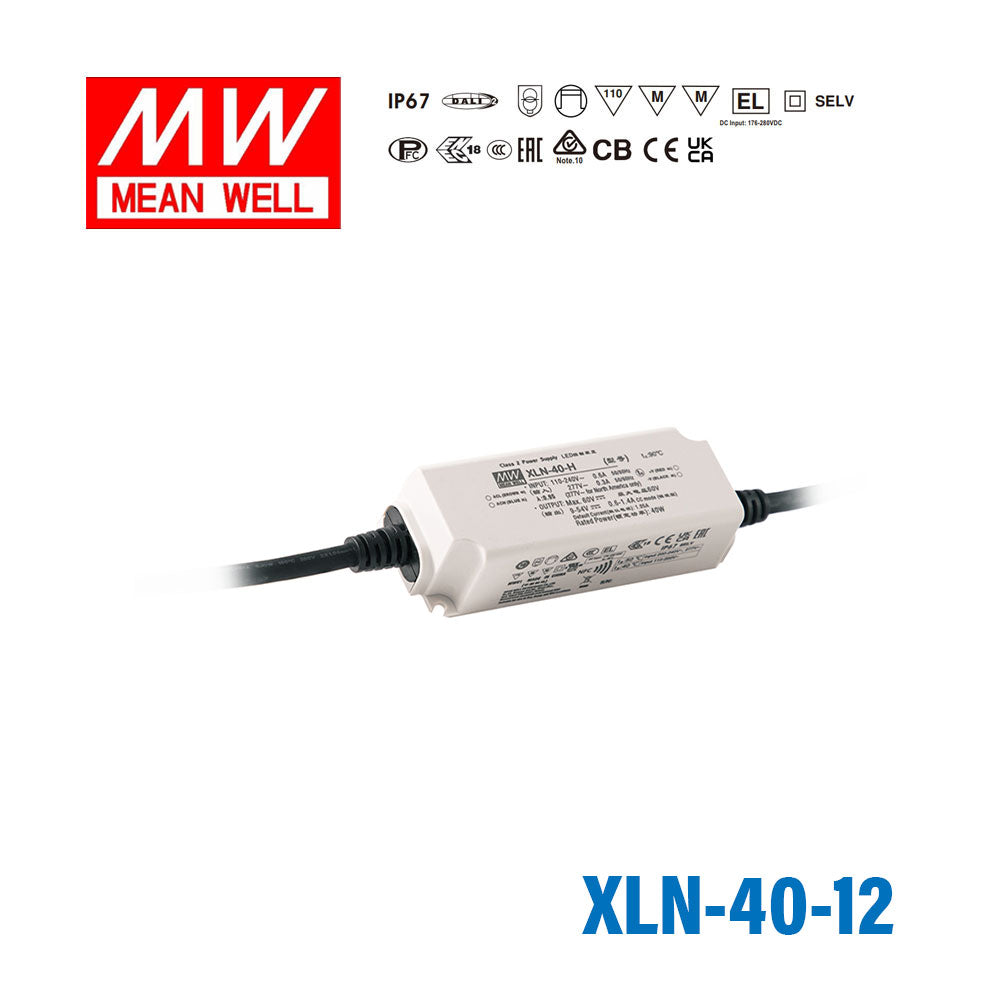

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well XLN-40-12 LED Driver 40.8W 12V IP67

Name: Mean Well XLN-40-12 LED Driver 40.8W 12V IP67
Brand: Mean Well
SKU: XLN-40-12
Price: 54.88 NZD
Availability: InStock

constant voltage, class II and PFC, flicker-free

Please for Pricing

Notify me when it's back in stock

Description

Features:

Constant power mode output with multiple stages selectable by NFC setting(H-type)
Constant voltage mode output (12V/24V)
Plastic housing with class II/2 and PFC design
Flicker-free, complying with IEEE1789/ErP
Standby power consumption <0.5W
Meet emergency lighting (EL) function application
Fully Encapsulated with IP67
Minimum dimming level 0.1% (DALI-2 DT6)
Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-2 + Push dimming
5 years warranty

General Specification

AC input voltage range

100 ~ 305VAC 141 ~ 431VDC

AC inrush current (max.)

COLD START 10A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410

Overload protection

105 ~ 150% rated output power

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over-voltage protection

| 13 ~ 16V | 26 ~ 32V |

Shut down and latch off o/p voltage, and re-power on to recover

Over temperature protection

Shut down output voltage, recovers automatically after fault condition is removed

Withstand voltage

I/P-O/P:3.75KVAC

Working temperature

Tcase=-25 ~ 90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)

Safety standards

ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations; BS EN/EN62384 independent, GB19510.14, GB19510.1, EAC TP TC 004 approved;

Dimension (LxWxH)

114x44x32mm

Specifications

Brand

Mean Well
Series

Mean Well XLN Series
Power Rating

40.8 Watt
Output Voltage

12 Volt
Rated Current

3.4 Ampere
Input Voltage

100V~305V
Standards Met

CB,CCC,CE,EAC,ENEC,SELV
Operation Mode

Constant Voltage
Operating Temperature

-25°C~90°C
Warranty

5 Year
Length

11.4 cm
Width

3.2 cm
Height

4.4 cm

File Downloads

::specification::
