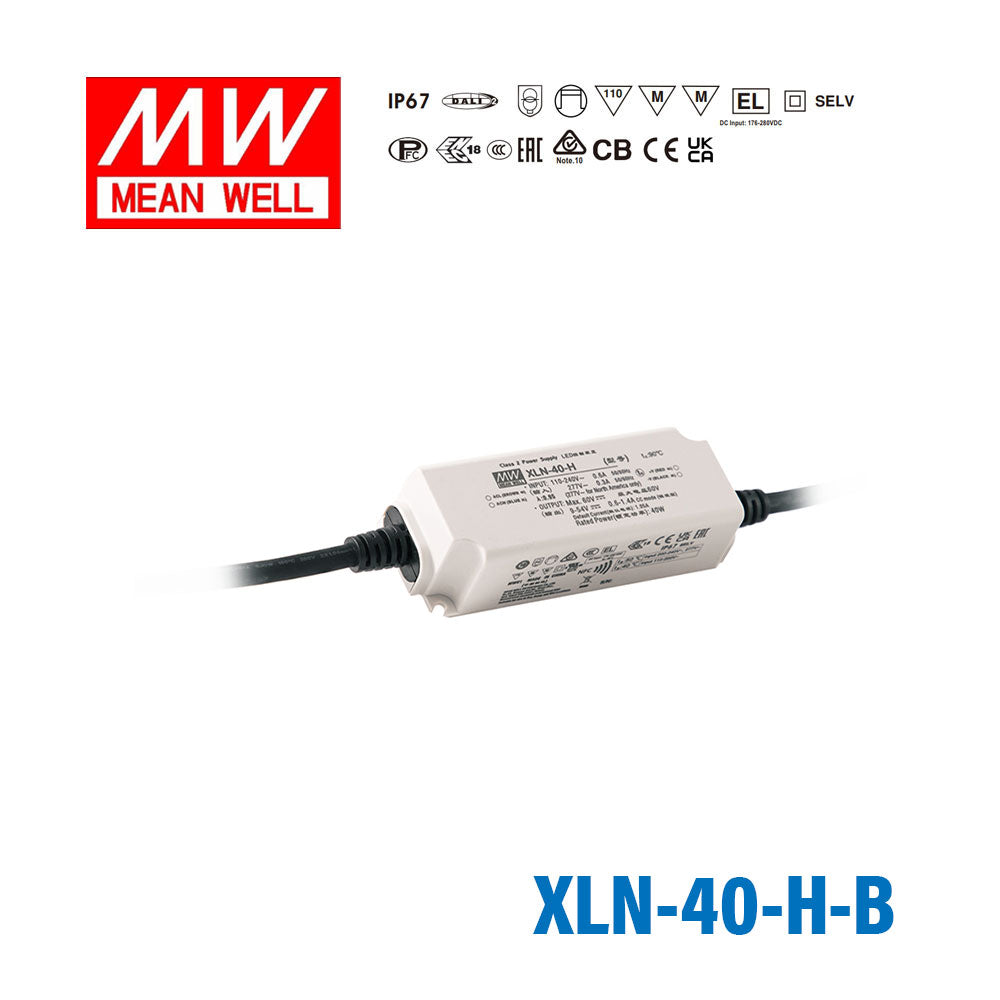

Mean Well XLN-40-H-B LED Driver 40W 1050mA 9~54V Constant Power IP67, 3 in 1 Dimming, NFC Current Setting

current adjustment range 0.6~1.4Aclass II and PFCflicker-free

SKU XLN-40-H-B

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

XLN-40-H-B is the model of this series: rated power 40W, typical efficiency 88%.

XLN-40 Series is a 40W with constant power and constant voltage output LED driver . It can operate from 100~305VAC and output current ranging between 600 mA to 1400 mA selectable by NFC setting. Thanks to high efficiency up to 88%, it is able to operate for -25℃ ~90℃ case temperature under free air convection. XLN-40 is designed based on latest safety regulation with 3 in 1 and DALI-2 dimming. XLN-40 can also be adjusted for brightness with a push button as a simple way dimming, so it provides more flexibility for LED Lighting application.

Features

Constant power mode output with multiple stage selectable by NFC setting (H-type)
Constant voltage mode output(12V/24V)
Plastic housing with class II and PFC design
Meet UL 8750 Class 2 / Class P power unit
Flicker free, complying with CE ErP directive
Standby power consumption <0.5W
Meet emergency lighting (EL) function application
Fully encapsulated with IP67
Minimum dimming level 0.1% (DALI-2 DT6)
Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-2 + Push dimming
5 years warranty

Specifications

XLN-40-H-BSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

OPEN CIRCUIT VOLTAGE: 60V
DEFAULT CURRENT: 1050mA
CURRENT ADJ.RANGE (BY NFC): 0.6~1.4A
CONSTANT CURRENT REGION: 9~54V
RATED POWER^Note.2: 40W
CURRENT RIPPLE: <4%(@full load)
CURRENT TOLERANCE: ±5%
DIMMING RANGE: 0~100%
SETUP, RISE TIME^Note.5: 500ms, 100ms/230VAC, 1000ms, 100ms/115VAC

INPUT

VOLTAGE RANGE: 100 ~ 305VAC 141 ~ 400VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD<10%(@load≧50%/230VAC; @load≧75%/277VAC), THD<15%(@load≧50%/115VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 88%
AC CURRENT: 0.5A / 115VAC 0.25A / 230VAC 0.2A/277VAC
INRUSH CURRENT(Typ.): COLD START 10A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 51 units (circuit breaker of type B) / 51 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
STANDBY POWER CONSUMPTION: Standby power consumption<0.5W(Dimming off)

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATURE: Blank & B type: De-rating to lowest output level. Recovers automatically after fault condition is removed. DA2 type: Stage 1: De-rating to 75% loading; Stage 2: De-rating to 50% loading. Recovers automatically after fault condition is removed.

ENVIRONMENT

WORKING TEMP.: Tcase=-25 ~ 90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=90℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations(DC input 176-280VDC); BS EN/EN62384, BIS IS15885(Part2/Sec13)(NOTE 14), GB/T19510.1, GB/T19510.213, EAC TP TC 004,UL8750(Type HL and Class P); CSA C22.2 No. 250.13-12 approved;Design refer to AS/NZS 61347-1, AS/NZS 61347-2-13;
DALI STANDARDS: Comply with IEC62386-101,102,207
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current BS EN/EN61000-3-2 , GB17625.1 Class C @load≥50%
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN61547

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2
EFT/Burst BS EN/EN61000-4-4 Level 2
Surge BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 2
Magnetic Field BS EN/EN61000-4-8 Level 2
Voltage Dips and Interruptions BS EN/EN61000-4-11 70% residual voltage for 10 period, 0% residual voltage for 0.5 periods

OTHERS

FLICKER^Note.6: PstLM ≤ 1, SVM ≤ 0.4
MTBF: 3935.2 K hrs min. Telcordia SR-332 (Bellcore) ; 342.9 Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 114*44*32mm (L*W*H)
PACKING: 311g; 40pcs/13.44Kg/0.95CUFT

Certifications & ratings

DC Input: 176-280VDC

Test conditions and notes14

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. De-rating may be need under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uF & 47uF parallel capacitor.
4. Tolerance: includes set up tolerance, line regulation and load regulation.
5. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
6. Flicker is measured at full load with the light source provided by MEAN WELL.
7. To fulfill requirement of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
9. The ambient temperature de-rating of 3.5℃/1000m with fanless models and 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
11. RCM is on a voluntary basis. Non IC classification Independent LED control gear is not suitable for residential installations.
12. Products sourced from the Americas regions may not have the CCC/PSE/BIS/KC logo. Please contact your MEAN WELL sales for more information.
13. For more information, please contact with MEAN WELL sales.
14. Products sourced from the China regions may not have the BIS logo, please contact your MEAN WELL sales for more information.

Technical drawings

XLN-40-H-B BLOCK DIAGRAM — BLOCK DIAGRAM

XLN-40-H-B DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

XLN-40-H-B NFC Function Description — NFC Function Description

XLN-40-H-B DIMMING OPERATION — DIMMING OPERATION

XLN-40-H-B ◎ DA2 type (DALI-2 digital dimming function) — ◎ DA2 type (DALI-2 digital dimming function)

XLN-40-H-B ◎ DA2 type (DALI-2 digital dimming function) (2) — ◎ DA2 type (DALI-2 digital dimming function) (2)

XLN-40-H-B OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

XLN-40-H-B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

XLN-40-H-B POWER FACTOR (PF) CHARACTERISTIC — POWER FACTOR (PF) CHARACTERISTIC

XLN-40-H-B EFFICIENCY vs LOAD — EFFICIENCY vs LOAD

XLN-40-H-B MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

Downloads
