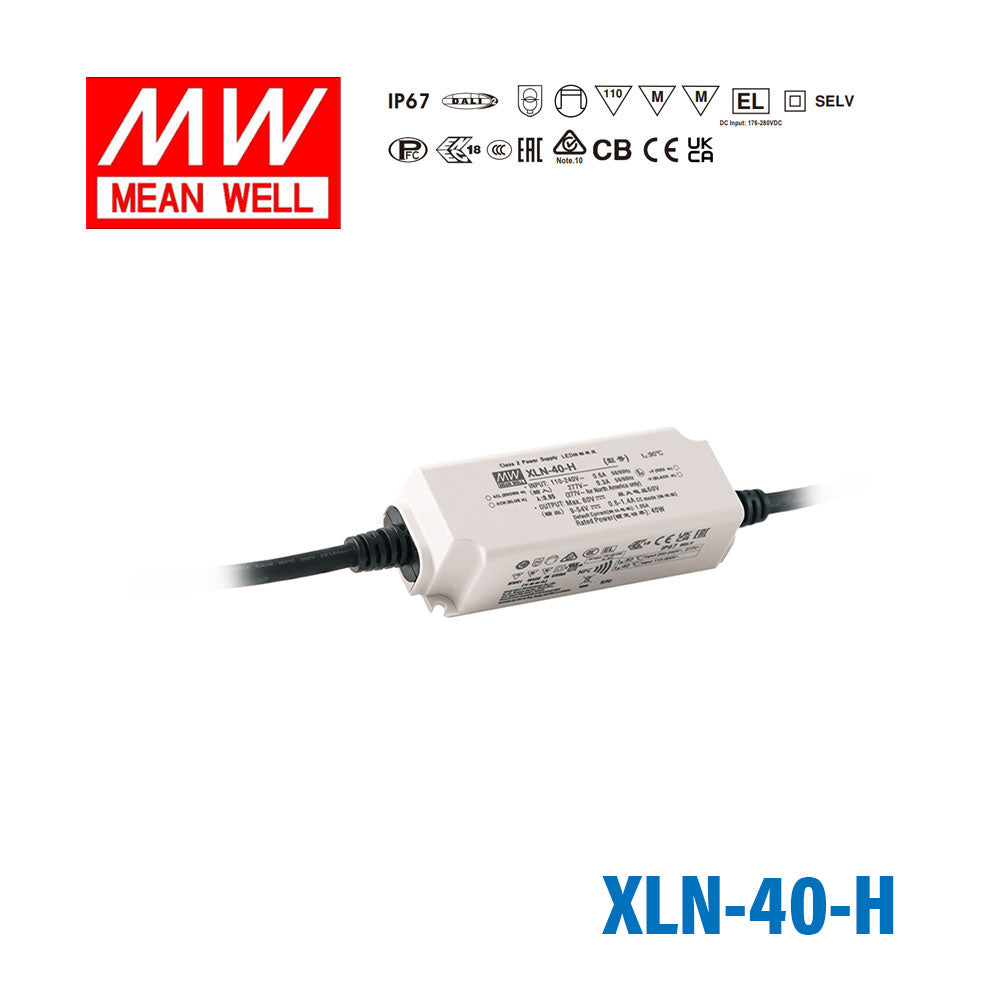

Mean Well XLN-40-H LED Driver 40W 1050mA 9~54V Constant Power IP67,...
Please Login for Pricing
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Fully Encapsulated with IP67
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-2 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLN Series
-
Power Rating40 Watt
-
Output Voltage60 Volt
-
Rated Current1.05 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length11.4 cm
-
Width3.2 cm
-
Height4.4 cm
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well XLN-40-H used for?
The Mean Well XLN-40-H is a 40W AC/DC LED driver for LED lighting applications that need a constant power output. It is part of the XLN LED driver family and is suitable for commercial or B2B LED power supply use where a compact, encapsulated IP67 driver is required.
What output rating does the XLN-40-H provide?
This model is rated for 40W output power and 1050mA rated current. The product data lists a 60V output voltage, while the product name specifies a 9~54V constant power output range.
Does the XLN-40-H support current setting?
Yes. The XLN-40-H supports NFC current setting, allowing the output behavior to be selected within the model's supported constant power configuration.
Is the XLN-40-H suitable for outdoor or damp environments?
The XLN-40-H is fully encapsulated and rated IP67. That rating makes it suitable for applications where protection from dust and water ingress is important, within the product's specified operating conditions.
What operating temperature range does the XLN-40-H support?
The listed operating temperature range for this model is -25°C to 90°C. Buyers should confirm that the application environment stays within that range.
Is the XLN-40-H dimmable?
The provided product data lists the dimming control for this SKU as non_dimmable. If dimming is required, compare against other XLN variants that explicitly list a compatible dimming function for the selected model.
What warranty does the XLN-40-H include?
The XLN-40-H includes a 5-year warranty according to the provided product data. This is a useful factor for commercial LED lighting projects where long service life and supplier support matter.
Other XLN-40 Models
4 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well XLN-40-H-DA2 LED Driver 40W 1050mA 9~54V Constant Power IP67, DALI2 + Push Dimming, NFC Current Setting | 40W | 60V | 1.05A | IP67 | View |
| Mean Well XLN-40-H-B LED Driver 40W 1050mA 9~54V Constant Power IP67, 3 in 1 Dimming, NFC Current Setting | 40W | 60V | 1.05A | IP67 | View |
| Mean Well XLN-40-24 LED Driver 40.8W 24V IP67 1.7A | 40.8W | 24V | 1.7A | IP67 | View |
| Mean Well XLN-40-12 LED Driver 40.8W 12V IP67 3.4A | 40.8W | 12V | 3.4A | IP67 | View |
