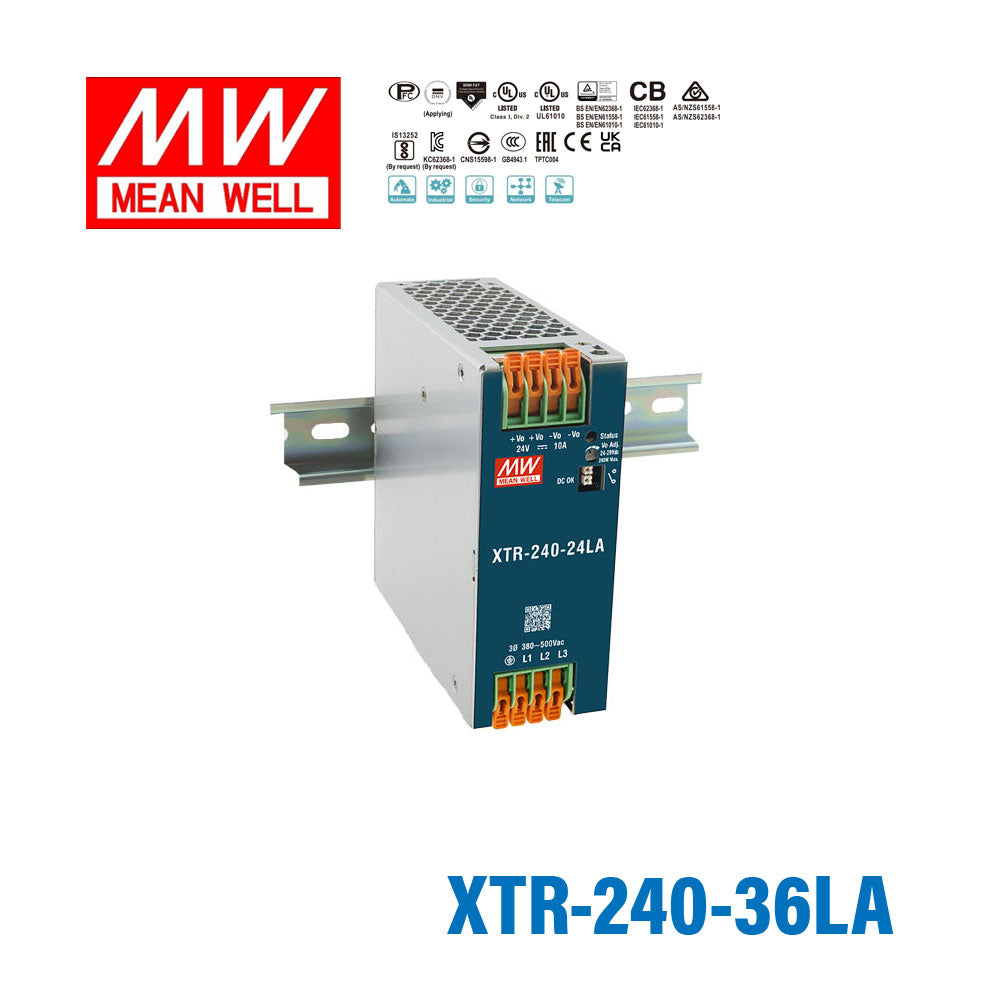

Mean Well XTR-240-36LA Three Phase Din Rail Power Supply 240W 36V -...
Please Login for Pricing
Description
Description
TheXTR-240series is a compact and high-performance 240W AC/DC power supply designed for industrial environments. Its ultra-slim design and robust construction make it ideal for space-constrained installations, while delivering reliable power for industrial control systems, semiconductor fabrication, and factory automation. It operates with a wide input range and offers high efficiency, ensuring energy savings and reduced carbon footprint.
Key Features:
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XTR Series
-
Power Rating240 Watt
-
Output Voltage36 Volt
-
Rated Current6.66 Ampere
-
Input Voltage320V~600V
-
Standards MetCB,CCC,CE,EAC,EN,KC
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length12.5 cm
-
Width4.8 cm
-
Height12.52 cm
-
Weight0.8 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well XTR-240-36LA used for?
The XTR-240-36LA is a 240W AC/DC DIN rail power supply intended for industrial environments. It is suited to applications such as industrial control systems, semiconductor fabrication, and factory automation where compact, reliable power is needed.
What output voltage and current does the XTR-240-36LA provide?
This model provides a 36V DC output with a rated current of 6.66A. Its total power rating is 240W.
Is the XTR-240-36LA suitable for space-constrained control cabinets?
Yes. The XTR-240 series is described as compact and ultra-slim, making it appropriate for space-constrained industrial installations.
What operating temperature range does this power supply support?
The XTR-240-36LA is rated for operation from -40°C to 85°C. This wide temperature range makes it suitable for demanding industrial environments.
How much does the XTR-240-36LA weigh?
The XTR-240-36LA weighs 0.8 kg. This is useful to know when planning panel layout, shipping, or equipment weight budgets.
What warranty period applies to the XTR-240-36LA?
This model has a 5-year warranty period. That warranty length can be important for industrial buyers planning long-term maintenance and replacement cycles.
How does this model differ from a lower-power DIN rail power supply?
The XTR-240-36LA is rated for 240W output at 36V DC and 6.66A. Buyers comparing DIN rail power supplies should match the required output voltage, current, and power rating to the load requirements.
