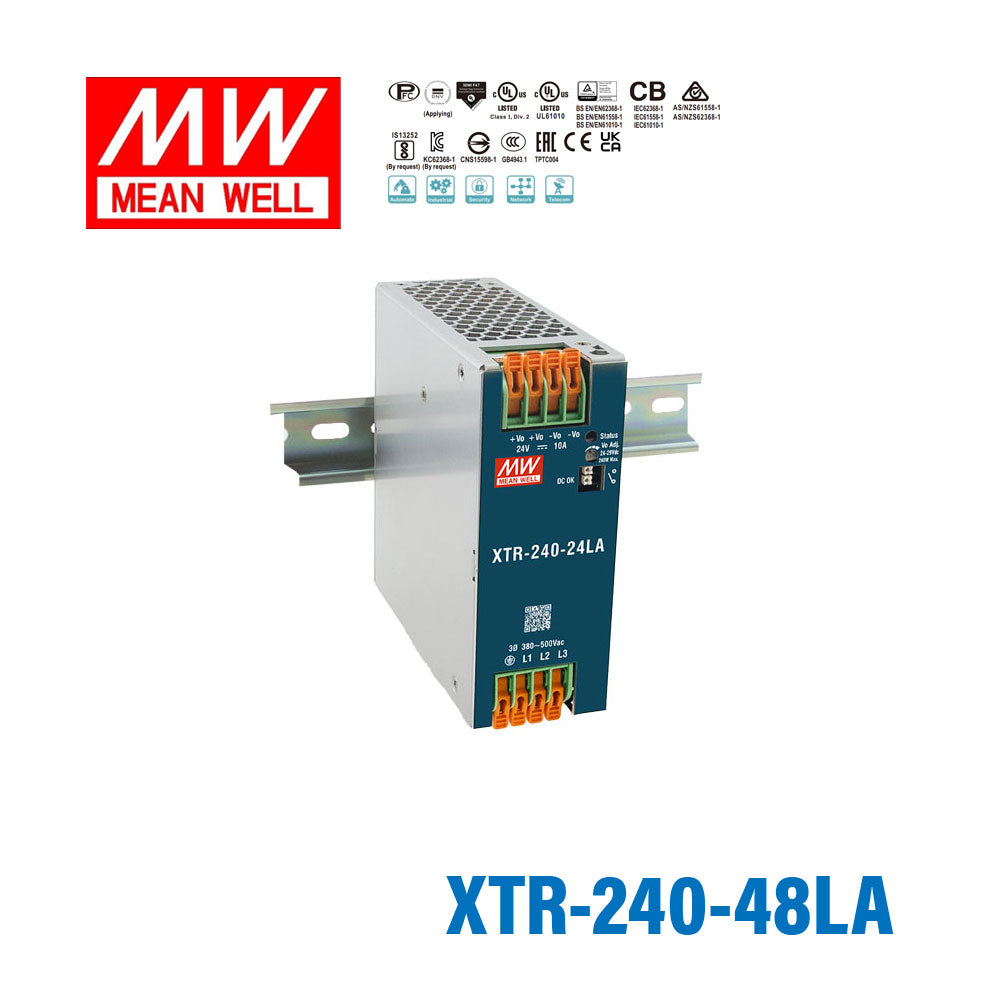

Mean Well XTR-240-48LA Three Phase Din Rail Power Supply 240W 48V -...
Please Login for Pricing
Description
Description
TheXTR-240series is a compact and high-performance 240W AC/DC power supply designed for industrial environments. Its ultra-slim design and robust construction make it ideal for space-constrained installations, while delivering reliable power for industrial control systems, semiconductor fabrication, and factory automation. It operates with a wide input range and offers high efficiency, ensuring energy savings and reduced carbon footprint.
Key Features:
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XTR Series
-
Power Rating240 Watt
-
Output Voltage48 Volt
-
Rated Current5 Ampere
-
Input Voltage320V~600V
-
Standards MetCB,CCC,CE,EAC,EN,KC
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-

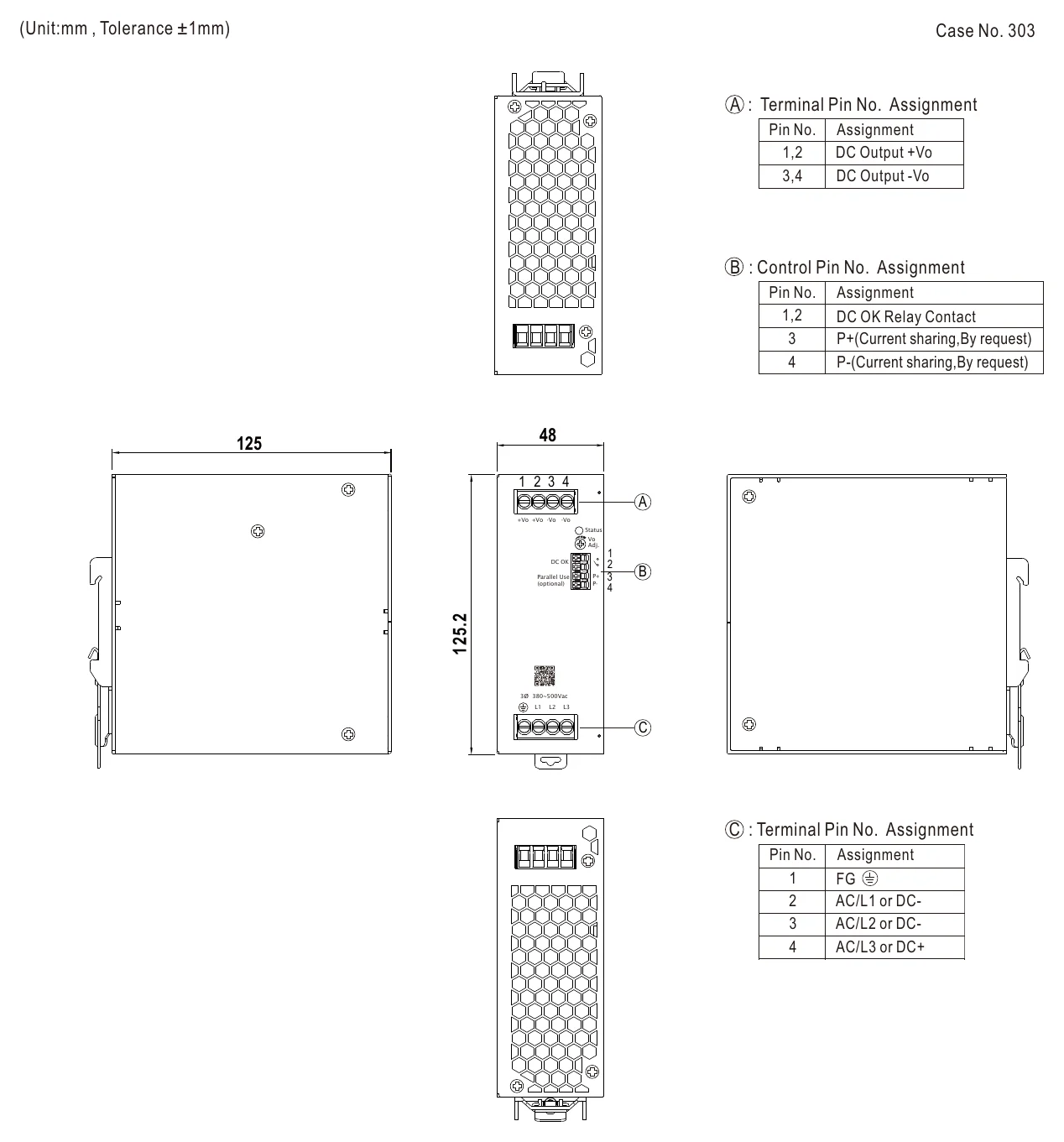

Length12.5 cm
-
Width4.8 cm
-
Height12.52 cm
-
Weight0.8 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well XTR-240-48LA?
The XTR-240-48LA is a 240W AC/DC DIN rail power supply with a 48V DC output. It is rated for 5A output current, making it suitable for industrial systems that require a regulated 48V supply.
What types of applications is the XTR-240-48LA used for?
This model is designed for industrial environments such as factory automation, industrial control systems, and semiconductor fabrication equipment. Its compact DIN rail form factor makes it useful where panel space is limited.
What operating temperature range does the XTR-240-48LA support?

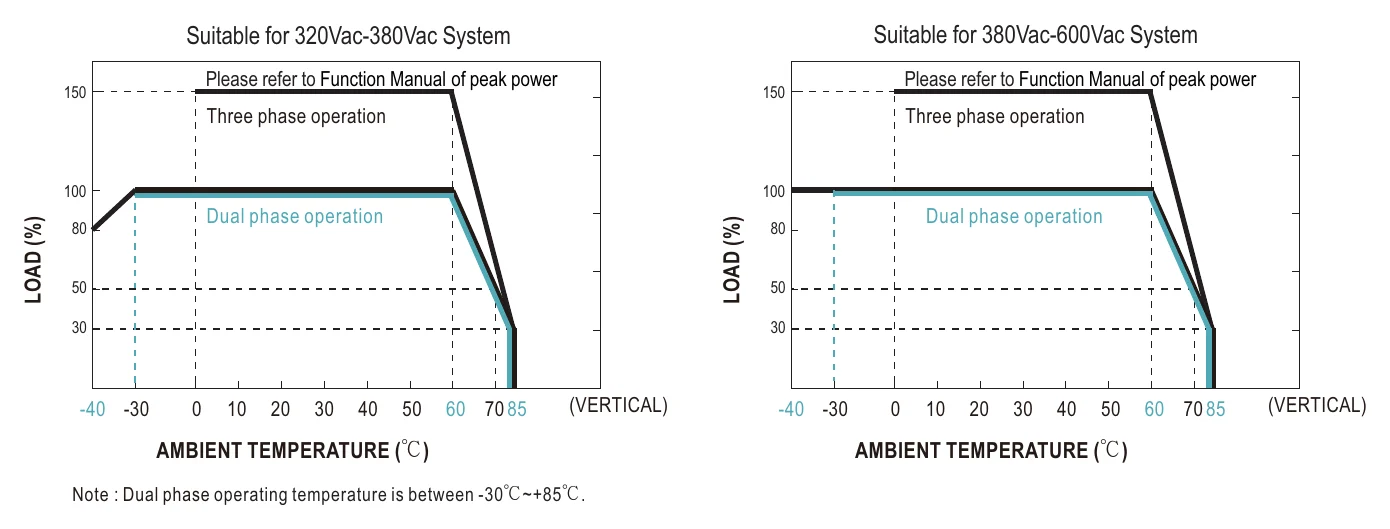

The XTR-240-48LA is specified for operation from -40°C to 85°C. This wide temperature range supports use in demanding industrial environments where ambient conditions can vary significantly.

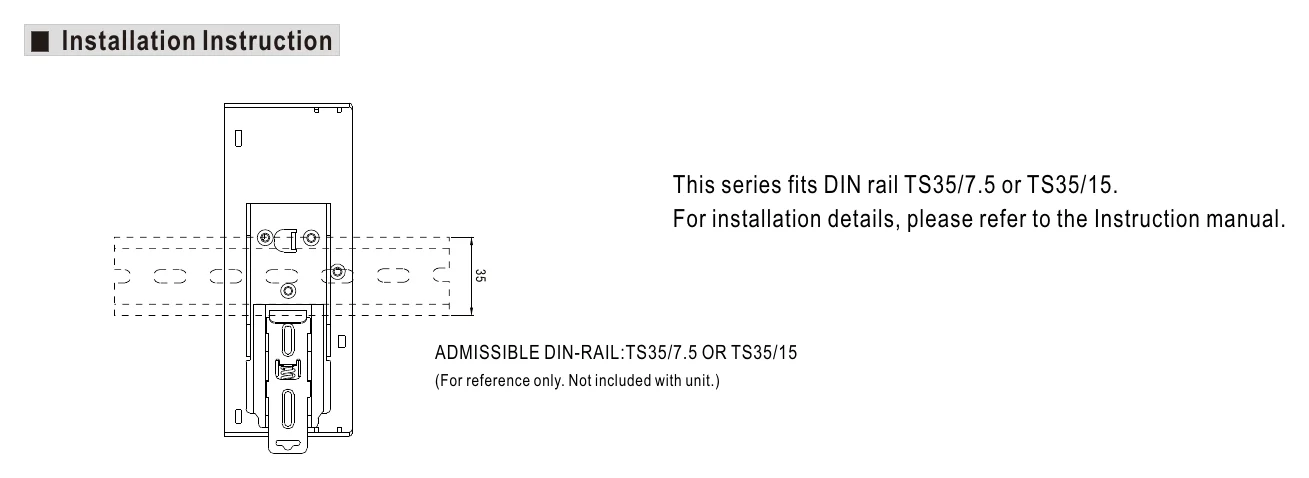

Is the XTR-240-48LA suitable for DIN rail power supply applications?
Yes. The XTR-240-48LA belongs to Mean Well's DIN rail power supply family and is intended for AC/DC industrial power applications in DIN rail systems.
Why choose the XTR-240-48LA for space-constrained industrial panels?
The XTR-240 series is described as compact and ultra-slim, which helps when enclosure or panel space is limited. It provides 240W of output power at 48V while maintaining a design intended for industrial use.
What warranty and weight are listed for the XTR-240-48LA?
The XTR-240-48LA has a listed warranty period of 5 years. Its listed weight is 0.8 kg, which may be relevant for panel layout, stocking, and shipping considerations.
