Vimar

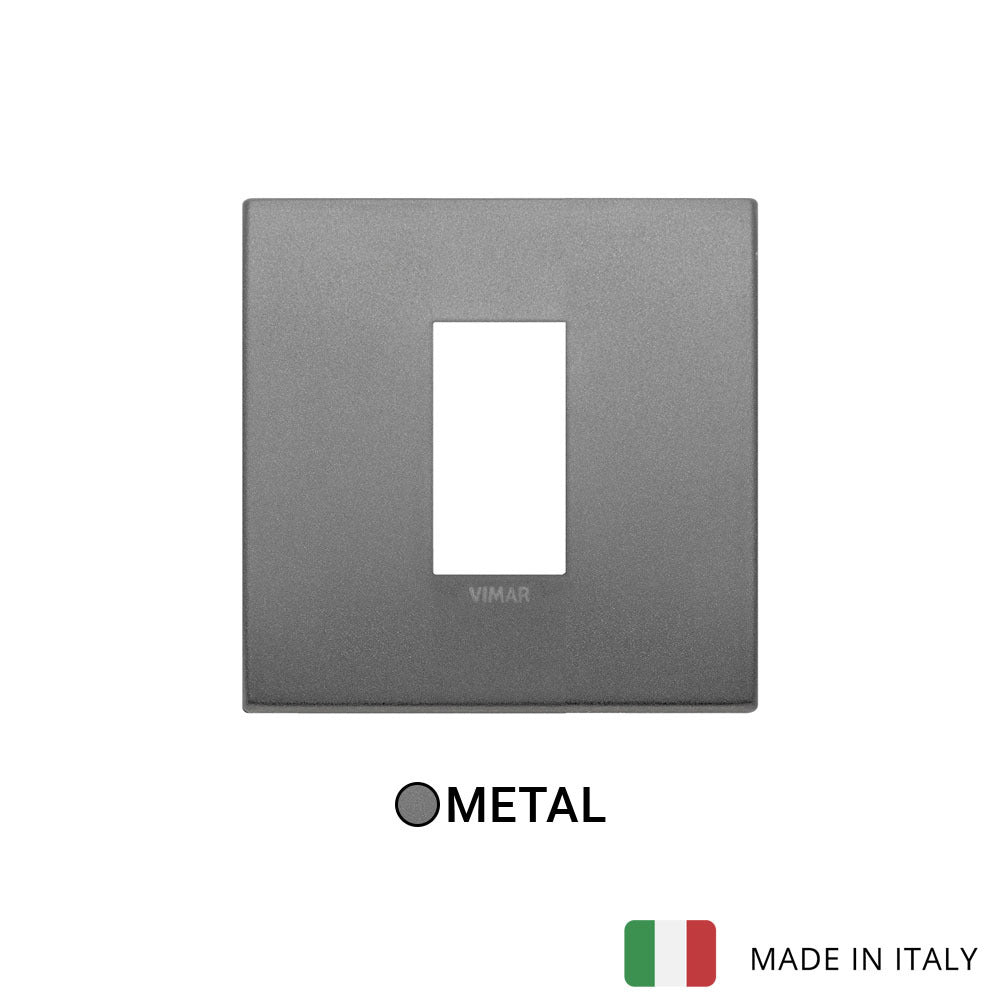

Vimar Arke Classic Plate 1M Metal Matt Slate

1 ModuleGrey
SKU VM-19641.02
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-19641.02 is Vimar ARKÉ 19641.02, classic plate 1M metal matt slate.

1-module Classic cover plate, metal, matt slate

Specifications

VM-19641.02Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
1
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
1
Number of device inserts vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7011
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
90 mm
Height
90 mm
Depth
8.6 mm
Built-in width
90 mm
Built-in height
90 mm

Packaging

EAN
8007352445185
Packed size (cm)
9.9 × 9.8 × 1.7
Packed weight
92.4 g
Pieces per box
5

Certifications

Certifications
CE marking (EU), ASTA (UK), IMQ (Italy)

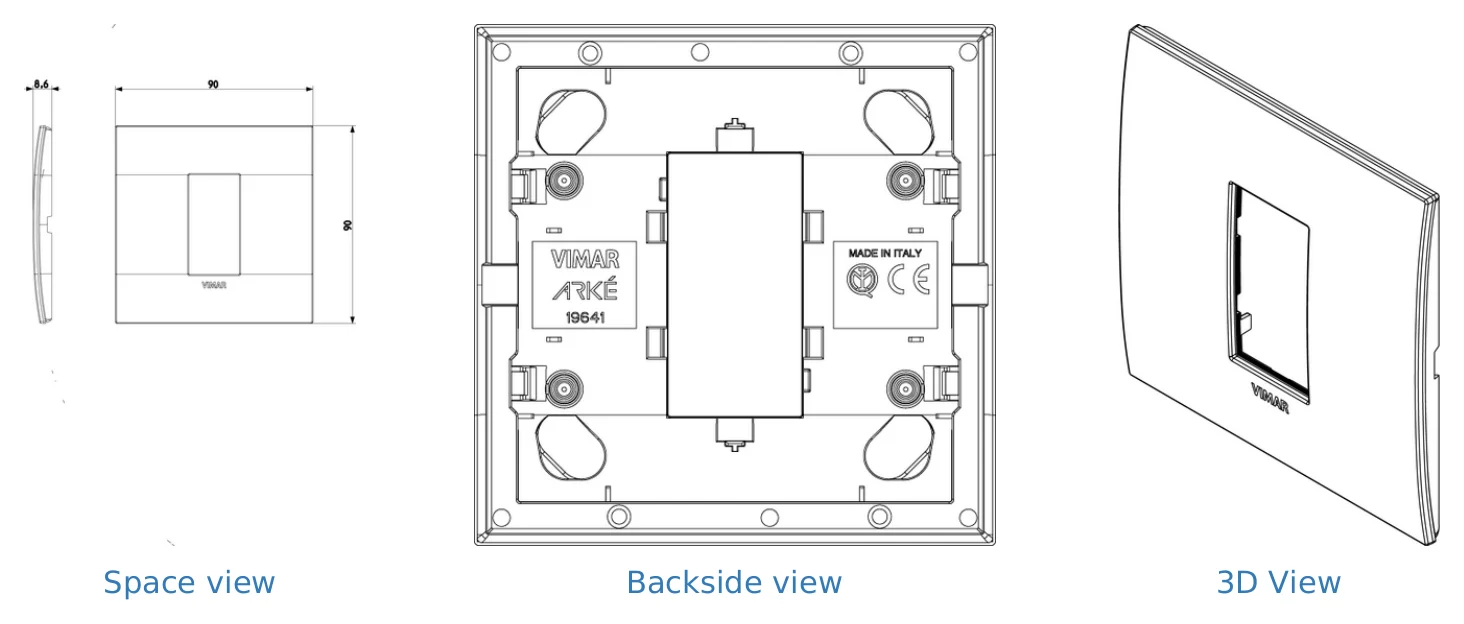

Technical drawings

VM-19641.02 Drawings
Drawings

Downloads

FAQ

What is the finish of the Vimar Arke Classic Plate 1M Metal Matt Slate?

This model has a matt slate finish in a grey colour tone. It is part of the Arké Metal range, designed to provide a contemporary metallic look for visible switch plate details.

Which Vimar series is this cover plate designed for?

This cover plate belongs to the Vimar Arké range. It is listed under Arké cover and Arké module categories, so it is intended for use within compatible Vimar Arké switch plate configurations.

Where is this Vimar Arké Metal plate commonly used?

The Arké Metal finish is suited to residential spaces and hotels where visible switch details are part of the interior design. Its matt slate colour works well in modern interiors that need a more distinctive finish than a standard white plate.

How many modules does the VM-19641.02 plate cover?

The product name identifies this as a 1M plate, meaning it is a one-module cover plate in the Vimar Arké Classic range. This makes it suitable for single-module Arké switch plate layouts.

What warranty period applies to this product?

The listed warranty period for SKU VM-19641.02 is 3 years. This warranty applies to the Vimar Arke Classic Plate 1M Metal Matt Slate model as specified in the product data.

How does the Arké Metal matt slate plate differ from a basic white plate?

The matt slate version is a material-driven Arké Metal finish with a grey metallic appearance. Compared with a classic minimalist white plate, it is intended to create a more distinctive design accent while keeping the same contemporary Arké aesthetic.
