Vimar

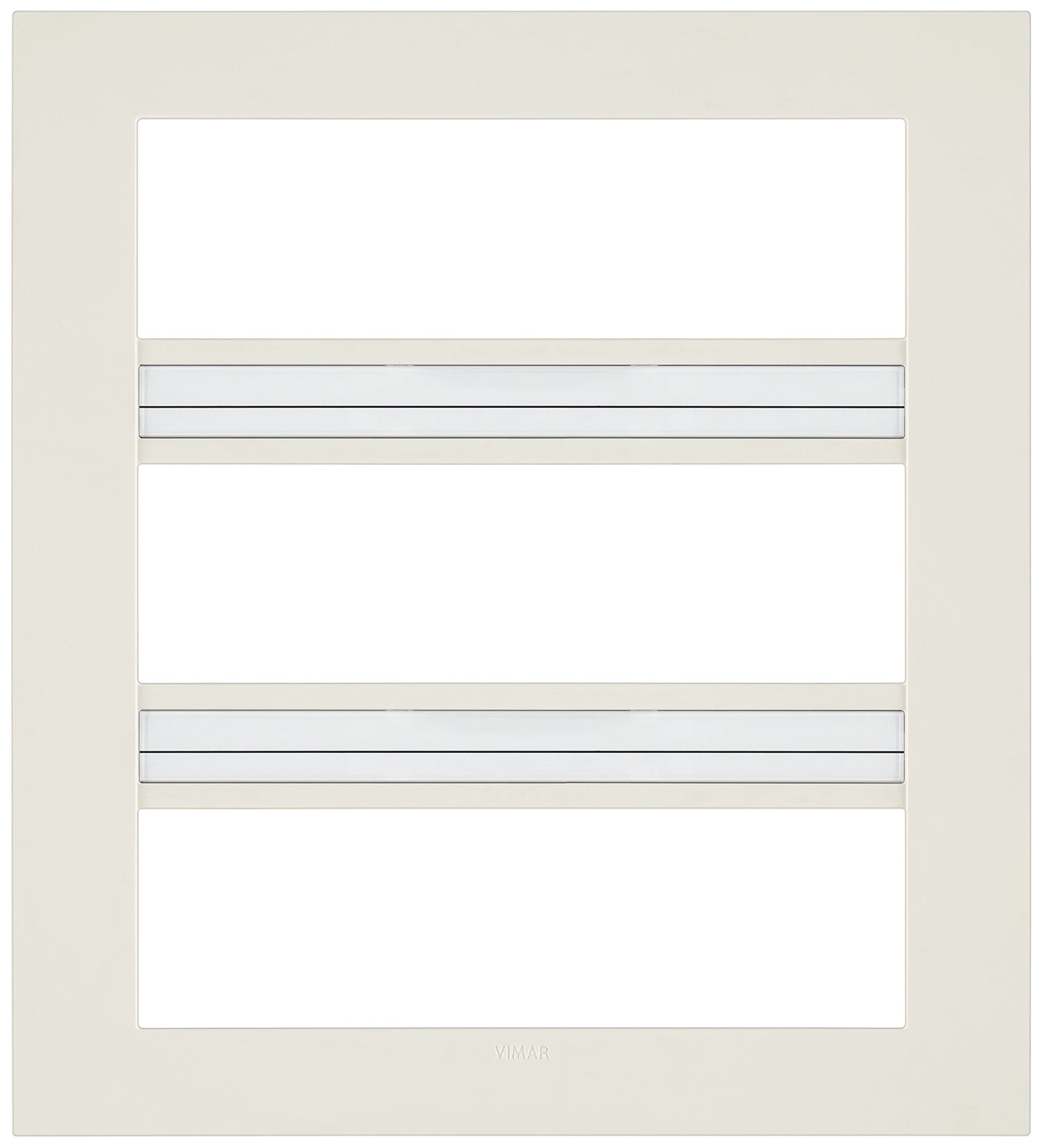

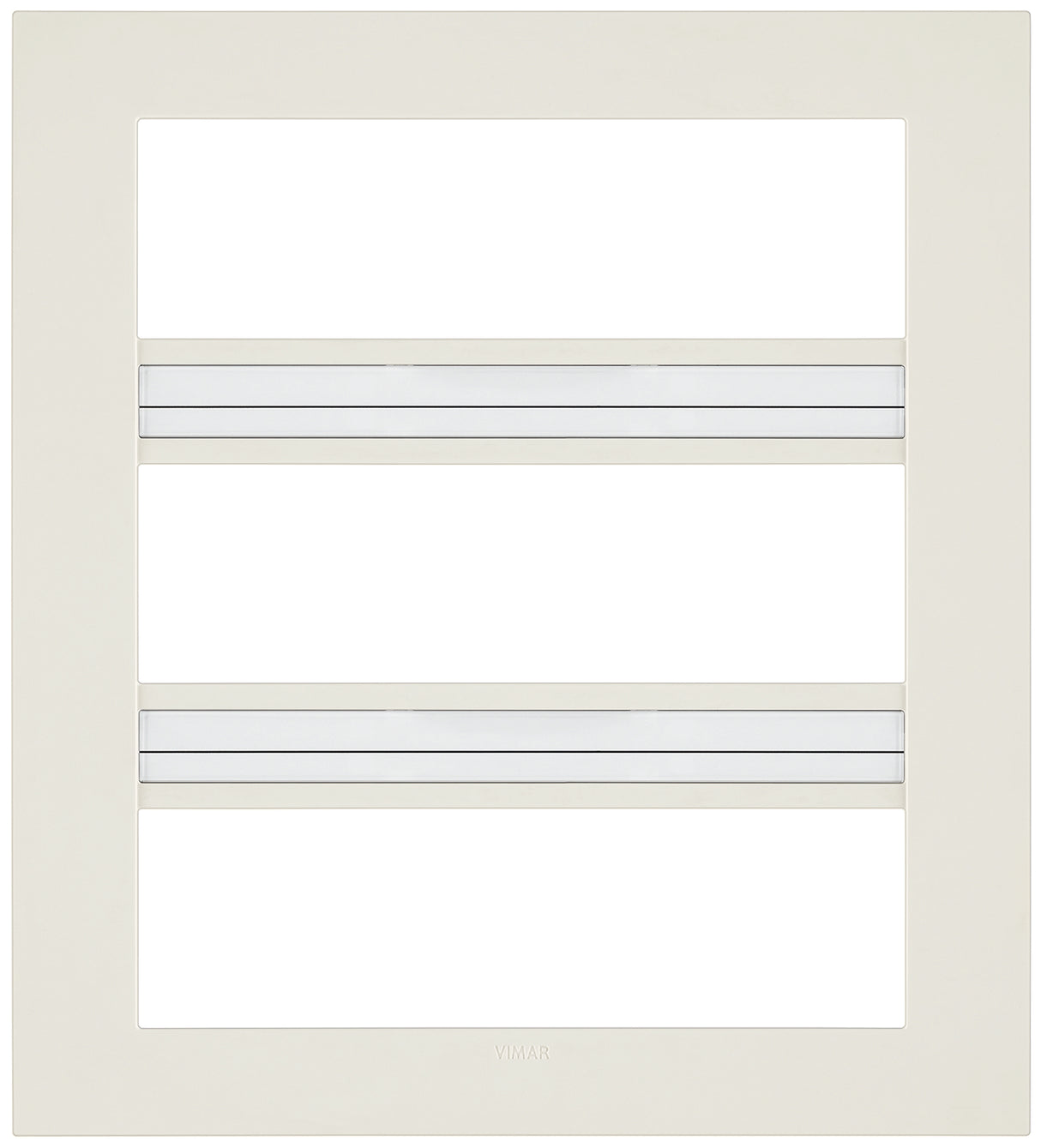

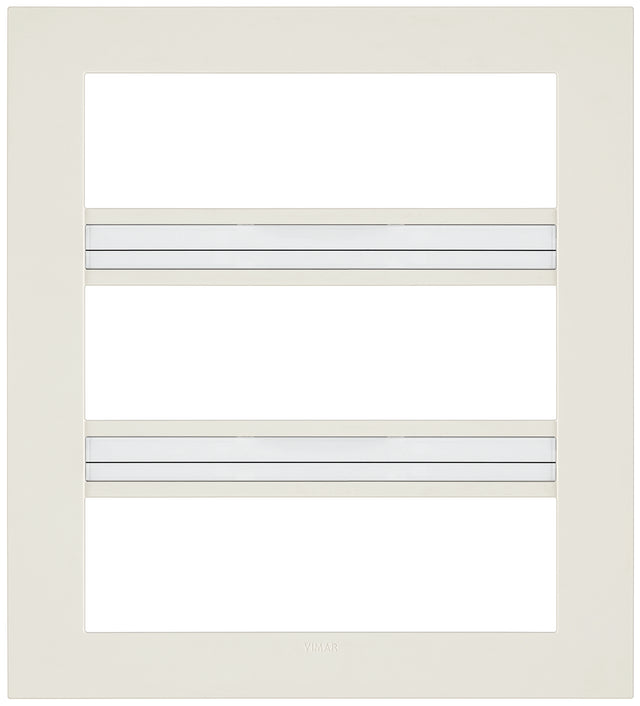

Vimar Arke Classic Plate 21M Technopolymer Ivory

21 ModuleCream_white
SKU VM-19661.73
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-19661.73 is Vimar ARKÉ 19661.73, classic plate 21M technopolymer ivory.

21-module Classic cover plate, technopolymer, ivory

Specifications

VM-19661.73Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
21
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
7
Number of device inserts vertical
3
Number of modules horizontal (module system)
7
Number of modules vertical (module system)
3
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9002
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
210 mm
Height
232 mm
Depth
8.6 mm
Built-in width
210 mm
Built-in height
232 mm

Packaging

EAN
8007352439764
Packed size (cm)
21 × 23.2 × 0.9
Packed weight
75.8 g
Pieces per box
5

Certifications

Certifications
CE marking (EU), IMQ (Italy)

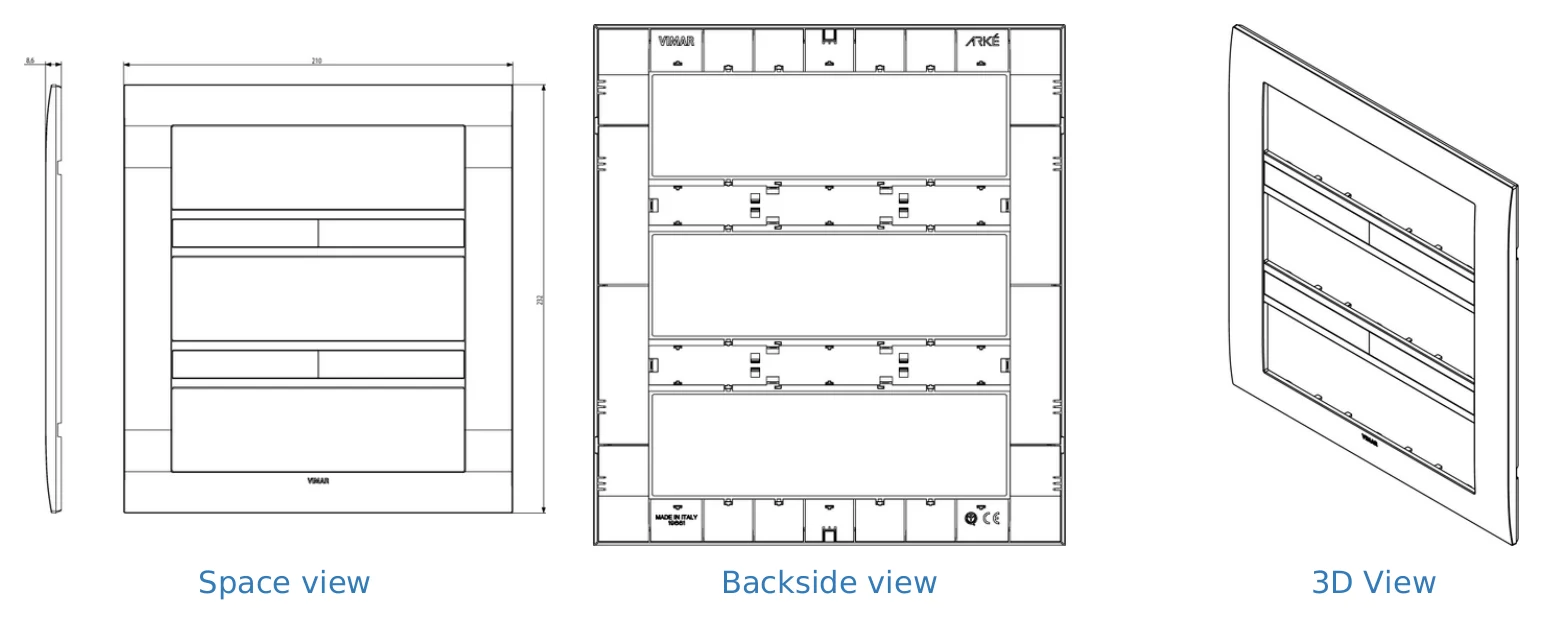

Technical drawings

VM-19661.73 Drawings
Drawings

Downloads

FAQ

What is the Vimar Arke Classic Plate 21M used for?

The Vimar Arke Classic Plate 21M is a cover plate for the Vimar Arké switch range. It is intended to provide a finished, coordinated appearance for compatible switch and socket installations in residential, hospitality, or commercial spaces.

Is this cover plate part of the Vimar Arké series?

Yes. This model is listed under the Vimar Arké cover and module categories, making it part of the Arké switch and socket design family. Buyers should match it with the appropriate Arké components for their project requirements.

What material is the VM-19661.73 plate made from?

This cover plate is made from technopolymer, a plastic material used for switch cover applications. The product is categorized as a plastic switch cover plate.

What colour is the Vimar Arke Classic Plate 21M?

The listed finish colour is cream white, and the product name describes it as ivory. This gives the plate a soft, neutral appearance suited to interiors where a warmer alternative to bright white is preferred.

Where is this ivory Arké cover plate commonly used?

The Arké range is designed for modern living spaces with a clean, universal aesthetic. This ivory technopolymer plate is suitable for coordinated use in homes, hotels, offices, and other interior environments where Vimar Arké devices are specified.

What warranty period is listed for this product?

The VM-19661.73 has a listed warranty period of 3 years. This warranty period applies to this product model as specified in the provided product data.

How much does the Vimar Arke Classic Plate 21M weigh?

The listed product weight is 0.5130 kg. This can help B2B buyers estimate handling, inventory, and shipping considerations for larger orders.
