Vimar

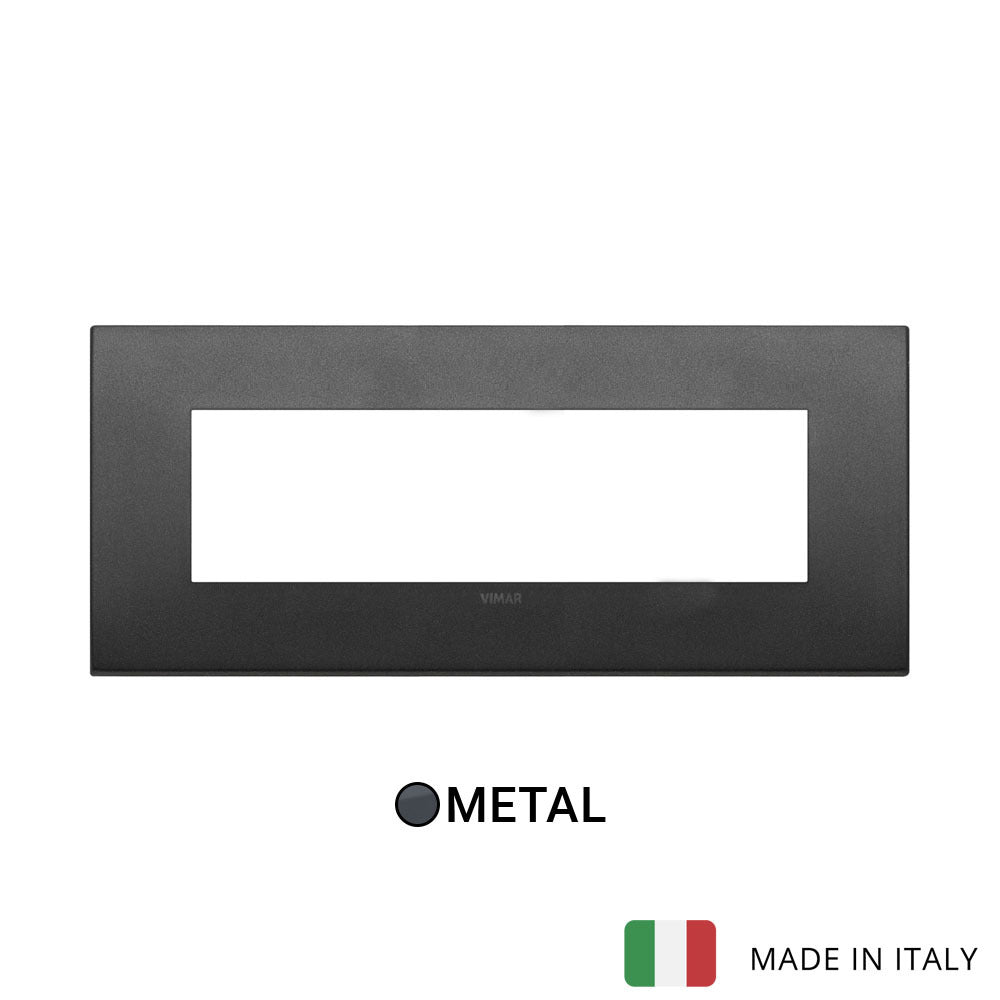

Vimar Arke Classic Plate 7M Metal Matt Graphite

7 ModuleAnthracite
SKU VM-19657.01
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-19657.01 is Vimar ARKÉ 19657.01, classic plate 7M metal matt graphite.

7-module Classic cover plate, metal, matt graphite

Specifications

VM-19657.01Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
7
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
7
Number of device inserts vertical
1
Number of modules horizontal (module system)
7
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Anthracite
RAL-number (similar)
9001
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
210 mm
Height
90 mm
Depth
8.6 mm
Built-in width
210 mm
Built-in height
90 mm

Packaging

EAN
8007352446717
Packed size (cm)
21.75 × 9.5 × 1.6
Packed weight
187.5 g
Pieces per box
5

Certifications

Certifications
CE marking (EU), IMQ (Italy)

Technical drawings

VM-19657.01 Drawings
Drawings

Downloads

FAQ

What series is the VM-19657.01 cover plate made for?

The VM-19657.01 is a Vimar Arké Classic plate. It is listed for the Arké cover plate range and is identified as a 7M plate, so it should be matched with the corresponding Vimar Arké 7M configuration.

What finish does this Vimar Arké Classic plate have?

This model has a metal matt graphite finish with an anthracite colour designation. The finish is intended to give the Arké range a contemporary, material-driven appearance.

Where is this matt graphite Arké plate typically used?

The Arké Metal range is suited to residential spaces and hotels where visible switch details are part of the design scheme. The matt graphite anthracite finish works well in modern interiors that need a darker, more understated plate.

How does the metal matt graphite version differ from a basic white Arké plate?

The matt graphite version is a material-driven metal plate with a darker anthracite appearance. Compared with a minimalist white plate, it is more design-focused and better suited to interiors where the switch plate is intended to stand out subtly.

What is the warranty period for VM-19657.01?

The VM-19657.01 Vimar Arké Classic Plate has a 3 year warranty period. This warranty detail applies to this specific product record.

How much does this Vimar Arké Classic Plate weigh?

The listed weight for this model is 1.0050 kg. This can be useful for B2B purchasing, logistics, and order planning.
