Vimar

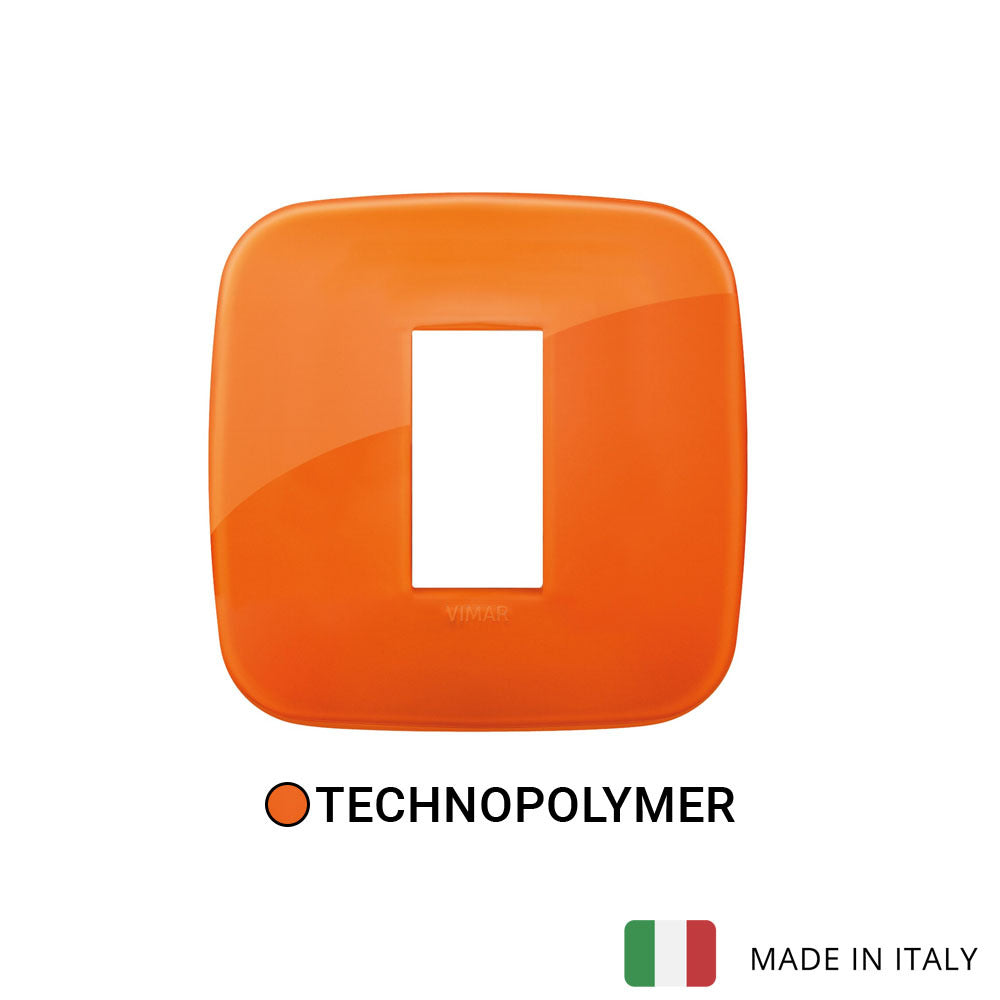

Vimar Arke Round Plate 1M Reflex Orange

1 ModuleOrange
SKU VM-19671.63
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-19671.63 is Vimar ARKÉ 19671.63, round 1M cover plate, Reflex orange.

Round 1-module cover plate, technopolymer, Reflex orange

Specifications

VM-19671.63Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
1
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
1
Number of device inserts vertical
1
Number of modules horizontal (module system)
1
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Acrylic glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Orange
RAL-number (similar)
2003
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
94.5 mm
Height
94.5 mm
Depth
9.1 mm
Built-in width
94.5 mm
Built-in height
94.5 mm

Packaging

EAN
8007352439849
Packed size (cm)
9.5 × 9.5 × 0.9
Packed weight
35.4 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), IMQ (Italy)

Technical drawings

VM-19671.63 Drawings
Drawings

Downloads

FAQ

What is the Vimar Arke Round Plate 1M Reflex Orange?

The Vimar Arke Round Plate 1M Reflex Orange is a switch cover plate from the Vimar Arké range. This model is identified by SKU VM-19671.63 and is supplied in an orange finish colour.

Which product family does this cover plate belong to?

This product belongs to the switch cover plate family and is associated with the Vimar Arké switch range. It is listed under Arké cover and module-related categories, making it intended for use within that product series.

Where is this orange Arké plate typically used?

This cover plate is suited to light switch and socket applications where the Vimar Arké aesthetic is required. The reflex orange finish can be useful for projects that need a more distinctive visual detail than a standard neutral plate.

How does the reflex orange finish differ from a standard white cover plate?

The reflex orange finish gives this plate a more expressive and decorative appearance than a classic minimalist white version. It is better suited to interiors where colour accents or standout design details are part of the specification.

What warranty period is listed for this model?

The listed warranty period for SKU VM-19671.63 is 3 years. Buyers should keep the product SKU and order details available for warranty reference.

What is the listed weight of this Vimar Arké cover plate?

The listed weight for this model is 0.3960 kg. This can help B2B buyers estimate shipment weight when ordering multiple cover plates for a project.
