Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

Vimar Arke Round Plate 2centrM Technopolymer White

2 ModuleWhite
SKU VM-19682.84
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

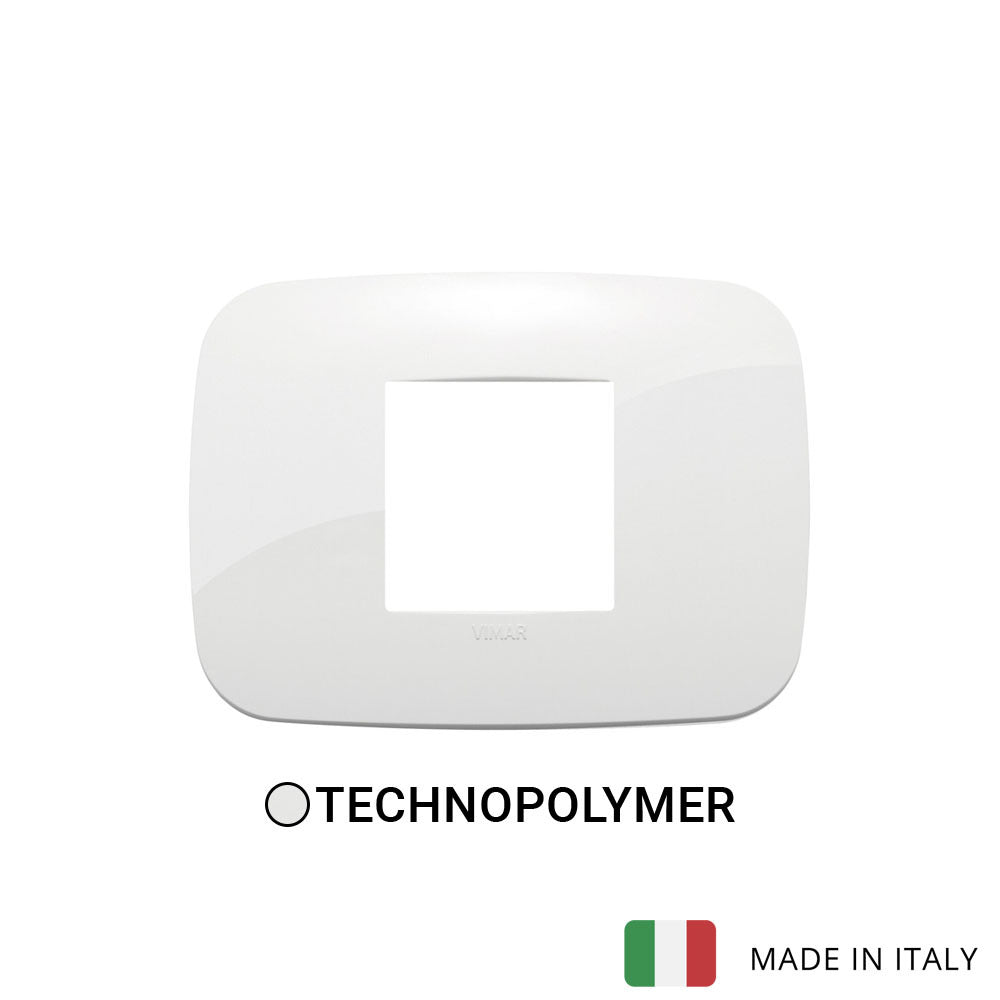

VM-19682.84 is Vimar ARKÉ 19682.84, round 2M cover plate, central, white.

Round 2-module cover plate, central, technopolymer, white

Specifications

VM-19682.84Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
2
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
2
Number of device inserts vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9016
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
122 mm
Height
90 mm
Depth
8.2 mm
Built-in width
122 mm
Built-in height
90 mm

Packaging

EAN
8007352440388
Packed size (cm)
12.2 × 9 × 0.9
Packed weight
21.4 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), IMQ (Italy)

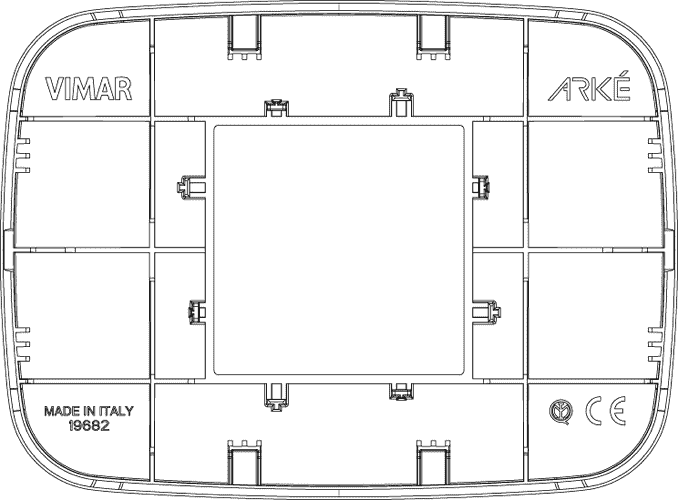

Technical drawings

VM-19682.84 Drawings
Drawings

Downloads

FAQ

What is the VM-19682.84 used for?

The VM-19682.84 is a Vimar Arké round cover plate for switch plate applications. It is intended for projects using the Vimar Arké range where a white technopolymer plate is required.

What material and finish does this Vimar Arké plate have?

This model is made from technopolymer and has a white finish. The white colour gives it a classic, minimalist appearance suitable for neutral residential or commercial interiors.

Is this cover plate suitable for hotels or residential projects?

Yes, the Arké range is positioned for modern living spaces, including residential environments and hotels. This white technopolymer version is a practical choice where a clean, universal aesthetic is preferred.

What temperature range is specified for VM-19682.84?

The specified operating temperature range is -20 °C to 50 °C. This makes the plate suitable for indoor environments that remain within those stated limits.

How much does this Vimar Arké cover plate weigh?

The listed weight for this model is 0.6100 kg. This specification can be useful for procurement, shipping estimates, and product comparison within a bill of materials.

What warranty period applies to this product?

The warranty period listed for VM-19682.84 is 3 years. Buyers should confirm any project-specific warranty handling with their supplier or distributor.
