Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

Vimar Arke Round Plate 4M Technopolymer White

4 ModuleWhite
SKU VM-19684.84
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

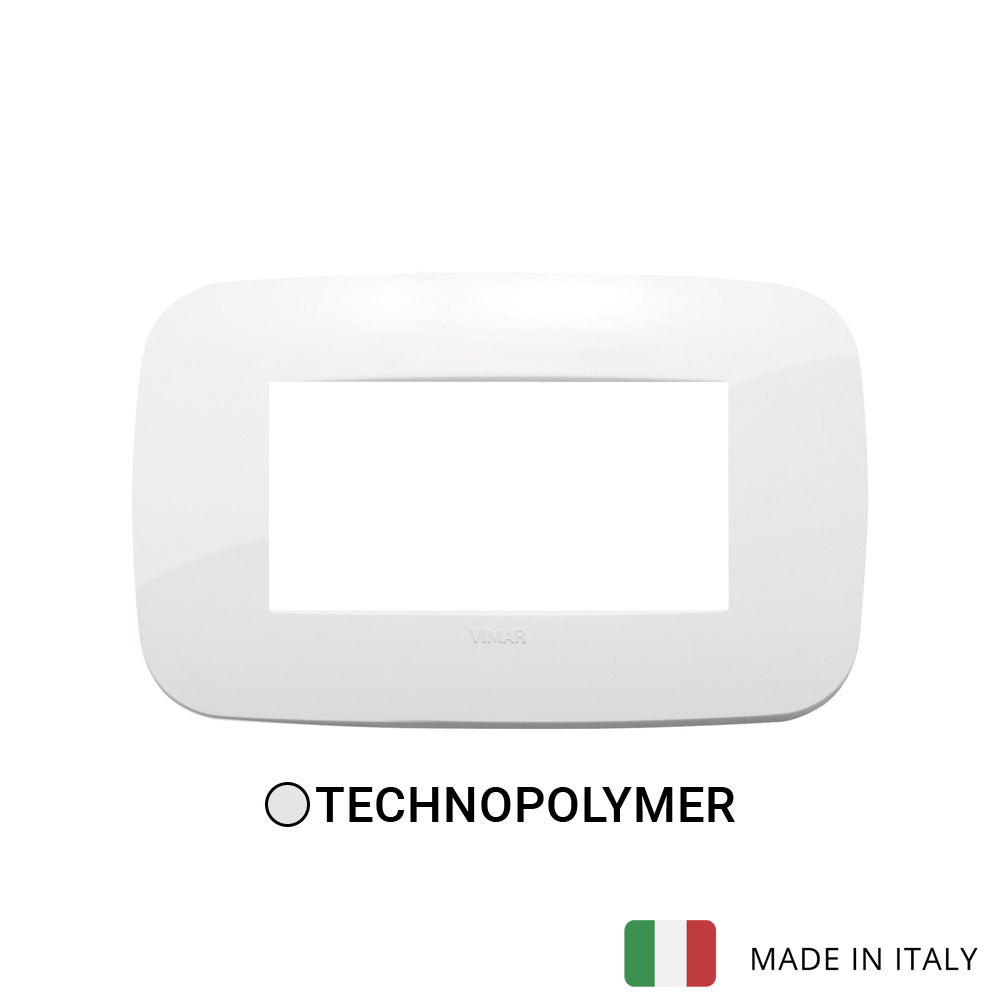

VM-19684.84 is Vimar ARKÉ 19684.84, round 4M cover plate white.

Round 4-module cover plate, technopolymer, white

Specifications

VM-19684.84Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
4
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
4
Number of device inserts vertical
1
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9016
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
144.5 mm
Height
90 mm
Depth
8.5 mm
Built-in width
144.5 mm
Built-in height
90 mm

Packaging

EAN
8007352440784
Packed size (cm)
14.5 × 9 × 0.9
Packed weight
21.4 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), IMQ (Italy)

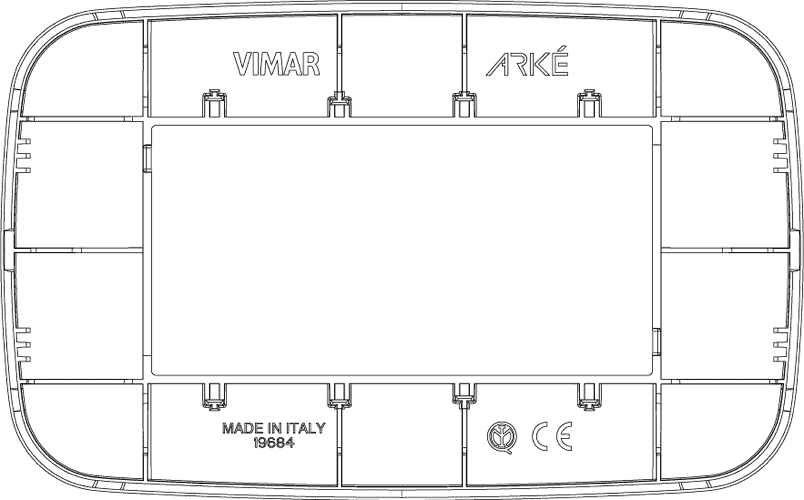

Technical drawings

VM-19684.84 Drawings
Drawings

Downloads

FAQ

What switch range is the Vimar VM-19684.84 plate made for?

The VM-19684.84 is part of the Vimar Arké switch cover plate range. It is intended for use with compatible Arké 4M switch and socket configurations.

What colour and material is this Vimar Arké 4M plate?

This model has a white finish and is made from technopolymer. The white finish gives it a classic, minimalist appearance suited to neutral interiors.

Where is this Vimar Arké round plate commonly used?

This plate is suited to residential spaces, hotels, and other interiors where a clean, contemporary switch finish is needed. Its minimalist white design is easy to coordinate with a wide range of room styles.

What temperature range is specified for this cover plate?

The specified operating temperature range is from -20 °C to 50 °C. This makes it suitable for typical indoor environments within that range.

What warranty period applies to the Vimar VM-19684.84?

The listed warranty period for this product is 3 years. This applies specifically to the Vimar Arke Round Plate 4M Technopolymer White model VM-19684.84.
