Vimar

Vimar Arke Round Plate 7M Metal Brushed Copper

7 ModuleBrushed_copper
SKU VM-19687.11
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

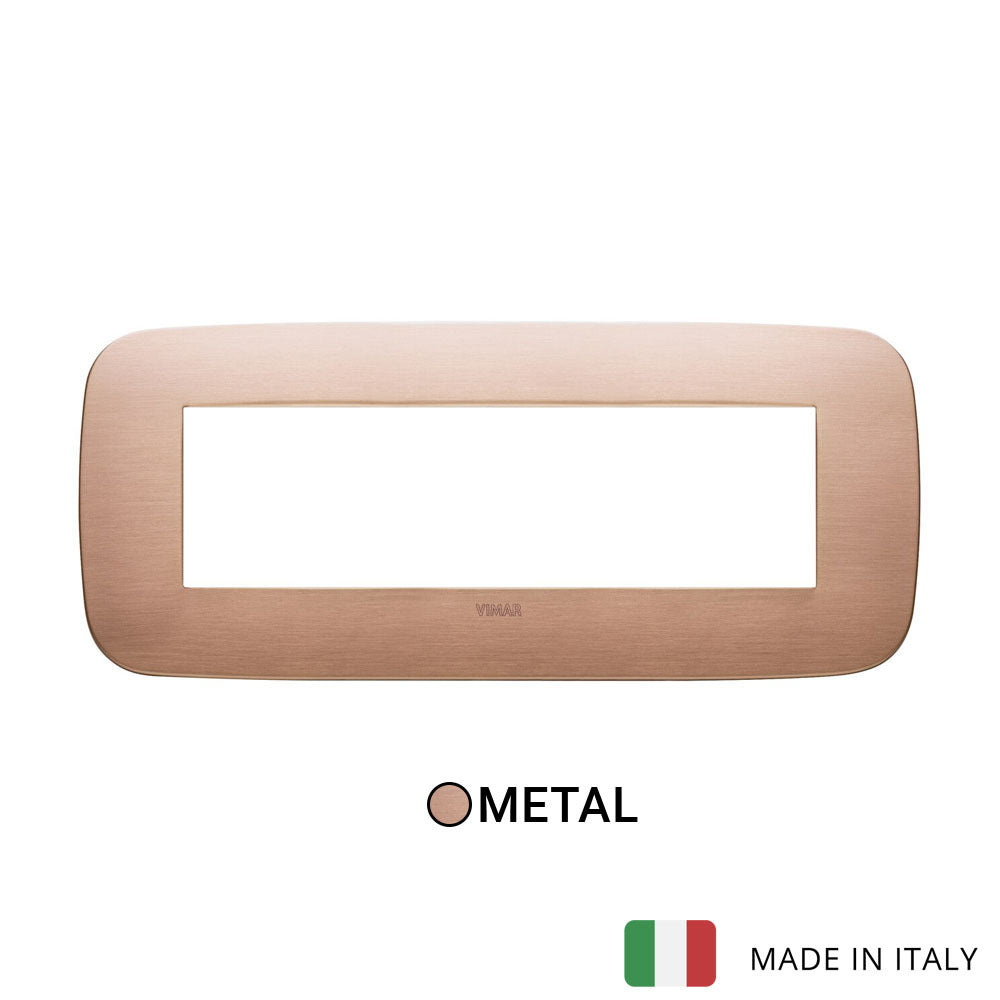

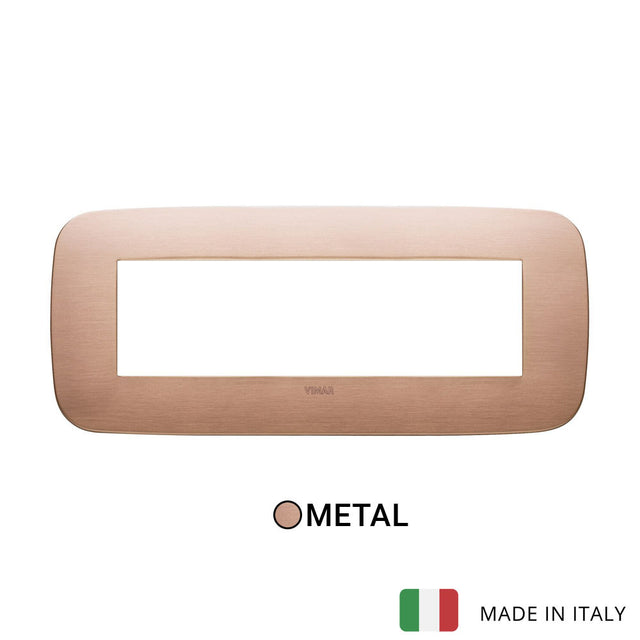

VM-19687.11 is Vimar ARKÉ 19687.11, round 7M cover plate brushed copper.

Round 7-module cover plate, metal, brushed copper

Specifications

VM-19687.11Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
7
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
7
Number of device inserts vertical
1
Number of modules horizontal (module system)
7
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Halogen free
Yes
Surface protection
Metallic
Surface finishing
Matt
RAL-number (similar)
3012
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
210 mm
Height
90 mm
Depth
8.5 mm
Built-in width
210 mm
Built-in height
90 mm

Packaging

EAN
8007352602533
Packed size (cm)
21.75 × 9.5 × 1.6
Packed weight
179 g
Pieces per box
5

Certifications

Certifications
CE marking (EU)

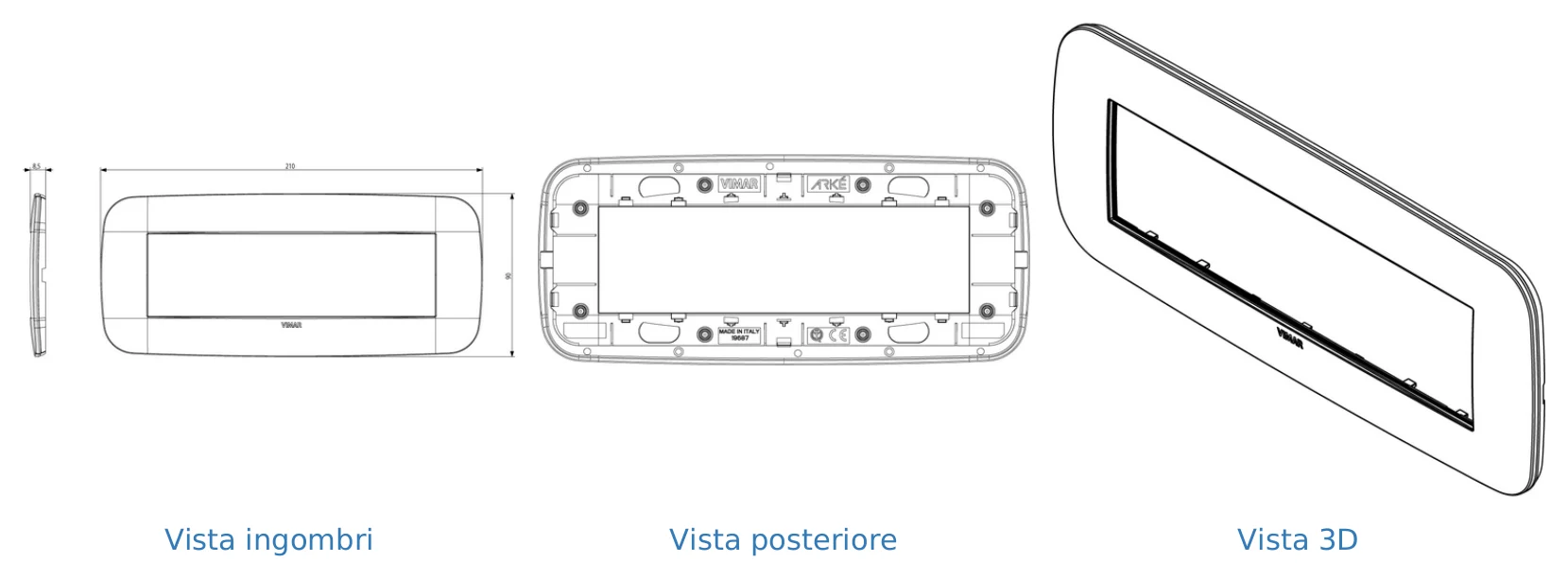

Technical drawings

VM-19687.11 Drawings
Drawings

Downloads

FAQ

What is the Vimar Arke Round Plate 7M Metal Brushed Copper used for?

The VM-19687.11 is a cover plate for Vimar Arké light switch and socket configurations. It is intended for product pages where the visible finish and series compatibility matter, especially in residential, hospitality, and commercial interiors.

What finish does this Vimar Arké cover plate have?

This model has a brushed copper finish. The metal finish gives the plate a warm, contemporary appearance suited to interiors that use metallic accents or premium design details.

Is this plate part of the Vimar Arké range?

Yes, this product is listed as part of the Vimar Arké switch and cover plate range. It is specifically described as a round 7M metal plate for Arké-style switch and socket applications.

Where is a brushed copper Arké plate a good choice?

The brushed copper metal finish is well suited to residential spaces, hotels, and design-focused commercial areas. It works well where a warmer metallic detail is preferred over a plain white or standard neutral plate.

How does this metal brushed copper plate differ from a basic white cover plate?

A basic white plate is typically chosen for a minimal, neutral look, while this brushed copper metal version is more decorative and material-driven. The VM-19687.11 is aimed at projects where the visible switch plate contributes to the overall interior style.

What are the listed warranty and weight for SKU VM-19687.11?

The listed warranty period for this Vimar Arké plate is 3 years. The listed product weight is 0.3291 kg.
