Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

Vimar Arke Round Plate 7M Metal Slate

7 ModuleGrey
SKU VM-19687.22
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

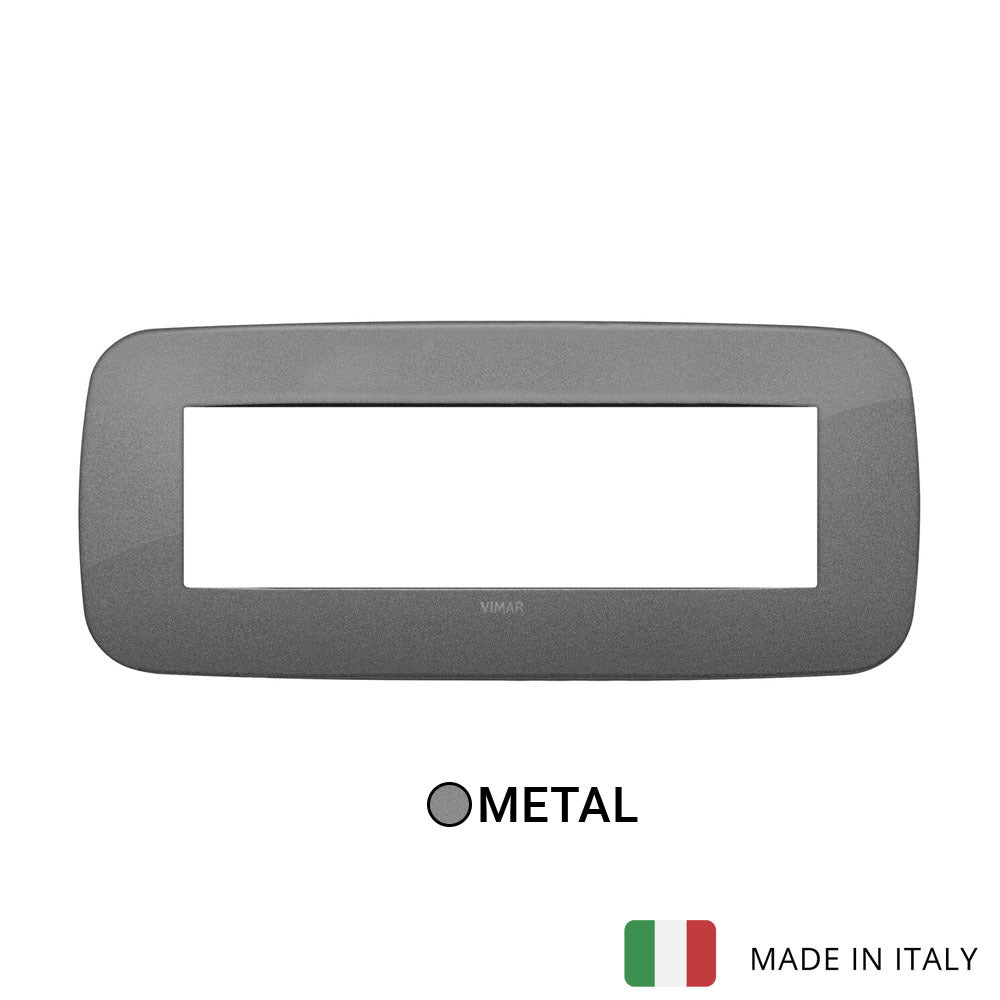

VM-19687.22 is Vimar ARKÉ 19687.22, round 7M slate cover plate.

Round 7-module cover plate, metal, slate

Specifications

VM-19687.22Specifications from the official datasheet

Technical data

Product type
Cover frame for domestic switching devices
Number of units
7
Mounting direction
Horizontal and vertical
Number of device inserts horizontal
7
Number of device inserts vertical
1
Number of modules horizontal (module system)
7
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7011
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
210 mm
Height
90 mm
Depth
8.5 mm
Built-in width
210 mm
Built-in height
90 mm

Packaging

EAN
8007352449626
Packed size (cm)
21.75 × 9.5 × 1.6
Packed weight
180.3 g
Pieces per box
5

Certifications

Certifications
CE marking (EU), IMQ (Italy)

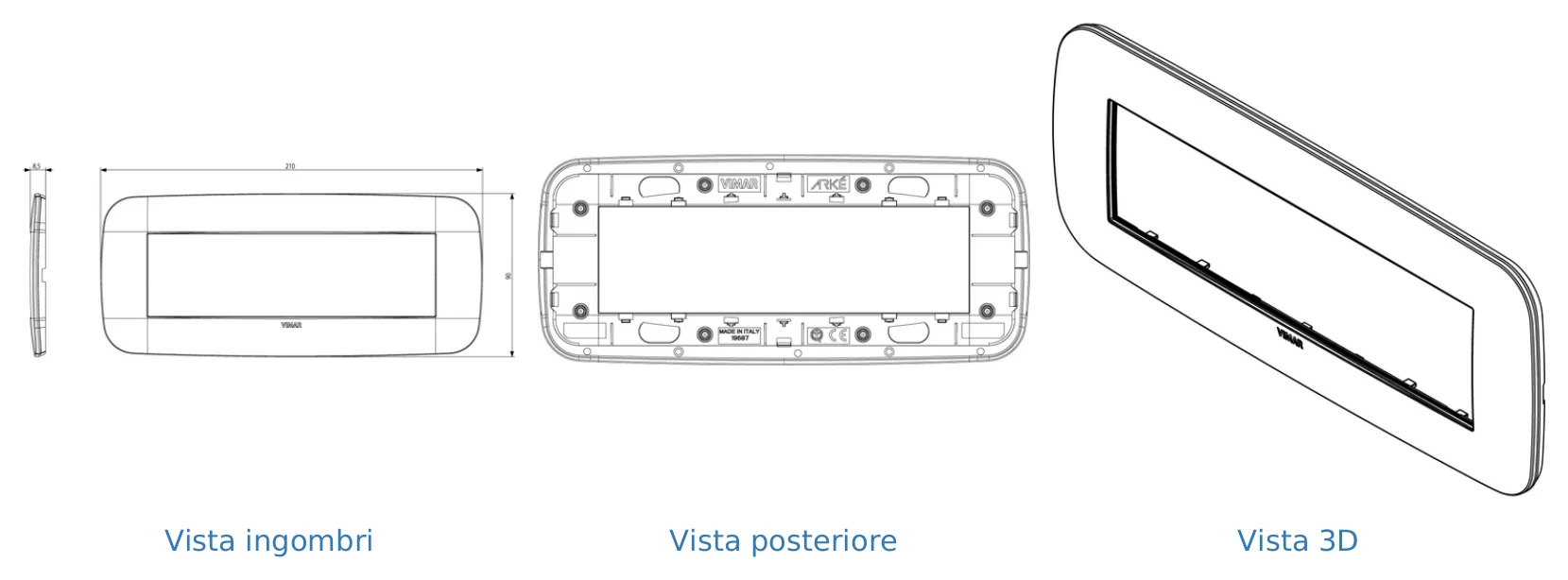

Technical drawings

VM-19687.22 Drawings
Drawings

Downloads

FAQ

What product series is the VM-19687.22 plate made for?

The VM-19687.22 is part of the Vimar Arké range. It is listed as a round 7M metal cover plate, so it is intended for matching Arké 7-module configurations.

Where is this Vimar Arké metal plate typically used?

This plate is suited to residential spaces and hotels where the visible finish of switches and sockets matters. Its contemporary metal slate look is designed for interiors that need a more refined finish than a basic white plate.

What colour and finish does the VM-19687.22 have?

The product name describes this model as Metal Slate, and the listed finish colour is grey. It is a material-driven Arké Metal version with a warm metallic appearance.

How does this Arké Metal plate differ from a standard white plate?

The description positions Arké as available in classic minimalist white as well as selected material-driven versions. This VM-19687.22 model is the Metal Slate option, making it better suited to projects where the switch plate is part of the design detail.

What is the warranty period for this product?

The VM-19687.22 has a listed warranty period of 3 years. This applies to this specific Vimar Arké Round Plate 7M Metal Slate model.

How much does the Vimar Arké Round Plate 7M Metal Slate weigh?

The listed weight for SKU VM-19687.22 is 0.3291 kg. This can help with purchasing, handling, and order planning for multi-room or project quantities.
