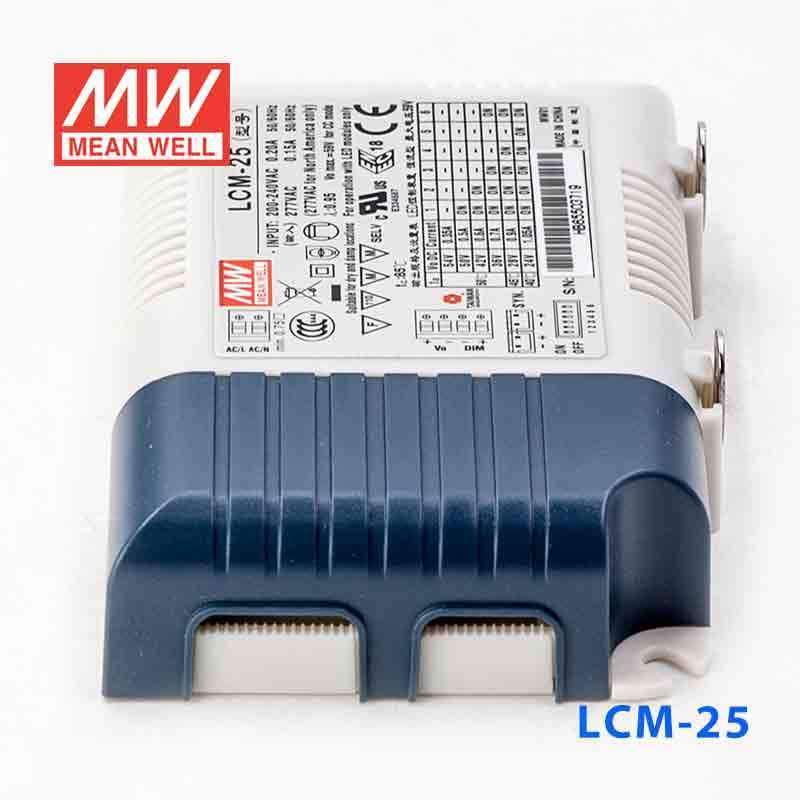

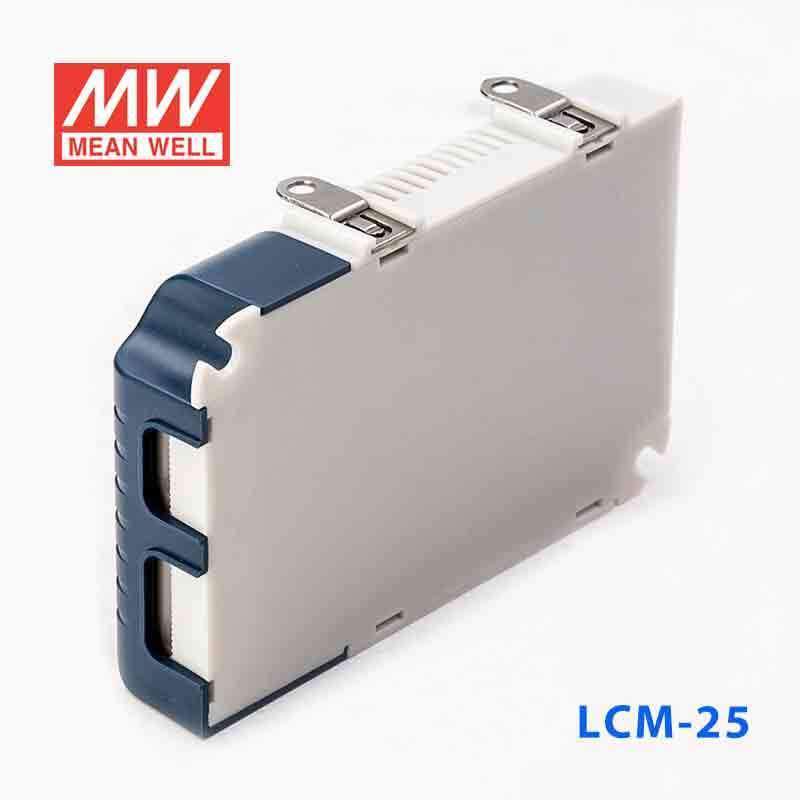

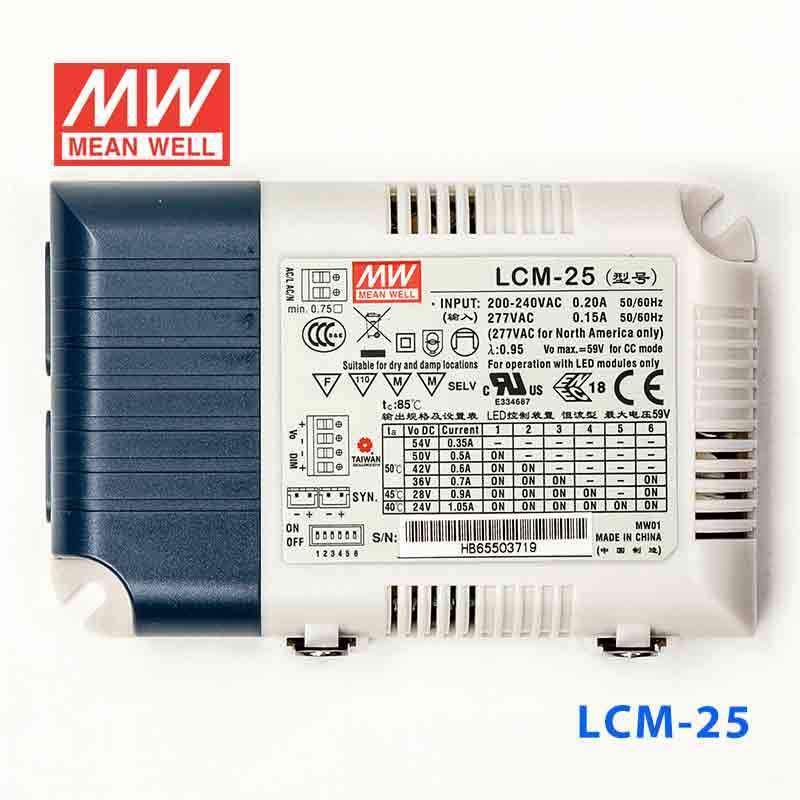

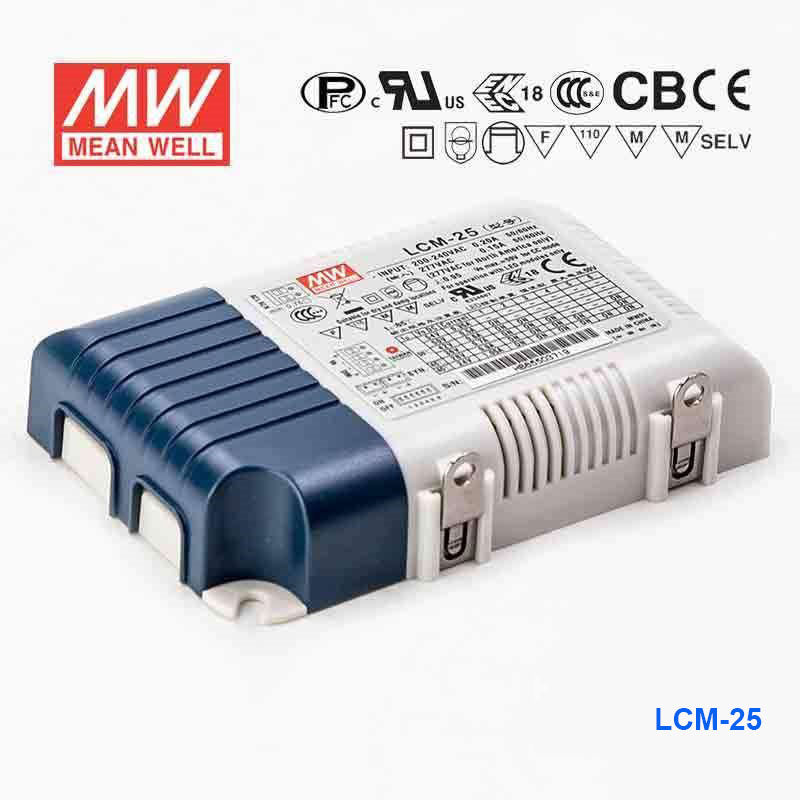

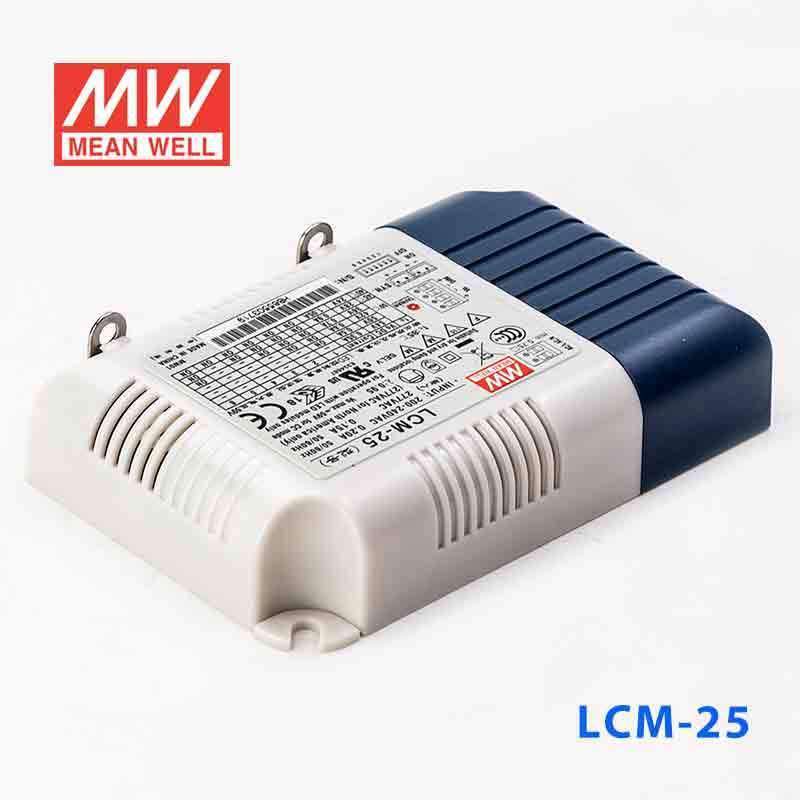

Mean Well LCM-25 Power Supply 25W 350mA 500mA 600mA 700mA(default) 900mA 1050mA - Dimmable

selectable output current using dip switchflicker-freeClass II without FGbuilt-in 3 in 1 dimming

SKU LCM-25

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The LCM-25 is a 25.2W Mean Well AC-DC constant current LED driver (input: 180~277VAC, output: 41V, operating temperature: -30~+85°C).

Key Features

✓ Input voltage: 180~277VAC
✓ Output voltage (max): 41V
✓ Rated output current: 700mA
✓ Selectable output current via dip switch
✓ 3-in-1 dimming (0–10V / PWM / resistance)
✓ Flicker-free output
✓ Class II design — no earth connection required
✓ Operating temperature: -30~+85°C
✓ Safety certifications: BSI, CB, CCC, CE, EAC, ENEC, UL
✓ 3 year warranty

Frequently Asked Questions

Can I use the LCM-25 for LED downlights?

Yes, the LCM-25 is a constant current LED driver rated at 25.2W with a 700mA default output current. Its 6-36V constant current range makes it suitable for LED downlights that are designed for constant current operation within that range, and it also includes built-in 3 in 1 dimming with flicker-free performance.

Is the LCM-25 suitable for signage LED modules?

It can be used for signage modules if the modules require constant current rather than constant voltage. This driver provides 700mA by default across a 6-36V CC range, so the total forward voltage of the module string needs to stay inside that range and within the 25.2W rating.

Can the LCM-25 run a small LED array?

Yes, it is intended for constant current LED loads such as small LED arrays when the array fits a 6-36V CC range at 700mA default. The 25.2W limit sets the driver size, so it is better suited to smaller arrays than higher-power assemblies.

How do I know if the LCM-25 is compatible with my LEDs?

Check that your LEDs require a constant current driver and that their combined forward voltage falls within the 6-36V constant current output range. The number of LEDs depends on each LED's forward voltage, so this should not be sized like a constant voltage supply.

What is the difference between the LCM-25 and other LCM series siblings?

Within the 25W class, LCM-25, LCM-25BLE, LCM-25DA, and LCM-25KN are listed at 25.2W with 700A and a 6-36V CC range, while LCM-25DA2 is listed at 25W with 0.7mA and a 277-180V CC range. Higher-output siblings include LCM-40, LCM-40BLE, LCM-40DA, and LCM-40KN at 42W with 700A and 2-57V; LCM-40DA2 at 40W with 0.6mA and 295-180V; LCM-40TW at 40W with 0.7mA and 20-50V; LCM-40U at 35W with 700A and 2-50V; LCM-60, LCM-60BLE, LCM-60DA, and LCM-60KN at 60.3W with 700A and 2-86V; LCM-60DA2 at 6W with 0.9mA and 295-180V; and LCM-60U at 50.4W with 700A and 2-72V.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well LCM-60 AC-DC Multi-Stage LED driver Constant Current	60.3W	102V	0.7A	Indoor	View
Mean Well LCM-40 Power Supply 42W 350mA 500mA 600mA 700mA(default) 900mA 1050mA - Dimmable	42W	65V	0.7A	Indoor	View
Mean Well LCM-25DA2 Power Supply 25W 350mA 500mA 600mA 700mA(default) 900mA 1050mA - DALI2 and Push	25W	41V	0.7A	IP20	View
Mean Well LCM-60DA2 Power Supply 60W 500mA 600mA 700mA(default) 900mA 1050mA 1400mA - DALI2 and Push	6W	95V	0.9A	IP20	View
Mean Well LCM-40TW Power Supply 42W 350mA 500mA 600mA 700mA(default) 900mA 1050mA - Tunable White	40W	53V	0.7A	—	View
Mean Well LCM-40DA2 Power Supply 40W 350mA 500mA 600mA 700mA(default) 900mA 1050mA - DALI2 and Push	40W	65V	0.6A	IP20	View
