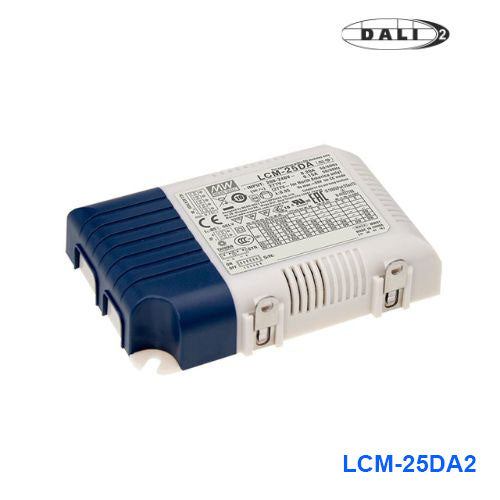

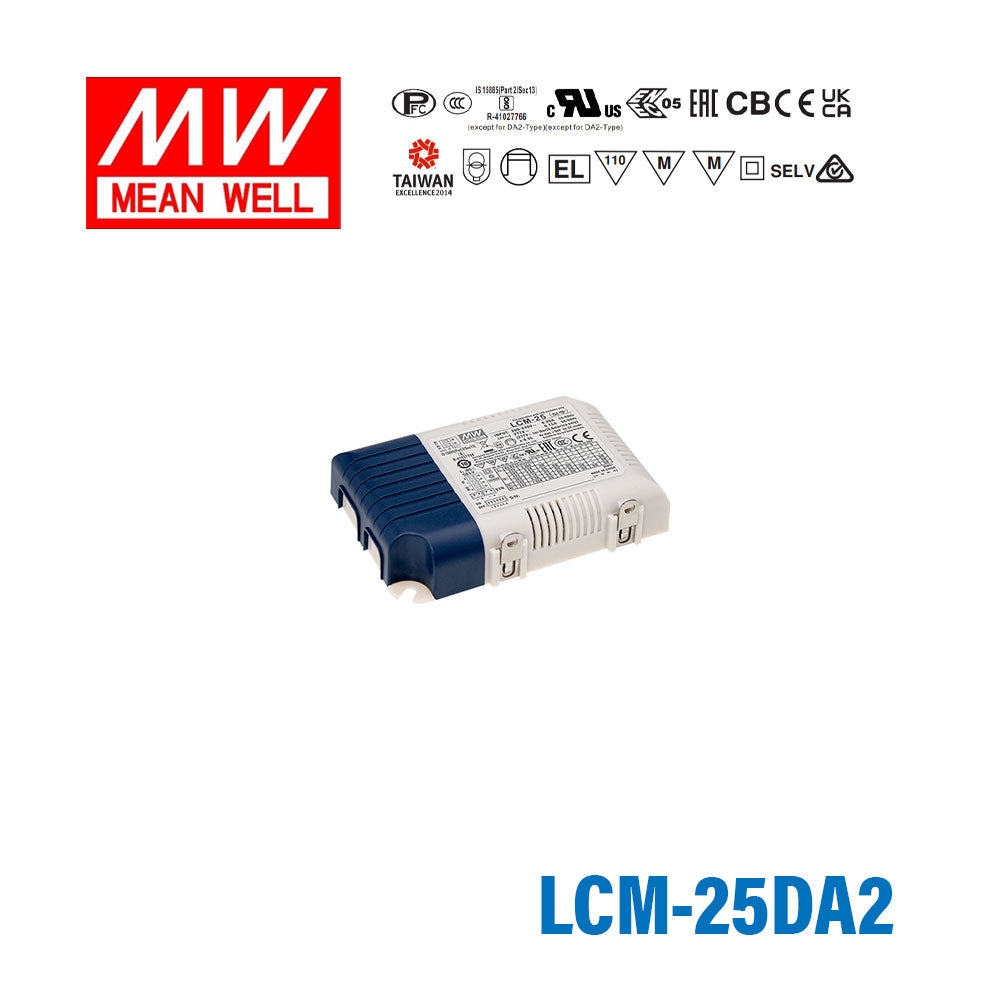

Mean Well LCM-25DA2 Power Supply 25W 350mA 500mA 600mA 700mA(defaul...
Please Login for Pricing
Description
Description
Features
| Constant current mode output with multiple levels selectable by dip switch |
| Plastic housing with class II design |
| Built-in active PFC function |
| Standby power consumption<0.5W(EL) |
| Functions: 3 in 1 dimming (dim-to-off); synchronization up to 10 units |
| 3 years warranty |
General Specification
| AC input voltage range | 180~277VAC; 254~392VDC |
| AC inrush current (Typ.) | COLD START 20A(twidth=260μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
| Short circuit protection | Constant current limiting, recovers automatically after fault condition is removed |
| Over temperature protection | Shut down o/p voltage, recovers automatically after temperature goes down |
| Setup time | 500ms / 230VAC |
| Withstand voltage | I/P-O/P:3.75KVAC |
| Working temperature | Tcase=-30 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| Safety standards | ENEC EN61347-1, EN61347-2-13 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020 |
| Dimension (LxWxH)(mm) | 105*68*23mm |
| Packing | 72pcs/12.5Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesLCM Series
-
Power Rating25 Watt
-
Output Voltage41 Volt
-
Rated Current0.7 Ampere
-
Input Voltage180V~277V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length10.5 cm
-
Width6.8 cm
-
Height2.3 cm
-
Weight0.17 kg
