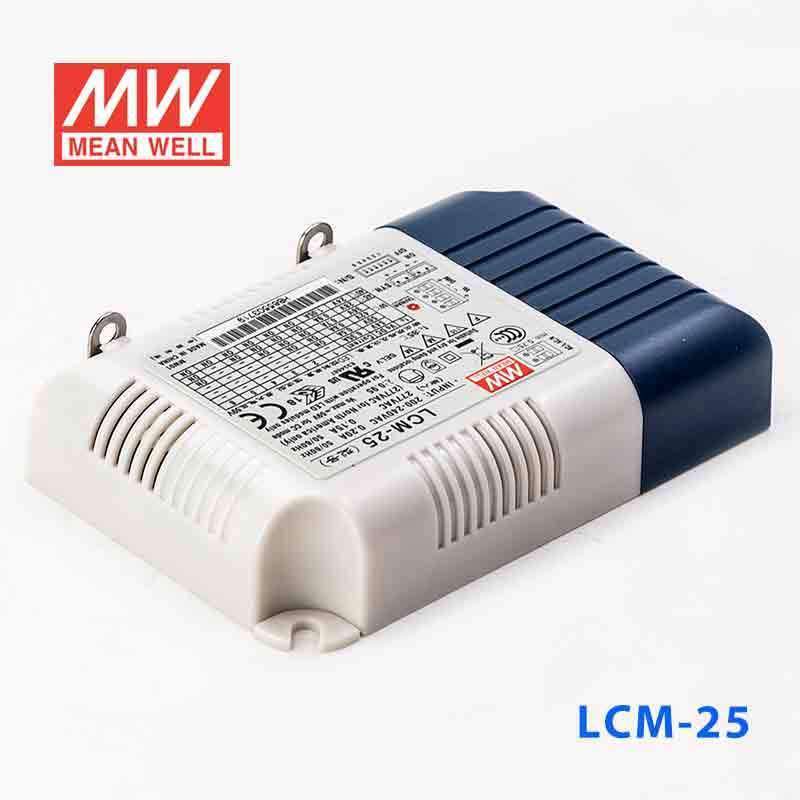

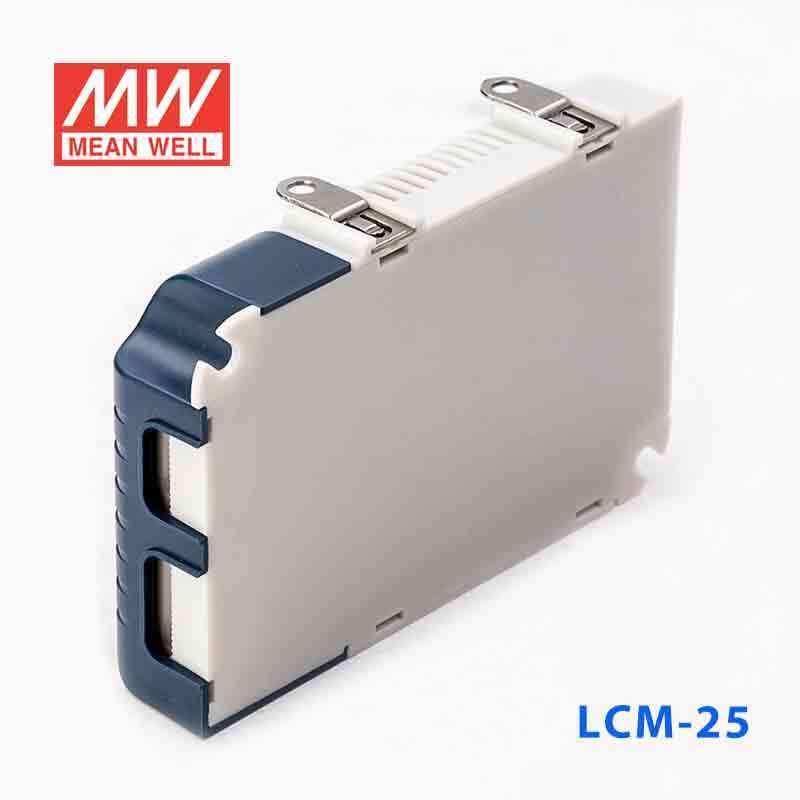

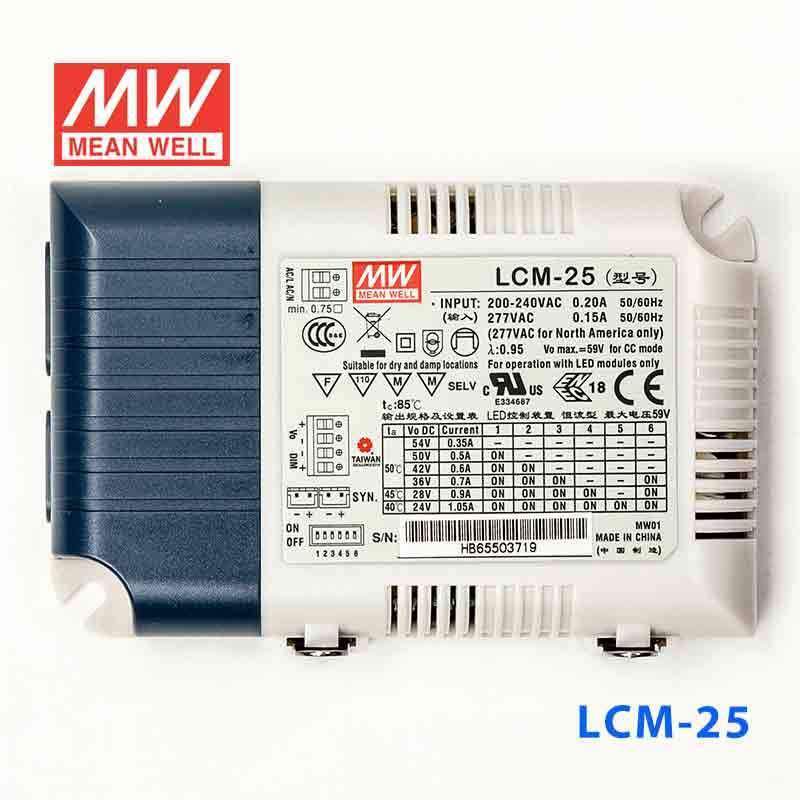

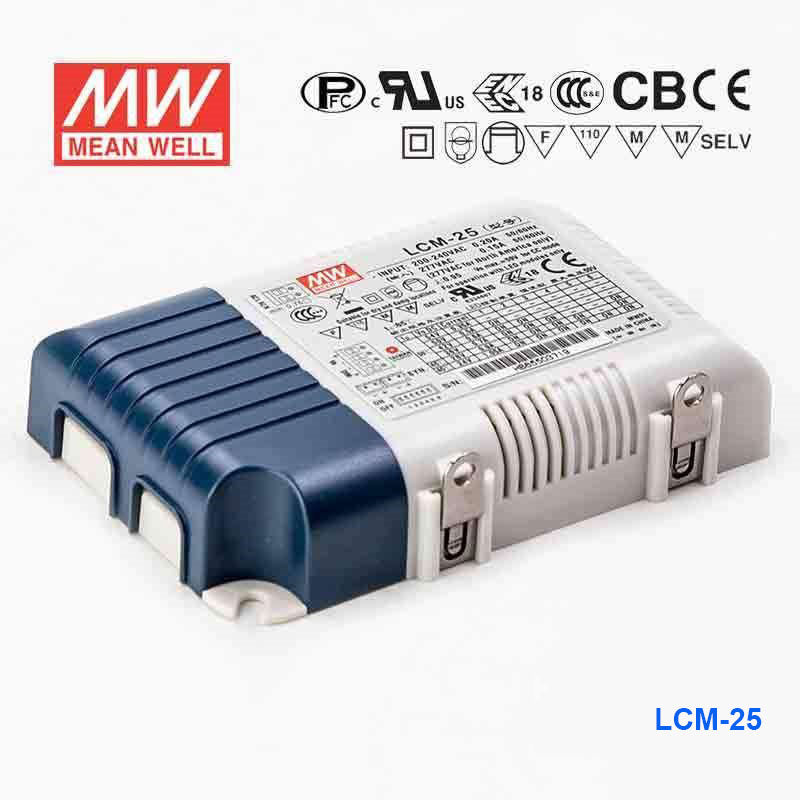

Mean Well LCM-25 Power Supply 25W 350mA 500mA 600mA 700mA(default) 900mA 1050mA - Dimmable

selectable output current using dip switch, flicker-free, Class II without FG, built-in 3 in 1 dimming
SKU:
LCM-25

|

Description

Features

Constant current mode output with multiple levels selectable by dip switch
Plastic housing with class II design
Built-in active PFC function
Standby power consumption<0.5W(EL)
Functions: 3 in 1 dimming (dim-to-off); synchronization up to 10 units
3 years warranty

General Specification

AC input voltage range 180~277VAC; 254~392VDC
AC inrush current (Typ.) COLD START 20A(twidth=260μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
Short circuit protection Constant current limiting, recovers automatically after fault condition is removed
Over temperature protection Shut down o/p voltage, recovers automatically after temperature goes down
Setup time 500ms / 230VAC
Withstand voltage I/P-O/P:3.75KVAC
Working temperature Tcase=-30 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
Safety standards ENEC EN61347-1, EN61347-2-13
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020
Dimension (LxWxH)(mm) 105*68*23mm
Packing 72pcs/12.5Kg

Specifications

  • Brand
    Mean Well
  • Series
    LCM Series
  • Power Rating
    25.2 Watt
  • Output Voltage
    41 Volt
  • Rated Current
    0.7 Ampere
  • Input Voltage
    180V~277V
  • Standards Met
    BSI,CB,CCC,CE,EAC,ENEC,UL
  • Operation Mode
    Constant Current
  • Operating Temperature
    -30°C~85°C
  • Warranty
    3 Year
  • Length
    10.5 cm
  • Width
    6.8 cm
  • Height
    2.3 cm
  • Weight
    0.16 kg

File Downloads

::specification::
