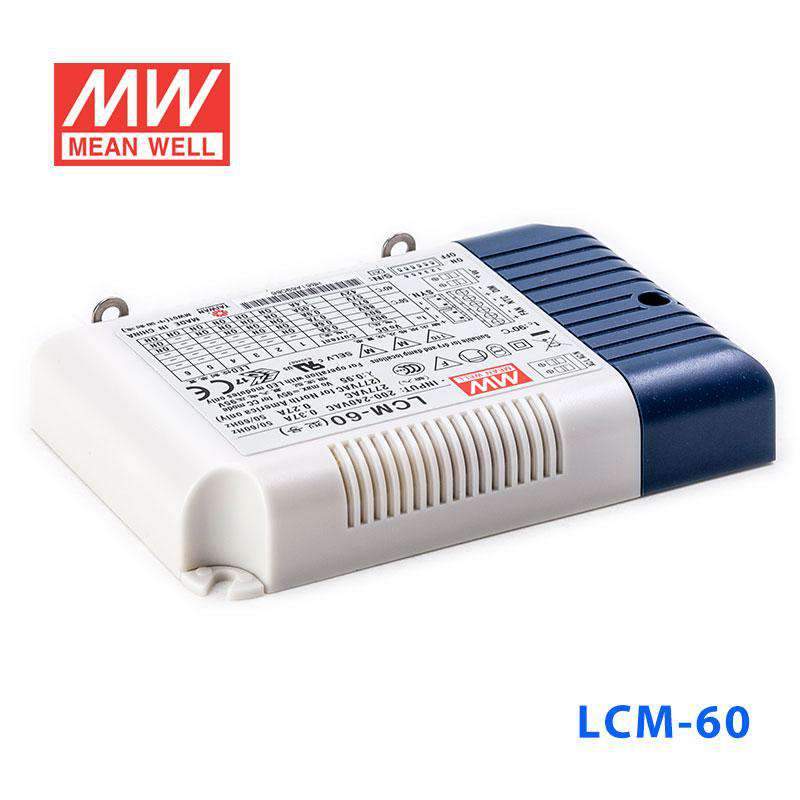

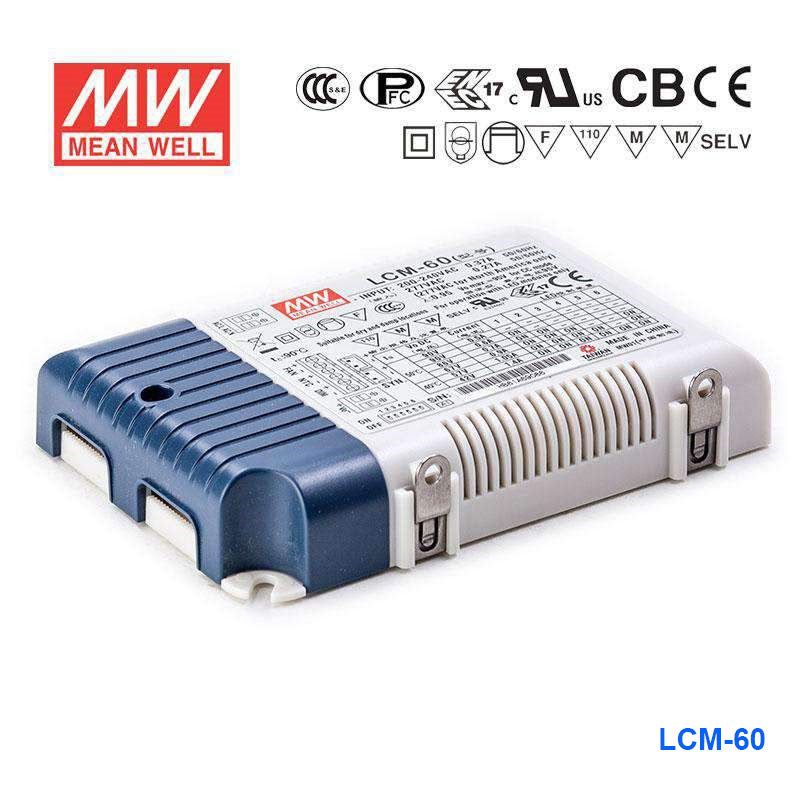

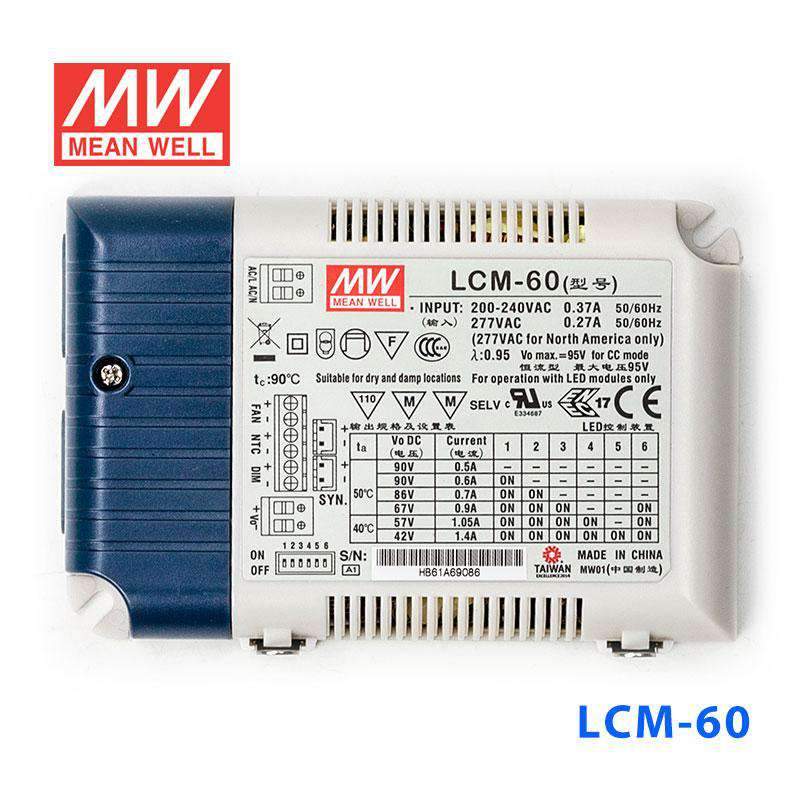

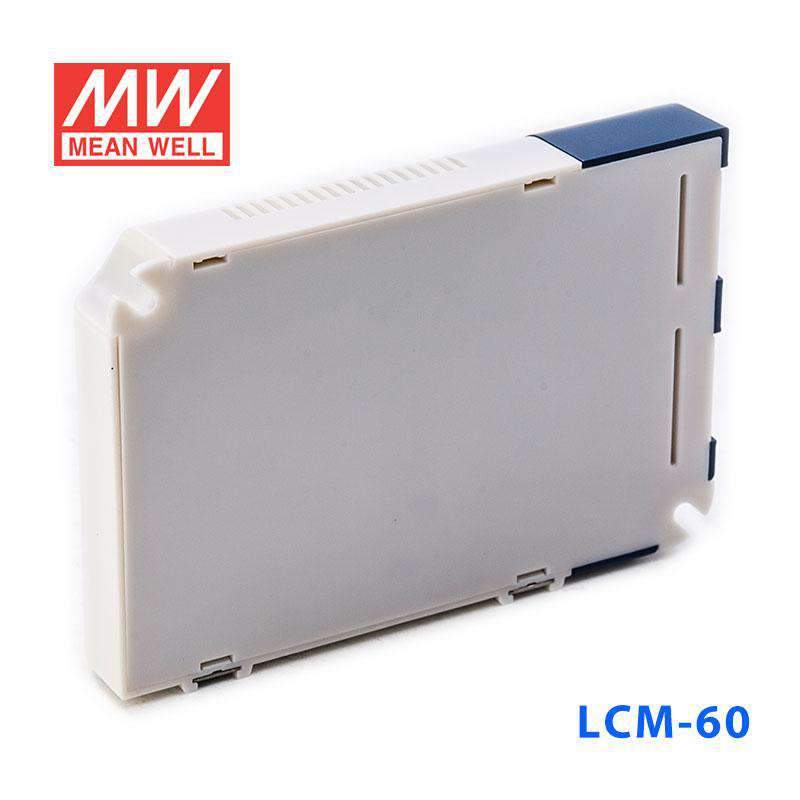

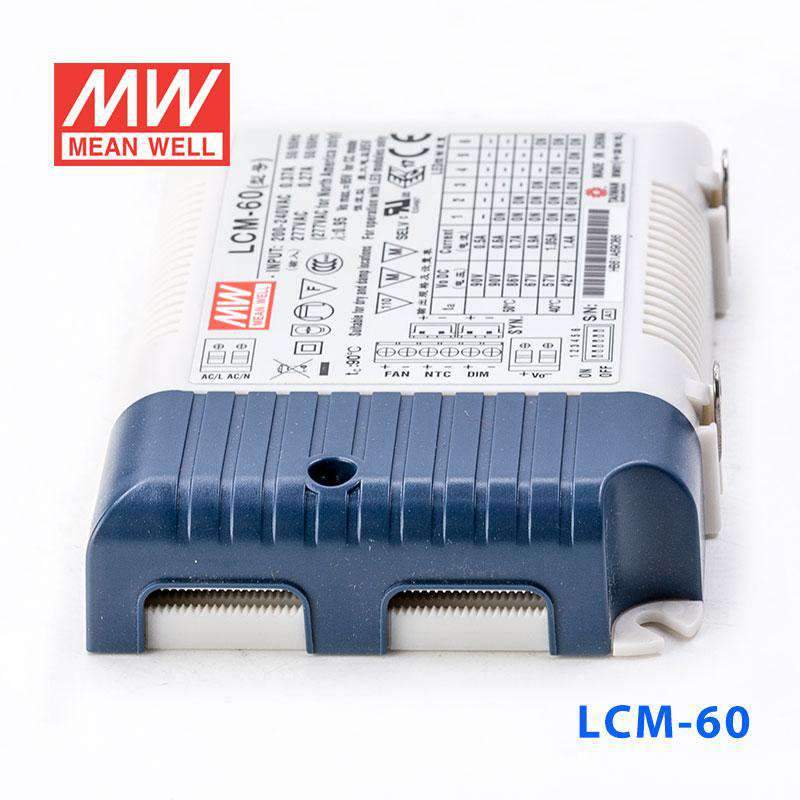

Mean Well LCM-60 AC-DC Multi-Stage LED driver Constant Current
Please Login for Pricing
Description
Description
Features
| Constant current mode output with multiple levels selectable by dip switch |
| Plastic housing with class II design |
| Built-in active PFC function |
| Standby power consumption <1W |
| Functions: 3 in 1 dimming (dim-to-off); Auxiliary DC output; synchronization up to 10 units |
| Optional: Wireless LED driver with integrated EnOcean module |
| 3 years warranty |
General Specification
| AC input voltage range | 180~295VAC; 254~417VDC |
| AC inrush current (Typ.) | COLD START 20A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
| Short circuit protection | Constant current limiting recovers automatically after the fault condition is removed |
| Over temperature protection | Shut down o/p voltage, re-power on to recover |
| Setup time | 500ms / 230VAC |
| Withstand voltage | I/P-O/P:3.75KVAC |
| Working temperature | Tcase=-30 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| Safety standards | UL8750, CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, GB19510.14,GB19510.1,BIS IS15885, EAC TP TC 004 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020 |
| Dimension (LxWxH)(mm) | 123.5*81.5*23mm |
| Packing | 54pcs/15Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesLCM Series
-
Power Rating60.3 Watt
-
Output Voltage102 Volt
-
Rated Current0.7 Ampere
-
Input Voltage180V~295V
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~90°C
-
Warranty3 Year
-
Length12.35 cm
-
Width8.15 cm
-
Height2.3 cm
-
Weight0.24 kg
