What is the output of the Mean Well PLC-100-48?

The PLC-100-48 provides a 48V DC output with a rated current of 2.0A. Based on the supplied product data, its rated output power is 96W.

What types of applications is the PLC-100-48 designed for?

This model is described as suitable for LED lighting and moving sign applications. Its constant voltage output with built-in constant current limiting also makes it relevant for buyers looking for a regulated 48V LED power supply.

Does the Mean Well PLC-100-48 support dimming?

No. The product data for this model lists dimming control as none, so it is not presented as a dimmable power supply.

What protections are included in the PLC-100-48?

According to the product description, the PLC-100-48 includes protection for short circuit, over current, over voltage, and over temperature. These built-in protections help support reliable operation in demanding commercial lighting applications.

Can the PLC-100-48 be used in a wide range of ambient temperatures?

The specified operating temperature range in the provided data is -30°C to 50°C. That makes it suitable for applications where the power supply may be exposed to both low and moderately high ambient temperatures.

What distinguishes the PLC-100-48 from lower-voltage LED power supplies?

The PLC-100-48 is a 48V model, so it is intended for equipment that specifically requires a 48V DC supply rather than lower-voltage alternatives. Buyers should match the output voltage and current rating to the requirements of the load before selecting this model.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

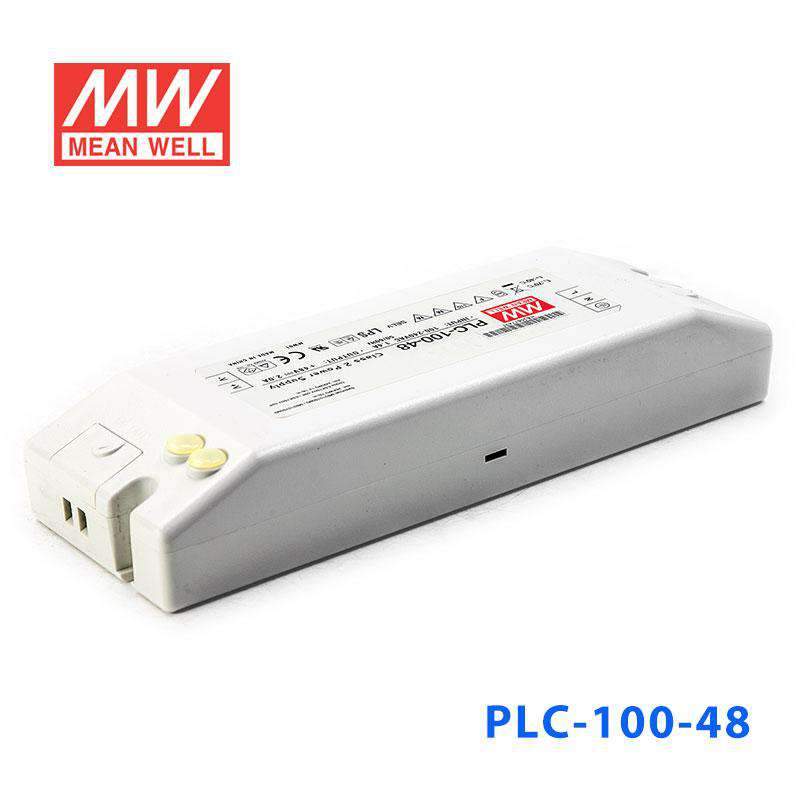

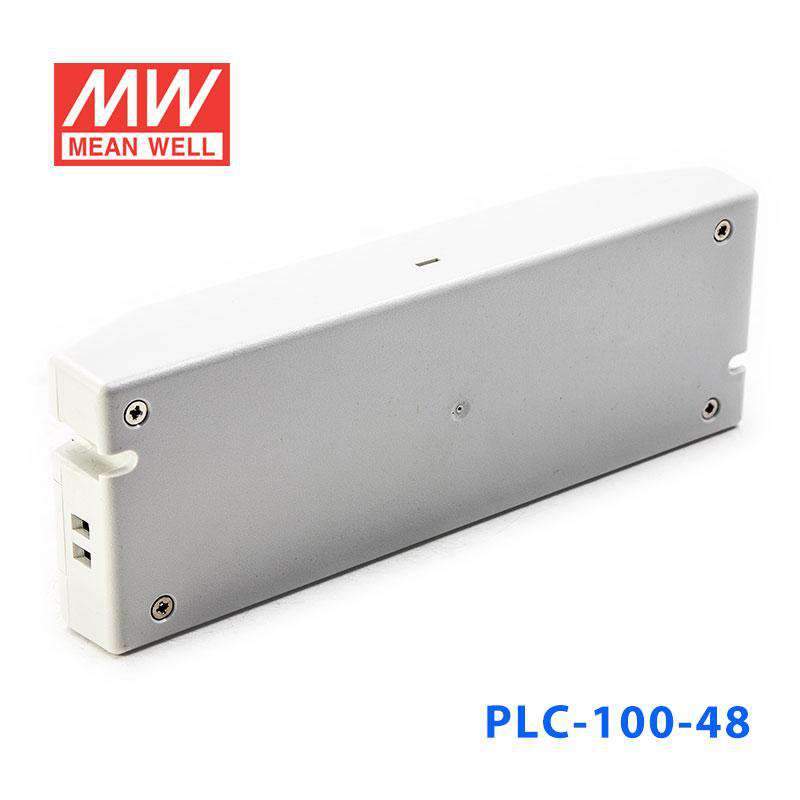

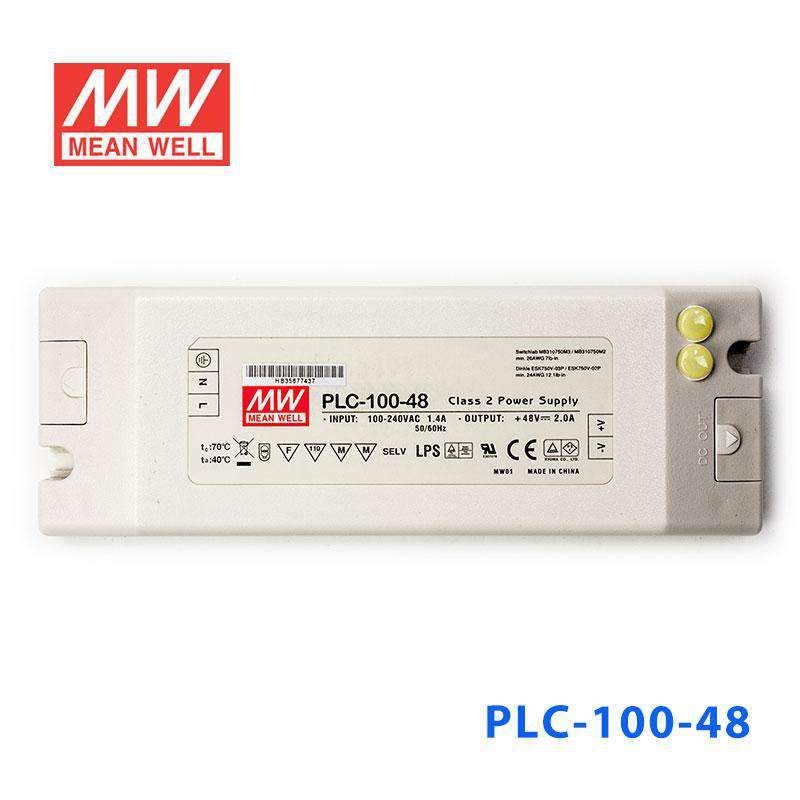

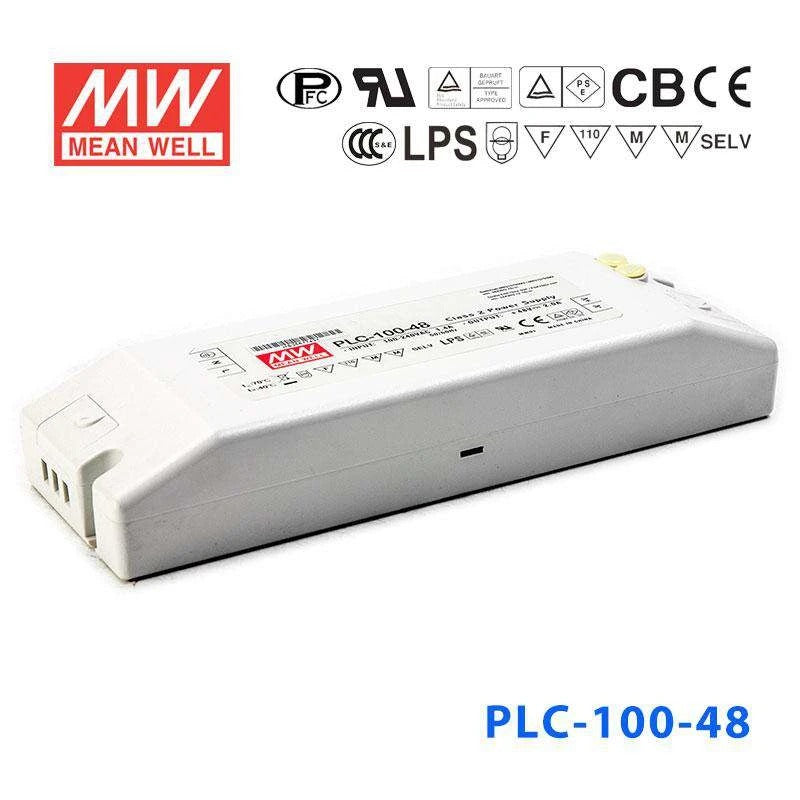

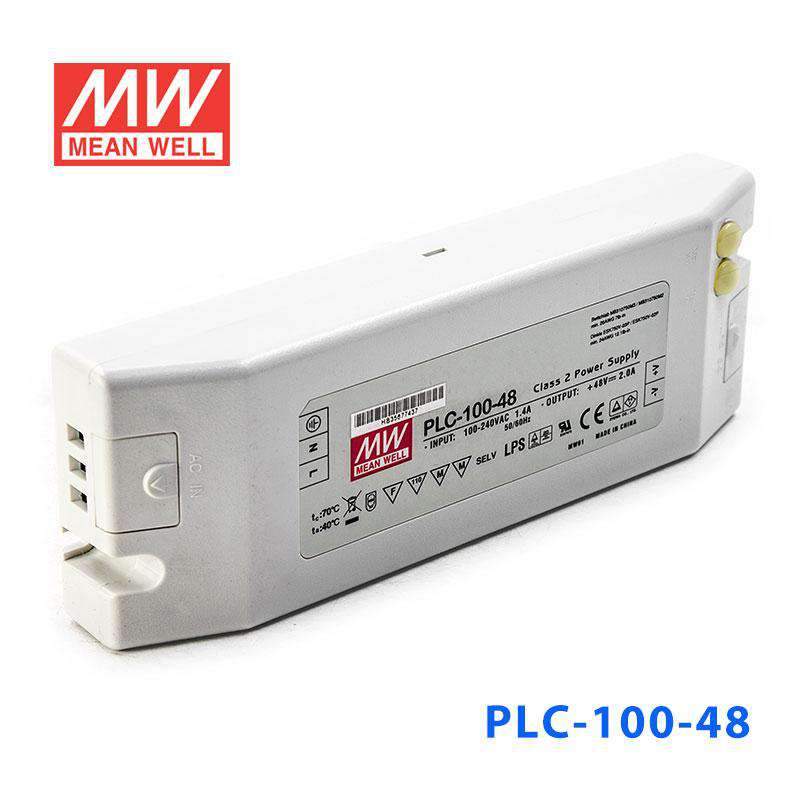

Mean Well PLC-100-48 Power Supply 100W 48V - PFC 2A

screw terminalfully isolated plastic casesuitable for signage applications

SKU PLC-100-48

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The PLC-100 is a 100W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+50℃).

Key Features

✓ Input voltage range: 90~264VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Wide operating temperature: -30~+50℃
✓ Protections: Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.7 UL1310, TUV EN60950-1, EN61347-1, EN61347-2-13, GB19510.14, GB19510.1, CAN/CSA C22.2 No. 223-M91(except for 48V), J61347-1, J61347-2-13,EAC TP TC 004
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well PLC-100-36 Power Supply 100W 36V - PFC 2.65A	95.4W	36V	2.65A	Indoor	View
Mean Well PLC-100-27 Power Supply 100W 27V - PFC 3.55A	95.85W	27V	3.55A	Indoor	View
Mean Well PLC-100-24 Power Supply 100W 24V - PFC 4A	96W	24V	4A	Indoor	View
Mean Well PLC-100-20 Power Supply 100W 20V - PFC 4.8A	96W	20V	4.8A	Indoor	View
Mean Well PLC-100-15 Power Supply 100W 15V - PFC 5A	75W	15V	5A	Indoor	View
Mean Well PLC-100-12 Power Supply 100W 12V - PFC 5A	60W	12V	5A	Indoor	View
