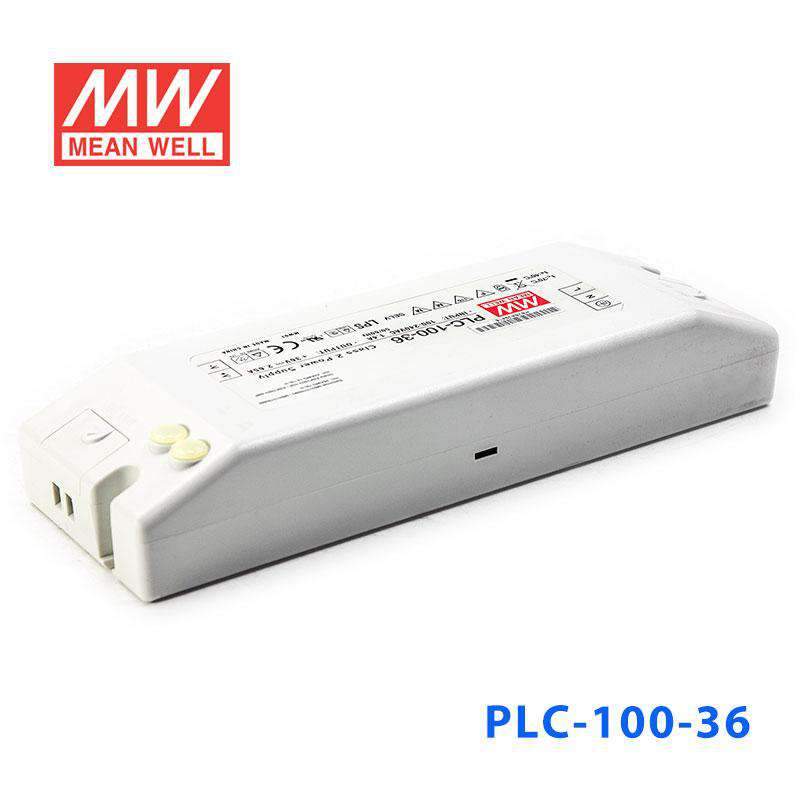

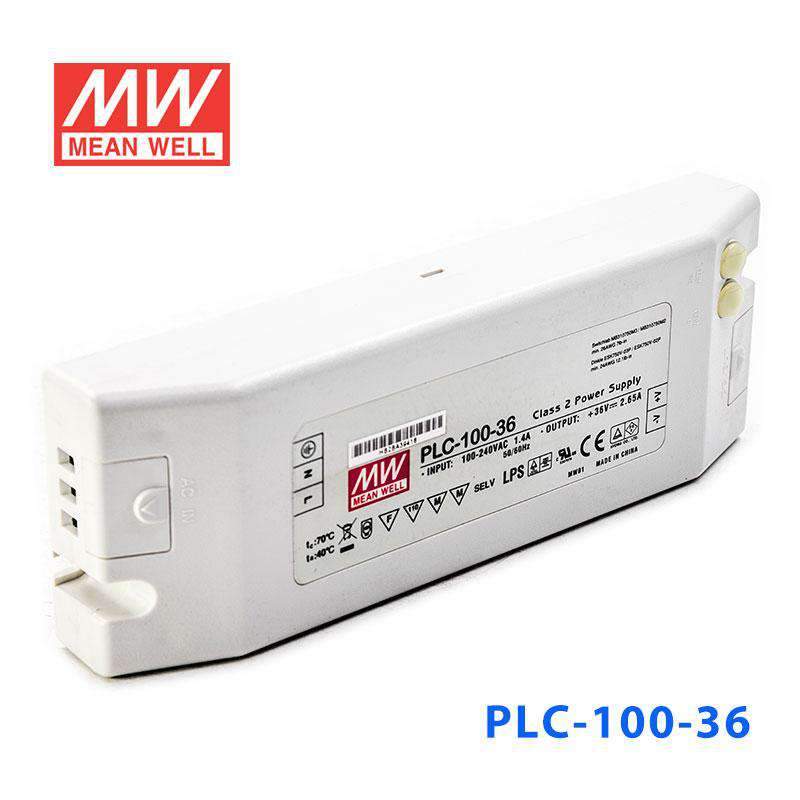

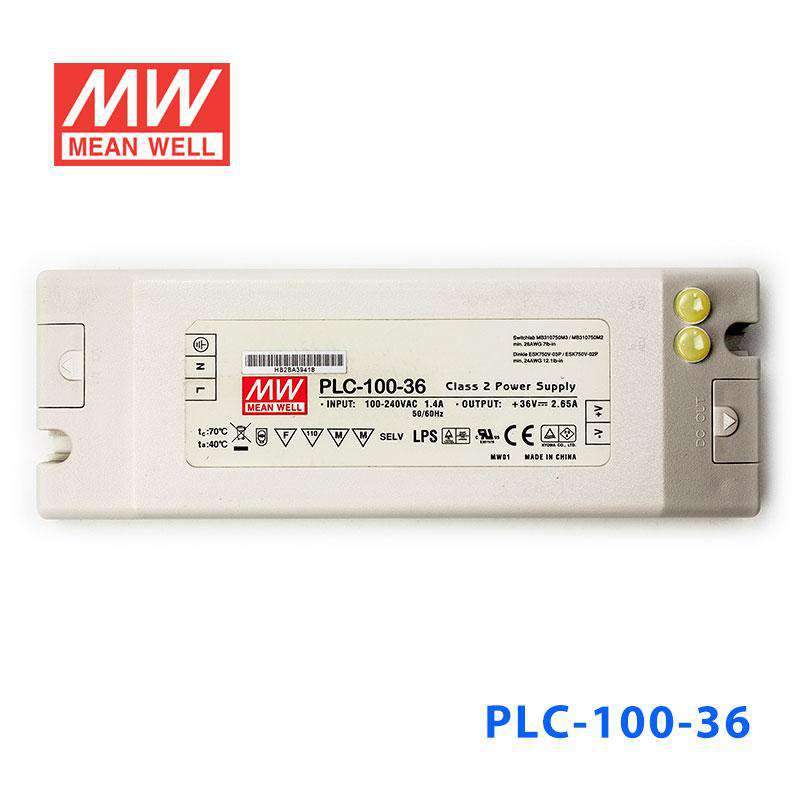

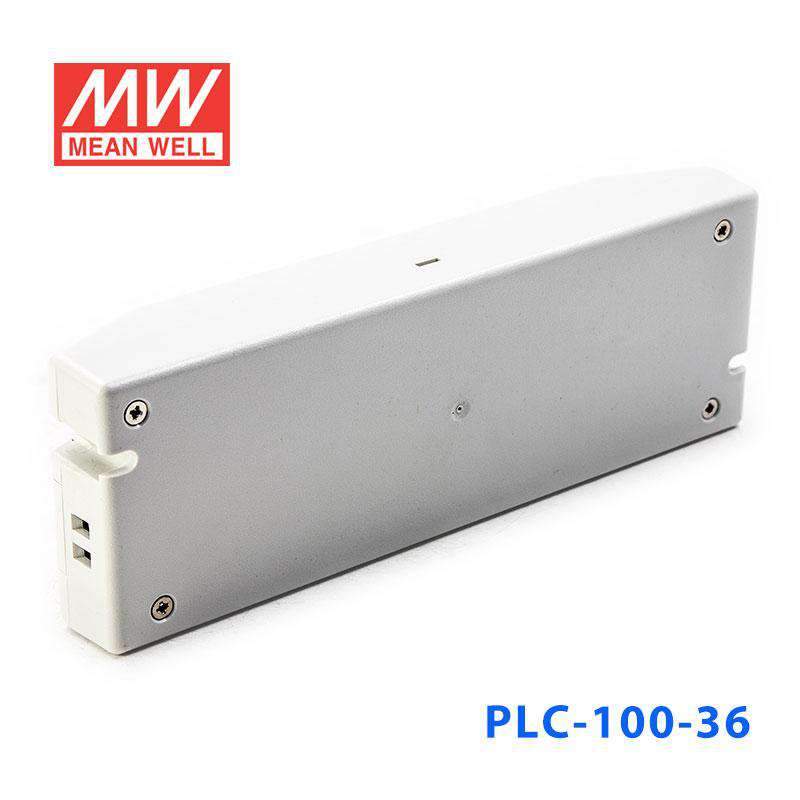

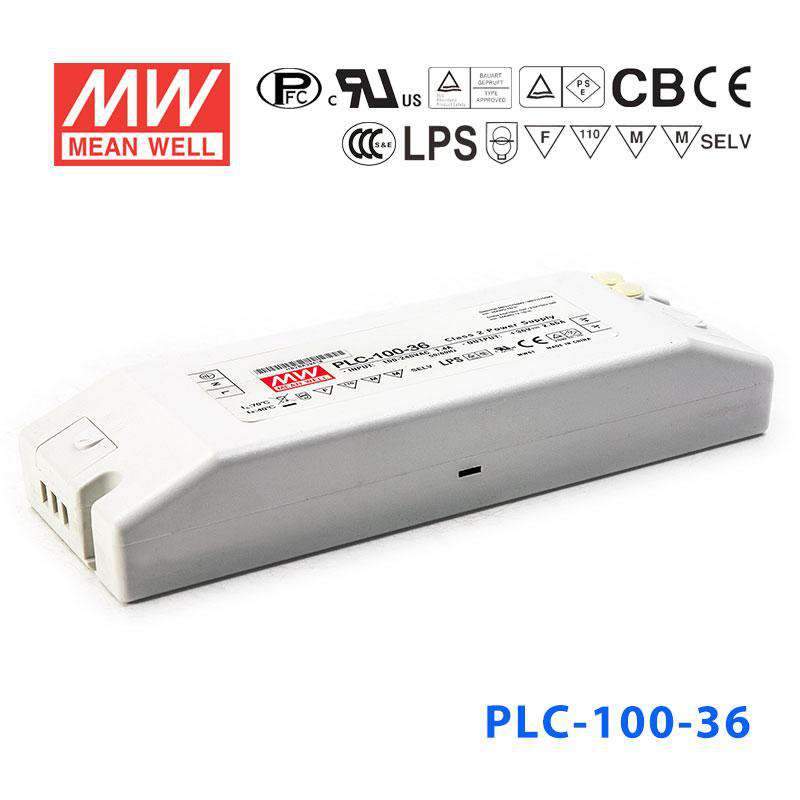

Mean Well PLC-100-36 Power Supply 100W 36V - PFC
Please Login for Pricing
Description
Description
Features
| Universal AC input / Full range |
| Fully isolated plastic case with screw terminal style of I/O |
| Built-in constant current limiting circuit (C.V.+C.C. mode) |
| Adjustable output voltage and current level |
| Built-in active PFC function, PF>0.9 for 75% of load or higher |
| High efficiency up to 89% |
| Class 2 power unit / Pass LPS |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| 100% full load burn-in test |
| Suitable for LED lighting and moving sign applications |
| Cooling by free air convection |
| 2 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 40A at 230VAC |
| DC adjustment range | 85%~100% rated output voltage |
| Current adjustment range | 75%~100% |
| Over current protection | 95%~102% constant current limiting, auto-recovery |
| Over voltage protection | 107%~135% rated output voltage |
| Setup time | 1200ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC |
| Working temperature | -30~+50°C (refer to output derating curve) |
| Safety standards | UL1310, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; TUV EN60950-1 approved for PLC-100 only |
| EMC standards | EN55015, EN55022 class B (PLC-45/60/100), EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection (Input / Output) | 3+2P screw terminal block |
| Dimension (LxWxH)(mm) | 200.5x 69.5x 35 |
| Packing | 0.52kg ; 25pcs / 14kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesPLC Series
-
Power Rating95.4 Watt
-
Output Voltage36 Volt
-
Rated Current2.65 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length20.05 cm
-
Width6.95 cm
-
Height3.5 cm
-
Weight0.52 kg
