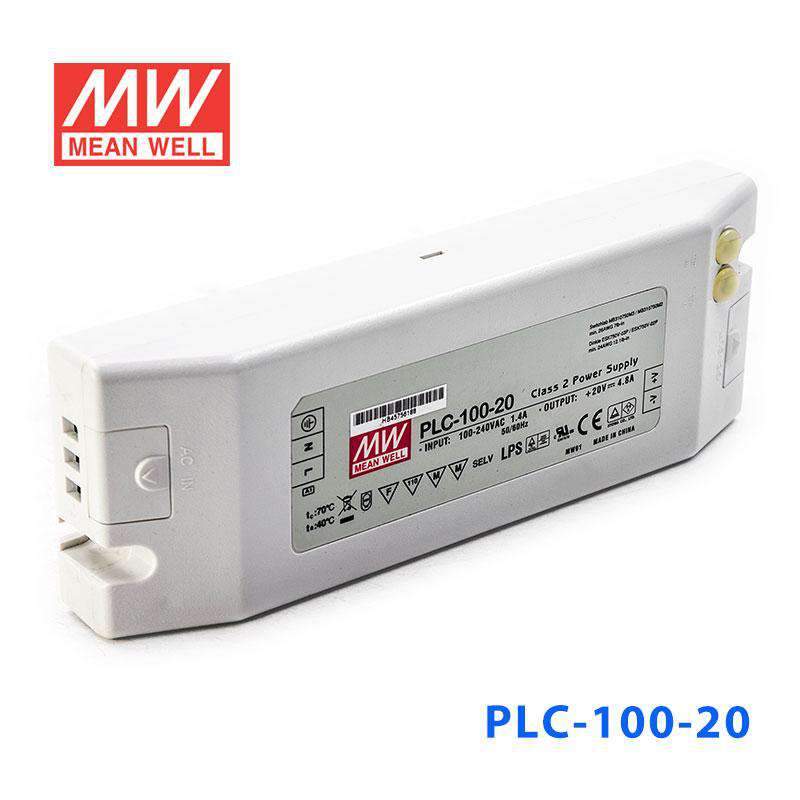

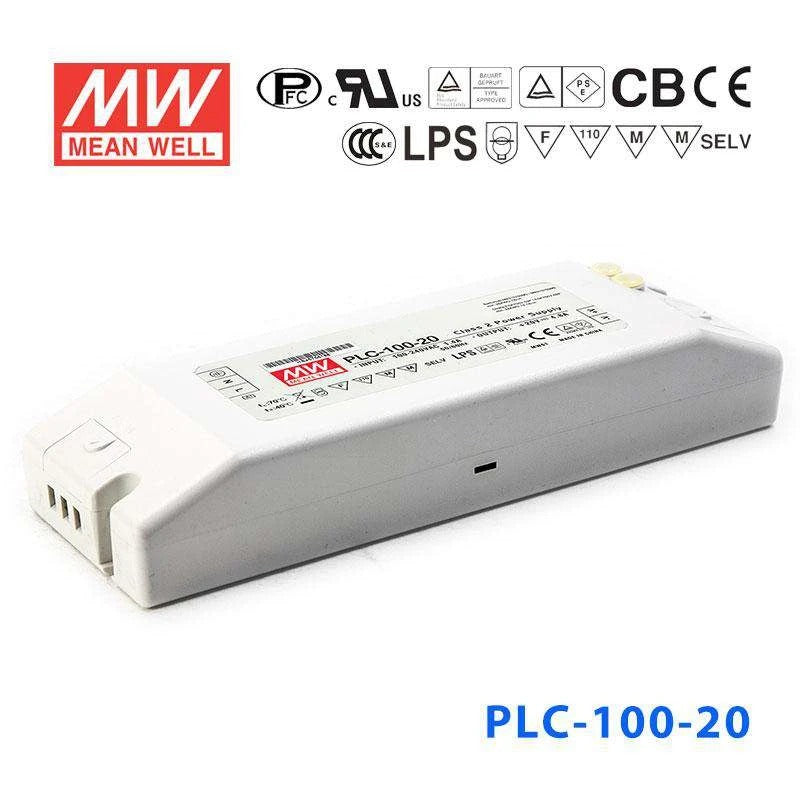

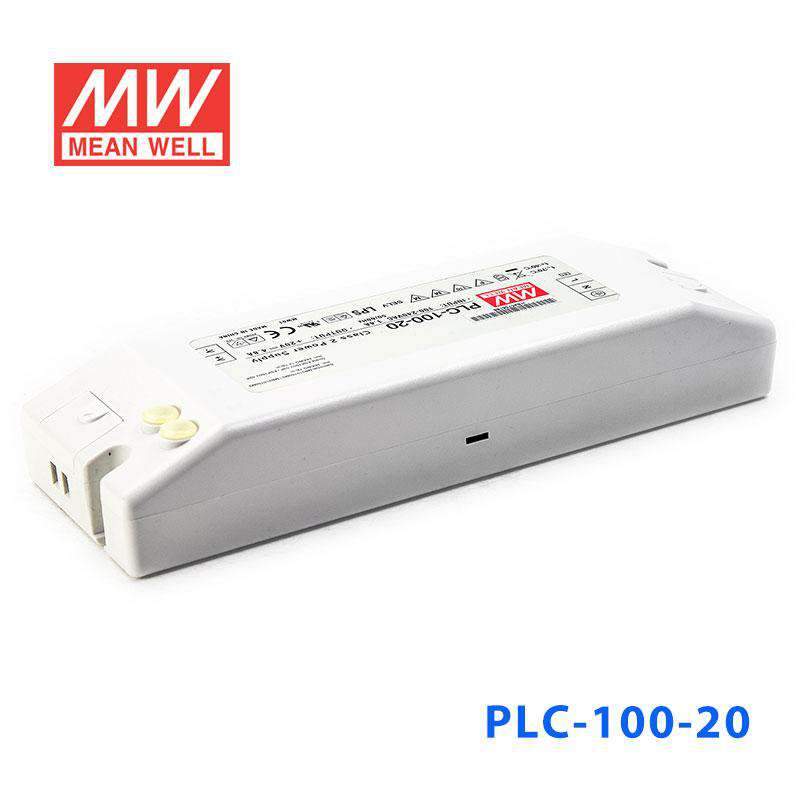

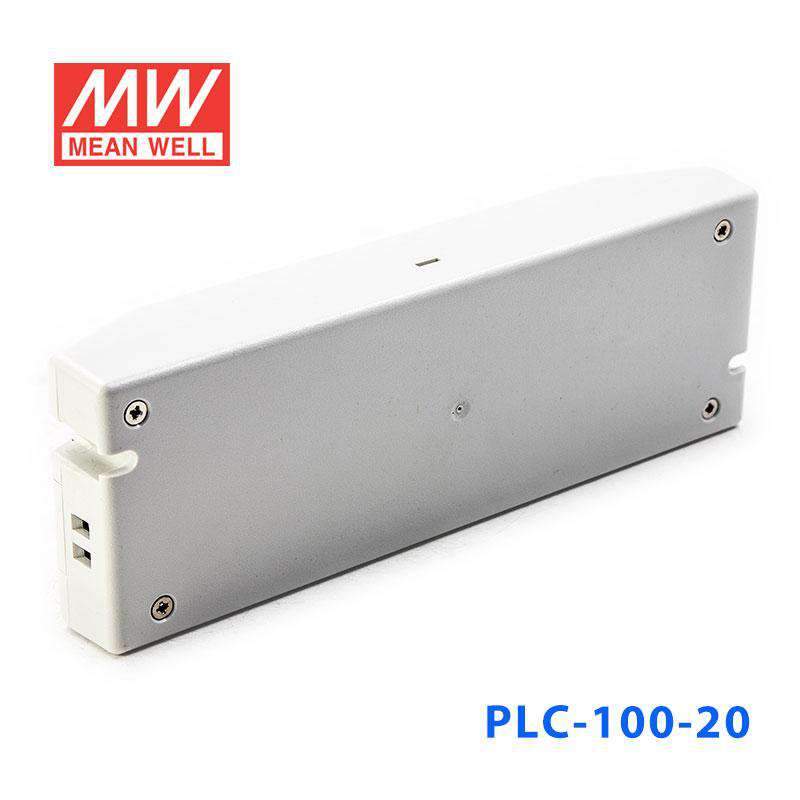

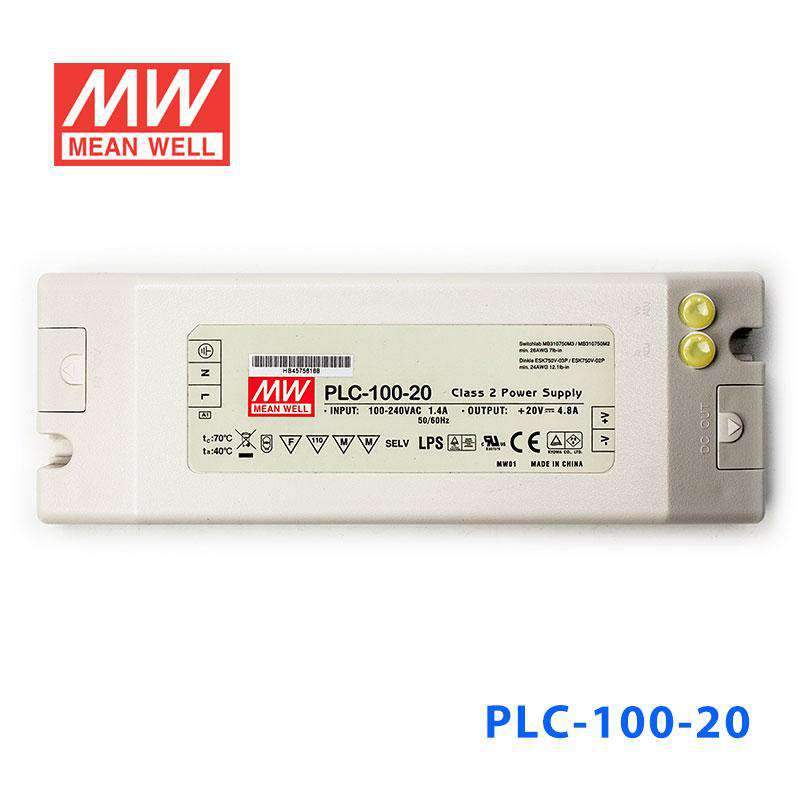

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well PLC-100-20 Power Supply 100W 20V - PFC 4.8A

screw terminalfully isolated plastic casesuitable for signage applications

SKU PLC-100-20

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The PLC-100 is a 100W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+50℃).

Key Features

✓ Input voltage range: 90~264VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Wide operating temperature: -30~+50℃
✓ Protections: Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.7 UL1310, TUV EN60950-1, EN61347-1, EN61347-2-13, GB19510.14, GB19510.1, CAN/CSA C22.2 No. 223-M91(except for 48V), J61347-1, J61347-2-13,EAC TP TC 004
✓ 3 years warranty

Frequently Asked Questions

What is the Mean Well PLC-100-20 typically used for?

The PLC-100-20 is a 100W class power supply designed for LED lighting and moving sign applications. Its 20V output, built-in active PFC, and constant voltage plus current-limiting design make it a practical fit for commercial and industrial lighting-related systems that need stable DC output.

What are the main output ratings of the PLC-100-20?

This model provides a 20V DC output with a rated current of 4.8A and a power rating of 96W. It also includes adjustable output voltage and current level settings within the product's designed operating range.

Is the PLC-100-20 a constant voltage power supply or a constant current model?

The PLC-100-20 operates in constant voltage mode with a built-in constant current limiting circuit, described as C.V. plus C.C. mode. That means it is primarily a 20V power supply, while also including current-limiting behavior for added protection and control.

Does the PLC-100-20 include power factor correction?

Yes. This model has built-in active PFC and is rated at a power factor above 0.9 at 75% load or higher, which is one of its key differentiators for buyers comparing commercial-grade LED power supplies.

What operating temperatures is the PLC-100-20 rated for?

The PLC-100-20 is rated for operation from -30°C to 50°C. That range makes it suitable for a wide variety of indoor and protected-environment applications where temperature stability matters.

What protection and reliability features does the PLC-100-20 include?

This model includes short circuit, over current, over voltage, and over temperature protection. It also has a fully isolated plastic case, passes 100% full load burn-in testing, and carries a 2-year warranty.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well PLC-100-48 Power Supply 100W 48V - PFC 2A	96W	48V	2A	Indoor	View
Mean Well PLC-100-36 Power Supply 100W 36V - PFC 2.65A	95.4W	36V	2.65A	Indoor	View
Mean Well PLC-100-27 Power Supply 100W 27V - PFC 3.55A	95.85W	27V	3.55A	Indoor	View
Mean Well PLC-100-24 Power Supply 100W 24V - PFC 4A	96W	24V	4A	Indoor	View
Mean Well PLC-100-15 Power Supply 100W 15V - PFC 5A	75W	15V	5A	Indoor	View
Mean Well PLC-100-12 Power Supply 100W 12V - PFC 5A	60W	12V	5A	Indoor	View
