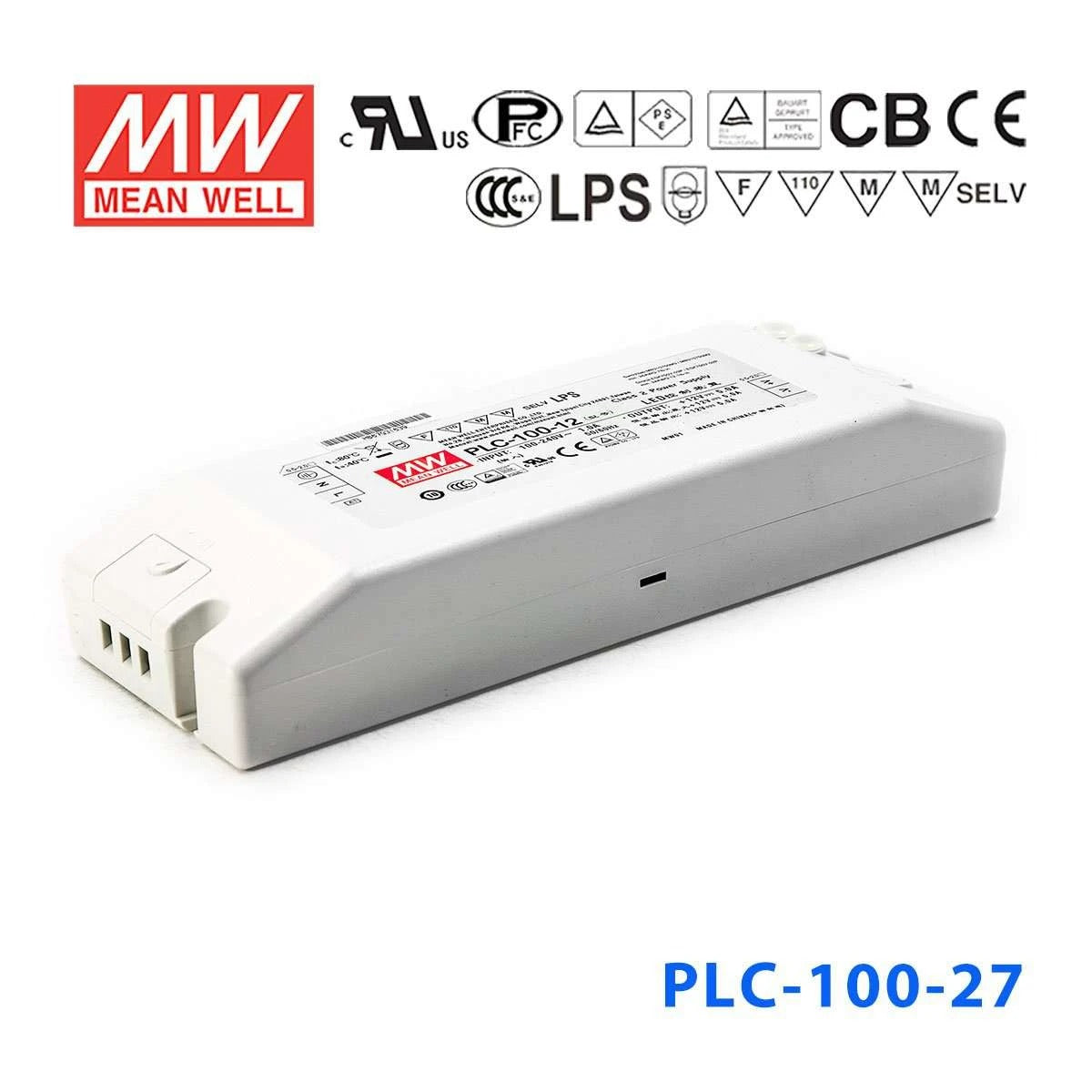

Mean Well PLC-100-27 Power Supply 100W 27V - PFC

screw terminal, fully isolated plastic case, suitable for signage applications

|

Description

Features

Universal AC input / Full range
Fully isolated plastic case with screw terminal style of I/O
Built-in constant current limiting circuit (C.V.+C.C. mode)
Adjustable output voltage and current level
Built-in active PFC function, PF>0.9 for 75% of load or higher
High efficiency up to 89%
Class 2 power unit / Pass LPS
Protections: Short circuit / Over current / Over voltage / Over temperature
100% full load burn-in test
Suitable for LED lighting and moving sign applications
Cooling by free air convection
2 years warranty

General Specification

AC input voltage range 90~305VAC ; 127~431VDC
AC inrush current (max.) Cold start, 40A at 230VAC
DC adjustment range 85%~100% rated output voltage
Current adjustment range 75%~100%
Over current protection 95%~102% constant current limiting, auto-recovery
Over voltage protection 107%~135% rated output voltage
Setup time 1200ms at full load and 230VAC
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC
Working temperature -30~+50°C (refer to output derating curve)
Safety standards UL1310, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; TUV EN60950-1 approved for PLC-100 only
EMC standards EN55015, EN55022 class B (PLC-45/60/100), EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection (Input / Output) 3+2P screw terminal block
Dimension (LxWxH)(mm) 200.5x 69.5x 35
Packing 0.52kg ; 25pcs / 14kg

Specifications

  • Brand
    Mean Well
  • Series
    PLC Series
  • Power Rating
    95.85 Watt
  • Output Voltage
    27 Volt
  • Rated Current
    3.55 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CCC,CE,EAC,PSE,TUV,UL
  • Operation Mode
    Constant Current,Constant Voltage
  • Operating Temperature
    -30°C~50°C
  • Warranty
    2 Year
  • Length
    20.05 cm
  • Width
    6.95 cm
  • Height
    3.5 cm
  • Weight
    0.52 kg

File Downloads
