Mean Well

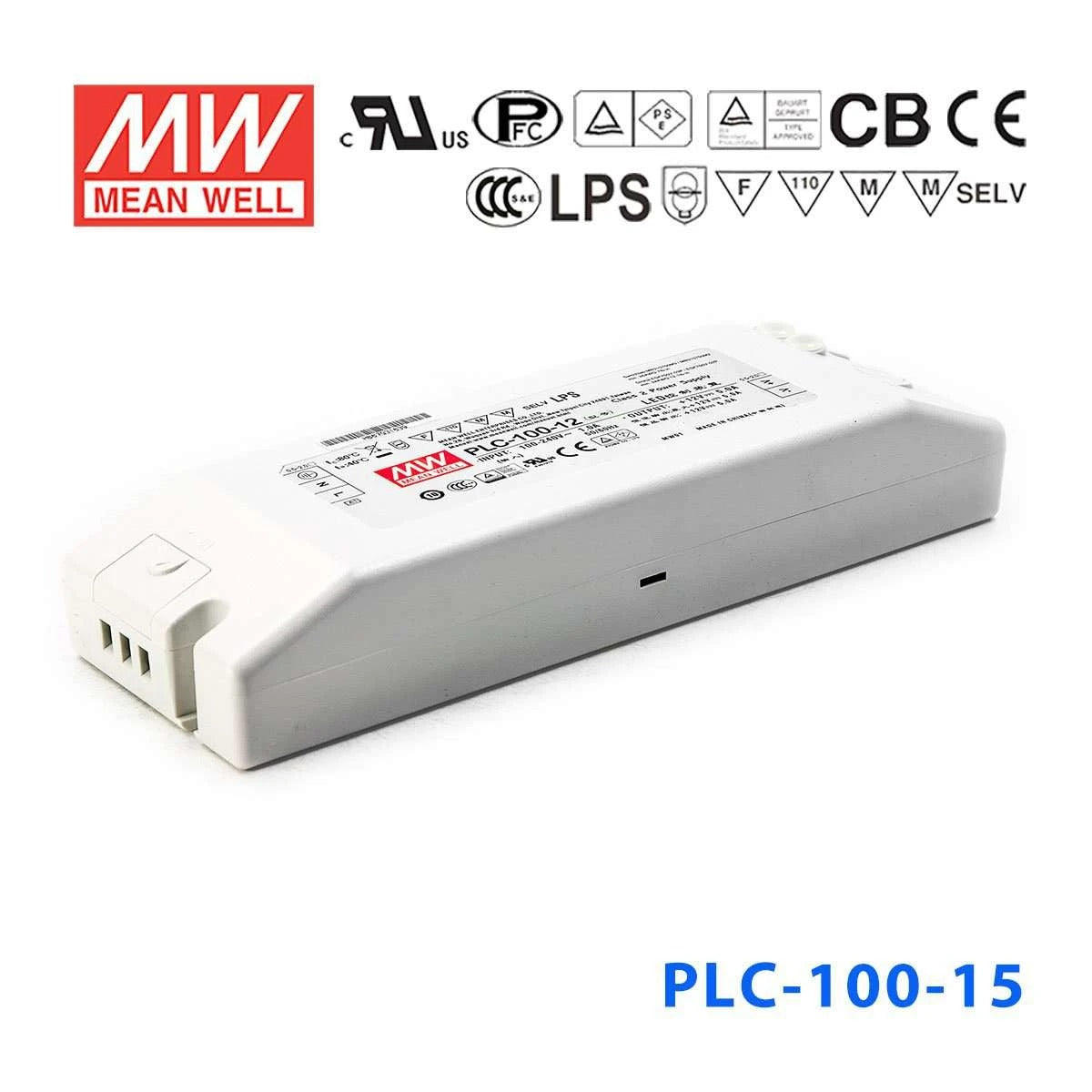

Mean Well PLC-100-15 Power Supply 100W 15V - PFC 5A

screw terminalfully isolated plastic casesuitable for signage applications
SKU PLC-100-15
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

PLC-100-15 is the 15V output model of this series: rated current 5A, rated power 75W, typical efficiency 87%.

Features

  • Universal AC input / Full range
  • High efficiency up to 88.5%
  • Protections: Short circuit / Over current / Over voltage / Over temperature
  • Cooling by free air convection
  • Built-in active PFC function
  • Class 2 power unit
  • Pass LPS
  • 100% full load burn-in test
  • High reliability
  • Suitable for LED lighting and moving sign applications
  • Compliance to worldwide safety regulations for lighting
  • 2 years warranty

Specifications

PLC-100-15Specifications from the official datasheet (2026-06-15 edition)

OUTPUT

DC VOLTAGE
15V
CONSTANT CURRENT REGIONNote.4
11.25 ~ 15V
RATED CURRENTNote.6
5A
CURRENT RANGENote.6
0 ~ 5A
RATED POWERNote.6
75W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGE(Vo ADJ)
12.8 ~ 15V
CURRENT ADJ. RANGE(Io ADJ)
3.75 ~ 5A
VOLTAGE TOLERANCENote.3
±3.0%
LINE REGULATION
±1.0%
LOAD REGULATION
±2.0%
SETUP, RISE TIME
500ms, 80ms/230VAC 1200ms, 80ms/115VAC at full load
HOLD UP TIME (Typ.)
60ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.95/115VAC, PF>0.95/230VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≧75% at 115VAC/230VAC input
EFFICIENCY (Typ.)
87%
AC CURRENT (Typ.)
15V:0.9A/115VAC 0.45A/230VAC
INRUSH CURRENT (Typ.)
COLD START 40A(twidth=950μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
3 units (circuit breaker of type B) / 5 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 240VAC

PROTECTION

OVER CURRENT (Typ.)Note.4
95 ~ 102% Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
16.5 ~ 20V Protection type : Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.7
UL1310, TUV BS EN/EN60950-1, BS EN/EN61347-1, BS EN/EN61347-2-13, GB/T19510.1,GB/T19510.213, CAN/CSA C22.2 No. 223-M91(except for 48V), EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, GB/T 17743, GB17625.1, BS EN/EN61000-3-2,-3, Class C (≧70% load) ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55035, light industry level, (surge 4KV), EAC TP TC 020

OTHERS

MTBF
2688.3K hrs min. Telcordia SR-332 (Bellcore) ; 297.9Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
200.5*69.5*35mm (L*W*H)
PACKING
0.52Kg; 25pcs/14Kg/0.65CUFT

Certifications & ratings

Marked features
LPS, PFC
Test conditions and notes11
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Please refer to "DRIVING METHODS OF LED MODULE".
  5. 5. Derating may be needed under low input voltage. Please check the static characteristics for more details.
  6. 6. This is the maximum possible output current and power. Over load protection may be activated slightly below this level to comply with the requirement of UL1310 class 2.
  7. 7. Safety and EMC design refer to BS EN/EN60598-1, subject 8750(UL), CNS15233, GB7000.1, FCC part18.
  8. 8. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  9. 9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  10. 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  11. 11. PLC-100-12 is used for any light source that exempt from the ErP-Directive (EU) 2019/2020 requirement, for example this model could be use for signalling products (including, but not limited to road-, railway-, marineorair traffic-signalling , traffic control or airfield lamps).

Technical drawings

PLC-100-15 Mechanical Specification
Mechanical Specification
PLC-100-15 Block Diagram
Block Diagram
PLC-100-15 Derating Curve
Derating Curve
PLC-100-15 Power Factor Characteristic
Power Factor Characteristic
PLC-100-15 EFFICIENCY vs LOAD (48V Model)
EFFICIENCY vs LOAD (48V Model)

Downloads

FAQ

What output does the Mean Well PLC-100-15 provide?

The PLC-100-15 is specified for a 15V DC output with a rated current of 5A. In the provided product data, its listed power rating is 75W. It is designed as a C.V.+C.C. power supply with adjustable output voltage and current level.

What kinds of applications is the PLC-100-15 suited for?

This model is described as suitable for LED lighting and moving sign applications. Its constant voltage plus current-limiting design makes it relevant for systems that need a regulated 15V output rather than dimming control. For buyers comparing options, the key fit is 15V equipment within the unit's rated current and power limits.

Does the PLC-100-15 include power factor correction?

Yes. This model includes a built-in PFC circuit, and the datasheet states a typical power factor above 0.95 at full load. That makes it a stronger fit for commercial and professional applications where power quality is an important purchasing factor.

Can the PLC-100-15 be used in demanding temperature conditions?

The listed operating temperature range is -30°C to 50°C, with load derating at higher temperatures per the derating curve. That gives it a usable span for many indoor and protected equipment environments where temperature swings matter. Buyers should still confirm the surrounding enclosure and full system conditions are appropriate for that range.

Does the PLC-100-15 support dimming control?

No. The product data lists dimming control as none. If your application requires integrated dimming, you would need to compare this model with a different power supply or LED driver that explicitly includes a dimming interface.

What protection and compliance-related features are included on the PLC-100-15?

The datasheet lists over current (constant current limiting), over voltage and over temperature protection. It is also designed to UL1310 Class 2 requirements and carries the LPS mark. Those details make it easier to evaluate for commercial LED and power supply use where protection coverage is part of the buying decision.
