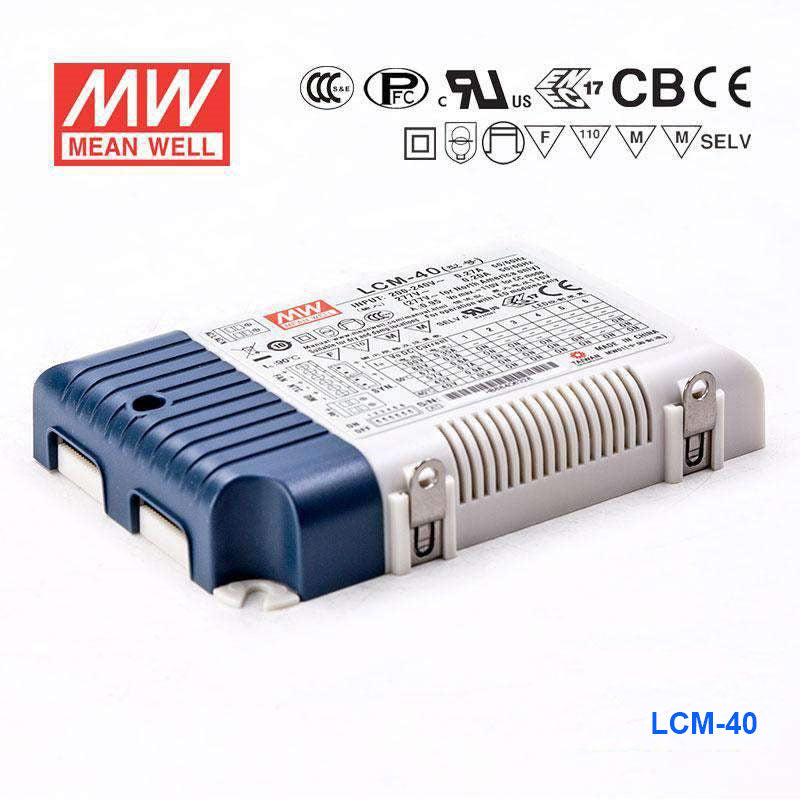

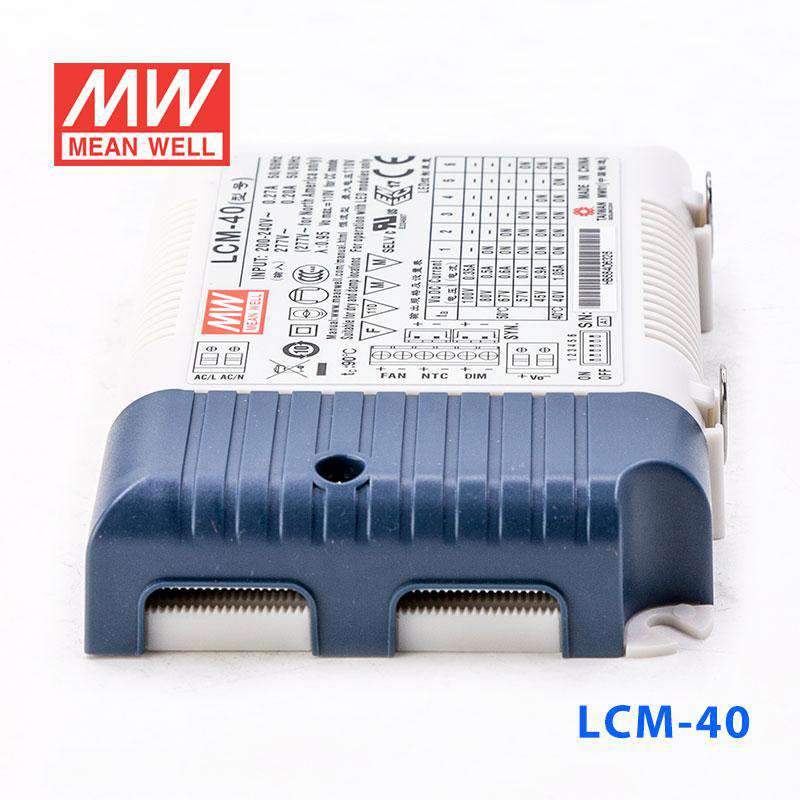

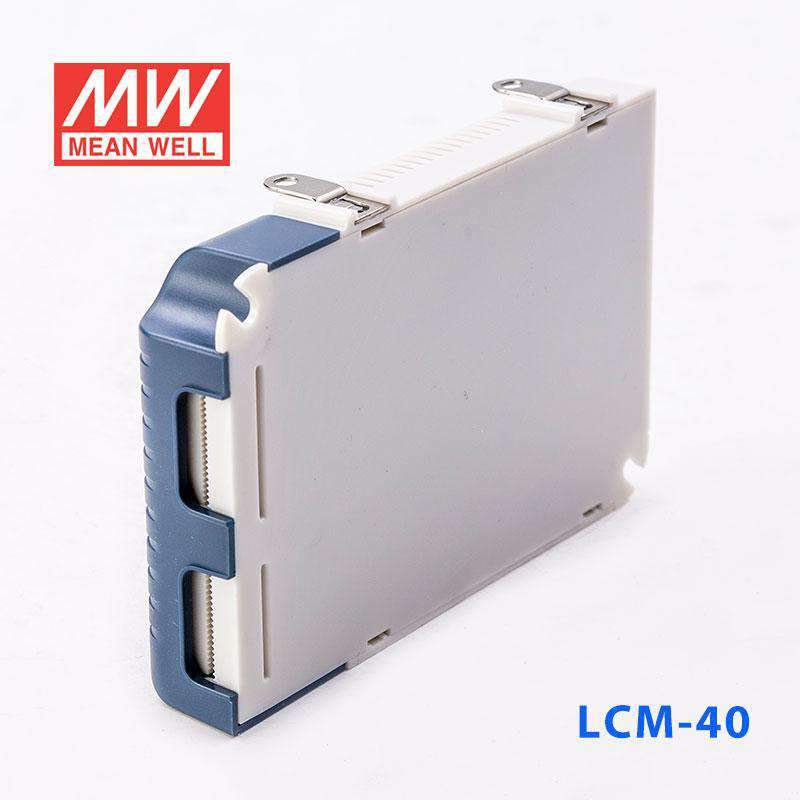

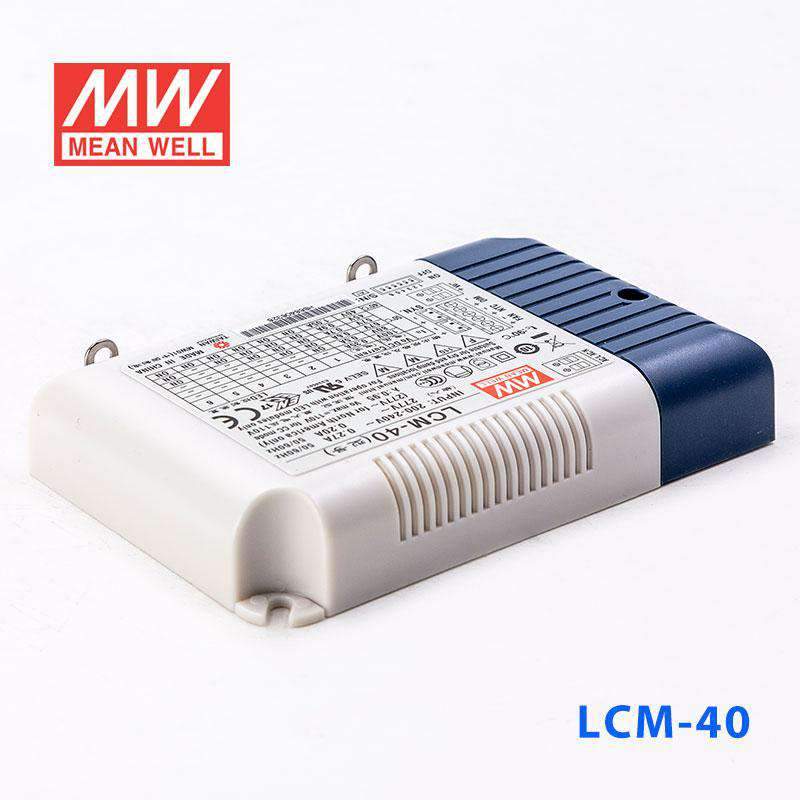

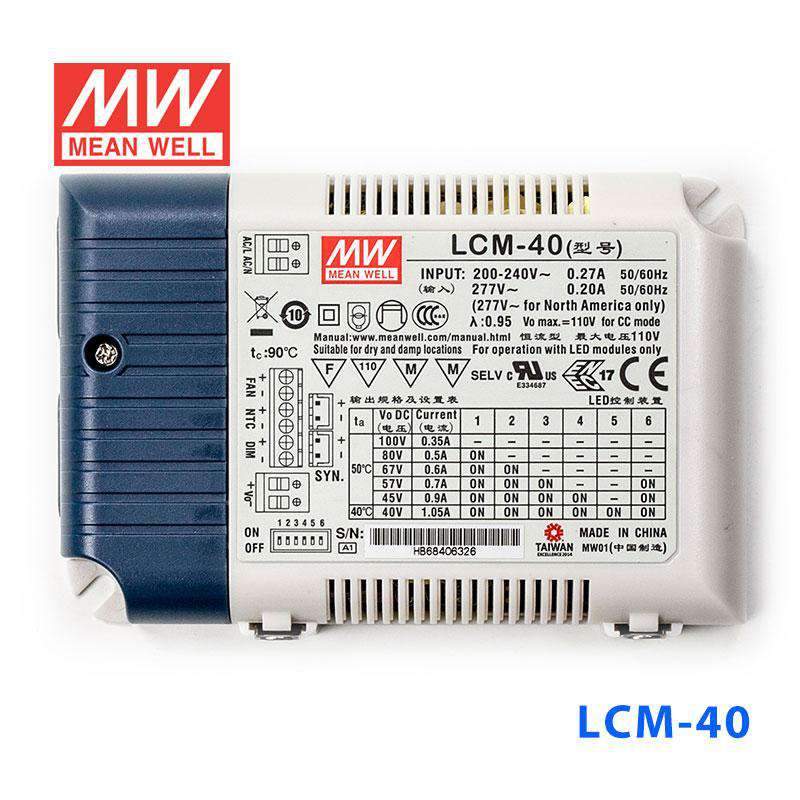

Mean Well LCM-40 Power Supply 42W 350mA 500mA 600mA 700mA(default) 900mA 1050mA - Dimmable

selectable output current using dip switchflicker-freeClass II without FGbuilt-in 3 in 1 dimming

SKU LCM-40

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The LCM-40 is a 42W Mean Well AC-DC constant current LED driver (input: 180~295VAC, output: 65V, operating temperature: -30~+90°C).

Key Features

✓ Input voltage: 180~295VAC
✓ Output voltage (max): 65V
✓ Rated output current: 700mA
✓ Selectable output current via dip switch
✓ 3-in-1 dimming (0–10V / PWM / resistance)
✓ Flicker-free output
✓ Class II design — no earth connection required
✓ Operating temperature: -30~+90°C
✓ Safety certifications: BSI, CB, CCC, CE, EAC, ENEC, UL
✓ 3 year warranty

Frequently Asked Questions

Can I use the LCM-40 for higher-power LED downlights?

Yes, the LCM-40 is a constant current LED driver rated at 42W with a 700mA default output. Its 2-57V CC range gives it more headroom than the 25W versions for LED downlights that need a higher-power constant current driver.

Is the LCM-40 suitable for larger signage LED modules?

It can be suitable when the signage modules are built for constant current operation rather than constant voltage. This model delivers 700mA across a 2-57V CC range and is rated at 42W, which supports larger constant current loads than a 25W driver.

Can the LCM-40 power a small or mid-size LED array?

Yes, the LCM-40 is designed for constant current LED loads and is rated at 42W. With a 2-57V output range at 700mA default, it can cover a broader range of constant current LED arrays than lower-power drivers in the series.

How do I check compatibility for the LCM-40?

Confirm that your LEDs require a constant current driver and that their total forward voltage stays within the 2-57V CC output range. The number of LEDs depends on the forward voltage of each LED, so compatibility should be based on forward-voltage total rather than a fixed LED count or constant voltage assumption.

How does the LCM-40 compare with other LCM family models?

The 25W group includes LCM-25, LCM-25BLE, LCM-25DA, and LCM-25KN at 25.2W with 700A and 6-36V, plus LCM-25DA2 at 25W with 0.7mA and 277-180V. In the 40W class, LCM-40, LCM-40BLE, LCM-40DA, and LCM-40KN are listed at 42W with 700A and 2-57V, while LCM-40DA2 is 40W with 0.6mA and 295-180V, LCM-40TW is 40W with 0.7mA and 20-50V, and LCM-40U is 35W with 700A and 2-50V; above that, LCM-60, LCM-60BLE, LCM-60DA, and LCM-60KN are 60.3W with 700A and 2-86V, LCM-60DA2 is 6W with 0.9mA and 295-180V, and LCM-60U is 50.4W with 700A and 2-72V.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well LCM-60 AC-DC Multi-Stage LED driver Constant Current	60.3W	102V	0.7A	Indoor	View
Mean Well LCM-25DA2 Power Supply 25W 350mA 500mA 600mA 700mA(default) 900mA 1050mA - DALI2 and Push	25W	41V	0.7A	IP20	View
Mean Well LCM-25 Power Supply 25W 350mA 500mA 600mA 700mA(default) 900mA 1050mA - Dimmable	25.2W	41V	0.7A	Indoor	View
Mean Well LCM-40TW Power Supply 42W 350mA 500mA 600mA 700mA(default) 900mA 1050mA - Tunable White	40W	53V	0.7A	—	View
Mean Well LCM-60DA2 Power Supply 60W 500mA 600mA 700mA(default) 900mA 1050mA 1400mA - DALI2 and Push	6W	95V	0.9A	IP20	View
Mean Well LCM-40DA2 Power Supply 40W 350mA 500mA 600mA 700mA(default) 900mA 1050mA - DALI2 and Push	40W	65V	0.6A	IP20	View
