Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

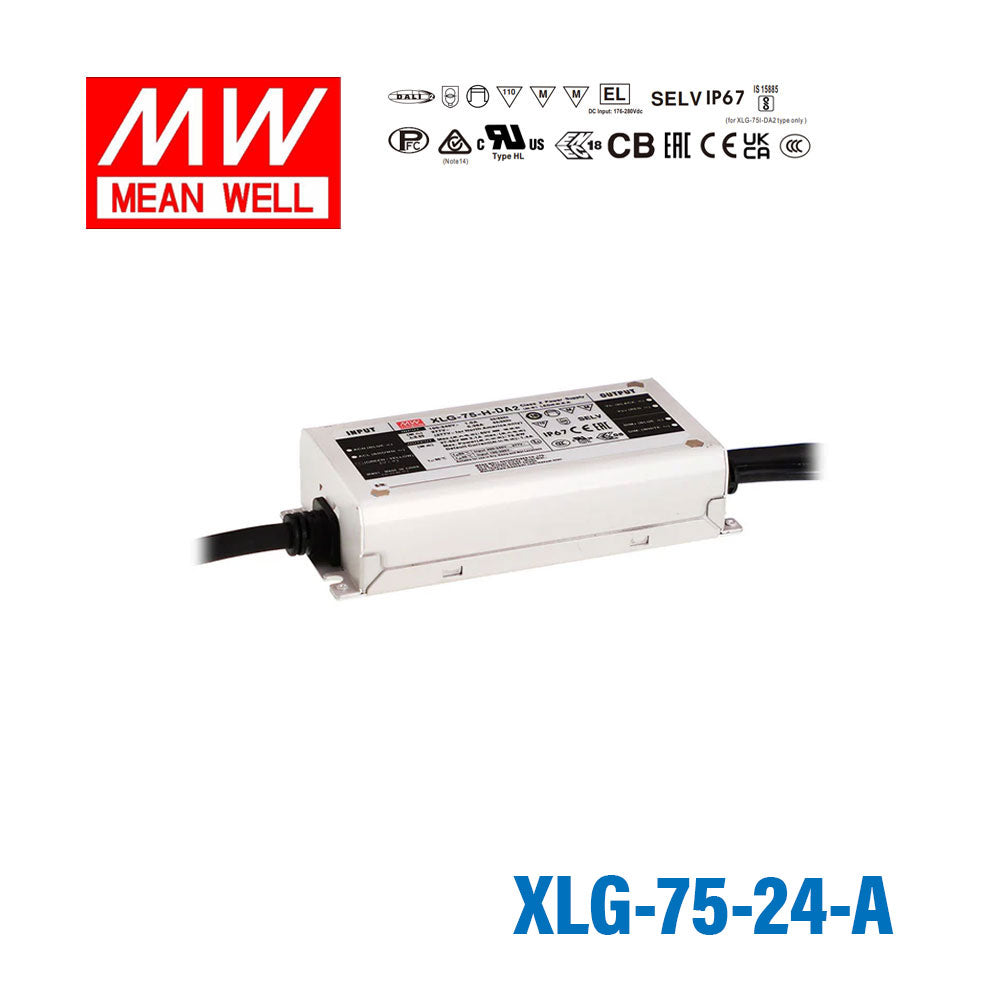

Mean Well XLG-75-24-A Power Supply 75W 24V - Adjustable 3.1A

metal caseeconomical100~305VAC wide range inputefficiency up to 90%

SKU XLG-75-24-A

Log in to see price Trade pricing & online ordering for account holders

Select model — 8 in this family

XLG-75-24-A

XLG-75-24-A Adjustable Low stock

XLG-100-24-A Adjustable In stock

XLG-100-24-AB Adjustable and Dimmable Backorder

XLG-150-24-A Adjustable In stock

XLG-150-24-AB Adjustable and Dimmable Backorder

XLG-200-24-A Adjustable Low stock

XLG-200-24-AB Adjustable and Dimmable Backorder

XLG-75-24-AB Adjustable and Dimmable Backorder

Product variants

Notify me when it's back in stock

The XLG-75-24-A is a 74.4W Mean Well AC-DC LED driver (input: 100~305VAC, output: 24V, operating temperature: -40~+90°C).

Key Features

✓ Input voltage: 100~305VAC
✓ Output voltage: 24V
✓ Rated output current: 3.1A
✓ Ingress protection: IP67
✓ Operating temperature: -40~+90°C
✓ Safety certifications: CB, CCC, CE, EAC, ENEC, RCM, UL
✓ 5 year warranty

Frequently Asked Questions

Can the XLG-75-24-A power a 24V LED strip run in an outdoor or weatherproof enclosure?

Yes. The XLG-75-24-A is IP67-rated for complete dust and water ingress protection, making it suitable for outdoor LED strip installations in sign boxes, exterior architectural lighting channels, and covered wet-area applications. Its 24V output is compatible with standard 24V LED strip systems.

How much 24V LED strip can the XLG-75-24-A run?

The XLG-75-24-A provides 74.4W at 24V. For a 24V strip rated at 14.4W/m, this supports approximately 5.2 meters at full load, or about 4.1 meters derated to 80% for continuous operation. Confirm your strip's rated watts per meter and apply the 80% derating rule for reliable long-term performance.

Is the XLG-75-24-A suitable for outdoor lighting in very cold or very hot climates?

Yes. The operating temperature range of -40°C to +90°C makes this driver appropriate for outdoor sign and architectural lighting across climates from arctic cold to high-ambient hot regions. The IP67 sealing also protects against condensation and moisture in high-humidity environments.

Can this driver power 24V LED strip in a hospitality or retail interior cove lighting application?

Yes. The XLG-75-24-A's 74.4W, 24V output is well suited to interior cove lighting, under-shelf retail lighting, and hospitality accent lighting using 24V LED strip. The IP67 rating also makes it usable in areas exposed to cleaning fluids or steam, such as commercial kitchens and hotel wet rooms.

Can the XLG-75-24-A be used for 24V LED strip in a landscape or garden lighting installation?

Yes. The IP67 rating and -40°C minimum operating temperature make this driver appropriate for buried or enclosure-mounted use in landscape and garden LED strip lighting, including path accent lights and feature wall illumination powered by 24V strip.

What is the difference between the XLG-75-24-A and the XLG-75-24-AB?

Both models share the same 74.4W, 24V, 3.1A specs, IP67 rating, and physical dimensions. The XLG-75-24-AB adds an external dimming input interface (the -AB suffix means adjustable and dimmable), while the XLG-75-24-A provides adjustable output current only without a dimming control port.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well XLG-75-L-DA2 Power Supply 74.9W 700mA - DALI2 Dimmable	74.9W	115V	0.7A	IP67	View
Mean Well XLG-75-H-DA2 Power Supply 75.6W 1400mA - DALI2 Dimmable	75.6W	60V	1.4A	IP67	View
Mean Well XLG-75-L-A AC-DC Single output LED driver Constant Power Mode 75W 1.05A	75W	107V	1.05A	IP67	View
Mean Well XLG-75-24-AB Power Supply 75W 24V - Adjustable and Dimmable 3.1A	74.4W	24V	3.1A	IP67	View
Mean Well XLG-75-12-AB Power Supply 75W 12V - Adjustable and Dimmable 5A	60W	12V	5A	IP67	View
Mean Well XLG-75-12-A Power Supply 75W 12V - Adjustable 5A	60W	12V	5A	IP67	View
