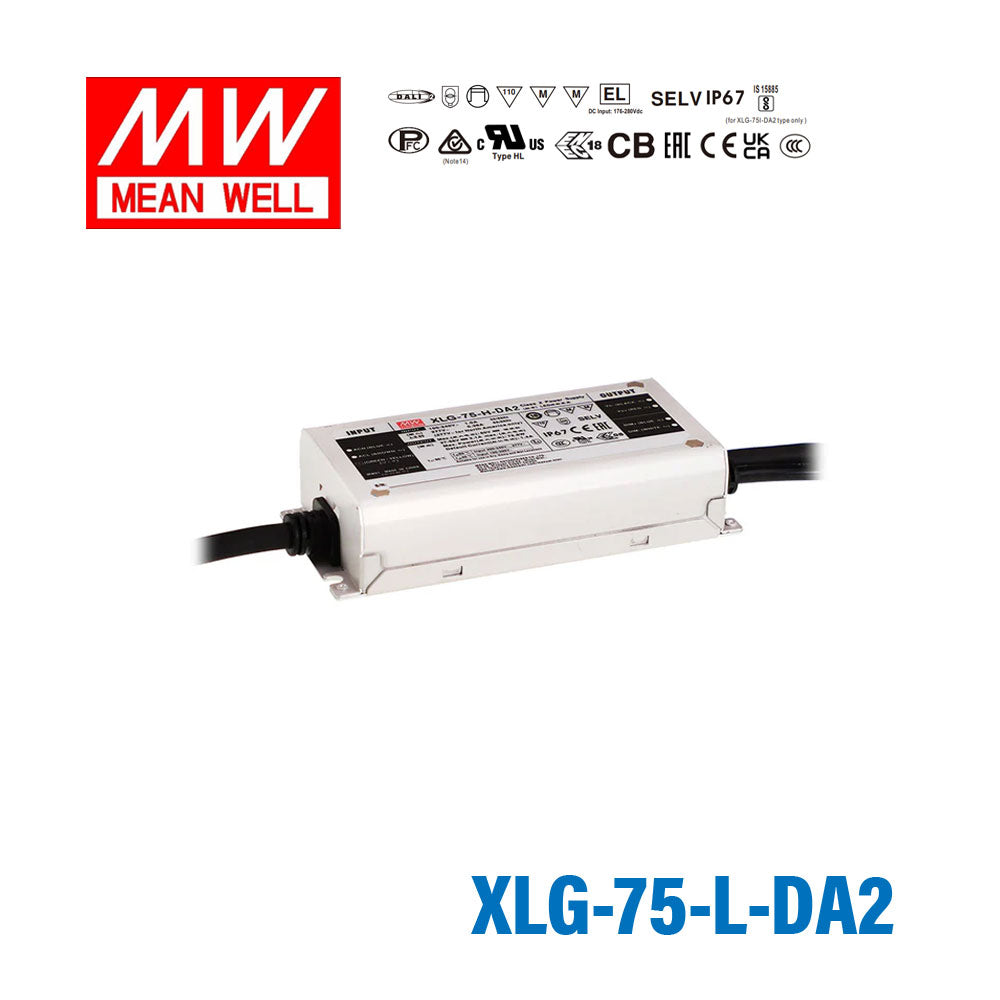

Mean Well XLG-75-L-DA2 Power Supply 74.9W 700mA - DALI2 Dimmable

constant current region 53~107Vcurrent adjustable from 350~1050mAminimum dimming level 8%

SKU XLG-75-L-DA2

Log in to see price Trade pricing & online ordering for account holders

Select model — 9 in this family

XLG-75-L-DA2

XLG-25-A 700mA Adjustable Backorder

XLG-100-L-DA2 700mA DALI2 Dimmable Low stock

XLG-150-L-DA2 700mA DALI2 Dimmable Backorder

XLG-200-L-DA2 700mA DALI2 Dimmable Backorder

XLG-240-L-A 700mA Adjustable Backorder

XLG-240-L-AB 700mA Adjustable and Dimmable Backorder

XLG-240-L-DA2 700mA DALI2 Dimmable Backorder

XLG-50-L-DA2 700mA DALI2 Dimmable Low stock

XLG-75-L-DA2 700mA DALI2 Dimmable Low stock

Product variants

Notify me when it's back in stock

The Mean Well XLG-75-L-DA2 is a 74.9W constant power LED driver delivering 700mA across a 53~107V constant current region. Housed in an IP67-rated case for damp and outdoor locations with built-in active PFC, it requires no earth connection and is flicker-free to the CE ErP directive.

Accepting 100~305VAC universal input, the XLG-75-L-DA2 operates at a case temperature of -40°C to 90°C and carries CB, CCC, CE, EAC, ENEC and SELV approvals. It supports DALI dimming. Protected against short circuit and over temperature, and backed by a 5-year warranty.

Key Features

✓Wide input range 100~305V AC(Class I)
✓Full power output at 70~100% Constant power mode operation
✓Metal case with IP67, suitable for outdoor application
✓Class 2 power unit(except for L type)
✓Surge protection with 6KV/4KV
✓DALI-2 Dimming with a minimum level 8%
✓Protection functions: SCP/OTP
✓Lifetime >50,000 hrs
✓5 years warranty
