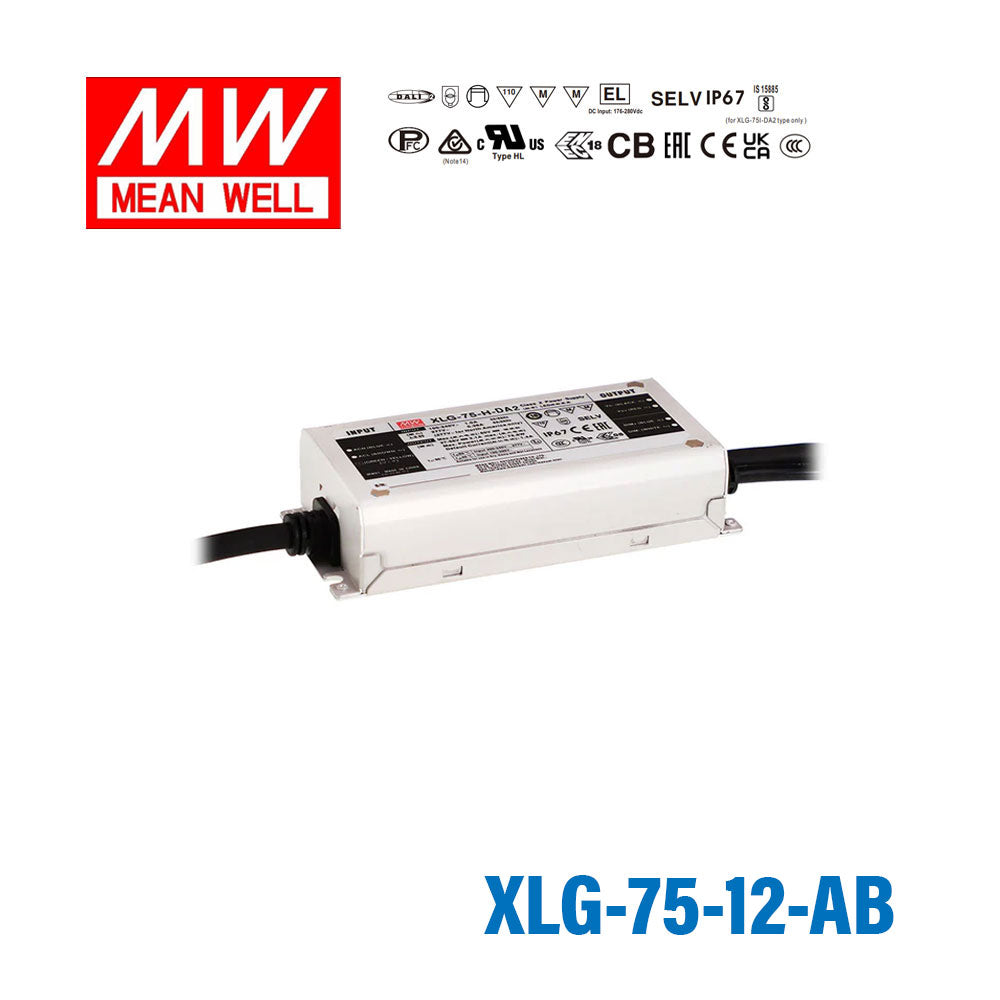

Mean Well XLG-75-12-AB Power Supply 75W 12V - Adjustable and Dimmab...
Please Login for Pricing
Description
Description
The XLG-75-12 is a 75W Mean Well power converter.
Key Features
- ✓ Cooling by free air convection
- ✓ Protections: Over voltage
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesXLG Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length14 cm
-
Width6.3 cm
-
Height3.2 cm
-
Weight0.58 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the XLG-75-12-AB power dimmable 12V LED strip in an outdoor or wet-rated installation?
Yes. The XLG-75-12-AB is IP67-rated for fully sealed dust and water protection and supports external dimming, making it suitable for dimmable 12V LED strip in outdoor sign boxes, exterior architectural lighting, and wet-area feature lighting applications.
How many meters of 12V LED strip will a 60W driver like the XLG-75-12-AB support?
The XLG-75-12-AB outputs 60W at 12V. Using a strip rated at 7.2W/m (common for mid-density 12V strip), the driver supports up to about 8.3 meters at full load, or approximately 6.7 meters derated to 80% for continuous operation. Check your specific strip's watts per meter rating to calculate the exact run length.
Is the XLG-75-12-AB appropriate for use in cold outdoor environments such as northern-climate signage?
Yes. With a rated operating range of -40°C to +90°C, the XLG-75-12-AB handles extreme cold conditions encountered in outdoor northern-climate signage, cold storage facility lighting, and exterior architectural strip installations year-round.
Can I use the XLG-75-12-AB to control brightness levels in a dimmable retail display or exhibition lighting rig?
Yes. The -AB designation indicates this unit includes a dimming interface suitable for adjusting 12V LED strip brightness via an external controller. This makes it a practical choice for dimmable retail display lighting, exhibition stands, or museum accent lighting where light level control is needed alongside IP67 environmental protection.
Can the XLG-75-12-AB be installed in a splash-zone location such as a fountain surround or covered outdoor bar?
Yes. The IP67 rating certifies resistance to complete dust ingress and temporary water immersion, making the XLG-75-12-AB suitable for splash-zone locations such as fountain surrounds, covered outdoor bars, and pool deck accent lighting, provided local electrical codes and enclosure requirements are met.
Other XLG-75 Models
6 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well XLG-75-24-A Power Supply 75W 24V - Adjustable 3.1A | 74.4W | 24V | 3.1A | IP67 | View |
| Mean Well XLG-75-L-DA2 Power Supply 74.9W 700mA - DALI2 Dimmable | 74.9W | 115V | 0.7A | IP67 | View |
| Mean Well XLG-75-H-DA2 Power Supply 75.6W 1400mA - DALI2 Dimmable | 75.6W | 60V | 1.4A | IP67 | View |
| Mean Well XLG-75-L-A AC-DC Single output LED driver Constant Power Mode 75W 1.05A | 75W | 107V | 1.05A | IP67 | View |
| Mean Well XLG-75-24-AB Power Supply 75W 24V - Adjustable and Dimmable 3.1A | 74.4W | 24V | 3.1A | IP67 | View |
| Mean Well XLG-75-12-A Power Supply 75W 12V - Adjustable 5A | 60W | 12V | 5A | IP67 | View |
