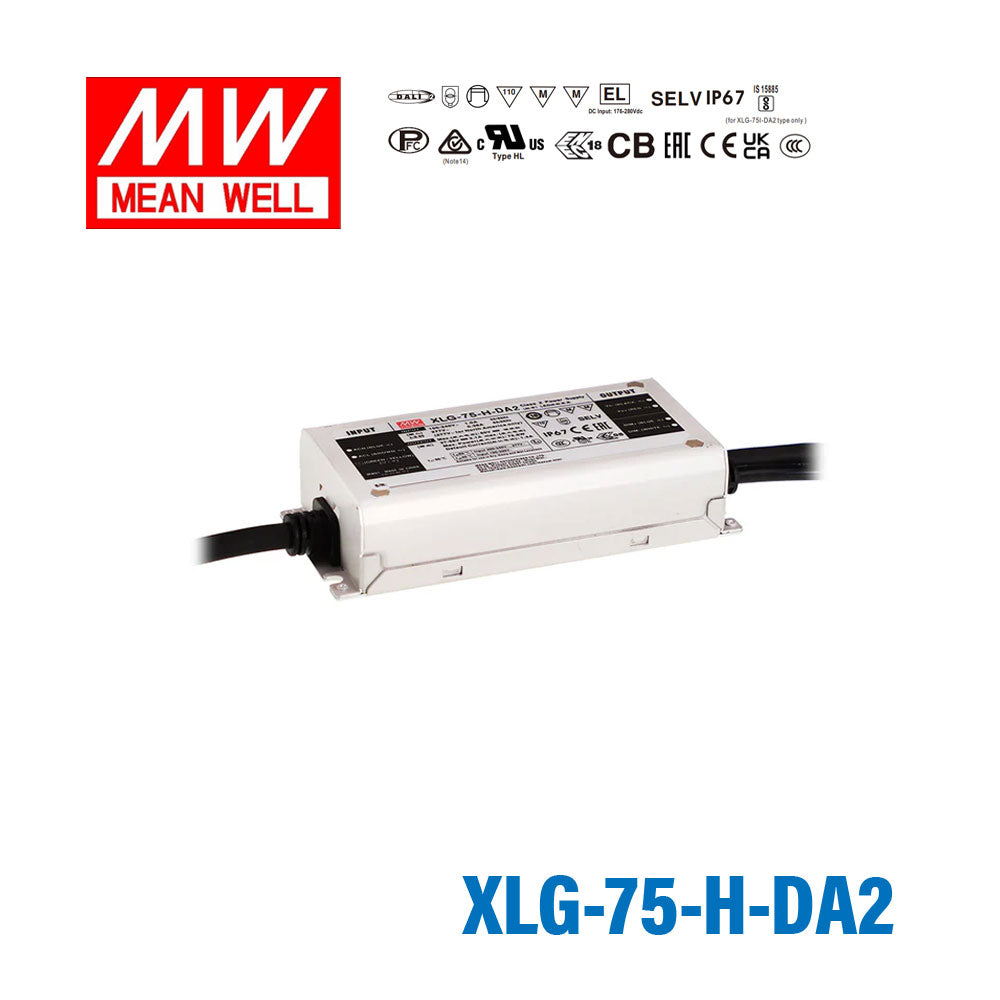

Mean Well XLG-75-H-DA2 Power Supply 75.6W 1400mA - DALI2 Dimmable
Please Login for Pricing
Description
Description
Key Features
- ✓Wide input range 100~305V AC(Class I)
- ✓Full power output at 70~100% Constant power mode operation
- ✓Metal case with IP67, suitable for outdoor application
- ✓Class 2 power unit(except for L type)
- ✓Surge protection with 6KV/4KV
- ✓DALI-2 Dimming with a minimum level 8%
- ✓Protection functions: SCP/OTP
- ✓Lifetime >50,000 hrs
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesXLG Series
-
Power Rating75.6 Watt
-
Output Voltage60 Volt
-
Rated Current1.4 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length14 cm
-
Width6.3 cm
-
Height3.2 cm
-
Weight0.58 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the XLG-75-H-DA2 power mid-wattage LED downlights with DALI2 dimming?
Yes. The XLG-75-H-DA2 delivers 75.6W at up to 1400mA constant current with a CC voltage range of 27–56V, making it a solid choice for medium-wattage LED downlight strings in offices, hospitality, or retail spaces that use DALI2 building controls.
Is the XLG-75-H-DA2 suitable for driving LED arrays in outdoor architectural fixtures?
Yes. Its IP67 waterproof rating and operating temperature range of -40°C to +90°C allow installation in outdoor architectural fixtures and enclosures exposed to rain, dust, and wide temperature swings.
Can I use the XLG-75-H-DA2 to drive a short LED module string in an LED signage panel?
Yes. With a CC voltage region of 27–56V and adjustable current from 700–2100mA, this driver can power compact LED signage modules in a short series configuration. The number of modules depends on each module's forward voltage within the 27–56V range.
How many LEDs can the XLG-75-H-DA2 drive in a series string?
The driver's constant current region spans 27–56V, so the LED count is determined by the forward voltage of each individual LED. Select LEDs whose combined forward voltages fall within 27–56V when operating at your chosen current up to 1400mA.
Can the XLG-75-H-DA2 handle wet or damp location installations?
Yes. The IP67 rating provides protection against water ingress and dust, and the wide -40°C to +90°C operating temperature range makes this driver appropriate for damp, wet, or outdoor locations.
How does the XLG-75-H-DA2 compare to the XLG-75-L-DA2?
Both are DALI2 drivers in the 75W class with IP67 ratings and the same 140 × 63 × 32 mm form factor. The XLG-75-H-DA2 outputs 75.6W with a CC region of 27–56V and adjustable current of 700–2100mA, targeting shorter low-voltage strings. The XLG-75-L-DA2 outputs 74.9W with a CC region of 53–107V and adjustable current of 350–1050mA, targeting longer mid-voltage strings.
