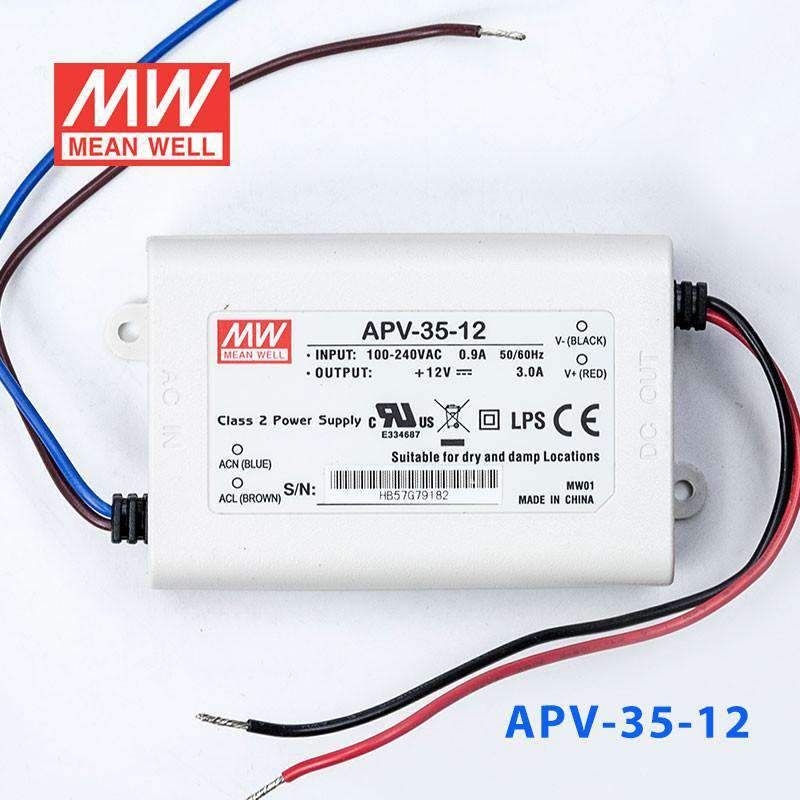

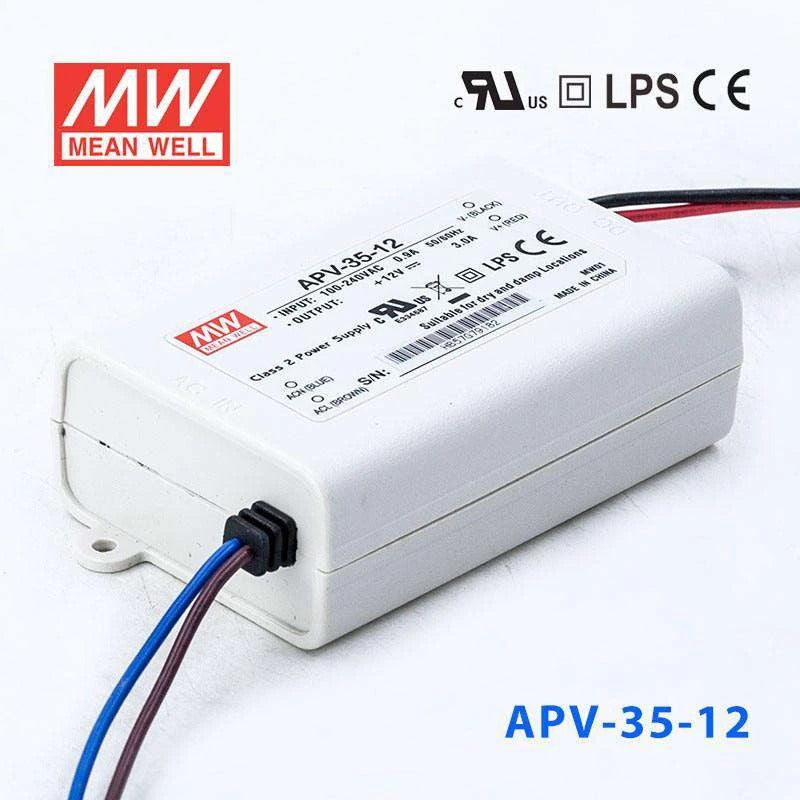

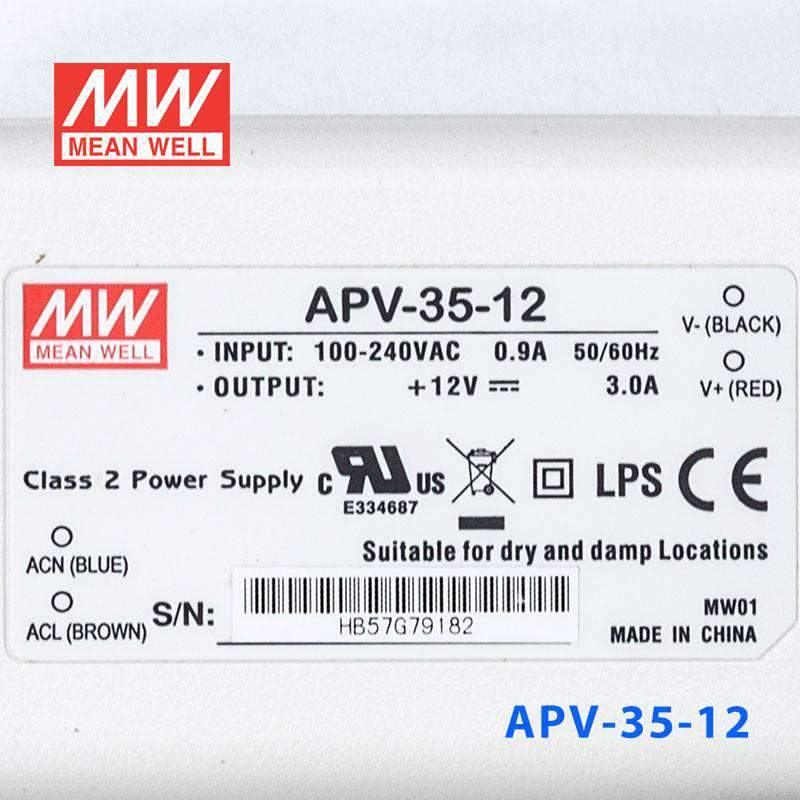

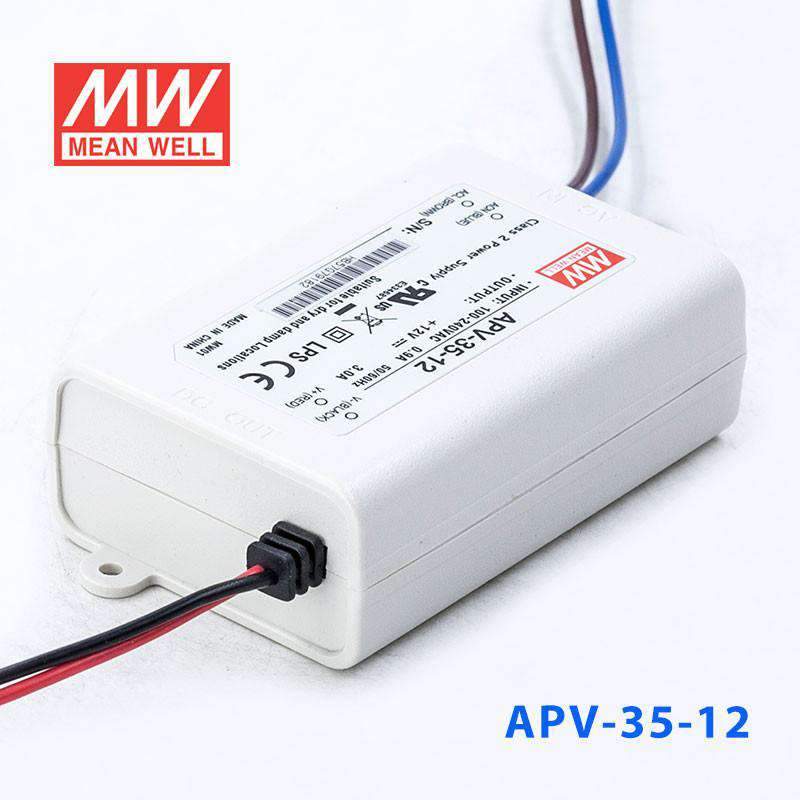

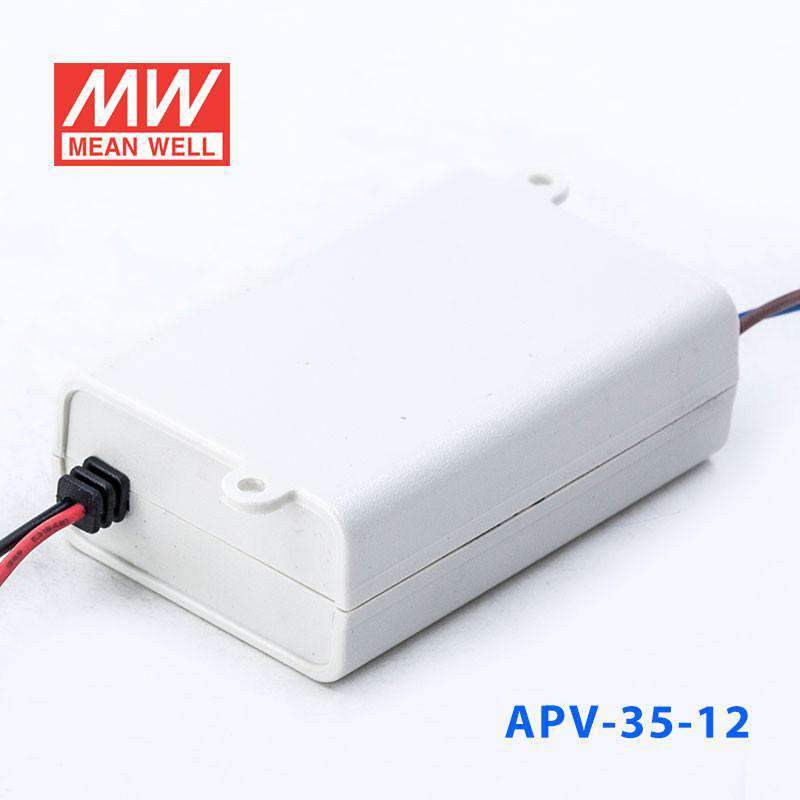

Mean Well APV-35-12 Power Supply 36W 12V 3A

4.6 (11 reviews)
Class II designlow costsmall and compactIP42
SKU APV-35-12
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model β€” 5 in this family

APV-35-12
In stock
|

Overview

APV-35-12 is the 12V output model of this series: rated current 3A, rated power 36W, typical efficiency 83%.

Features

  • Constant voltage mode power supply
  • Universal AC input / Full range
  • Withstand 300VAC Surge input for 5 seconds
  • Protections: Short circuit / Over load / Over voltage
  • Fully isolated plastic case
  • Cooling by free air convection
  • Small and compact size
  • IP42 design
  • Class 2 power unit
  • Pass LPS
  • 100% full load burn-in test
  • Low cost, high reliability
  • Display devices for decorative & advertising accessories (Note.10)
  • General-purpose electronics operated in dusty or damp environments
  • 2 years warranty

Specifications

APV-35-12Specifications from the official datasheet (2026-09-04 edition)

OUTPUT

DC VOLTAGE
12V
RATED CURRENT
3A
CURRENT RANGE
0 ~ 3A
RATED POWER
36W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE TOLERANCENote.3
Β±5.0%
LINE REGULATION
Β±1.0%
LOAD REGULATION
Β±2.0%
SETUP, RISE TIMENote.6
1500ms, 40ms / 230VAC 1500ms,40ms / 115VAC at full load
HOLD UP TIME (Typ.)
20ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGENote.4
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
83%
AC CURRENT
0.5A/230VAC 0.75A/115VAC
INRUSH CURRENT(Typ.)
COLD START 45A(twidth=440ΞΌs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
6 units (circuit breaker of type B) / 10 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
0.25mA / 240VAC

PROTECTION

OVER LOAD
110%~160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
13.8 ~ 16.2V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ 70℃(Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
Β±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750 , CSA-C22.2 No. 250.0-13, BIS IS15885, EAC TP TC 004,IP42 , BS EN/EN 62368-1 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC
ISOLATION RESISTANCE
I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032,BS EN/EN61000-3-2 Class A,BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN55035,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020

OTHERS

MTBF
5489.6K hrs min. Telcordia SR-332 (Bellcore) ; 600.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
84*57*29.5mm (L*W*H)
PACKING
0.18Kg; 72pcs / 14Kg/ 0.92CUFT

Certifications & ratings

IP42
IP42
Marked features
LPS
Test conditions and notes10
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
  5. 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  8. 8. Products sourced from the Americas regions may not have the ENEC/BIS/CCC logo. Please contact your MEAN WELL sales for more information.
  9. 9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  10. 10. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)

Technical drawings

APV-35-12 Block Diagram
Block Diagram

Downloads

FAQ

What 12V LED applications is the APV-35-12 suited to at 36W?

The APV-35-12 outputs 12V at 3A for a maximum of 36W. It suits longer 12V LED strip runs for retail display lighting, illuminated signage cabinets, 12V LED panel fixtures, and under-shelf task lighting installations where a single compact driver covers up to 36W of 12V load.

How long a 12V LED strip can the APV-35-12 power?

The APV-35-12 delivers 36W at 12V. At a strip rated 4.8 W/m, that supports approximately 7.5 m. Divide 36W by your strip's rated power per meter to find your specific limit, and check your strip's rated power per meter before specifying.

Is the APV-35-12 appropriate for outdoor or semi-outdoor LED signage?

The APV-35-12 carries IP42 ingress protection, which covers solid particles larger than 1 mm and light dripping water. It is not rated for outdoor rain or splash exposure. For semi-outdoor or outdoor LED signage installations, the driver must be housed in a fully sealed enclosure or a higher-IP rated driver must be specified.
