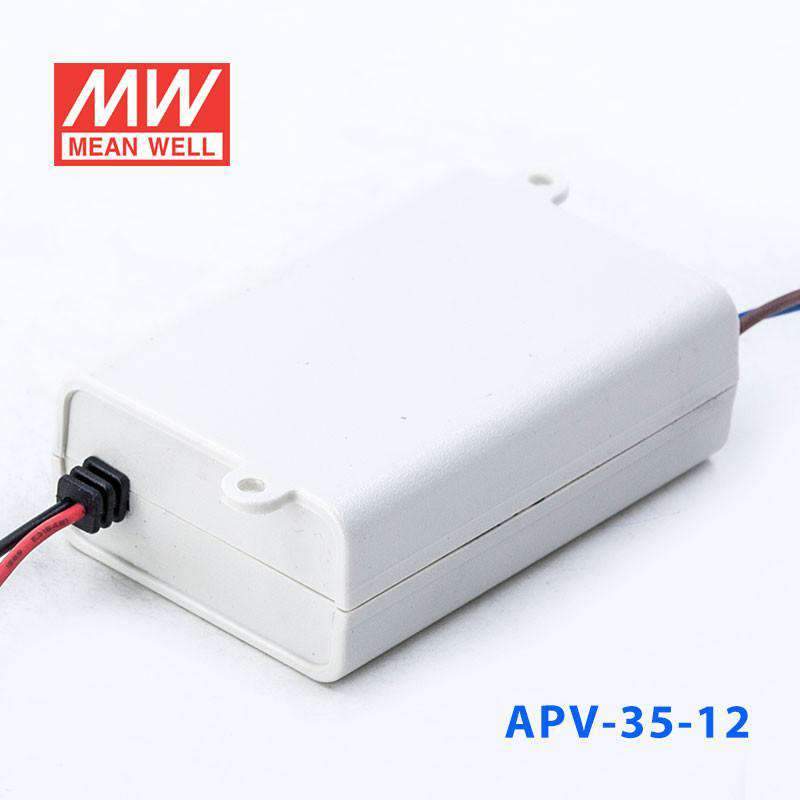

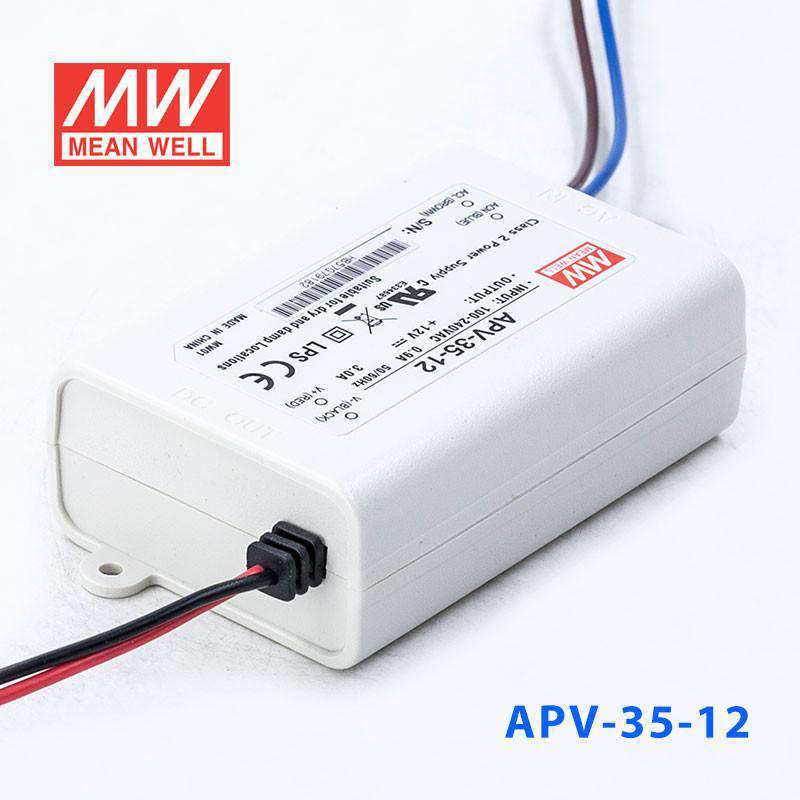

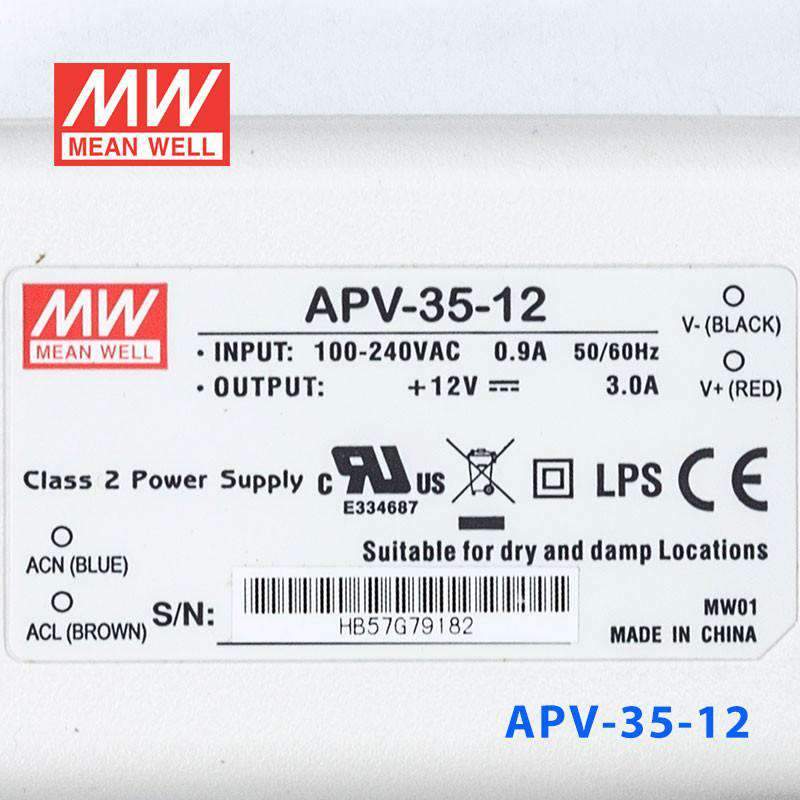

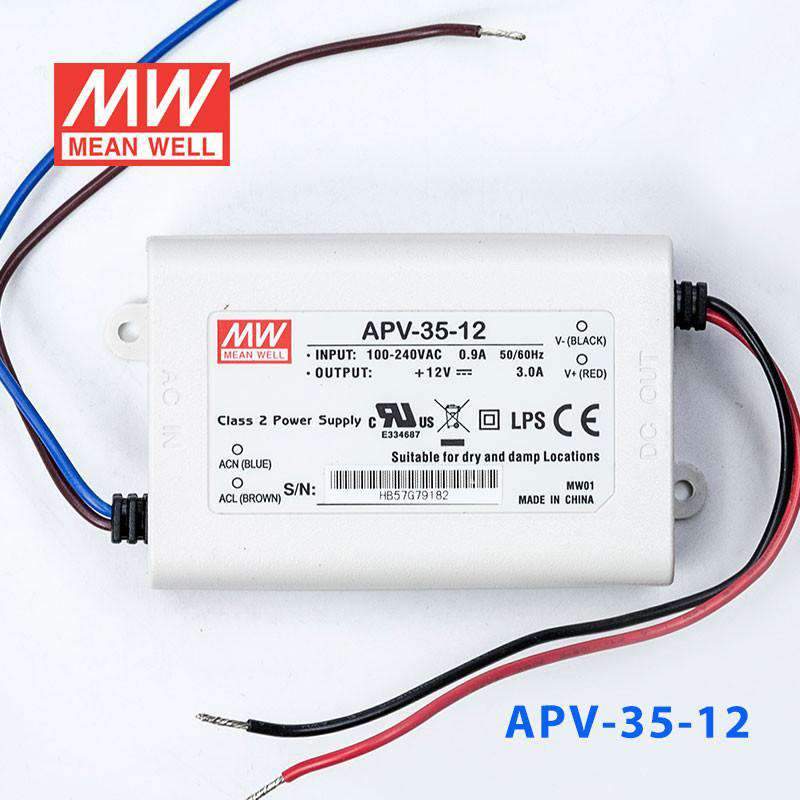

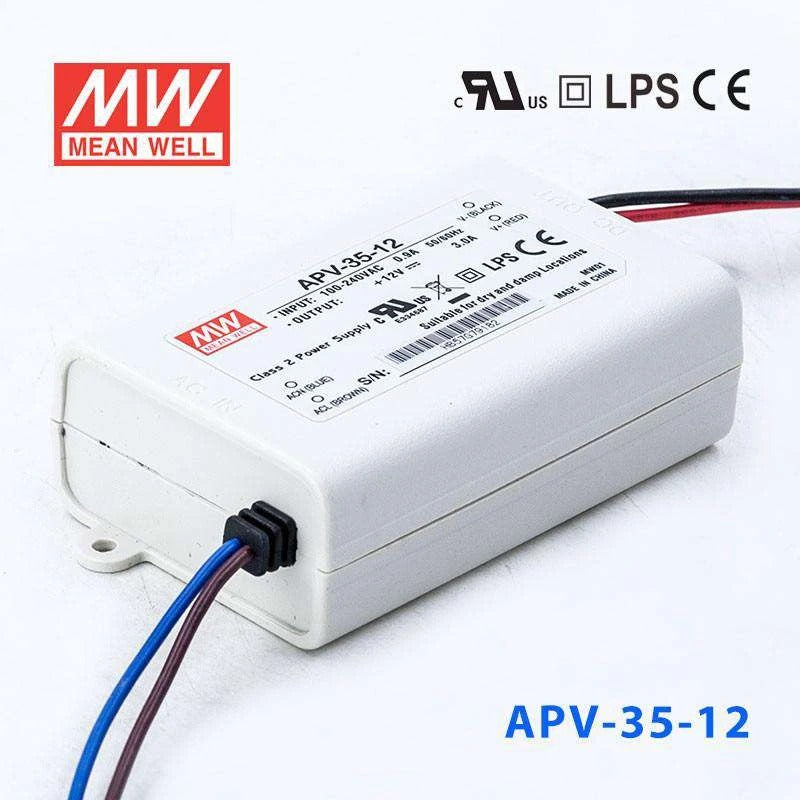

Mean Well APV-35-12 Power Supply 36W 12V 3A

Class II design, low cost, small and compact, IP42

SKU:

APV-35-12

Model

8W 12V

SKU: APV-8-12

12W 12V

SKU: APV-12-12

16W 12V

SKU: APV-16-12

25W 12V

SKU: APV-25-12

35W 12V

SKU: APV-35-12

Product variants

Please for Pricing

Notify me when it's back in stock

Description

The APV-35 is a 35W Mean Well. power converter. and an input range of 90~264VAC.

Key Features

✓ Input voltage range: 90~264VAC
✓ 3KVAC reinforced I/O isolation
✓ Protections: Over voltage
✓ Safety approvals: UL8750 , CSA-C22.2 No. 250.0-13, IP42
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

APV Series
Power Rating

36 Watt
Output Voltage

12 Volt
Rated Current

3 Ampere
Input Voltage

90V~264V
Standards Met

CE,EAC,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

2 Year
Length

8.4 cm
Width

5.7 cm
Height

2.95 cm
Weight

0.18 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What 12V LED applications is the APV-35-12 suited to at 36W?

The APV-35-12 outputs 12V at 3A for a maximum of 36W. It suits longer 12V LED strip runs for retail display lighting, illuminated signage cabinets, 12V LED panel fixtures, and under-shelf task lighting installations where a single compact driver covers up to 36W of 12V load.

How long a 12V LED strip can the APV-35-12 power?

The APV-35-12 delivers 36W at 12V. At a strip rated 4.8 W/m, that supports approximately 7.5 m. Divide 36W by your strip's rated power per meter to find your specific limit, and check your strip's rated power per meter before specifying.

How does the APV-35-12 compare to the APV-25-12 and the APV-16-12 at 12V?

All three output 12V from 90–264VAC. The APV-16-12 provides 15W at 1.25A in a 77.0 × 40.0 × 29.0 mm housing. The APV-25-12 provides 25.2W at 2.1A in a 84.0 × 57.0 × 29.5 mm enclosure. The APV-35-12 provides 36W at 3A in the same 84.0 × 57.0 × 29.5 mm housing. Select based on total wattage required.

Is the APV-35-12 appropriate for outdoor or semi-outdoor LED signage?

The APV-35-12 carries IP42 ingress protection, which covers solid particles larger than 1 mm and light dripping water. It is not rated for outdoor rain or splash exposure. For semi-outdoor or outdoor LED signage installations, the driver must be housed in a fully sealed enclosure or a higher-IP rated driver must be specified.

Model	Power	Voltage	Current	IP Rating
Mean Well APV-35-24 Power Supply 36W 24V 1.5A	36W	24V	1.5A	Indoor	View
Mean Well APV-35-15 Power Supply 36W 15V 2.4A	36W	15V	2.4A	Indoor	View
Mean Well APV-35-5 Power Supply 25W 5V 5A	25W	5V	5A	Indoor	View
Mean Well APV-35-36 Power Supply 36W 36V 1A	36W	36V	1A	Indoor	View
