Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

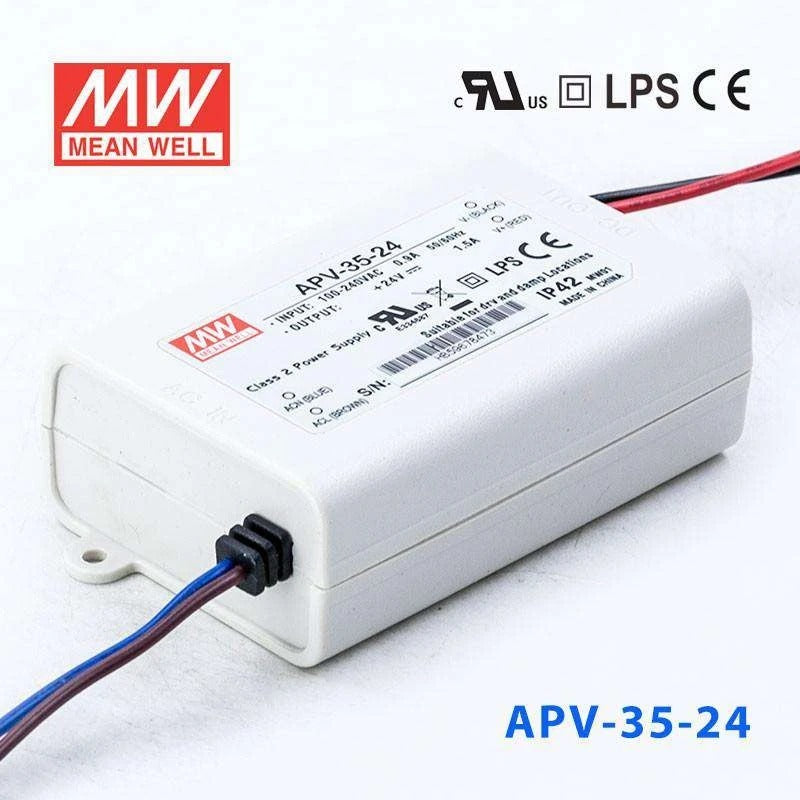

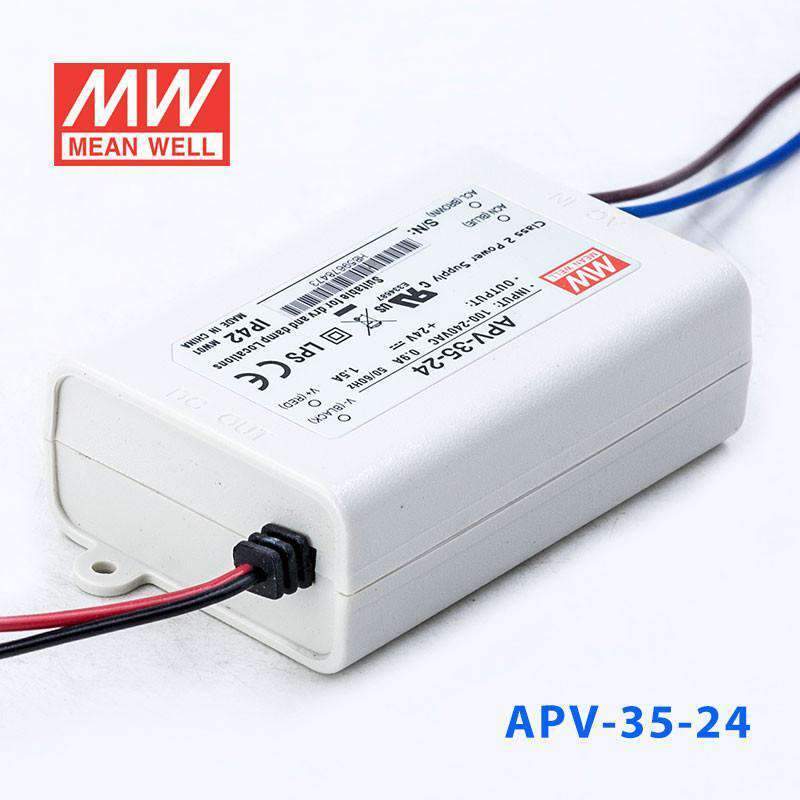

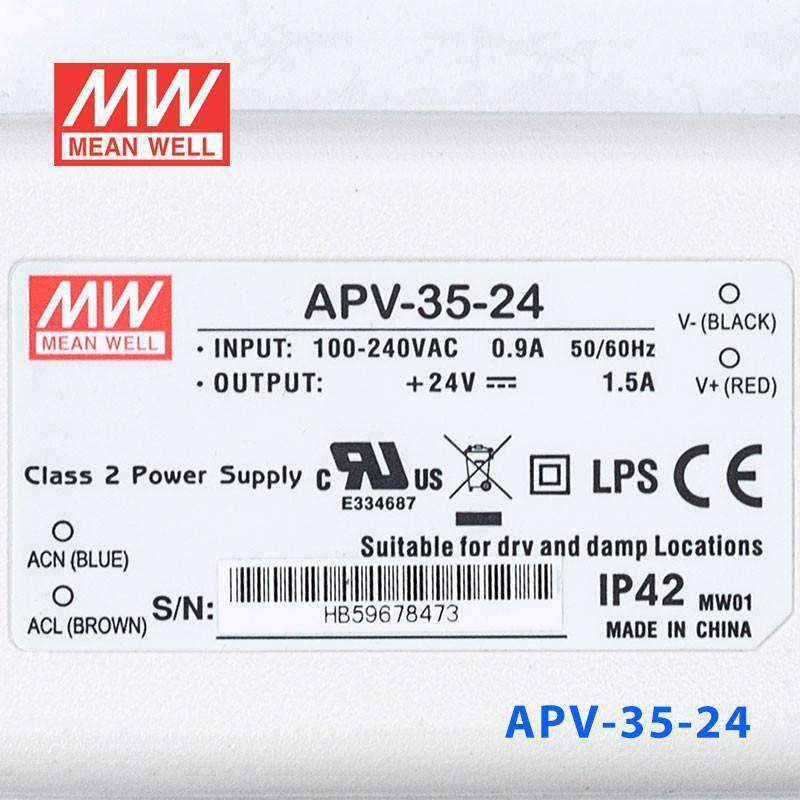

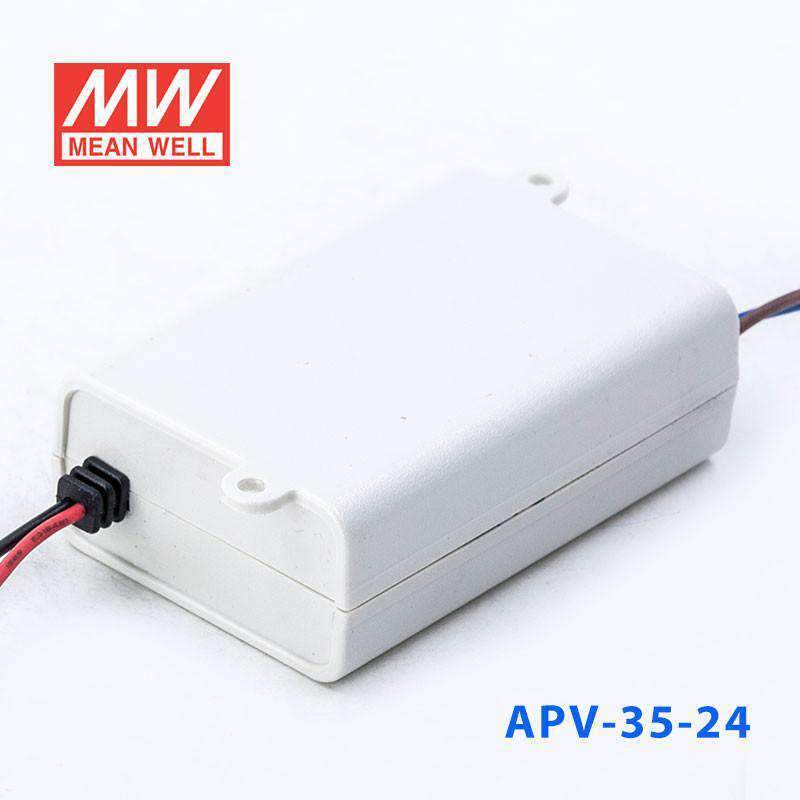

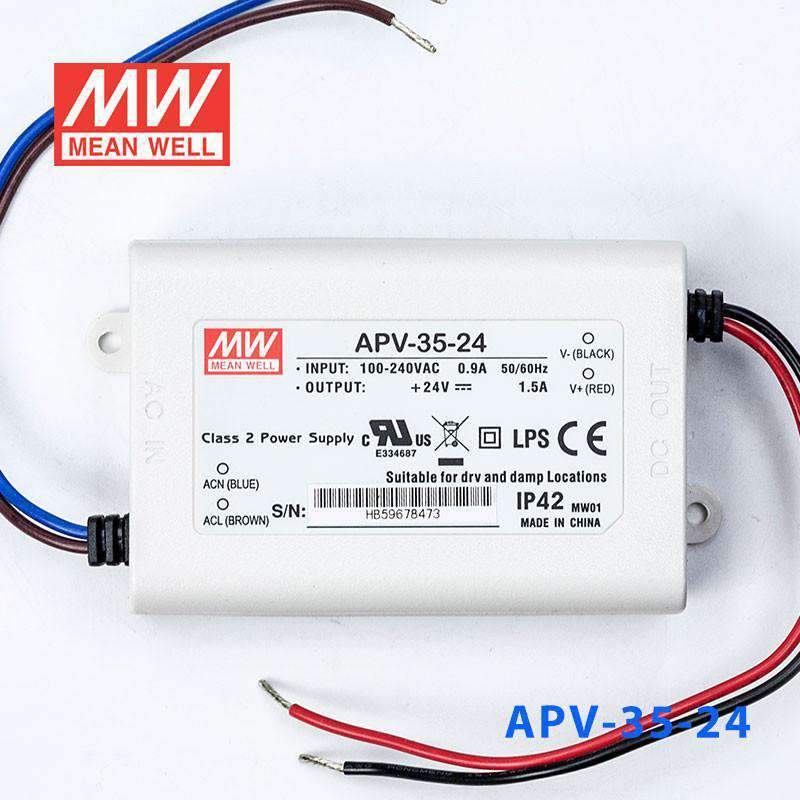

Mean Well APV-35-24 Power Supply 36W 24V

Class II design, low cost, small and compact, IP42

SKU:

APV-35-24

Model

8W 24V

SKU: APV-8-24

12W 24V

SKU: APV-12-24

16W 24V

SKU: APV-16-24

25W 24V

SKU: APV-25-24

35W 24V

SKU: APV-35-24

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Features

Universal AC input / Full range

Fully isolated plastic case

Protections: Short circuit / Overload / Over voltage

Constant voltage design (C.V. mode)

IP30 design

Withstand 300VAC surge input for 5 seconds

Class 2 power unit / Pass LPS

Isolation class II, no F.G.

Cooling by free air convection

100% full load burn-in test

Low cost, high reliability

Suitable for LED lighting and moving sign applications

2 years warranty

General Specification

AC input voltage range	90~264VAC ; 127~370VDC
AC inrush current	Cold start, 45A at 230VAC
Overload Range	>105% rated output current
Protection Type	Hiccup up mode, auto-recovery
Over voltage protection	110%~145% rated output voltage
Withstand voltage	I/P-O/P: 3kVAC
Working temperature	-30~+70°C (refer to output derating curve)
Vibration	10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards	UL8750 approved (except for APC-25-350&APC-35-350/500);Design refer to TUV EN60950-1
EMC standards	EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
Connection Input	UL rated, 18AWGx2C (15cm)
Connection Output	UL rated, 18AWGx2C (15cm)
Dimension (LxWxH)(mm)	84x 57x 29.5

Specifications

Brand

Mean Well
Series

APV Series
Power Rating

36 Watt
Output Voltage

24 Volt
Rated Current

1.5 Ampere
Input Voltage

90V~264V
Standards Met

CE,EAC,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

2 Year
Length

8.4 cm
Width

5.7 cm
Height

2.95 cm
Weight

0.18 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What 24V LED lighting tasks is the APV-35-24 suited to at 36W?

The APV-35-24 outputs 24V at 1.5A for a maximum of 36W. It suits longer 24V LED strip runs in commercial shelving and retail display lighting, 24V LED panel fixtures, and mid-size backlit signage panels where the total load is at or below 36W.

How does the APV-35-24 compare to the APV-25-24 and APV-16-24 at 24V?

All three output 24V from 90–264VAC. The APV-16-24 provides 16.08W at 0.67A in a 77.0 × 40.0 × 29.0 mm housing. The APV-25-24 provides 25.2W at 1.05A in a 84.0 × 57.0 × 29.5 mm enclosure. The APV-35-24 provides 36W at 1.5A in the same 84.0 × 57.0 × 29.5 mm housing. Select based on wattage required.

How long a 24V LED strip can the APV-35-24 power?

The APV-35-24 delivers 36W at 24V. At a strip rated 14.4 W/m, that supports approximately 2.5 m. Divide 36W by your strip's rated power per meter to calculate your specific maximum, and check your strip's rated power per meter before specifying.

Is the APV-35-24 suitable for indoor wet-area LED lighting?

The APV-35-24 is rated IP42, offering protection against solid particles larger than 1 mm and dripping water only. It is not approved for splash, washdown, or outdoor environments without additional enclosure protection. Wet-area or outdoor 24V LED installations require a driver with IP65 or higher protection.

Model	Power	Voltage	Current	IP Rating
Mean Well APV-35-12 Power Supply 36W 12V	36W	12V	3A	Indoor	View
Mean Well APV-35-15 Power Supply 36W 15V	36W	15V	2.4A	Indoor	View
Mean Well APV-35-5 Power Supply 25W 5V	25W	5V	5A	Indoor	View
Mean Well APV-35-36 Power Supply 36W 36V	36W	36V	1A	Indoor	View
