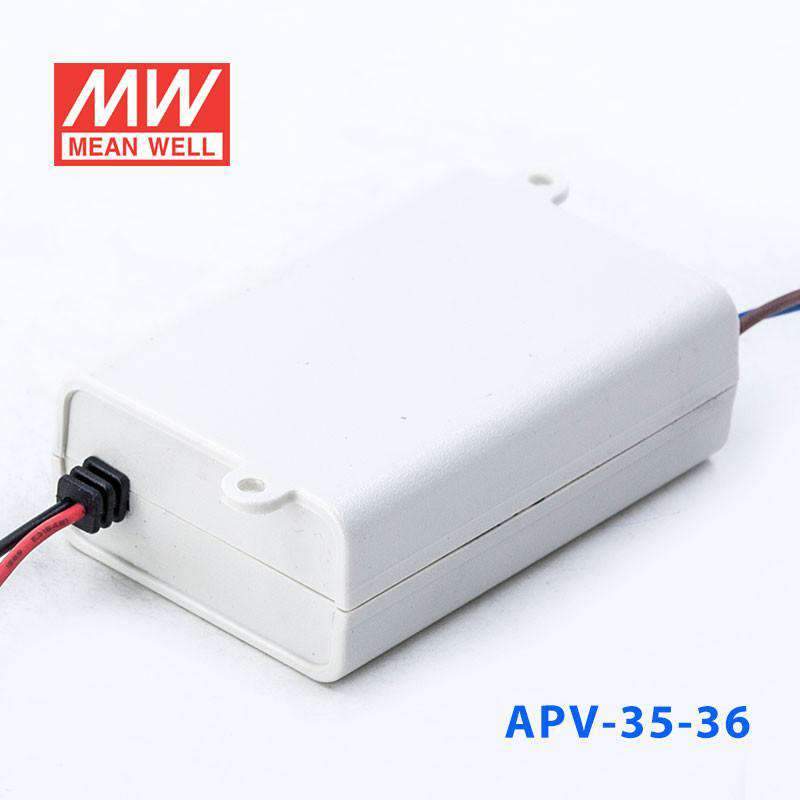

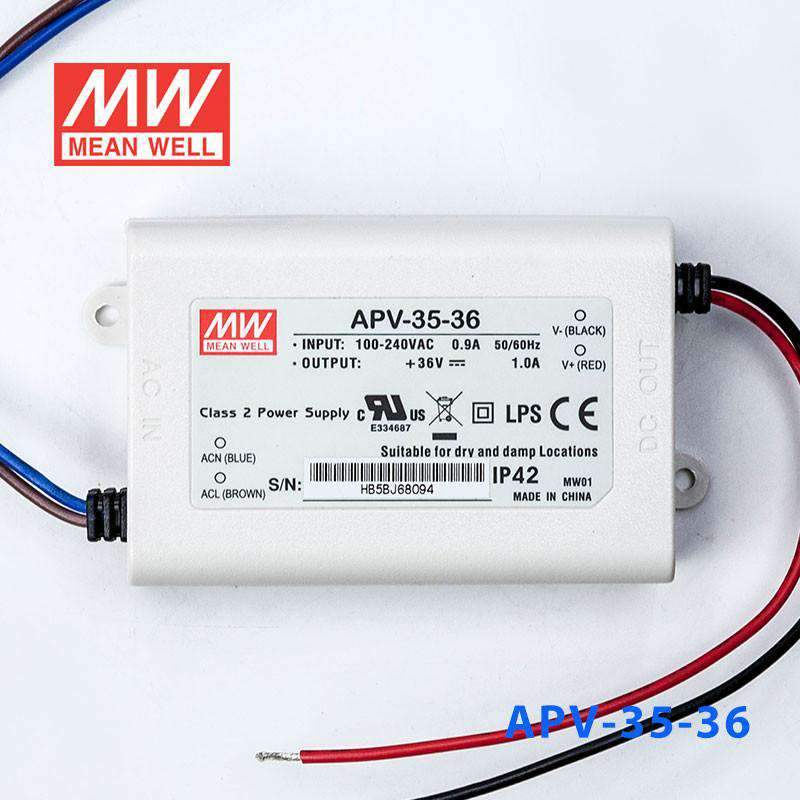

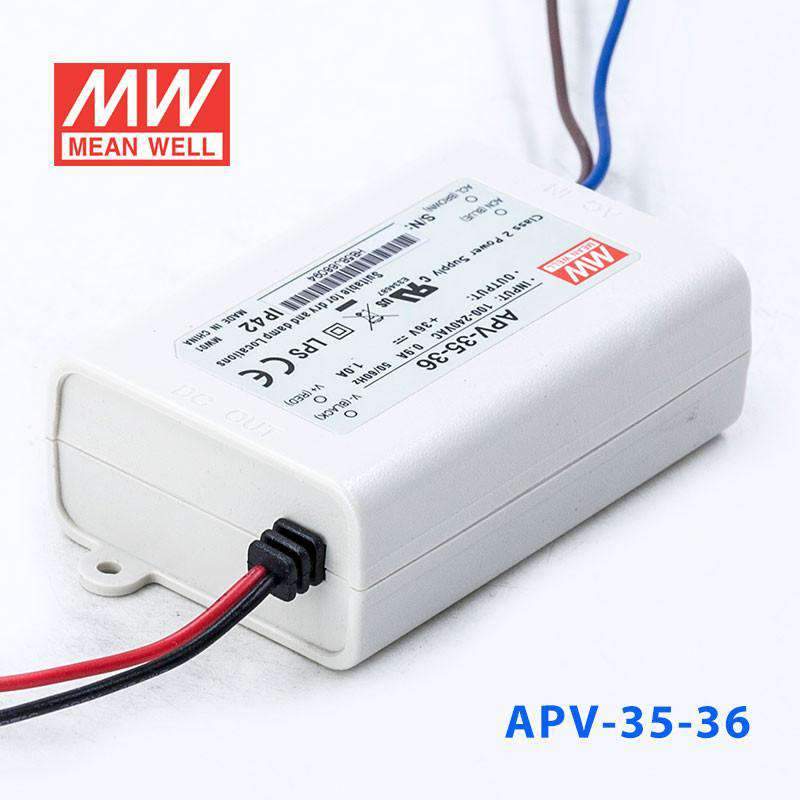

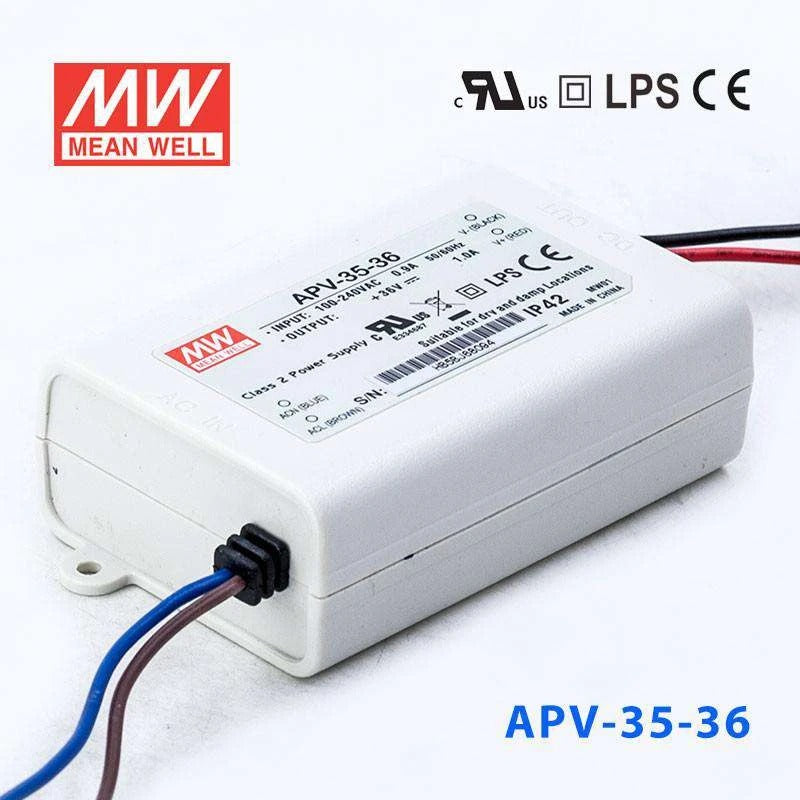

Mean Well APV-35-36 Power Supply 36W 36V 1A

The APV-35-36 outputs 36V at 1A for a maximum of 36W. It suits 36V LED strip products, 36V LED module arrays used in specialty signage, and other LED fixtures rated for 36V nominal supply. Confirm your LED product's nominal voltage is 36V before selecting this driver.

Both output 36V from 90–264VAC in the same 84.0 × 57.0 × 29.5 mm housing. The APV-25-36 provides 25.2W at 0.7A. The APV-35-36 provides 36W at 1A — an increase of 10.8W and 0.3A at the same footprint. Choose based on the total wattage your 36V LED load requires.

The APV-35-36 delivers 36W at 36V. At a 36V strip rated 7.2 W/m, the maximum supported length is approximately 5 m. Divide 36W by your strip's rated power per meter to find your specific limit, and check your strip's rated power per meter before purchasing.

No. The APV-35-36 carries an IP42 rating, which covers protection against solid objects larger than 1 mm and dripping water at a limited angle only. For outdoor 36V LED signage or lighting, the driver must be installed inside a sealed IP65 or higher rated enclosure, or a driver with a higher native IP rating must be specified.

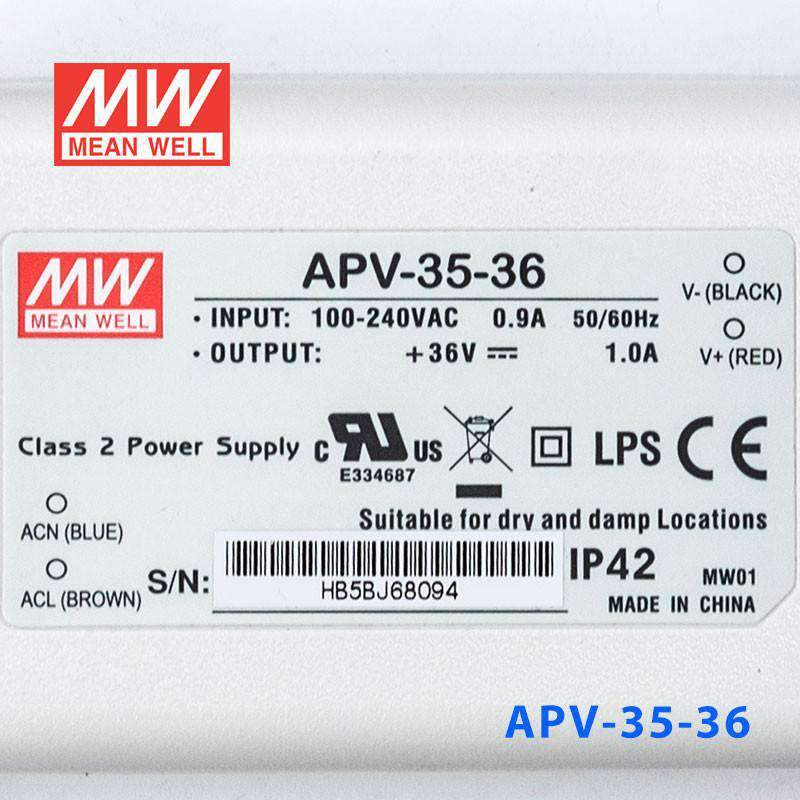

The APV-35-36 holds CE, EAC, and UL certifications. CE covers European markets, EAC covers the Eurasian Economic Union, and UL covers North American market requirements. The driver accepts 90–264VAC input, so it operates on any standard global mains supply without voltage selection.
