Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

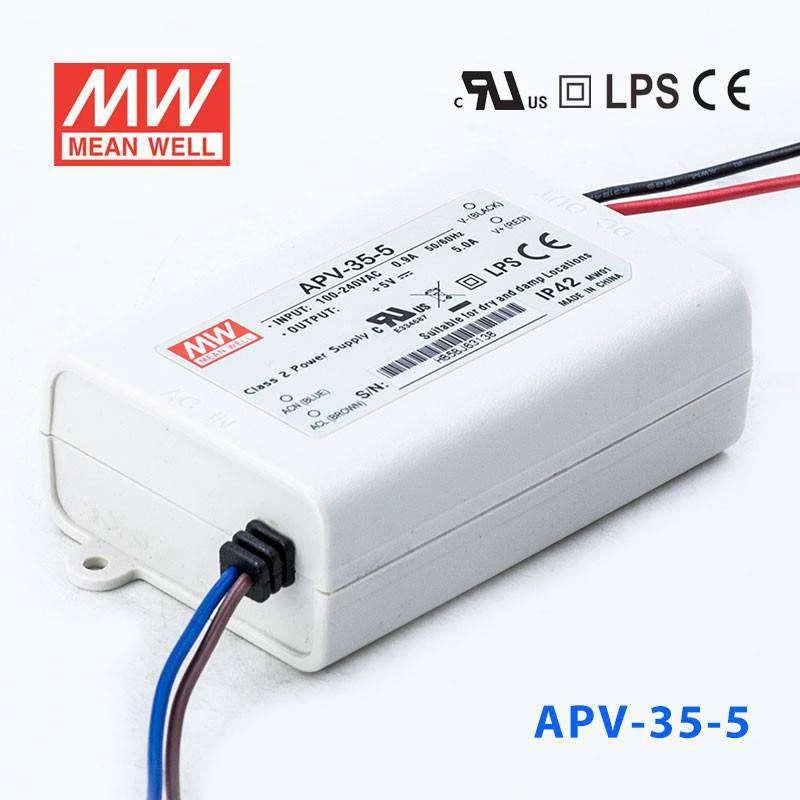

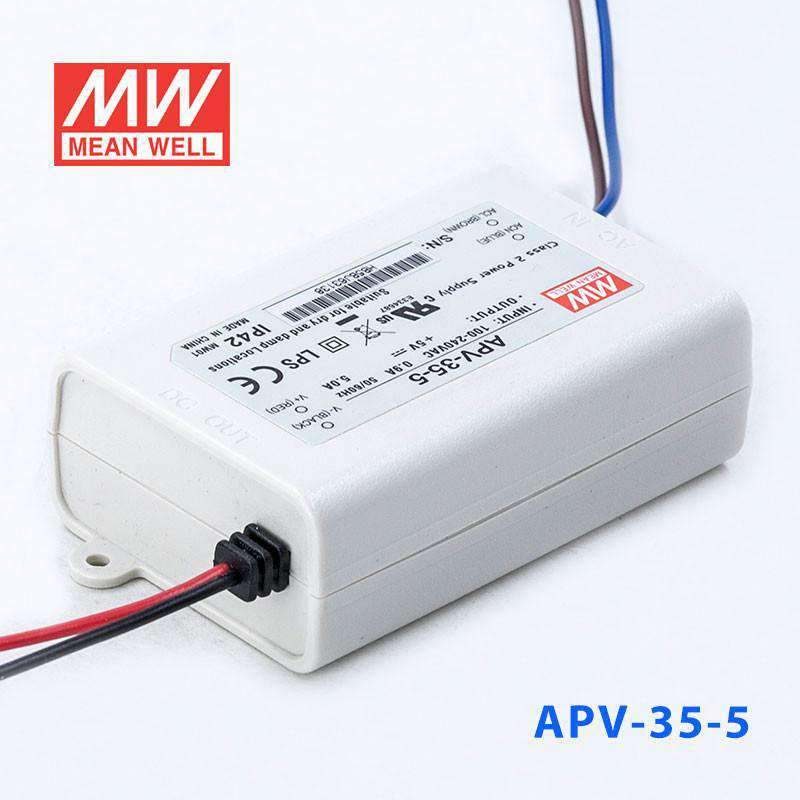

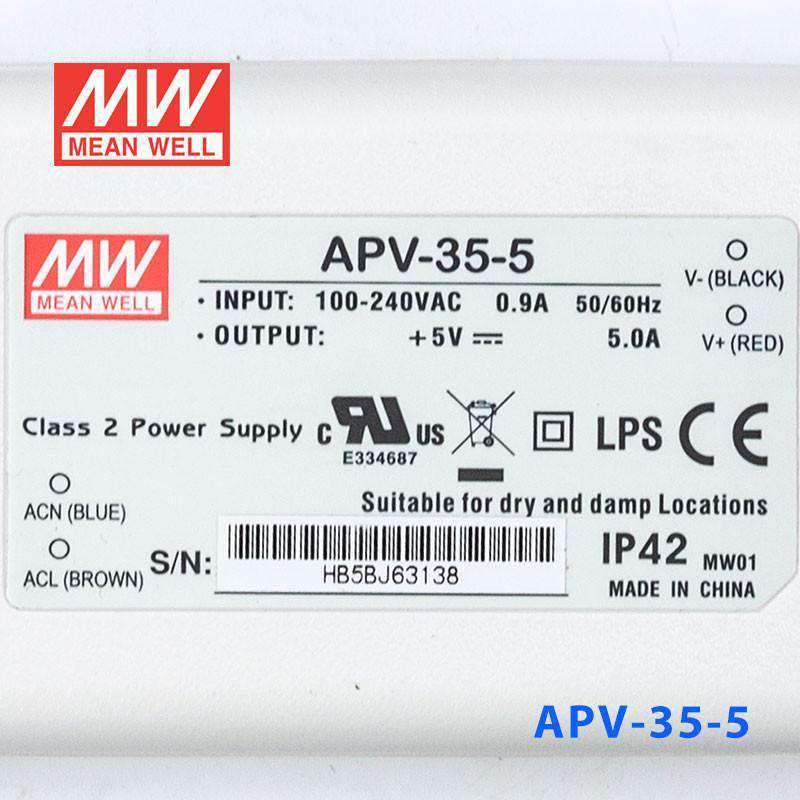

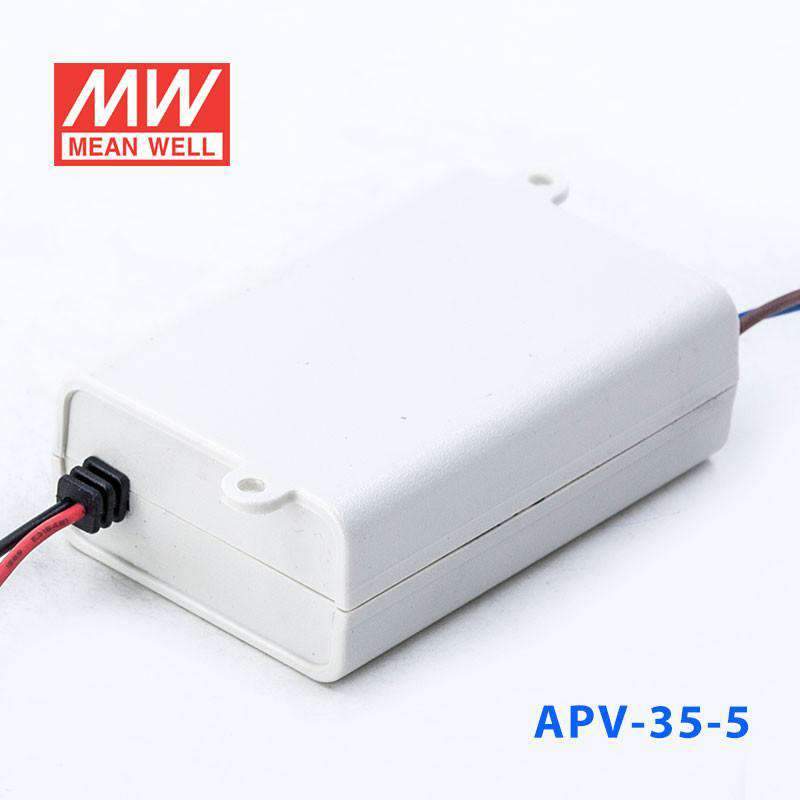

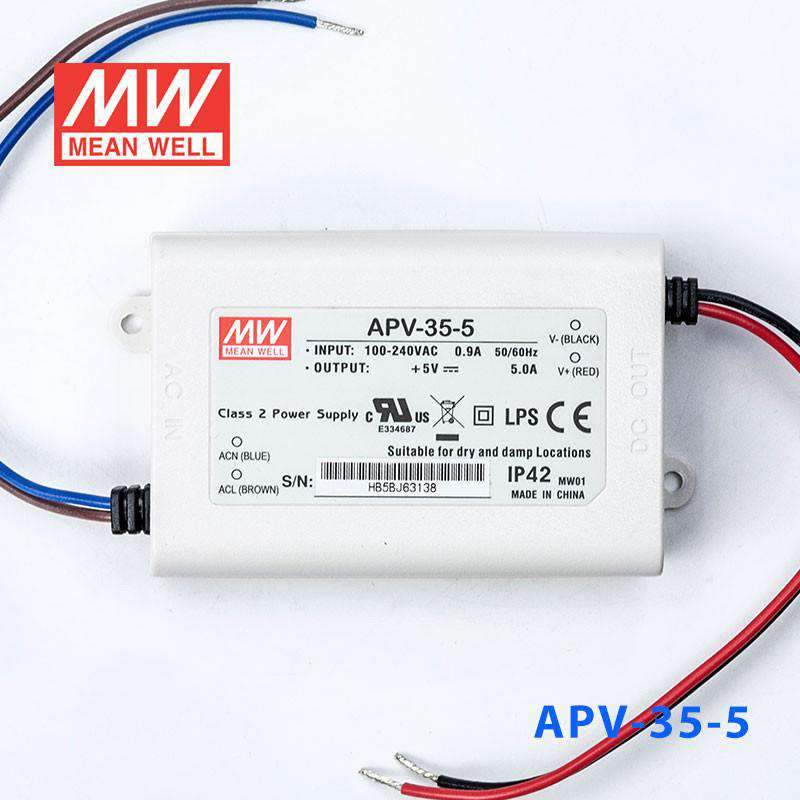

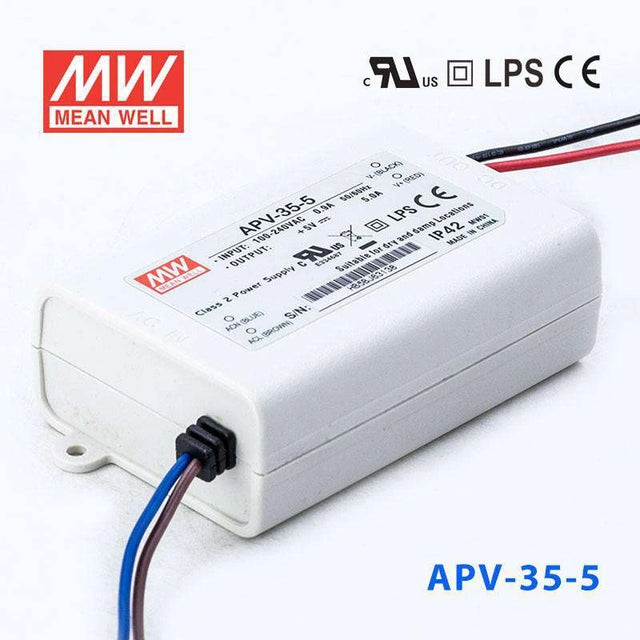

Mean Well APV-35-5 Power Supply 25W 5V

Class II design, low cost, small and compact, IP42

SKU:

APV-35-5

Model

8W 5V

SKU: APV-8-5

12W 5V

SKU: APV-12-5

16W 5V

SKU: APV-16-5

25W 5V

SKU: APV-25-5

35W 5V

SKU: APV-35-5

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Features

Universal AC input / Full range

Fully isolated plastic case

Protections: Short circuit / Overload / Over voltage

Constant voltage design (C.V. mode)

IP30 design

Withstand 300VAC surge input for 5 seconds

Class 2 power unit / Pass LPS

Isolation class II, no F.G.

Cooling by free air convection

100% full load burn-in test

Low cost, high reliability

Suitable for LED lighting and moving sign applications

2 years warranty

General Specification

AC input voltage range	90~264VAC ; 127~370VDC
AC inrush current	Cold start, 45A at 230VAC
Overload Range	>105% rated output current
Protection Type	Hiccup up mode, auto-recovery
Over voltage protection	110%~145% rated output voltage
Withstand voltage	I/P-O/P: 3kVAC
Working temperature	-30~+70°C (refer to output derating curve)
Vibration	10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards	UL8750 approved (except for APC-25-350&APC-35-350/500);Design refer to TUV EN60950-1
EMC standards	EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
Connection Input	UL rated, 18AWGx2C (15cm)
Connection Output	UL rated, 18AWGx2C (15cm)
Dimension (LxWxH)(mm)	84x 57x 29.5

Specifications

Brand

Mean Well
Series

APV Series
Power Rating

25 Watt
Output Voltage

5 Volt
Rated Current

5 Ampere
Input Voltage

90V~264V
Standards Met

CE,EAC,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

2 Year
Length

8.4 cm
Width

5.7 cm
Height

2.95 cm
Weight

0.18 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What 5V LED applications can the APV-35-5 support at 25W?

The APV-35-5 outputs 5V at 5A for a maximum of 25W. It suits larger 5V addressable LED strip installations, 5V LED pixel display panels, and multi-section 5V LED lighting systems where the combined load does not exceed 25W.

How does the APV-35-5 compare to the APV-25-5 and APV-16-5?

All three output 5V from 90–264VAC. The APV-16-5 provides 13W at 2.6A in a 77.0 × 40.0 × 29.0 mm housing. The APV-25-5 provides 17.5W at 3.5A in a 84.0 × 57.0 × 29.5 mm enclosure. The APV-35-5 provides 25W at 5A in the same 84.0 × 57.0 × 29.5 mm housing. Select based on the total wattage your LED load requires.

How long a 5V LED strip can the APV-35-5 power?

The APV-35-5 delivers 25W at 5V. At a strip rated 5 W/m, that supports approximately 5 m. Divide 25W by your strip's rated power per meter to calculate your specific limit, and check your strip's rated power per meter before specifying.

What temperature range does the APV-35-5 operate across?

The APV-35-5 is rated for operation from -30°C to +70°C. Combined with its IP42 ingress protection, it is designed for enclosed indoor environments. For high-ambient or outdoor installations, enclosure thermal management and higher IP-rated drivers should be considered.
