Mean Well XLG-100-24-A Power Supply 100W 24V - Adjustable 4A

metal caseeconomical100~305VAC wide range inputefficiency up to 90%

SKU XLG-100-24-A

Log in to see price Trade pricing & online ordering for account holders

Select model — 8 in this family

XLG-100-24-A

XLG-75-24-A Adjustable Backorder

XLG-100-24-A Adjustable In stock

XLG-100-24-AB Adjustable and Dimmable Backorder

XLG-150-24-A Adjustable In stock

XLG-150-24-AB Adjustable and Dimmable Backorder

XLG-200-24-A Adjustable In stock

XLG-200-24-AB Adjustable and Dimmable Backorder

XLG-75-24-AB Adjustable and Dimmable Backorder

Product variants

In stock

Overview

XLG-100-24-A is the 24V output model of this series: rated power 96W, typical efficiency 92%.

XLG-100 series is a 100W LED AC/DC driver featuring the constant power mode.XLG-100 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 8000mA. Thanks to the high efficiency up to 92%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XLG-100 series comply with the latest version of IEC61347/GB/T19510.1 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.

Features

Wide input range 100~305VAC( ClassⅠ)
Full power output at 70~100% Constant power mode operation
Metal case with IP67, suitable for outdoor application
LVLE(H type),Class 2(24V)power unit
Surge protection with 6KV/4KV (10KV/6KV optional)
3 in 1 dimming function (Dim to off and Isolation design)
India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
Protection functions: OVP/SCP/OCP/OTP
Comply with UL Class P
Life time >50,000 hrs. and 5 years warranty

Specifications

XLG-100-24-ASpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

DC VOLTAGE: 24V
CONSTANT CURRENT REGION^Note.2: 16.8 ~ 24V
RATED CURRENT (Default): 4A
RATED POWER: 96W
RIPPLE & NOISE (max.)^Note.3: 240mVp-p
CURRENT ADJ. RANGE: 2 ~ 4A (Adjustable for A-Type only, via the built-in potentiometer)
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1%
SETUP, RISE TIME^Note.6: 500ms, 100ms/230VAC, 1200ms, 100ms/115VAC
HOLD UP TIME (Typ.): 12ms/230VAC, 12ms/115VAC

INPUT

VOLTAGE RANGE^Note.5: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load
TOTAL HARMONIC DISTORTION: THD< 10%(@load≧50%/115VAC,230VAC; @load≧75%/277VAC)
EFFICIENCY (Typ.): 92%
AC CURRENT (Typ.): 1.1A / 115VAC 0.5A / 230VAC 0.42A / 277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=300μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 8 units (circuit breaker of type B) / 14 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD POWER CONSUMPTION: No load power consumption <0.5W(for standard version)

PROTECTION

OVER CURRENT: 110 ~ 160% for CV type, 95~108% for other type; CV-type: Hiccup mode only; Other type: Hiccup or constant current limiting; Recovers automatically after fault condition is removed
SHORT CIRCUIT: CV-type: Hiccup mode only; Other type: Hiccup or constant current limiting; Recovers automatically after fault condition is removed
OVER VOLTAGE: 27 ~ 34V Shut down output voltage, re-power on to recover
INPUT OVER VOLTAGE: 320 ~ 390VAC (Shut down output voltage when the input voltage exceeds protection voltage, recovers automatically after fault condition is removed) Can survive input voltage stress of 440Vac for 48 hours(Input over voltage only for XLG-100I series)
OVER TEMPERATURE: Shut down output voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.7: UL8750(type”HL”), UL879, CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213; EAC TP TC 004; J61347-1(H29), J61347-2-13(H29) ,KC61347-1,KC61347-2-13, IS15885(Part2/Sec13)(for XLG-100I type only);NOM-058-SCFI-2017(except for Blank type); IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current BS EN/EN61000-3-2 ,GB17625.1 Class C @load≥50%
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN61547

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT/Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-4-5 4KV/Line-Line 6KV/Line-Earth(6K/10K option)
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated	BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current	BS EN/EN61000-3-2 ,GB17625.1	Class C @load≥50%
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 3
EFT/Burst	BS EN/EN61000-4-4	Level 3
Surge	BS EN/EN61000-4-5	4KV/Line-Line 6KV/Line-Earth(6K/10K option)
Conducted	BS EN/EN61000-4-6	Level 3
Magnetic Field	BS EN/EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 2782.6K hrs min. Telcordia SR-332 (Bellcore) ; 276.4Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 140*63*32mm (L*W*H)
PACKING: 0.58Kg;24pcs /15Kg /0.85CUFT

Test conditions and notes16

Technical drawings

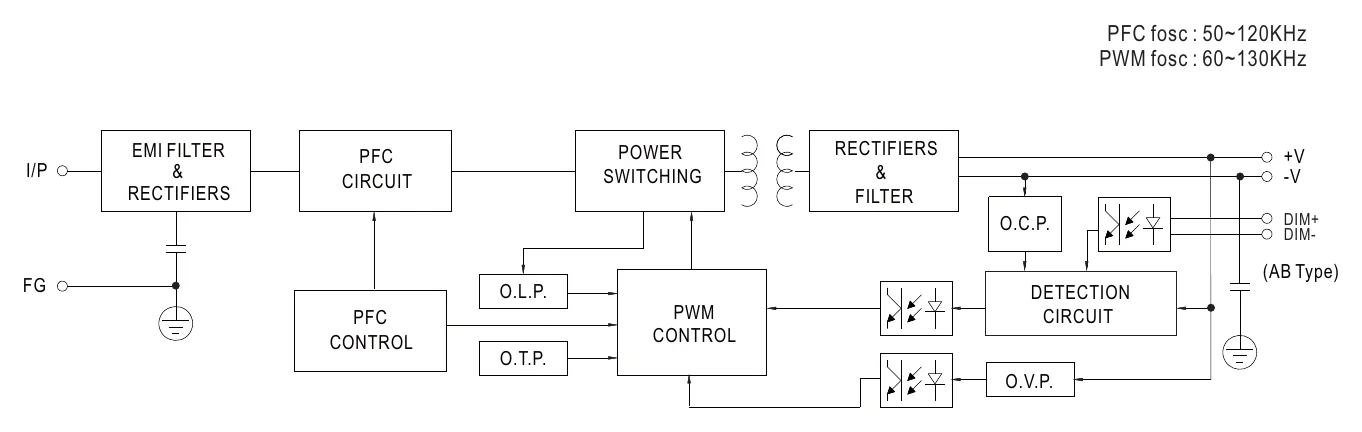

XLG-100-24-A BLOCK DIAGRAM — BLOCK DIAGRAM

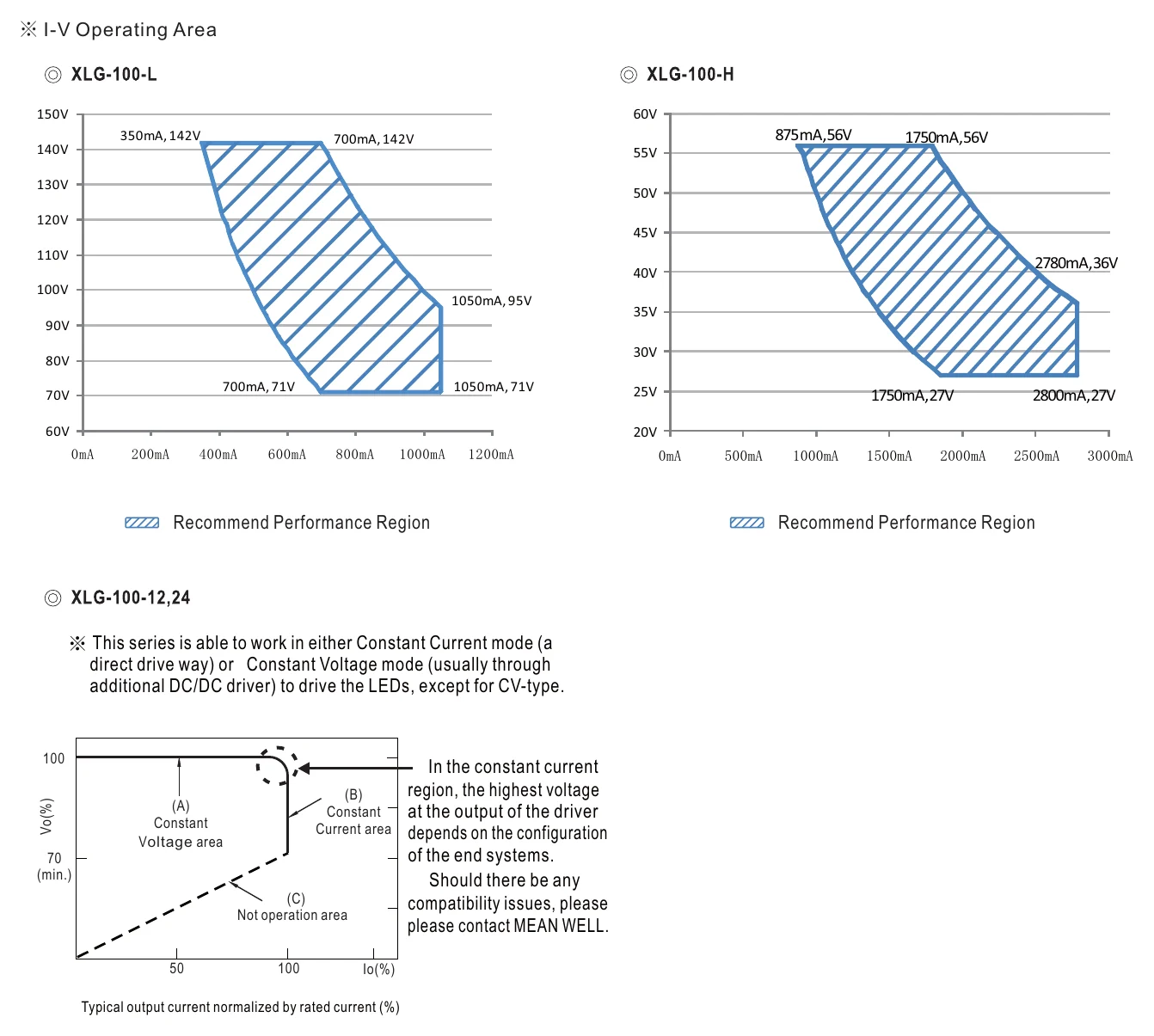

XLG-100-24-A DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

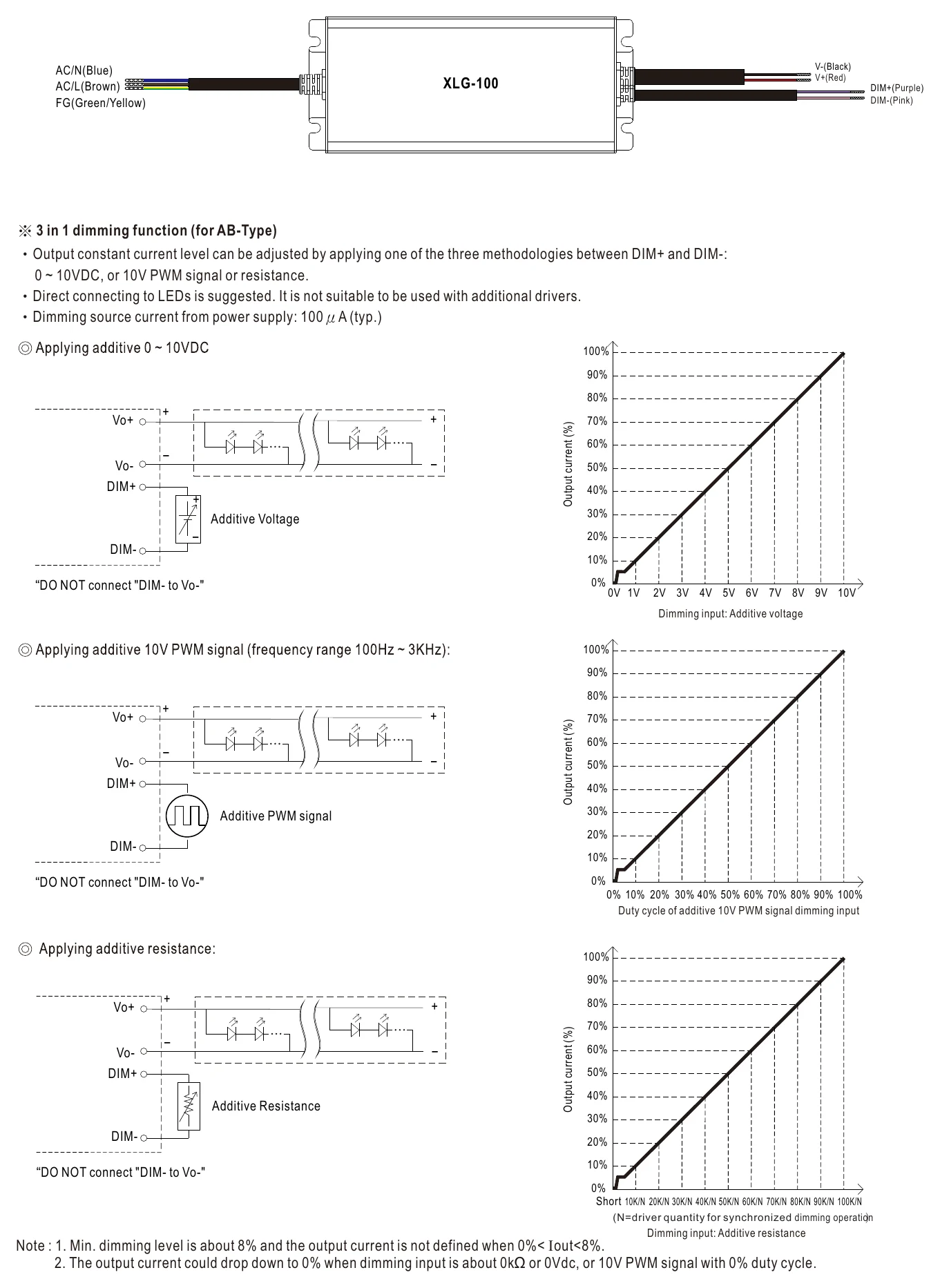

XLG-100-24-A DIMMING OPERATION — DIMMING OPERATION

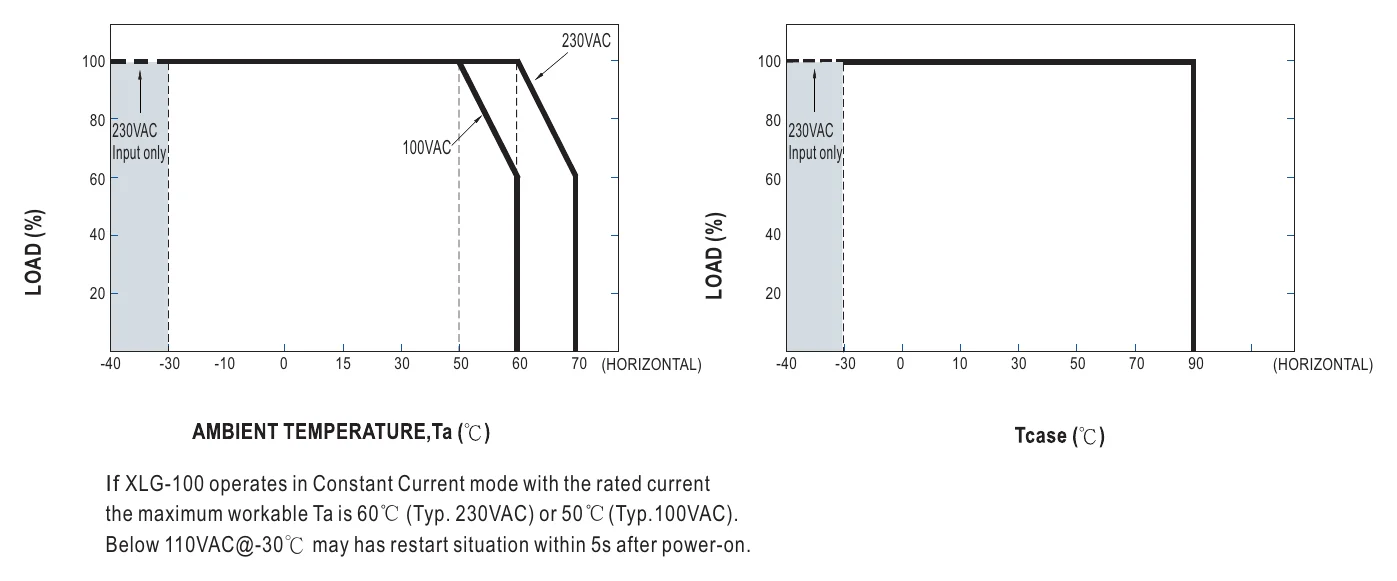

XLG-100-24-A OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

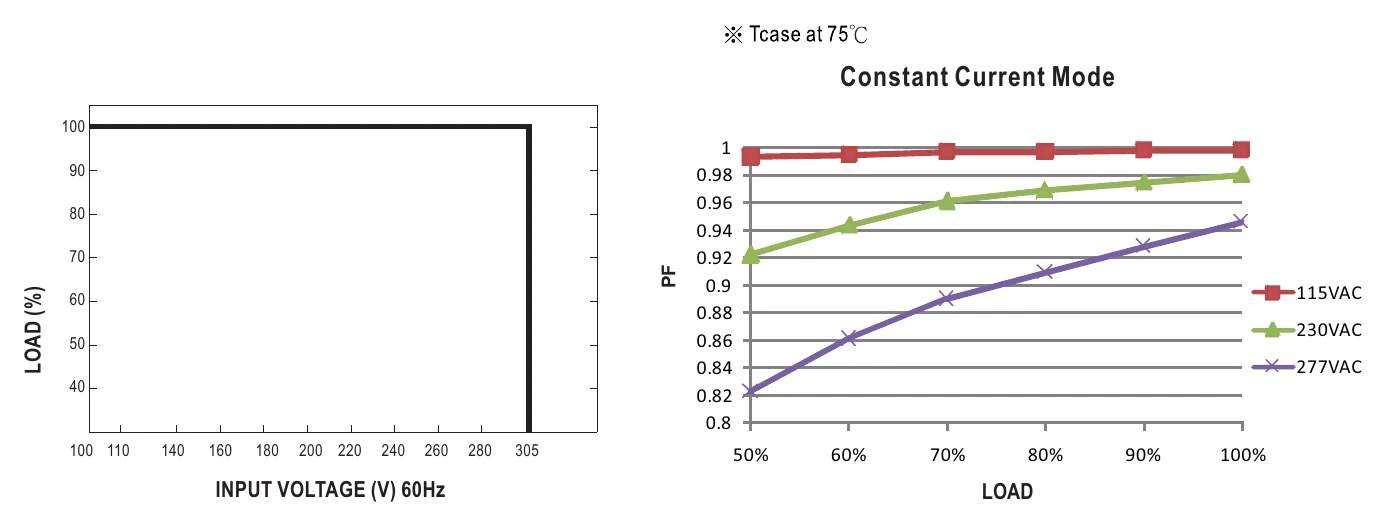

XLG-100-24-A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

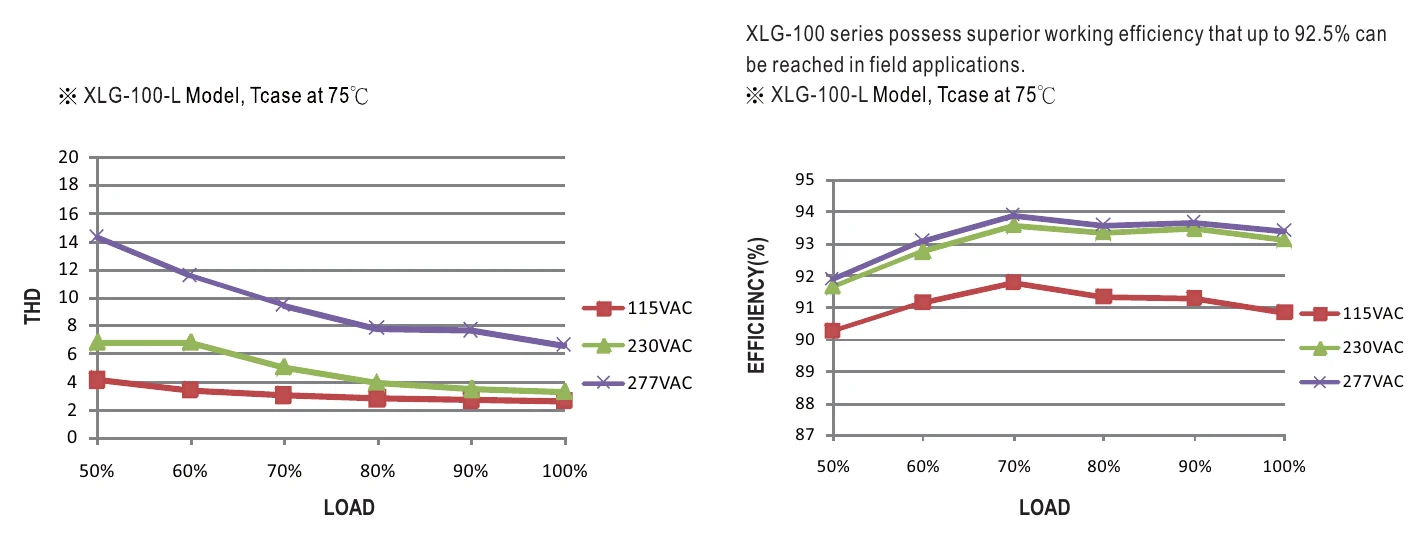

XLG-100-24-A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

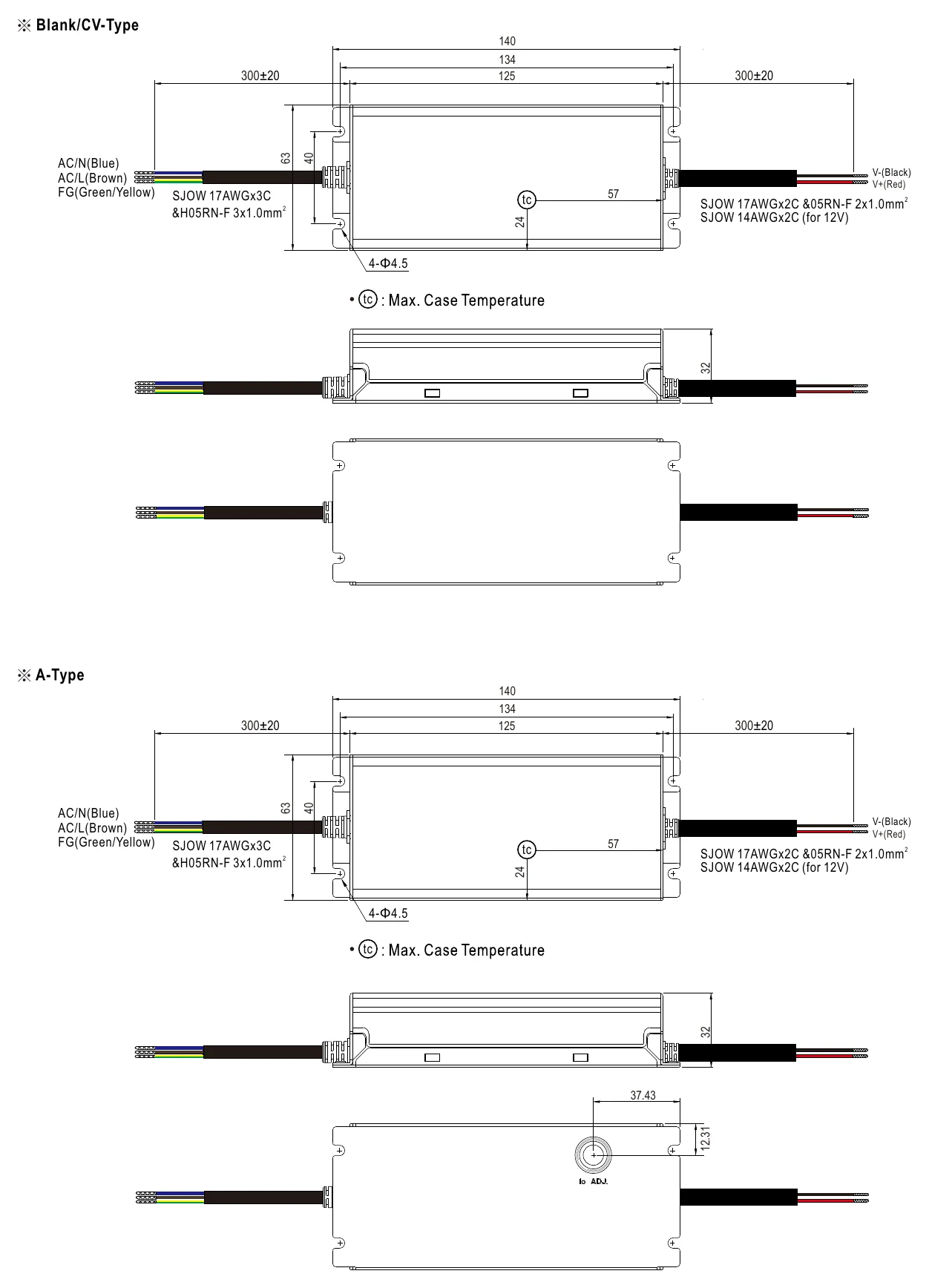

XLG-100-24-A MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

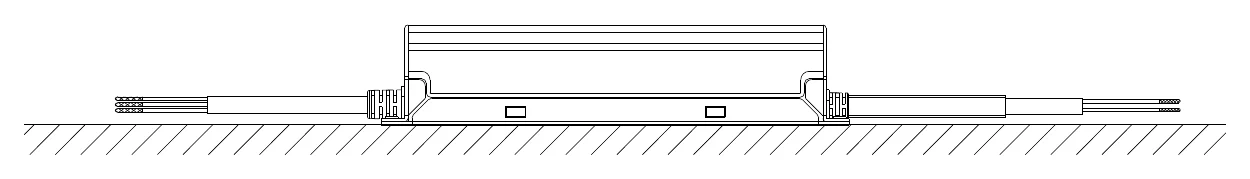

XLG-100-24-A Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

Downloads

Certificates2

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the XLG-100-24-A power 24V LED strip lighting in outdoor signage?

Yes. The XLG-100-24-A carries an IP67 waterproof rating, making it suitable for installation inside outdoor sign boxes and raceways exposed to rain and humidity. Its 96W at 24V output supports small to medium 24V LED strip sign installations.

Is the XLG-100-24-A suitable for use in wet or damp outdoor environments?

Yes. The IP67 rating provides full protection against dust and temporary water immersion. Combined with an operating temperature range of -40°C to +90°C, it handles the moisture and thermal cycling typical of outdoor LED lighting and signage installations.

How many meters of 24V LED strip can the XLG-100-24-A drive?

The XLG-100-24-A delivers 96W at 24V. Divide 96W by your strip's rated power per meter — a 10 W/m strip allows up to 9.6 meters, and a 20 W/m strip allows up to 4.8 meters. Check your strip's rated power per meter and maintain a 20% derating margin for safe continuous operation.

Can the XLG-100-24-A be used to drive 24V LED strips in a commercial display case or retail shelf lighting?

Yes. The constant-current 24V output and 96W rating suit under-shelf and display case LED strip applications in retail environments. The wide 100–305VAC input supports both North American and international mains voltages used in commercial retail installations.

Is the XLG-100-24-A a good choice for 24V LED landscape lighting in cold climates?

Yes. The -40°C lower operating temperature limit means this driver functions reliably in cold-climate outdoor installations. The sealed IP67 metal enclosure prevents moisture ingress during freeze-thaw cycles common in northern landscape lighting projects.

Can I use the XLG-100-24-A for 24V LED strip in an architectural facade or cove lighting project?

Yes. The XLG-100-24-A is well suited to 24V LED strip runs in architectural cove, soffit, or facade lighting. Its compact 140 × 63 × 32 mm housing fits inside standard lighting enclosures, and efficiency up to 92% keeps heat generation low in tight installations.

How does the XLG-100-24-A differ from the XLG-100-24-AB?

Both are rated 96W at 24V with 4A output, IP67 protection, and the same dimensions and certifications. The XLG-100-24-AB includes a built-in dimming interface (the B suffix), while the XLG-100-24-A is non-dimmable. Select the AB model if your project requires adjustable output.
