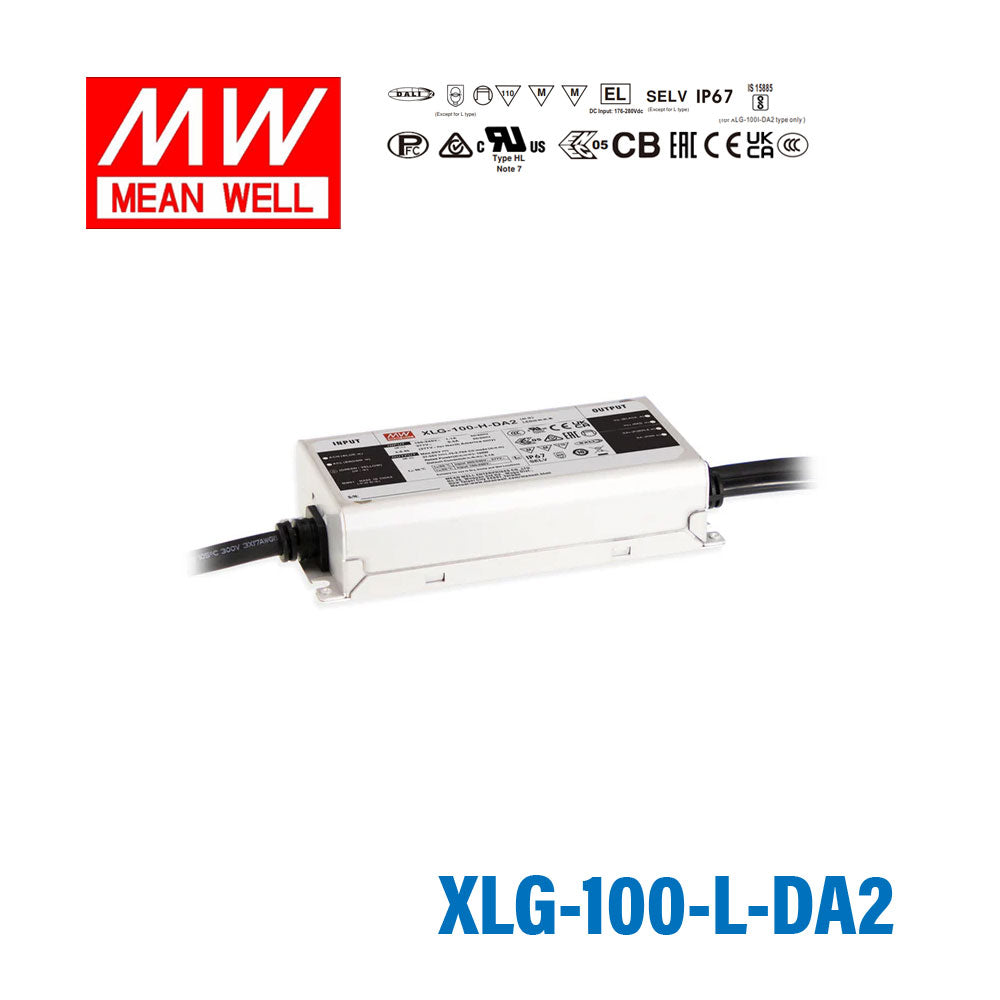

Mean Well XLG-100-L-DA2 Power Supply 100W 700mA - DALI2 Dimmable
Please Login for Pricing
Description
Description
Key Features
- ✓Wide input range 100~305V AC(Class I)
- ✓Full power output at 70~100% Constant power mode operation
- ✓Metal case with IP67, suitable for outdoor application
- ✓Surge protection with 6KV/4KV
- ✓DALI-2 Dimming with a minimum level 8%
- ✓Protection functions: SCP/OTP
- ✓Lifetime >50,000 hrs
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesXLG Series
-
Power Rating100 Watt
-
Output Voltage158 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length14 cm
-
Width6.3 cm
-
Height3.2 cm
-
Weight0.58 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the XLG-100-L-DA2 drive a series string of LED modules in a high-bay or street lighting fixture?
Yes. The XLG-100-L-DA2 operates in constant current mode with a 71–142V output range at 700mA, making it a good match for longer series strings of LED modules used in high-bay or street lighting applications that require higher string voltages.
Is the XLG-100-L-DA2 appropriate for outdoor LED signage that uses high-voltage series LED strings?
Yes. With an IP67 waterproof rating and a constant current region of 71–142V, the driver can support outdoor signage systems built around higher-voltage LED module strings. The 100W, 700mA output is suitable for moderate-wattage sign arrays.
Can the XLG-100-L-DA2 be dimmed below 10% using a DALI2 controller?
The minimum dimming level for the XLG-100-L-DA2 via DALI2 is 8%, so dimming to that floor is supported. Going below 8% is not within the specified operating range of this driver.
How many LEDs can I connect to the XLG-100-L-DA2 in series?
The driver delivers constant current across an output voltage range of 71–142V. The number of LEDs in the series string depends on the forward voltage of each individual LED — you must ensure the combined string voltage falls within that 71–142V window.
Does the XLG-100-L-DA2 operate reliably in very cold outdoor environments?
Yes. The operating temperature range is -40°C to +90°C and the driver carries an IP67 waterproof rating, so it is designed for reliable operation in harsh outdoor conditions including cold climates.
What is the difference between the XLG-100-H-DA2 and the XLG-100-L-DA2?
Both are 100W DALI2 constant current drivers with IP67 ratings. The XLG-100-H-DA2 outputs 2100mA across a 27–56V CC range, while the XLG-100-L-DA2 outputs 700mA across a 71–142V CC range. Choose the H variant for lower-voltage, higher-current LED strings and the L variant for higher-voltage, lower-current strings.
Other XLG-100 Models
6 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well XLG-100-24-A Power Supply 100W 24V - Adjustable | 96W | 24V | 4A | IP67 | View |
| Mean Well XLG-100-12-A Power Supply 100W 12V - Adjustable | 96W | 12V | 8A | IP67 | View |
| Mean Well XLG-100-H-DA2 Power Supply 100W 2100mA - DALI2 Dimmable | 100W | 60V | 2.1A | IP67 | View |
| Mean Well XLG-100-L-A AC-DC Single output LED driver Constant Power Mode 100W | 100W | 142V | 1.05A | IP67 | View |
| Mean Well XLG-100-24-AB Power Supply 100W 24V - Adjustable and Dimmable | 96W | 24V | 4A | IP67 | View |
| Mean Well XLG-100-12-AB Power Supply 100W 12V - Adjustable and Dimmable | 96W | 12V | 8A | IP67 | View |
