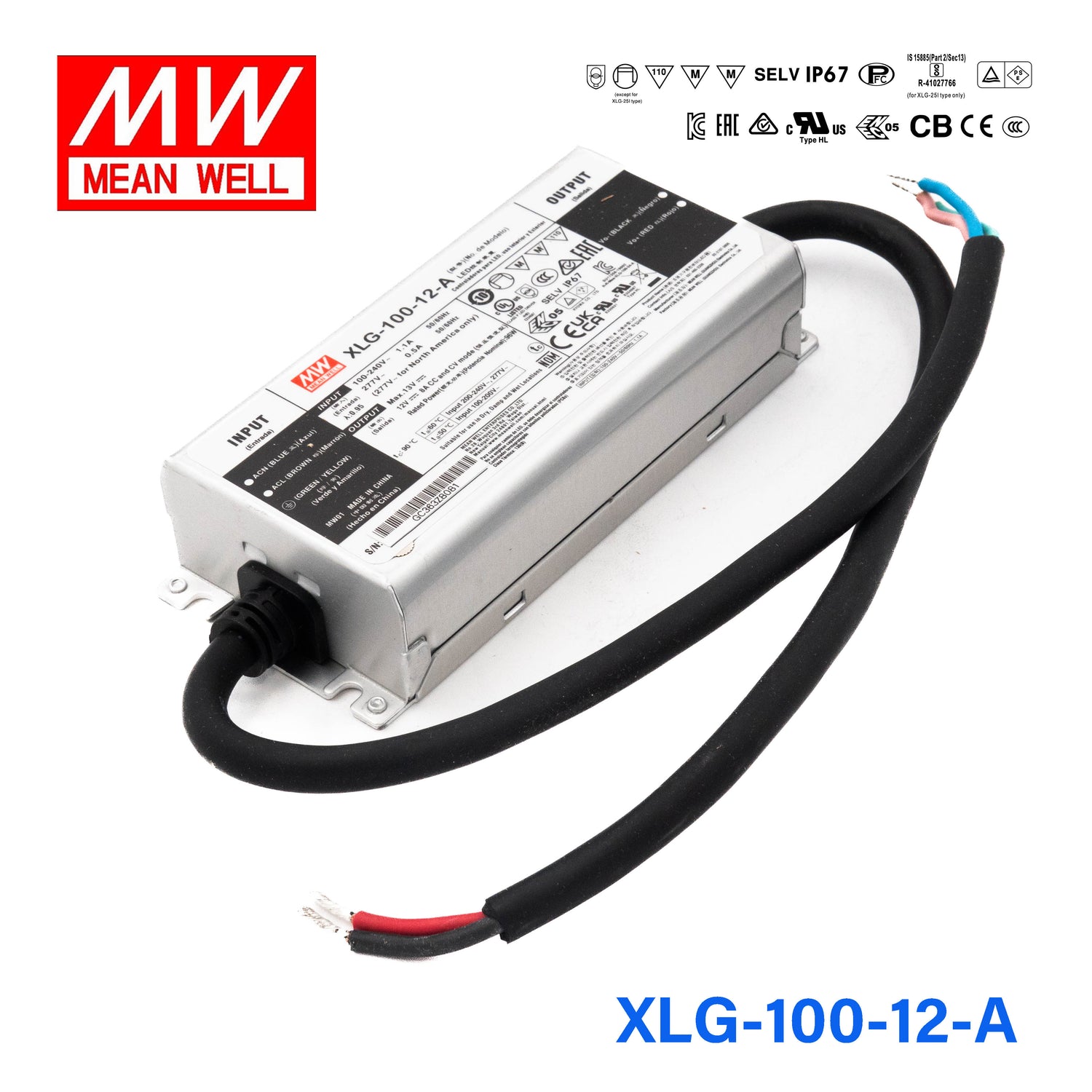

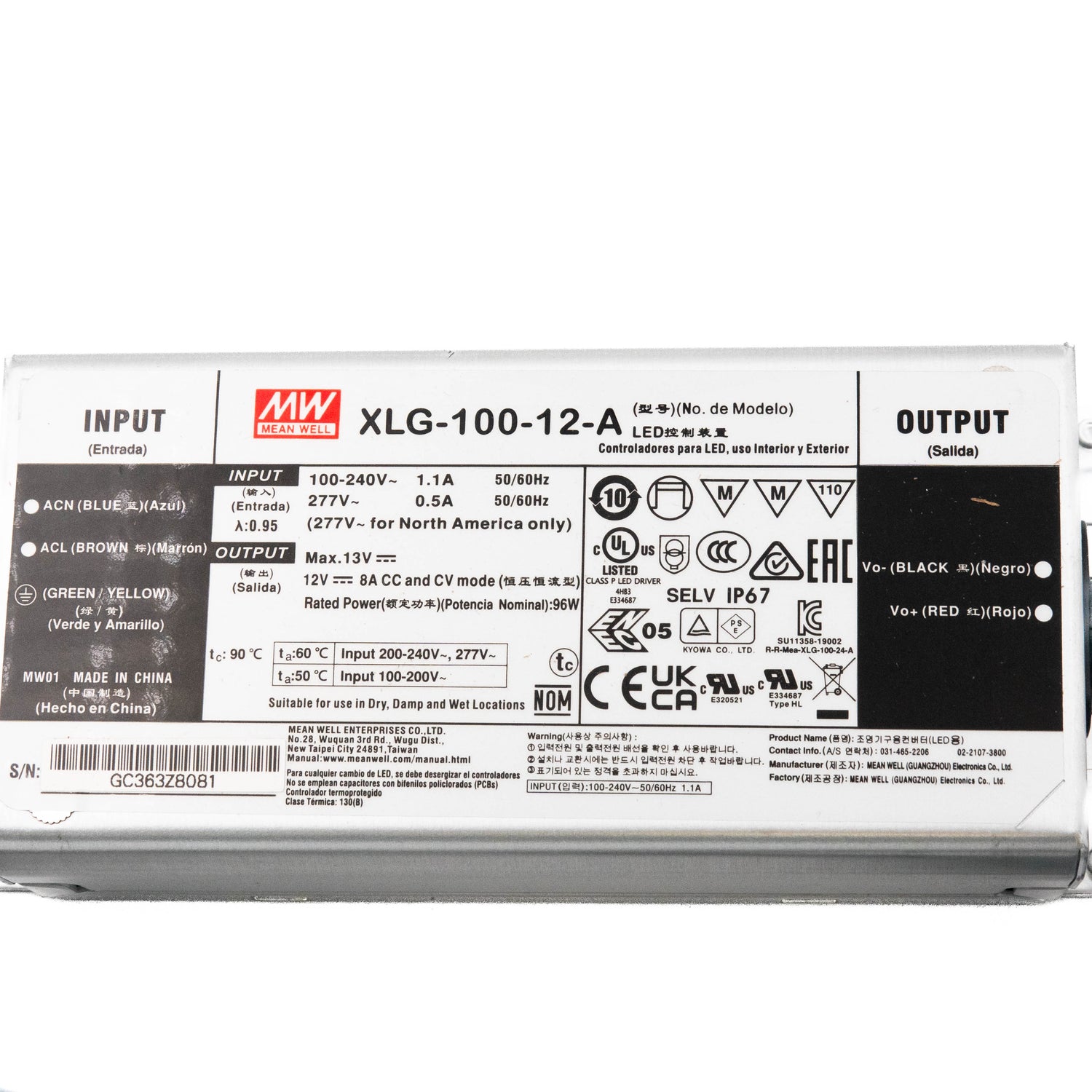

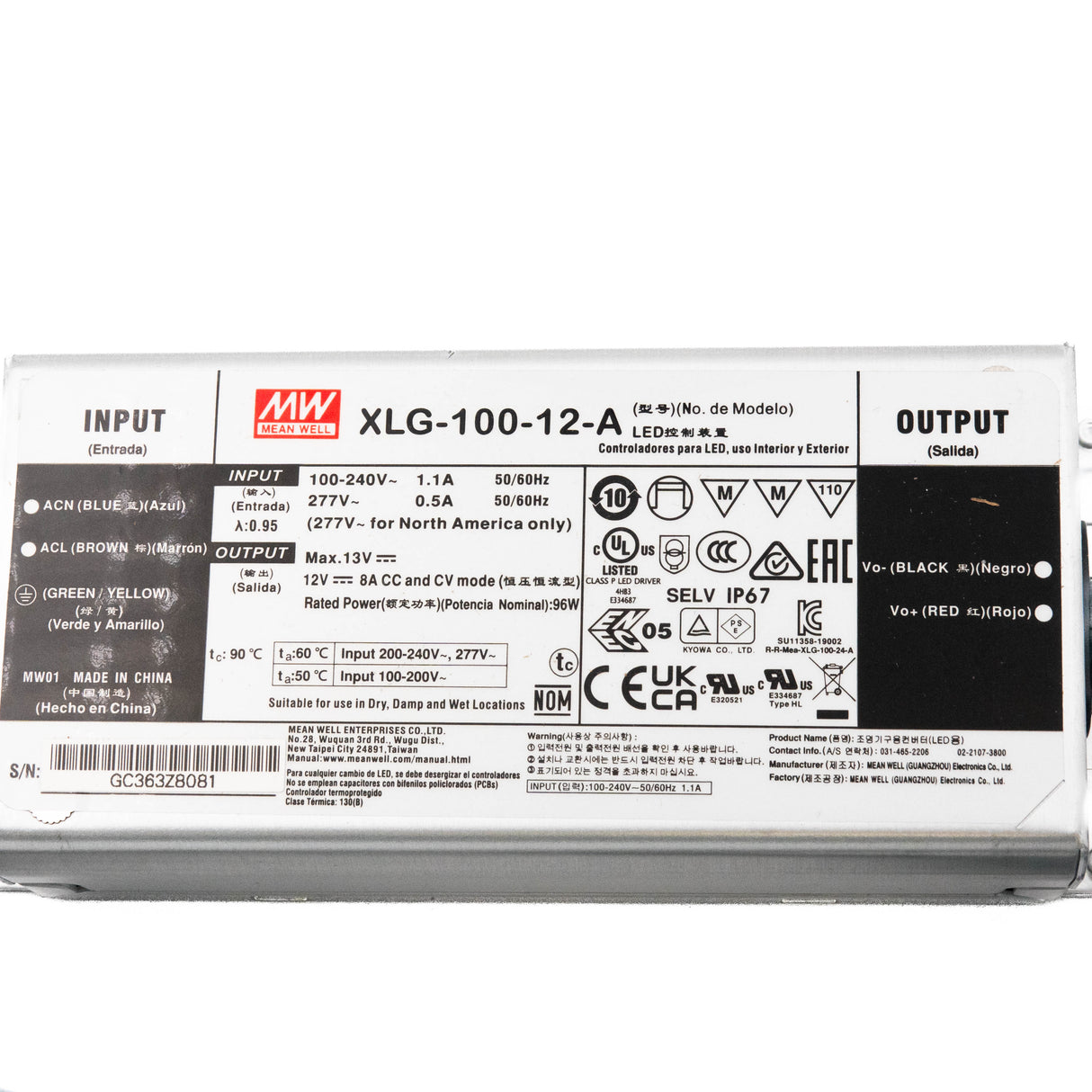

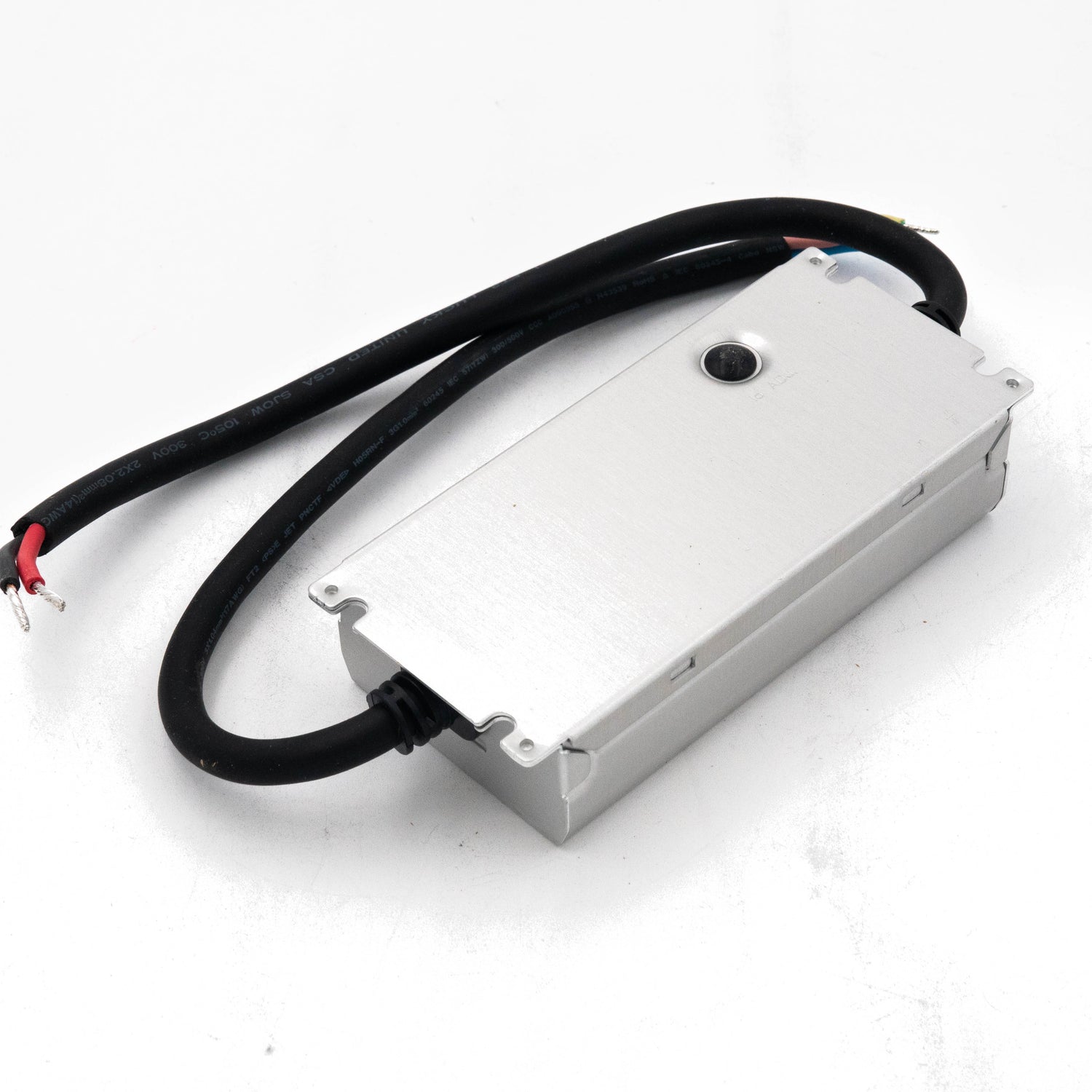

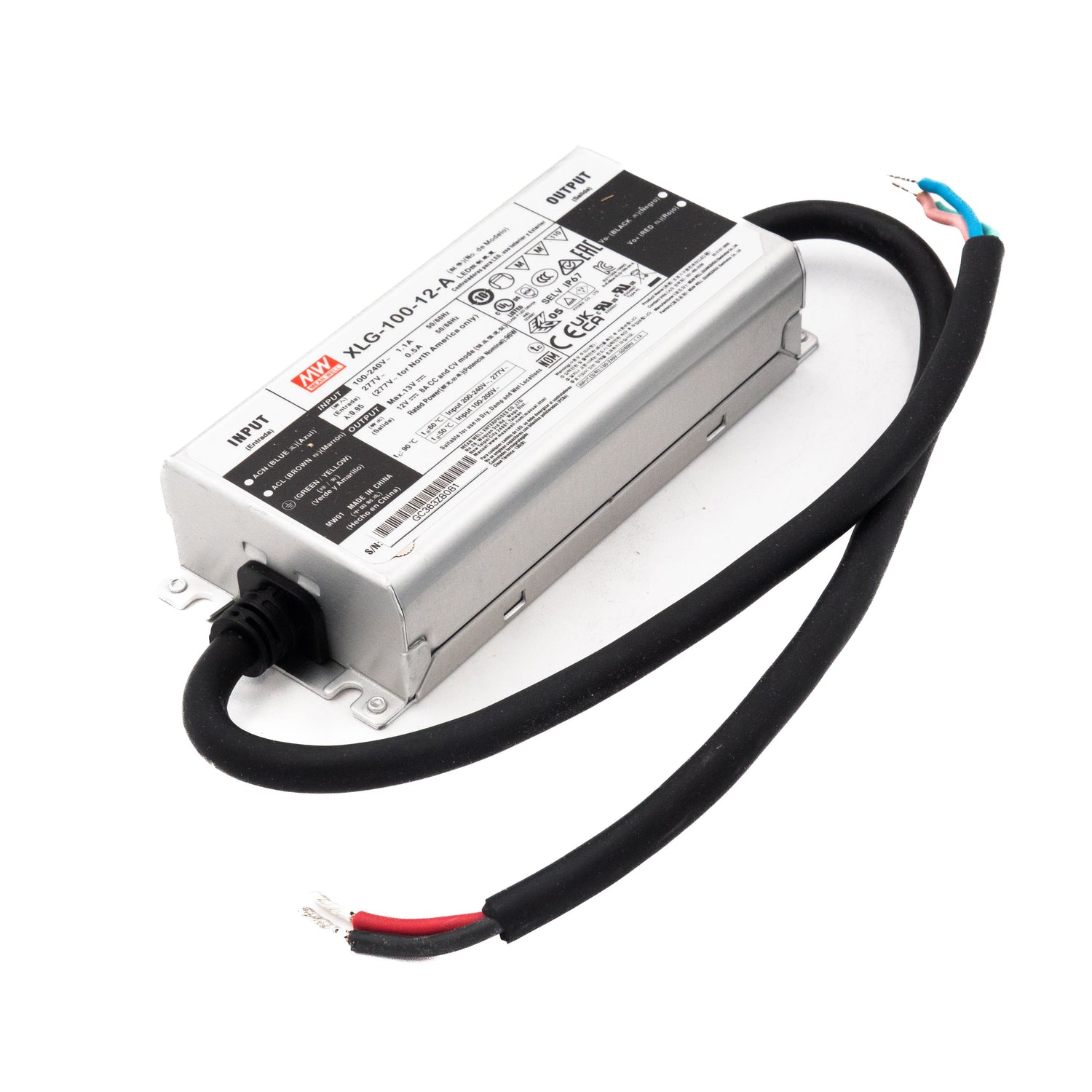

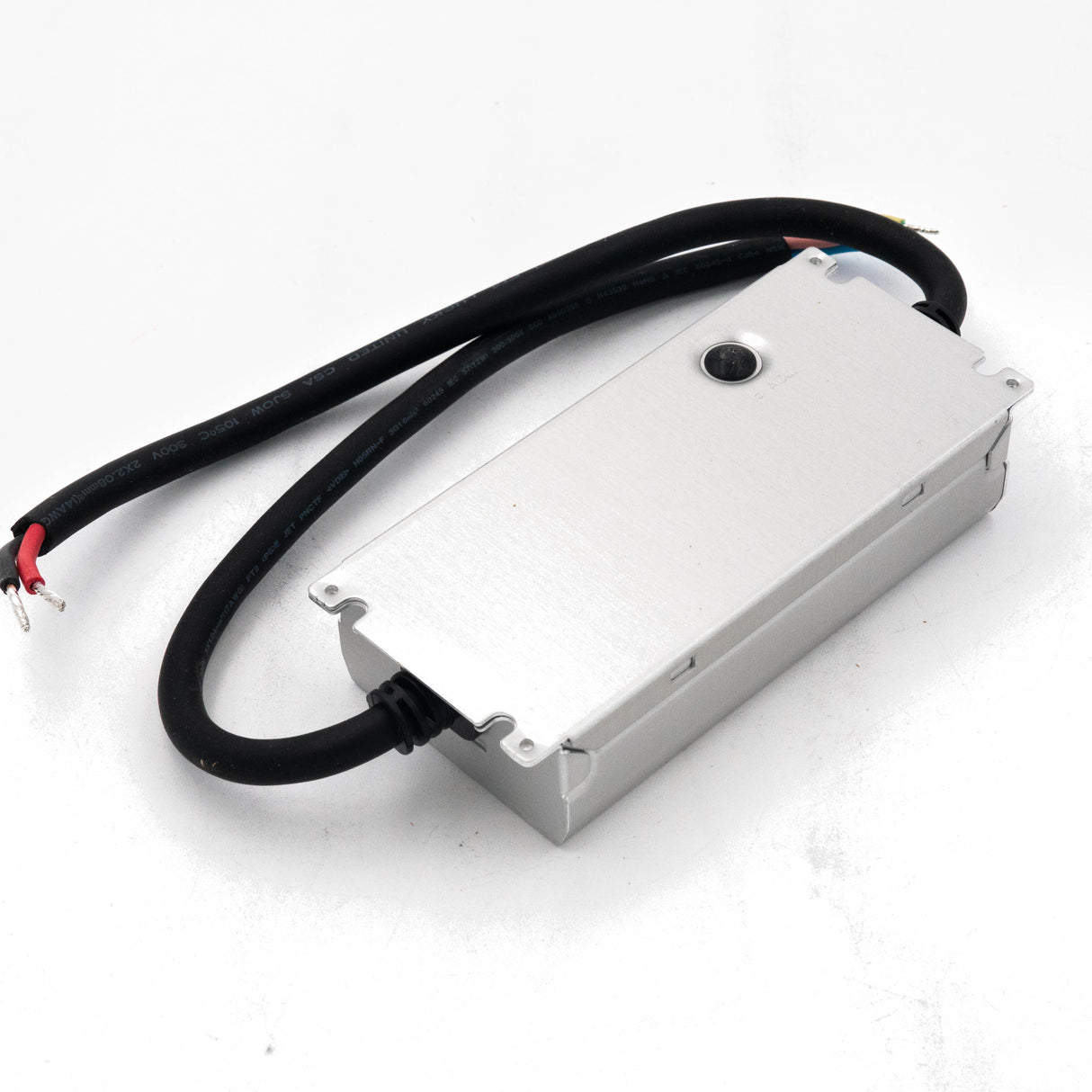

Mean Well XLG-100-12-A Power Supply 100W 12V - Adjustable
Please Login for Pricing
Description
Description
The XLG-100-12 is a 100W Mean Well power converter (input range: 100~305VAC, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL8750(type”HL”), UL879, CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; GB19510.1,GB19510.14; ,KC61347-1,KC61347-2-13 IS15885(Part2/Sec13)(for XLG-100I type only); IP67
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesXLG Series
-
Power Rating96 Watt
-
Output Voltage12 Volt
-
Rated Current8 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length14 cm
-
Width6.3 cm
-
Height3.2 cm
-
Weight0.58 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the XLG-100-12-A power 12V LED strip lighting in an outdoor sign cabinet?
Yes. The XLG-100-12-A is rated IP67, so it is fully protected against dust and temporary water immersion. It can be installed directly inside outdoor sign cabinets or enclosures exposed to rain and condensation without additional weatherproofing.
Is the XLG-100-12-A suitable for landscape or garden LED lighting?
Yes. The IP67 waterproof rating and an operating temperature range of -40°C to +90°C make this driver well suited for outdoor landscape lighting where exposure to moisture and thermal cycling is expected. Its 96W output at 12V supports medium-scale garden or pathway LED strip runs.
Can I use the XLG-100-12-A to drive 12V LED strips in an architectural soffit or cove?
Yes. The 12V constant-current output with an 8A maximum current supports 12V LED strip installations in architectural cove and soffit lighting. The wide 100–305VAC input accommodates both residential 120V and commercial 240V or 277V supplies.
How many meters of 12V LED strip can the XLG-100-12-A power?
The XLG-100-12-A delivers 96W at 12V. Divide 96W by your strip's rated power per meter — for a 9.6 W/m strip that is 10 meters, and for a 14.4 W/m strip that is approximately 6.6 meters. Always check your strip's rated power per meter and apply a 20% derating margin for thermal safety.
Can the XLG-100-12-A be used in unheated outdoor enclosures during winter?
Yes. The operating temperature range spans -40°C to +90°C, covering the coldest climates encountered in most installations. The sealed IP67 metal enclosure prevents moisture ingress that could otherwise cause failures in freeze-thaw cycling conditions.
Is the XLG-100-12-A a good fit for 12V LED channel letter signage?
Yes. The XLG-100-12-A suits 12V LED channel letter applications where an IP67-rated driver needs to fit into a raceway or sign box. At 140 × 63 × 32 mm, its compact form factor fits most standard sign enclosures, and the 96W rating covers small to medium letter sets.
What is the difference between the XLG-100-12-A and the XLG-100-12-AB?
Both models are rated 96W at 12V with 8A output, IP67 protection, and identical dimensions and certifications. The XLG-100-12-AB adds a built-in dimming interface (the B suffix), while the XLG-100-12-A is non-dimmable. Choose the AB variant if your project requires adjustable light output.
Other XLG-100 Models
6 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well XLG-100-24-A Power Supply 100W 24V - Adjustable | 96W | 24V | 4A | IP67 | View |
| Mean Well XLG-100-L-DA2 Power Supply 100W 700mA - DALI2 Dimmable | 100W | 158V | 0.7A | IP67 | View |
| Mean Well XLG-100-H-DA2 Power Supply 100W 2100mA - DALI2 Dimmable | 100W | 60V | 2.1A | IP67 | View |
| Mean Well XLG-100-L-A AC-DC Single output LED driver Constant Power Mode 100W | 100W | 142V | 1.05A | IP67 | View |
| Mean Well XLG-100-24-AB Power Supply 100W 24V - Adjustable and Dimmable | 96W | 24V | 4A | IP67 | View |
| Mean Well XLG-100-12-AB Power Supply 100W 12V - Adjustable and Dimmable | 96W | 12V | 8A | IP67 | View |
