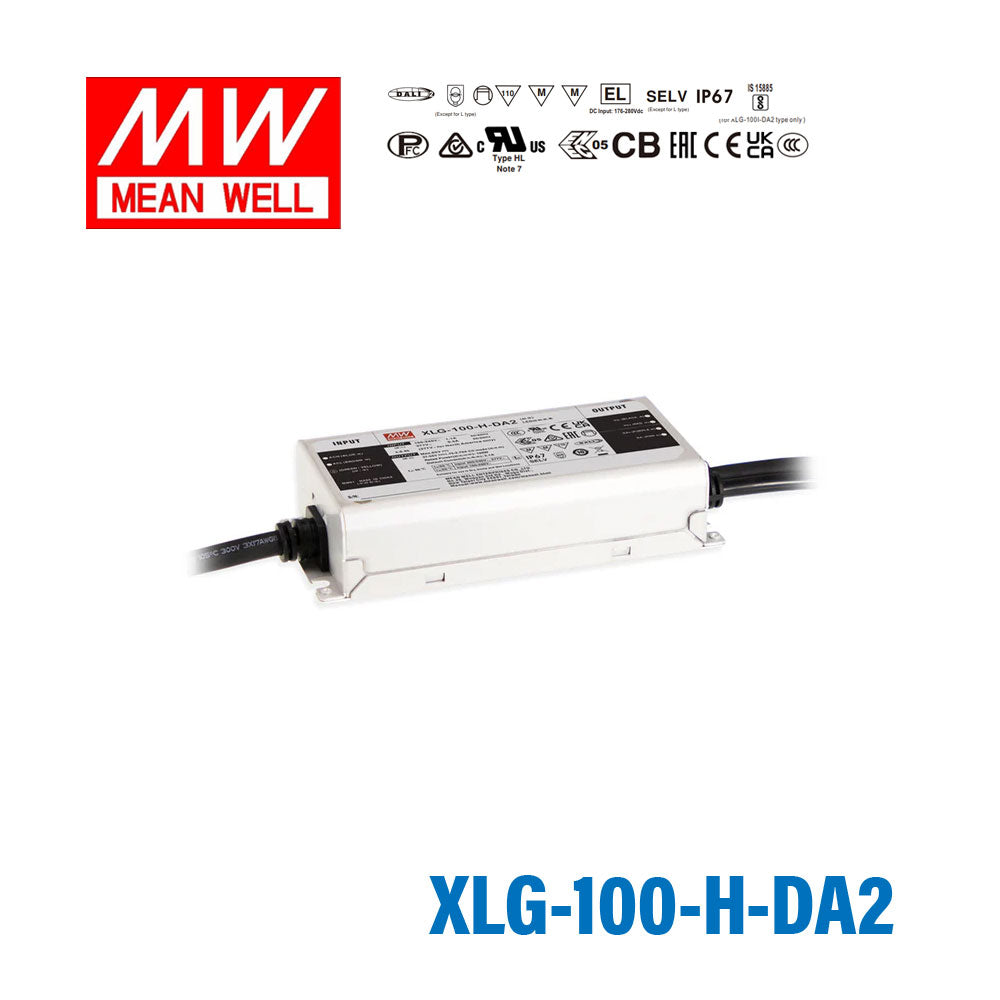

Mean Well XLG-100-H-DA2 Power Supply 100W 2100mA - DALI2 Dimmable
Please Login for Pricing
Description
Description
Key Features
- ✓Wide input range 100~305V AC(Class I)
- ✓Full power output at 70~100% Constant power mode operation
- ✓Metal case with IP67, suitable for outdoor application
- ✓Surge protection with 6KV/4KV
- ✓DALI-2 Dimming with a minimum level 8%
- ✓Protection functions: SCP/OTP
- ✓Lifetime >50,000 hrs
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesXLG Series
-
Power Rating100 Watt
-
Output Voltage60 Volt
-
Rated Current2.1 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length14 cm
-
Width6.3 cm
-
Height3.2 cm
-
Weight0.58 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the XLG-100-H-DA2 to drive LED downlights in a commercial building with DALI2 controls?
Yes. The XLG-100-H-DA2 delivers up to 100W at 2100mA and supports DALI2 dimming with a minimum dimming level of 8%, making it well suited for DALI2-controlled LED downlight systems. Its IP67 rating also allows installation in damp or wet ceiling cavities.
Is the XLG-100-H-DA2 suitable for outdoor LED signage modules that require weatherproofing?
Yes. The IP67 waterproof rating means the driver can withstand dust ingress and temporary water immersion, making it appropriate for outdoor LED signage cabinets. At 100W and 2100mA constant current output, it can support higher-power signage module arrays operating within the 27–56V constant current region.
Can this driver power a small LED array in a cold storage or outdoor environment down to -40°C?
Yes. The XLG-100-H-DA2 is rated for operating temperatures from -40°C to +90°C, so it will function reliably in very cold environments such as refrigerated warehouses or exposed outdoor installations.
What is the adjustable current range on the XLG-100-H-DA2, and does that affect how many LEDs I can run?
The output current is adjustable from 875mA to 2780mA. The number of LEDs you can chain depends on each LED's forward voltage — the driver operates in constant current mode across a 27–56V output range, so the string voltage must fall within that window.
How does the XLG-100-H-DA2 compare to the XLG-75-H-DA2 and XLG-150-H-DA2 in the same DALI2 H-series?
The XLG-75-H-DA2 is rated 75.6W at 1400mA, the XLG-100-H-DA2 at 100W at 2100mA, and the XLG-150-H-DA2 at 150W at 2800mA. All three are IP67-rated constant current DALI2 drivers; the main differences are wattage and maximum output current.
Will the XLG-100-H-DA2 work on a 277VAC or 305VAC supply found in some North American commercial installations?
Yes. The driver accepts input from 100VAC to 305VAC, covering standard 277VAC and 480VAC-delta (phase-to-neutral) supplies commonly found in commercial buildings across North America.
