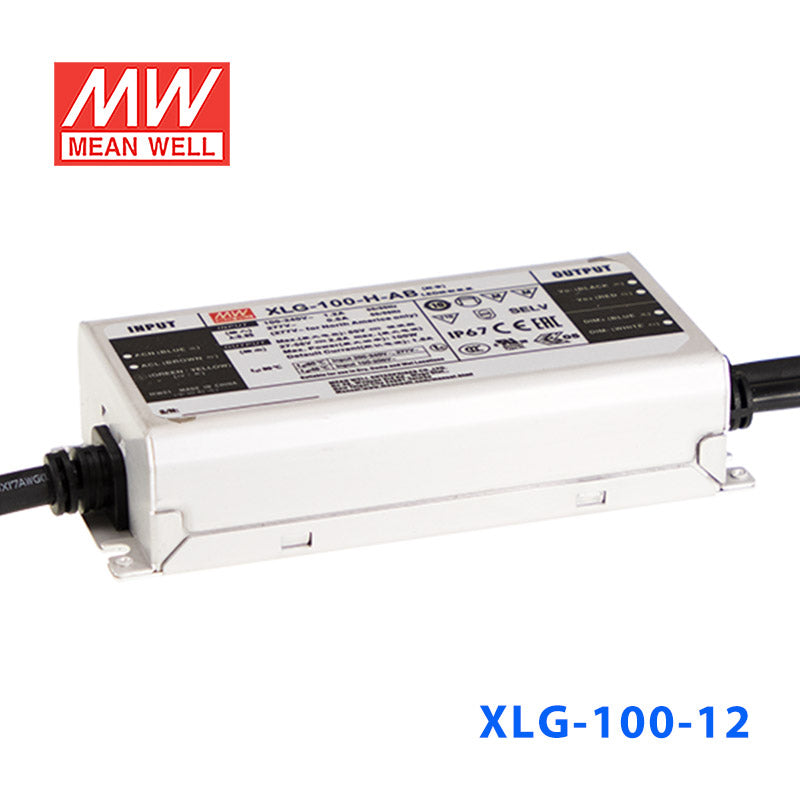

Mean Well XLG-100-12-AB Power Supply 100W 12V - Adjustable and Dimmable

metal case, economical, 100~305VAC wide range input, efficiency up to 90%

SKU:

XLG-100-12-AB

Model

75W 12V Adjustable

SKU: XLG-75-12-A

100W 12V

SKU: XLG-100-12-A

100W 12V Adjustable and Dimmable

SKU: XLG-100-12-AB

150W 12V Adjustable

SKU: XLG-150-12-A

150W 12V Adjustable and Dimmable

SKU: XLG-150-12-AB

192W 12V Adjustable

SKU: XLG-200-12-A

192W 12V Adjustable and Dimmable

SKU: XLG-200-12-AB

75W 12V Adjustable and Dimmable

SKU: XLG-75-12-AB

Product variants

Please for Pricing

Notify me when it's back in stock

Description

The XLG-100-12 is a 100W Mean Well power converter (input range: 100~305VAC, operating temperature: -40~+90℃).

Key Features

✓ Input voltage range: 100~305VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Wide operating temperature: -40~+90℃
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.7 UL8750(type”HL”), UL879, CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; GB19510.1,GB19510.14; ,KC61347-1,KC61347-2-13 IS15885(Part2/Sec13)(for XLG-100I type only); IP67
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

XLG Series
Power Rating

96 Watt
Output Voltage

12 Volt
Rated Current

8 Ampere
Input Voltage

100V~305V
Standards Met

CB,CCC,CE,EAC,ENEC,RCM,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

14 cm
Width

6.3 cm
Height

3.2 cm
Weight

0.58 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can the XLG-100-12-AB power 12V LED strip in an outdoor retail or architectural lighting installation?

Yes. The XLG-100-12-AB is rated IP67 and accepts 100–305VAC, making it suitable for outdoor retail facades and architectural lighting fed from standard commercial circuits. Its 96W output at 12V supports continuous 12V LED strip runs in those environments.

Is the XLG-100-12-AB waterproof enough for wet outdoor locations?

Yes. The IP67 rating means the driver is protected against dust ingress and temporary water immersion, so it can be installed in outdoor enclosures subject to rain and condensation. The operating temperature range of -40°C to +90°C extends its suitability to cold and hot climates alike.

How long a 12V LED strip run can the XLG-100-12-AB support?

The XLG-100-12-AB provides 96W at 12V. At 9.6 W/m that covers 10 meters; at 14.4 W/m approximately 6.6 meters. Always verify your strip's rated power per meter and derate by at least 20% to avoid running the driver at its thermal limit continuously.

Can I use the XLG-100-12-AB for dimmable 12V LED strip in a hospitality or restaurant setting?

Yes. The AB suffix indicates this model includes a built-in dimming interface, allowing light level adjustment in hospitality environments where ambience control is needed. The 12V constant-current output is compatible with 12V dimmable LED strip products.

Is the XLG-100-12-AB suitable for 12V LED signage installed on building exteriors?

Yes. The IP67 enclosure and wide input range of 100–305VAC make this driver a practical choice for 12V LED signage on building exteriors. The compact 140 × 63 × 32 mm metal case fits inside typical sign raceways, and the 5-year warranty reflects its durability in continuous-duty sign applications.

What certifications does the XLG-100-12-AB hold, and which markets does it cover?

The XLG-100-12-AB holds CB, CCC, CE, EAC, ENEC, c_rcm, and UL certifications. These cover North America (UL), Europe (CE, ENEC), China (CCC), Australia and New Zealand (c_rcm), and the Eurasian Economic Union (EAC), making it suitable for multi-regional projects.

Model	Power	Voltage	Current	IP Rating
Mean Well XLG-100-24-A Power Supply 100W 24V - Adjustable	96W	24V	4A	IP67	View
Mean Well XLG-100-12-A Power Supply 100W 12V - Adjustable	96W	12V	8A	IP67	View
Mean Well XLG-100-L-DA2 Power Supply 100W 700mA - DALI2 Dimmable	100W	158V	0.7A	IP67	View
Mean Well XLG-100-H-DA2 Power Supply 100W 2100mA - DALI2 Dimmable	100W	60V	2.1A	IP67	View
Mean Well XLG-100-L-A AC-DC Single output LED driver Constant Power Mode 100W	100W	142V	1.05A	IP67	View
Mean Well XLG-100-24-AB Power Supply 100W 24V - Adjustable and Dimmable	96W	24V	4A	IP67	View
