Mean Well XLG-75-24-A Power Supply 75W 24V - Adjustable 3.1A

metal caseeconomical100~305VAC wide range inputefficiency up to 90%

SKU XLG-75-24-A

Log in to see price Trade pricing & online ordering for account holders

Select model — 8 in this family

XLG-75-24-A

XLG-75-24-A Adjustable Backorder

XLG-100-24-A Adjustable In stock

XLG-100-24-AB Adjustable and Dimmable Backorder

XLG-150-24-A Adjustable In stock

XLG-150-24-AB Adjustable and Dimmable Backorder

XLG-200-24-A Adjustable In stock

XLG-200-24-AB Adjustable and Dimmable Backorder

XLG-75-24-AB Adjustable and Dimmable Backorder

Product variants

Available to order

Overview

XLG-75-24-A is the 24V output model of this series: rated power 74.4W, typical efficiency 90%.

XLG-75 series is a 75W LED AC/DC driver featuring the constant power mode.XLG-75 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 5000mA. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XLG-75 series comply with the latest version of IEC61347/GB/T19510.1 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.

Features

Wide input range 100~305V AC( ClassⅠ)
Full power output at 70~100% Constant power mode operation
Metal case with IP67, suitable for outdoor application
Class 2 power unit(except for L type)
Surge protection with 6KV/4KV
3 in 1 dimming function (Dim to off and Isolation design)
India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
Protection functions: OVP/SCP/OCP/OTP
Compliance to EN60335-1 household application

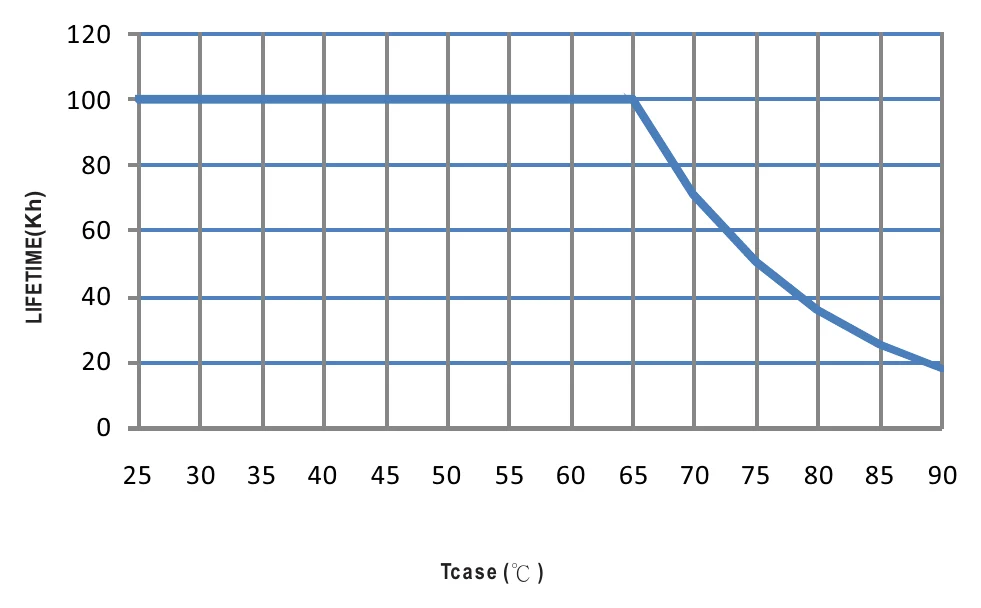

Life time >50,000 hrs. and 5 years warranty

Specifications

XLG-75-24-ASpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

DC VOLTAGE: 24V
CONSTANT CURRENT REGION^Note.2: 16.8~ 24V
RATED CURRENT (Default): 3.1A
RATED POWER: 74.4W
RIPPLE & NOISE (max.)^Note.3: 240mVp-p
CURRENT ADJ. RANGE: 1.55A~3.1A
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1%
SETUP, RISE TIME^Note.6: 500ms, 100ms/230VAC, 1200ms, 100ms/115VAC
HOLD UP TIME (Typ.): 10ms/ 230VAC 10ms/ 115VAC

INPUT

VOLTAGE RANGE^Note.5: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load
TOTAL HARMONIC DISTORTION: THD< 10%(@load≧50%/115VC,230VAC; @load≧75%/277VAC)
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 1.0A / 115VAC 0.45A / 230VAC 0.38A/277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=300μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 9 units (circuit breaker of type B) / 14 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD POWER CONSUMPTION: No load power consumption <0.5W(for standard version)

PROTECTION

OVER CURRENT: 110~160% for CV type, 95~108% for other type; CV-type: Hiccup mode only; Other type: Hiccup or constant current limiting; Recovers automatically after fault condition is removed
SHORT CIRCUIT: CV-type: Hiccup mode only; Other type: Hiccup or constant current limiting; Recovers automatically after fault condition is removed
OVER VOLTAGE: 26 ~ 36V Shut down output voltage, re-power on to recover
INPUT OVER VOLTAGE: 320 ~ 370VAC (Shut down output voltage when the input voltage exceeds protection voltage, recovers automatically after fault condition is removed) Can survive input voltage stress of 440Vac for 48 hours(Input over voltage only for XLG-75I series)
OVER TEMPERATURE: Shut down output voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.7: UL8750(type”HL”), UL879, CSA C22.2 No. 250.13-12;ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384,EN 60335-1 compliant to EN 60335-2-89 Annex BB, EN 60335-2-24 Annex CC;GB/T19510.1,GB/T19510.213; EAC TP TC 004;J61347-1(H29), J61347-2-13 (H29),KC61347-1,KC61347-2-13,IS15885(Part2/Sec13)(for XLG-75I type only); OM-058-SCFI-2017(except for Blank type);IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current BS EN/EN61000-3-2 ,GB17625.1 Class C @load≥50%
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN61547

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT/Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-4-5 4KV/Line-Line 6KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated	BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current	BS EN/EN61000-3-2 ,GB17625.1	Class C @load≥50%
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 3
EFT/Burst	BS EN/EN61000-4-4	Level 3
Surge	BS EN/EN61000-4-5	4KV/Line-Line 6KV/Line-Earth
Conducted	BS EN/EN61000-4-6	Level 3
Magnetic Field	BS EN/EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 3404.7K hrs min. Telcordia SR-332 (Bellcore) ; 276.3Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 140*63*32mm (L*W*H)
PACKING: 0.58Kg;24pcs /15Kg /0.85CUFT

Test conditions and notes16

Technical drawings

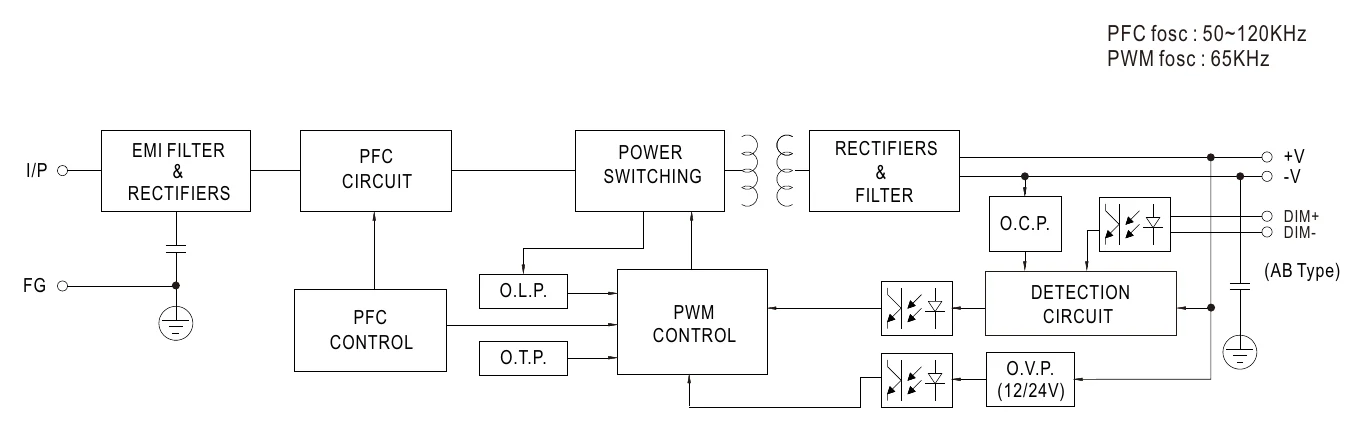

XLG-75-24-A BLOCK DIAGRAM — BLOCK DIAGRAM

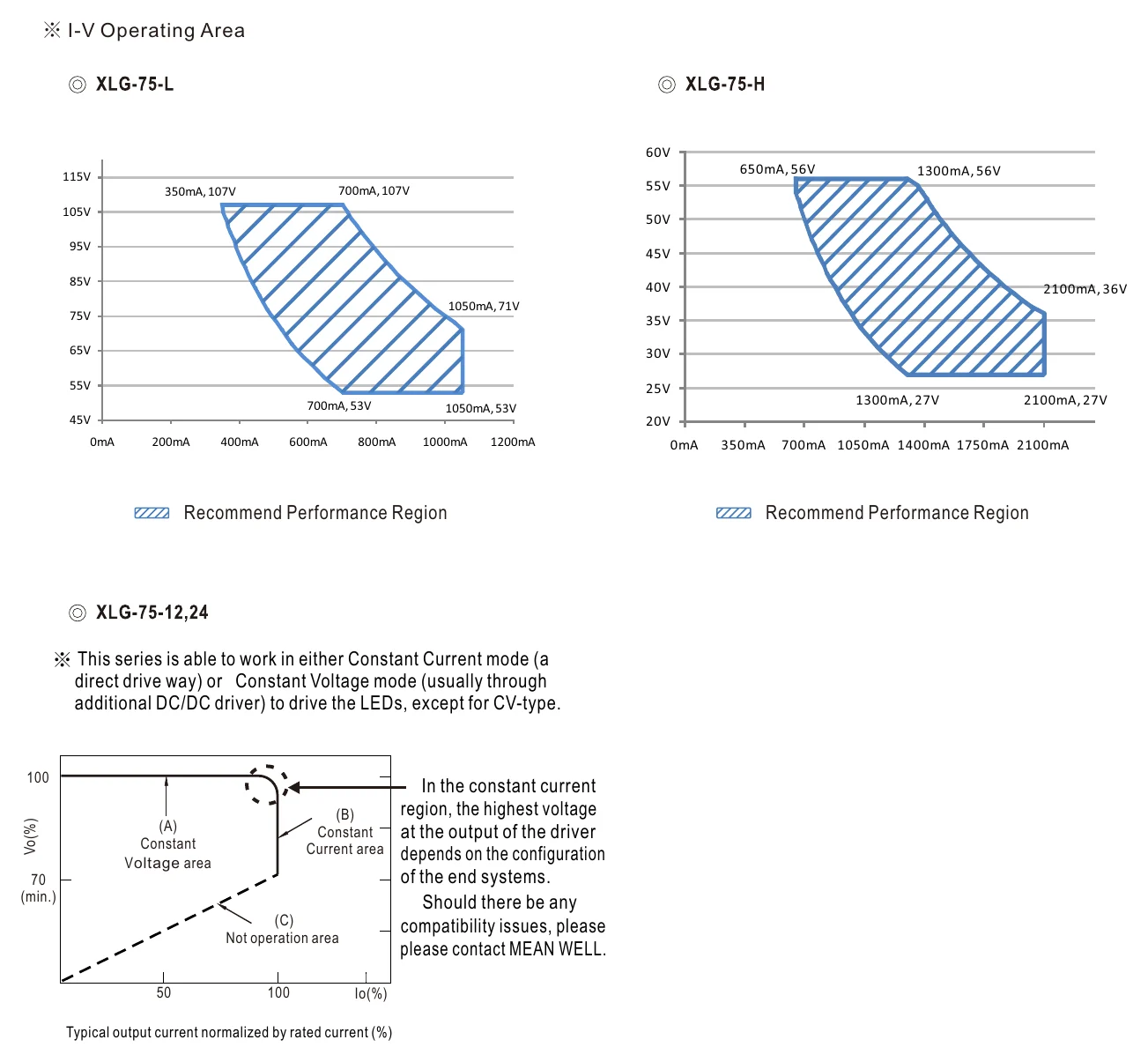

XLG-75-24-A DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

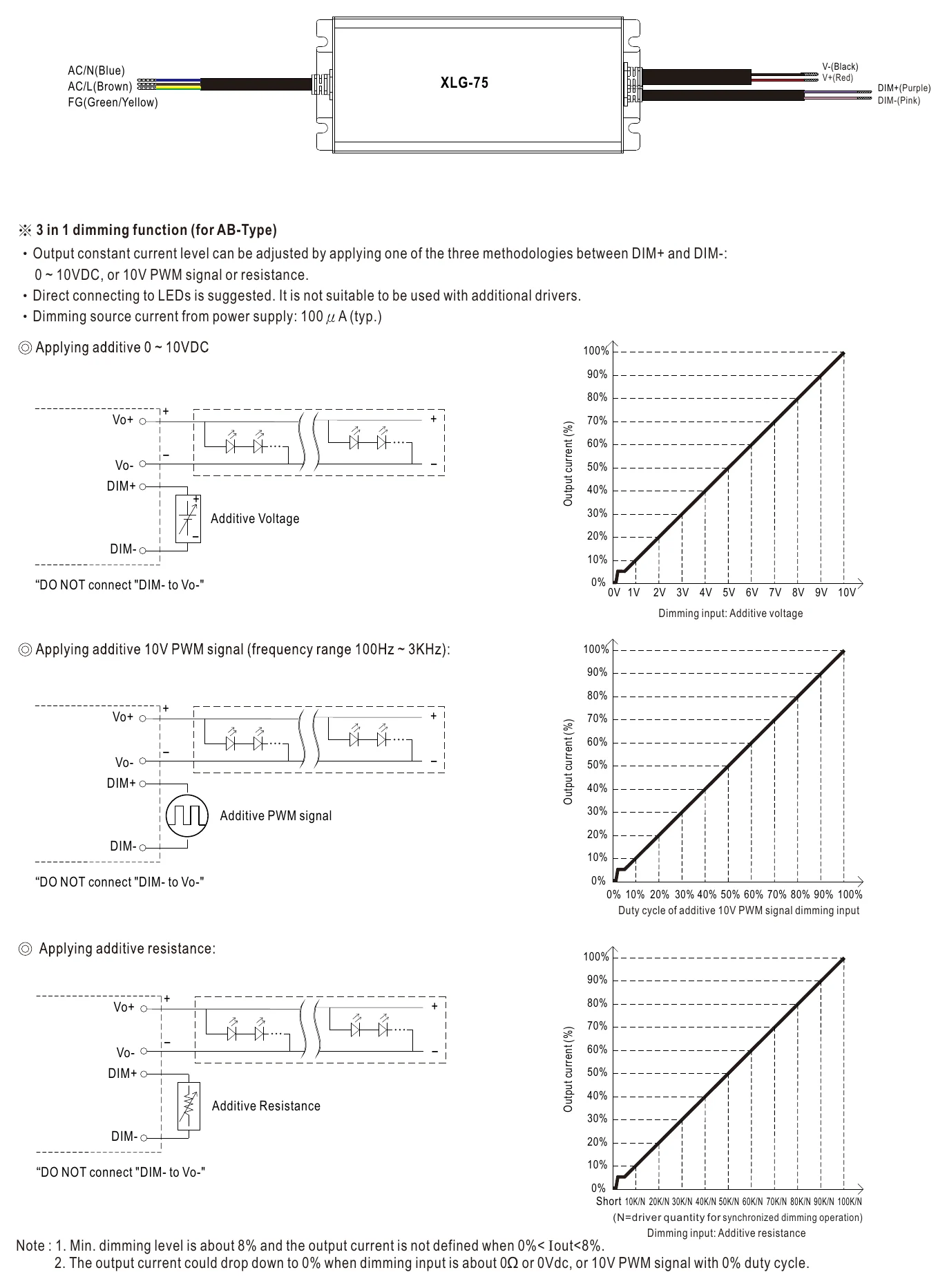

XLG-75-24-A DIMMING OPERATION — DIMMING OPERATION

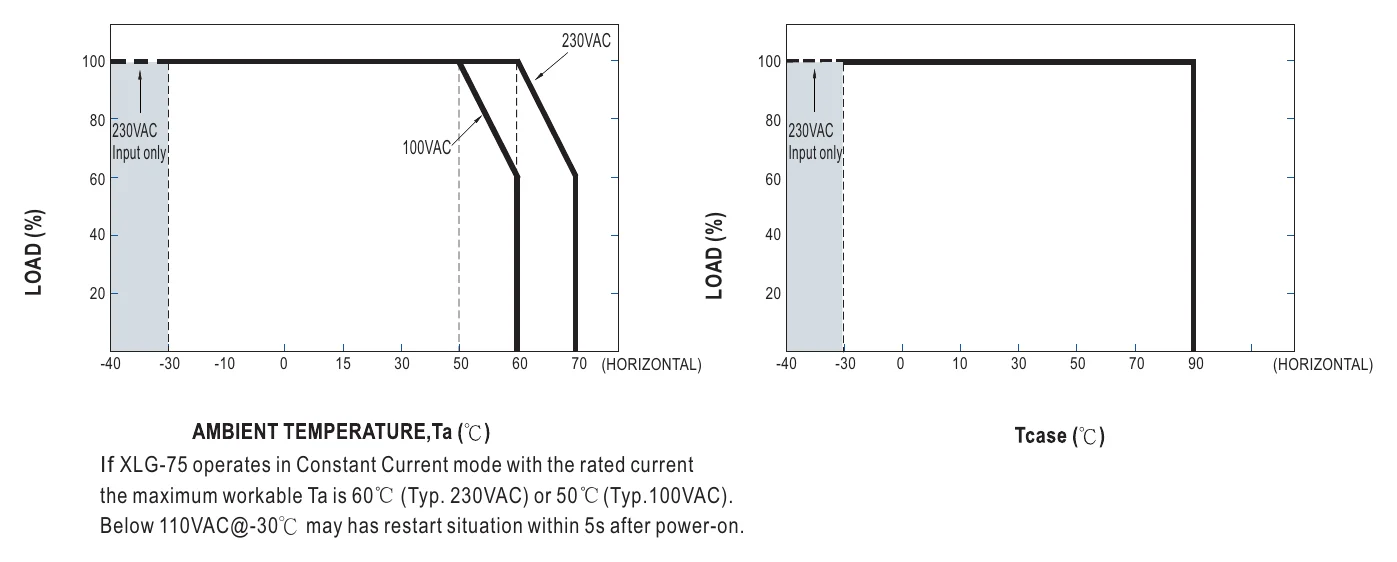

XLG-75-24-A OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

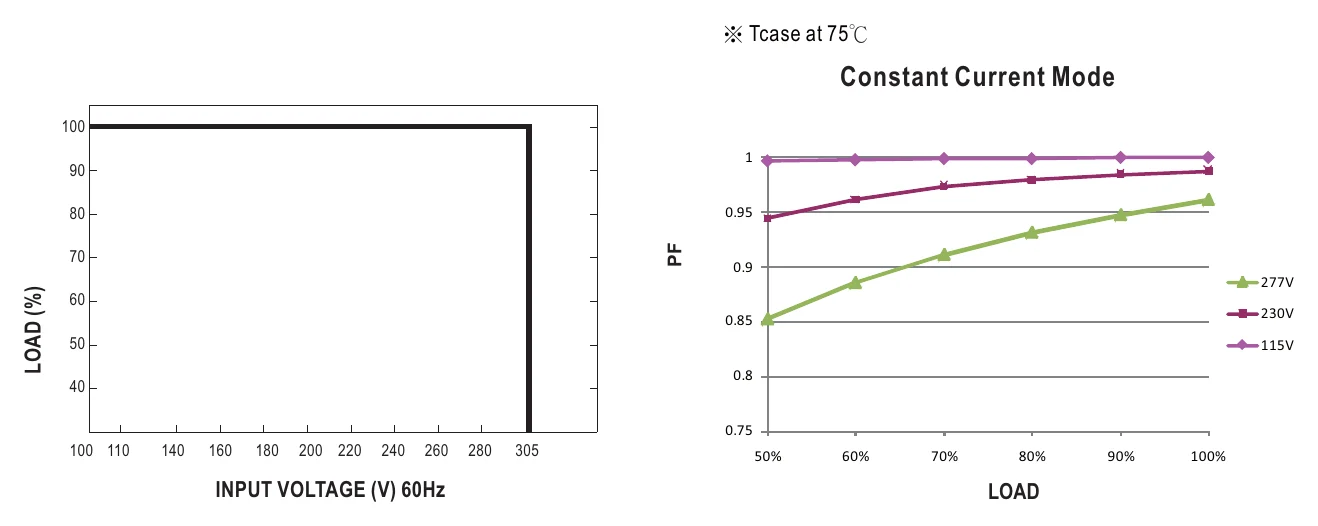

XLG-75-24-A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

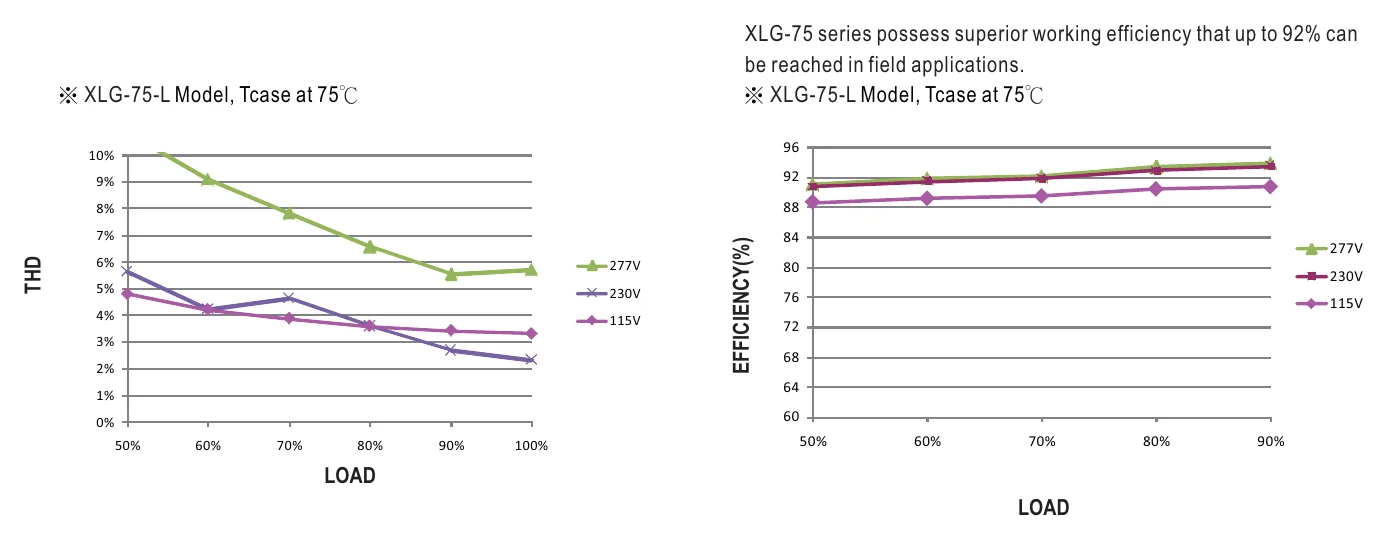

XLG-75-24-A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

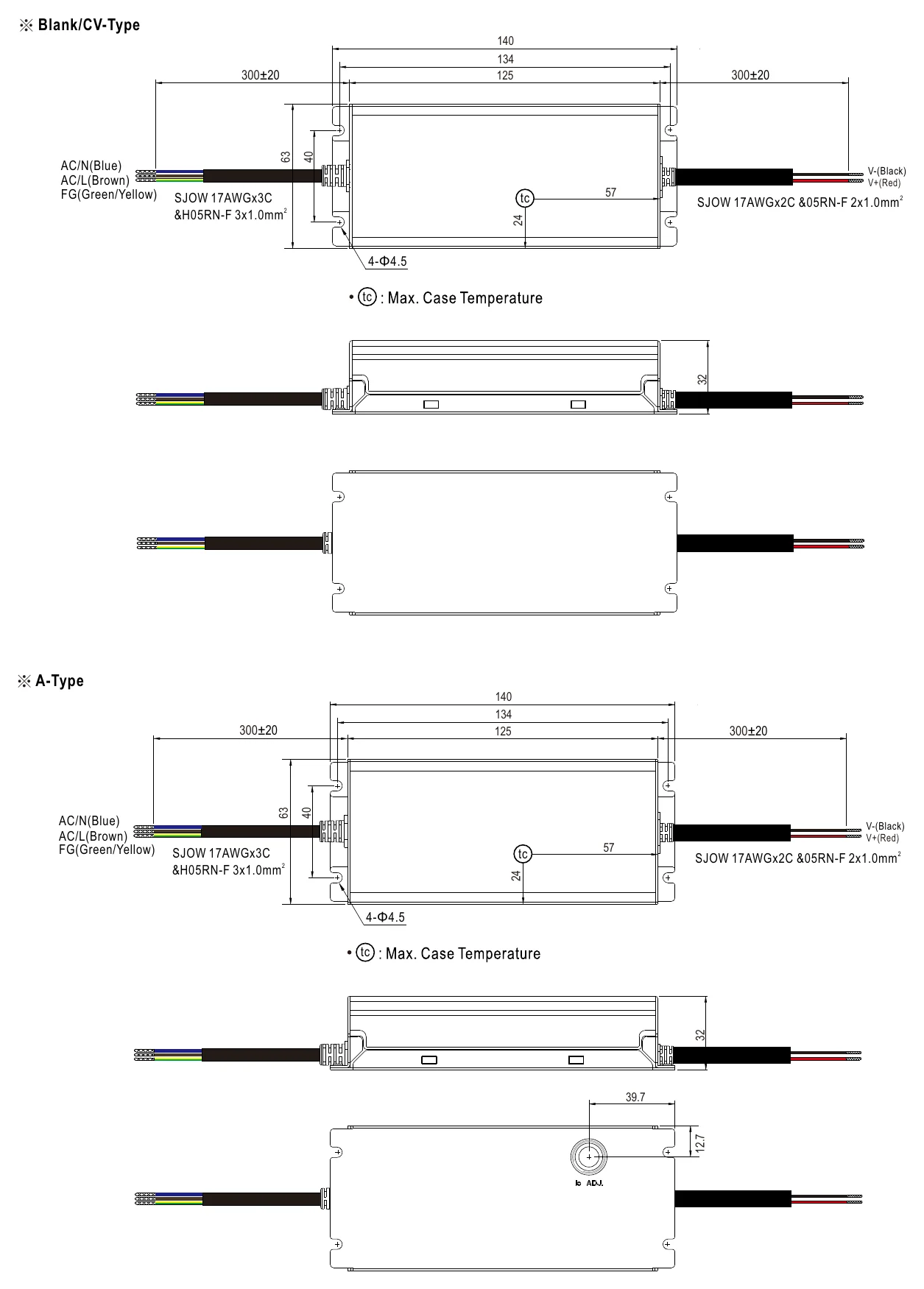

XLG-75-24-A MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

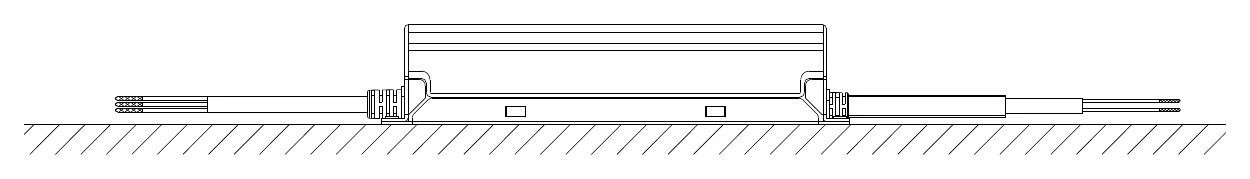

XLG-75-24-A Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

Downloads

Certificates2

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the XLG-75-24-A power a 24V LED strip run in an outdoor or weatherproof enclosure?

Yes. The XLG-75-24-A is IP67-rated for complete dust and water ingress protection, making it suitable for outdoor LED strip installations in sign boxes, exterior architectural lighting channels, and covered wet-area applications. Its 24V output is compatible with standard 24V LED strip systems.

How much 24V LED strip can the XLG-75-24-A run?

The XLG-75-24-A provides 74.4W at 24V. For a 24V strip rated at 14.4W/m, this supports approximately 5.2 meters at full load, or about 4.1 meters derated to 80% for continuous operation. Confirm your strip's rated watts per meter and apply the 80% derating rule for reliable long-term performance.

Is the XLG-75-24-A suitable for outdoor lighting in very cold or very hot climates?

Yes. The operating temperature range of -40°C to +90°C makes this driver appropriate for outdoor sign and architectural lighting across climates from arctic cold to high-ambient hot regions. The IP67 sealing also protects against condensation and moisture in high-humidity environments.

Can this driver power 24V LED strip in a hospitality or retail interior cove lighting application?

Yes. The XLG-75-24-A's 74.4W, 24V output is well suited to interior cove lighting, under-shelf retail lighting, and hospitality accent lighting using 24V LED strip. The IP67 rating also makes it usable in areas exposed to cleaning fluids or steam, such as commercial kitchens and hotel wet rooms.

Can the XLG-75-24-A be used for 24V LED strip in a landscape or garden lighting installation?

Yes. The IP67 rating and -40°C minimum operating temperature make this driver appropriate for buried or enclosure-mounted use in landscape and garden LED strip lighting, including path accent lights and feature wall illumination powered by 24V strip.

What is the difference between the XLG-75-24-A and the XLG-75-24-AB?

Both models share the same 74.4W, 24V, 3.1A specs, IP67 rating, and physical dimensions. The XLG-75-24-AB adds an external dimming input interface (the -AB suffix means adjustable and dimmable), while the XLG-75-24-A provides adjustable output current only without a dimming control port.
