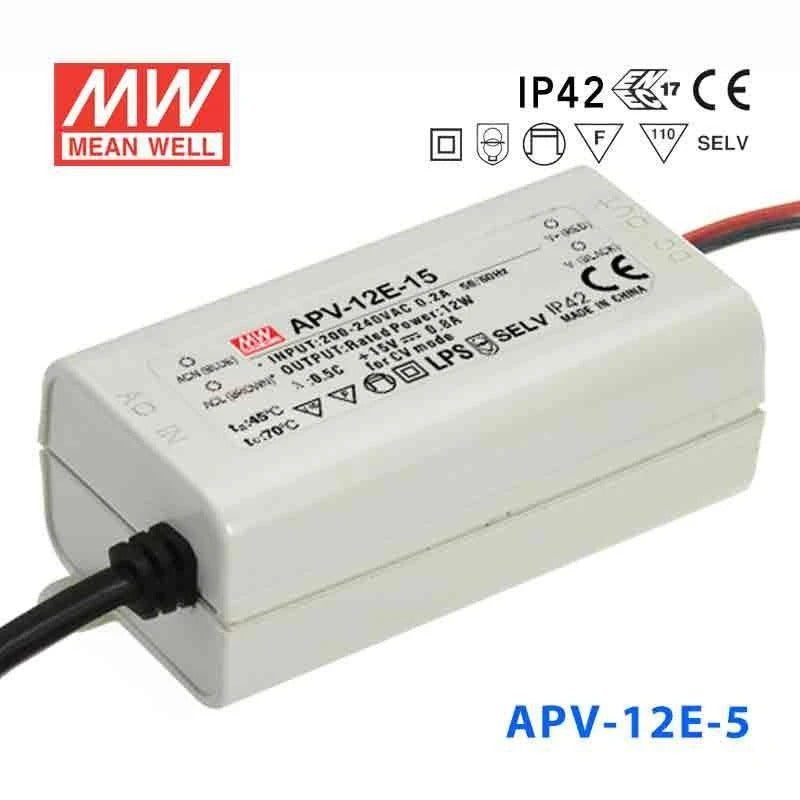

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well APV-12E-5 Power Supply 10W 5V 2A

4.6 (11 reviews)

Class II designlow costsmall and compactIP42

SKU APV-12E-5

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by APV-12-5

In stock

Overview

APV-12E-5 is the 5V output model of this series: rated current 2A, rated power 10W, typical efficiency 75%.

APV-12E series is one 12W AC/DC constant voltage mode single output LED power supply. It accepts input 180~264VAC and provides four models with different output voltage, 5V, 12V, 15V,24V, respectively, that the small wattage LED applications employ the most frequently. Exploiting Class II design (without FG pin) and adopting the 94V-0 flame retardant plastic enclosure, APV-12E ideally fits the entry-level LED applications.

Features

Constant voltage design
Protections: Short circuit / Over load / Over voltage
Fully isolated plastic case
Cooling by free air convection
Small and compact size
Class Ⅱ power unit, no FG
No load power consumption <0.5W
IP42 design
Suitable for LED lighting and moving sign applications
100% full load burn-in test
Low cost, high reliability
2 years warranty

Specifications

APV-12E-5Specifications from the official datasheet (2024-01-08 edition)

OUTPUT

DC VOLTAGE: 5V
RATED CURRENT: 2A
CURRENT RANGE: 0 ~ 2A
RATED POWER: 10W
RIPPLE & NOISE (max.)^Note.2: 100mVp-p
VOLTAGE TOLERANCE^Note.3: ±5.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME^Note.6: 500ms, 30ms / 230VAC at full load
HOLD UP TIME (Typ.): 20ms/230VAC at full load

INPUT

VOLTAGE RANGE^Note.4: 180 ~ 264VAC 254 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.5/230VAC at full load
EFFICIENCY (Typ.): 75%
AC CURRENT: 0.2A/230VAC
INRUSH CURRENT(Typ.): COLD START 70A(twidth=120μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 17 units (circuit breaker of type B) / 29 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: 0.25mA / 240VAC

PROTECTION

OVER LOAD: Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 5.75 ~ 6.75V Protection type : Shut off o/p voltage, clamping by zener diode

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃(Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: EAC TP TC 004, IP42, BS EN/EN 62368-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032,BS EN/EN61000-3-2,BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN55035,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020

OTHERS

MTBF: 7075.9K hrs min. Telcordia SR-332 (Bellcore) ; 1058.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 77*40*29(L*W*H)
PACKING: 0.08Kg; 120pcs/11.8Kg/1.06CUFT

Certifications & ratings

IP level: IP42
Marked features: SELV

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. This product is not intended for LED lighting luminaire applications in the EU.(In the EU the LPF/NPF/XLG series are recommended.)
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

APV-12E-5 Mechanical Specification — Mechanical Specification

APV-12E-5 Derating Curve — Derating Curve

Typical applications

Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)(Note.8)

Downloads

Datasheet1

APV-12E-5 datasheetAPV-12E-SPEC.PDF · 2024-01-08 edition PDF Download

Certificates1

EMC Certificate(APV-12E)(EN) PDF Download

Test reports1

Test Report(APV-12E-5)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

What markets and mains voltages is the APV-12E-5 designed for?

The APV-12E-5 accepts 180–264VAC (or 254–370VDC), making it designed for European, UK, Australian, and similar high-mains markets operating at 230–240V. It is not appropriate for 100–120V mains environments. Listed safety approvals are EAC TP TC 004 and BS EN/EN 62368-1.

How does the APV-12E-5 differ from the APV-12-5?

The APV-12E-5 datasheet covers the E version only: 5V at 2A (10W) in a 77 × 40 × 29 mm housing, with a 180–264VAC (254–370VDC) input that makes it specific to high-mains regions. It lists EAC TP TC 004 and BS EN/EN 62368-1 safety approval. Check the APV-12-5's own datasheet for its input range and certifications.

Can the APV-12E-5 power a 5V addressable LED pixel installation in Europe?

Not for LED lighting in the EU. The APV-12E-5 delivers 5V at 2A for up to 10W from 230V mains, but its datasheet states it is not intended for LED lighting luminaire applications in the EU, where MEAN WELL recommends the LPF, NPF or XLG series. For other 5V loads, keep the total within 10W.

How long a 5V LED strip can the APV-12E-5 support?

The APV-12E-5 provides 10W at 5V. At a 5V strip rated at 5 W/m, the maximum supported length is about 2 m. Divide 10W by your strip's rated power per meter to determine your limit, and verify your strip's rated power per meter before specifying.
