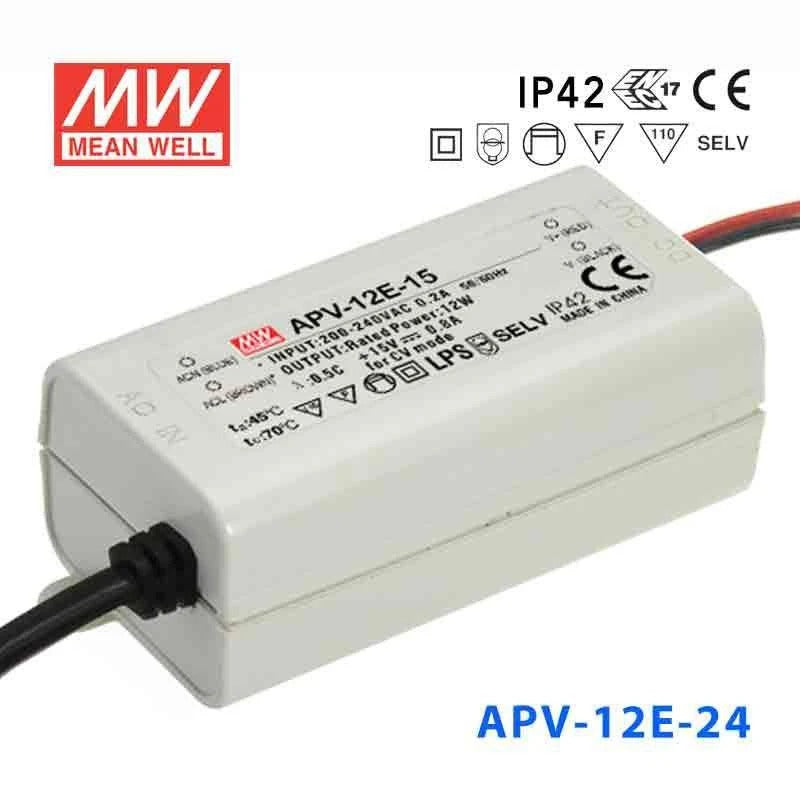

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well APV-12E-24 Power Supply 12W 24V 500mA

Class II design, low cost, small and compact, IP42

SKU:

APV-12E-24

Please for Pricing

Notify me when it's back in stock

Description

The APV-12E is a 12W Mean Well. power converter. and an input range of 180~264VAC.

Key Features

✓ Input voltage range: 180~264VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Over voltage
✓ Safety approvals: ENEC EN61347-1, EN61347-2-13, EN62384 IP42
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

APV Series
Power Rating

12 Watt
Output Voltage

24 Volt
Rated Current

0.5 Ampere
Input Voltage

180V~264V
Standards Met

CB,CE,EAC,ENEC
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

2 Year
Length

7.7 cm
Width

4 cm
Height

2.9 cm
Weight

0.08 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Is the APV-12E-24 compatible with North American 120V power systems?

No. The APV-12E-24 accepts 180–264VAC input and is not designed for 100–120V mains. For North American installations requiring 24V output, the APV-12-24 with its 90–264VAC universal input range and UL certification is the appropriate model.

How does the APV-12E-24 differ from the APV-12-24?

Both models produce 24V at 0.5A (12W) in the same 77.0 × 40.0 × 29.0 mm enclosure. The APV-12-24 accepts 90–264VAC and is certified CB, CCC, CE, EAC, ENEC, and UL. The APV-12E-24 accepts 180–264VAC only and carries CB, CE, EAC, and ENEC certifications, targeting European and similarly regulated markets.

What 24V LED lighting loads can the APV-12E-24 drive?

The APV-12E-24 outputs 24V at 0.5A for a maximum of 12W from 180–264VAC European mains. It is appropriate for short 24V LED strip runs, 24V LED downlight modules, or low-power signage panels where the total load is at or below 12W.

How many meters of 24V LED strip can the APV-12E-24 drive?

The APV-12E-24 provides 12W at 24V. Dividing 12W by your strip's rated power per meter gives the maximum length — at 6 W/m, for example, that is 2 m. Check your strip's rated power per meter and limit the run to 80% of the driver's 12W capacity for reliable long-term operation.

Model	Power	Voltage	Current	IP Rating
Mean Well APV-12E-5 Power Supply 10W 5V 2A	10W	5V	2A	Indoor	View
Mean Well APV-12E-12 Power Supply 12W 12V 1A	12W	12V	1A	Indoor	View
Mean Well APV-12E-15 Power Supply 12W 15V 800mA	12W	15V	0.8A	Indoor	View
