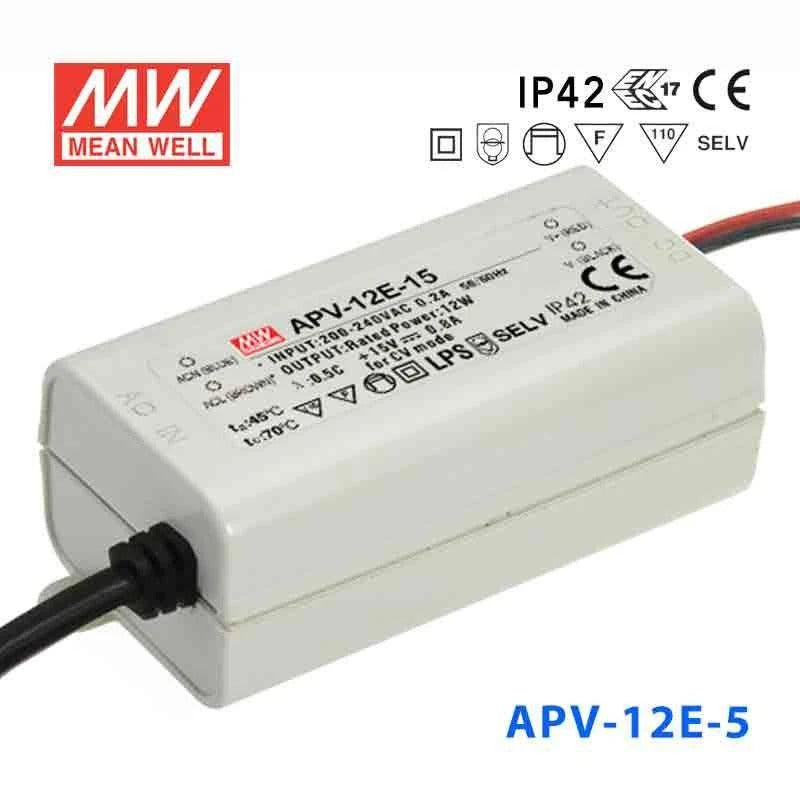

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well APV-12E-5 Power Supply 10W 5V 2A

Class II design, low cost, small and compact, IP42

SKU:

APV-12E-5

Please for Pricing

Notify me when it's back in stock

Description

The APV-12E is a 12W Mean Well. power converter. and an input range of 180~264VAC.

Key Features

✓ Input voltage range: 180~264VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Over voltage
✓ Safety approvals: ENEC EN61347-1, EN61347-2-13, EN62384 IP42
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

APV Series
Power Rating

10 Watt
Output Voltage

5 Volt
Rated Current

2 Ampere
Input Voltage

180V~264V
Standards Met

CB,CE,EAC,ENEC
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

2 Year
Length

7.7 cm
Width

4 cm
Height

2.9 cm
Weight

0.08 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What markets and mains voltages is the APV-12E-5 designed for?

The APV-12E-5 accepts 180–264VAC, making it designed for European, UK, Australian, and similar high-mains markets operating at 230–240V. It is not appropriate for 100–120V mains environments. Certifications include CB, CE, EAC, and ENEC.

How does the APV-12E-5 differ from the APV-12-5?

Both output 5V at 2A (10W) in the same 77.0 × 40.0 × 29.0 mm housing. The APV-12-5 accepts 90–264VAC universally and holds CB, CCC, CE, EAC, ENEC, and UL certifications. The APV-12E-5 is limited to 180–264VAC and carries CB, CE, EAC, and ENEC only, making it specific to high-mains regions.

Can the APV-12E-5 power a 5V addressable LED pixel installation in Europe?

Yes. The APV-12E-5 delivers 5V at 2A for up to 10W from European 230V mains. It is suited to 5V addressable LED pixel strips, WS2812-type LED modules, and small 5V LED panel displays in European installations where the total load stays within 10W.

How long a 5V LED strip can the APV-12E-5 support?

The APV-12E-5 provides 10W at 5V. At a 5V strip rated at 5 W/m, the maximum supported length is about 2 m. Divide 10W by your strip's rated power per meter to determine your limit, and verify your strip's rated power per meter before specifying.

Model	Power	Voltage	Current	IP Rating
Mean Well APV-12E-24 Power Supply 12W 24V 500mA	12W	24V	0.5A	Indoor	View
Mean Well APV-12E-12 Power Supply 12W 12V 1A	12W	12V	1A	Indoor	View
Mean Well APV-12E-15 Power Supply 12W 15V 800mA	12W	15V	0.8A	Indoor	View
