Mean Well

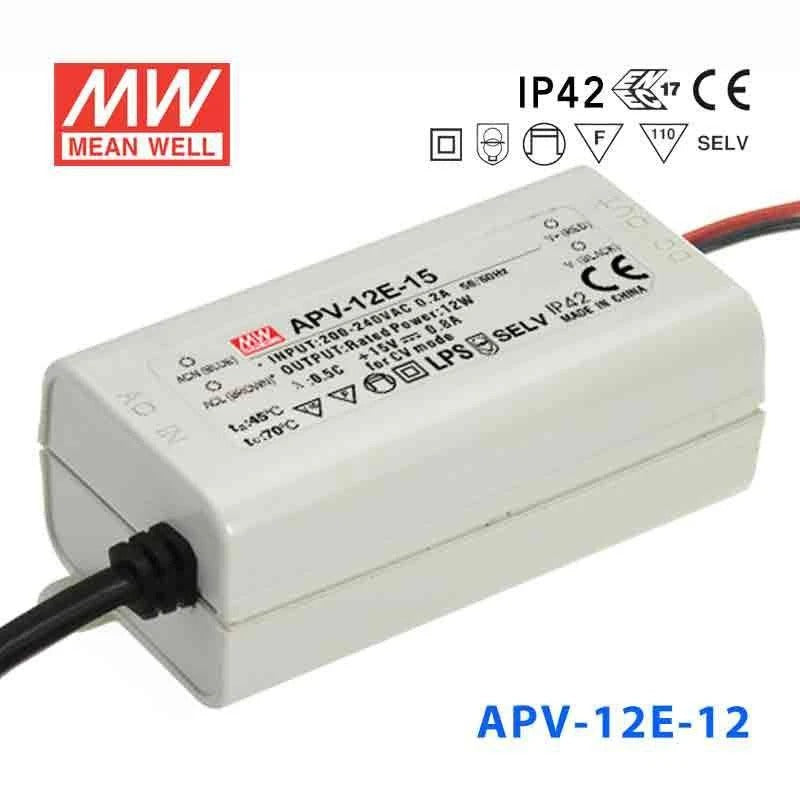

Mean Well APV-12E-12 Power Supply 12W 12V 1A

4.6 (11 reviews)
Class II designlow costsmall and compactIP42
SKU APV-12E-12
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
End of Life, Succeeded by APV-12-12
Available to order
|

Overview

APV-12E-12 is the 12V output model of this series: rated current 1A, rated power 12W, typical efficiency 81%.

APV-12E series is one 12W AC/DC constant voltage mode single output LED power supply. It accepts input 180~264VAC and provides four models with different output voltage, 5V, 12V, 15V,24V, respectively, that the small wattage LED applications employ the most frequently. Exploiting Class II design (without FG pin) and adopting the 94V-0 flame retardant plastic enclosure, APV-12E ideally fits the entry-level LED applications.

Features

  • Constant voltage design
  • Protections: Short circuit / Over load / Over voltage
  • Fully isolated plastic case
  • Cooling by free air convection
  • Small and compact size
  • Class β…‘ power unit, no FG
  • No load power consumption <0.5W
  • IP42 design
  • Suitable for LED lighting and moving sign applications
  • 100% full load burn-in test
  • Low cost, high reliability
  • 2 years warranty

Specifications

APV-12E-12Specifications from the official datasheet (2024-01-08 edition)

OUTPUT

DC VOLTAGE
12V
RATED CURRENT
1A
CURRENT RANGE
0 ~ 1A
RATED POWER
12W
RIPPLE & NOISE (max.)Note.2
120mVp-p
VOLTAGE TOLERANCENote.3
Β±5.0%
LINE REGULATION
Β±1.0%
LOAD REGULATION
Β±2.0%
SETUP, RISE TIMENote.6
500ms, 30ms / 230VAC at full load
HOLD UP TIME (Typ.)
20ms/230VAC at full load

INPUT

VOLTAGE RANGENote.4
180 ~ 264VAC 254 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.5/230VAC at full load
EFFICIENCY (Typ.)
81%
AC CURRENT
0.2A/230VAC
INRUSH CURRENT(Typ.)
COLD START 70A(twidth=120ΞΌs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
17 units (circuit breaker of type B) / 29 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
0.25mA / 240VAC

PROTECTION

OVER LOAD
Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
13.8 ~ 16V Protection type : Shut off o/p voltage, clamping by zener diode

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃(Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
Β±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
EAC TP TC 004, IP42, BS EN/EN 62368-1 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032,BS EN/EN61000-3-2,BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN55035,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020

OTHERS

MTBF
7075.9K hrs min. Telcordia SR-332 (Bellcore) ; 1058.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
77*40*29(L*W*H)
PACKING
0.08Kg; 120pcs/11.8Kg/1.06CUFT

Certifications & ratings

IP level
IP42
Marked features
SELV
Test conditions and notes9
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
  5. 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  8. 8. This product is not intended for LED lighting luminaire applications in the EU.(In the EU the LPF/NPF/XLG series are recommended.)
  9. 9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

APV-12E-12 Mechanical Specification
Mechanical Specification
APV-12E-12 Block Diagram
Block Diagram
APV-12E-12 Derating Curve
Derating Curve

Typical applications

  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)(Note.8)

Downloads

FAQ

What is the input voltage range of the APV-12E-12, and where is it intended for use?

The APV-12E-12 accepts 180–264VAC (or 254–370VDC), making it designed for high-mains regions such as Europe (230V), the UK (240V), and similar markets. It is not suitable for 100–120V systems used in North America or Japan. Listed safety approvals are EAC TP TC 004 and BS EN/EN 62368-1.

How does the APV-12E-12 differ from the standard APV-12-12?

The APV-12E-12 datasheet covers the E version only: 12V, 1A, 12W output in a 77 Γ— 40 Γ— 29 mm housing, with a 180–264VAC (254–370VDC) input for high-mains markets. It lists EAC TP TC 004 and BS EN/EN 62368-1 safety approval. Check the APV-12-12's own datasheet for its input range and certifications.

Can the APV-12E-12 be used for 12V LED strip in European commercial signage?

Not for LED lighting in the EU. The APV-12E-12 outputs 12V at 1A for a maximum of 12W, but its datasheet states it is not intended for LED lighting luminaire applications in the EU, where MEAN WELL recommends the LPF, NPF or XLG series. For other 12V loads, keep the total at or below 12W.

Is the APV-12E-12 suitable for damp or outdoor mounting?

The APV-12E-12 is rated IP42, providing limited protection against solid particles and dripping water only, with a working humidity of 20–90% RH non-condensing. It is not suited to direct outdoor exposure or wet locations; check the installation cautions in MEAN WELL's user manual before mounting.
