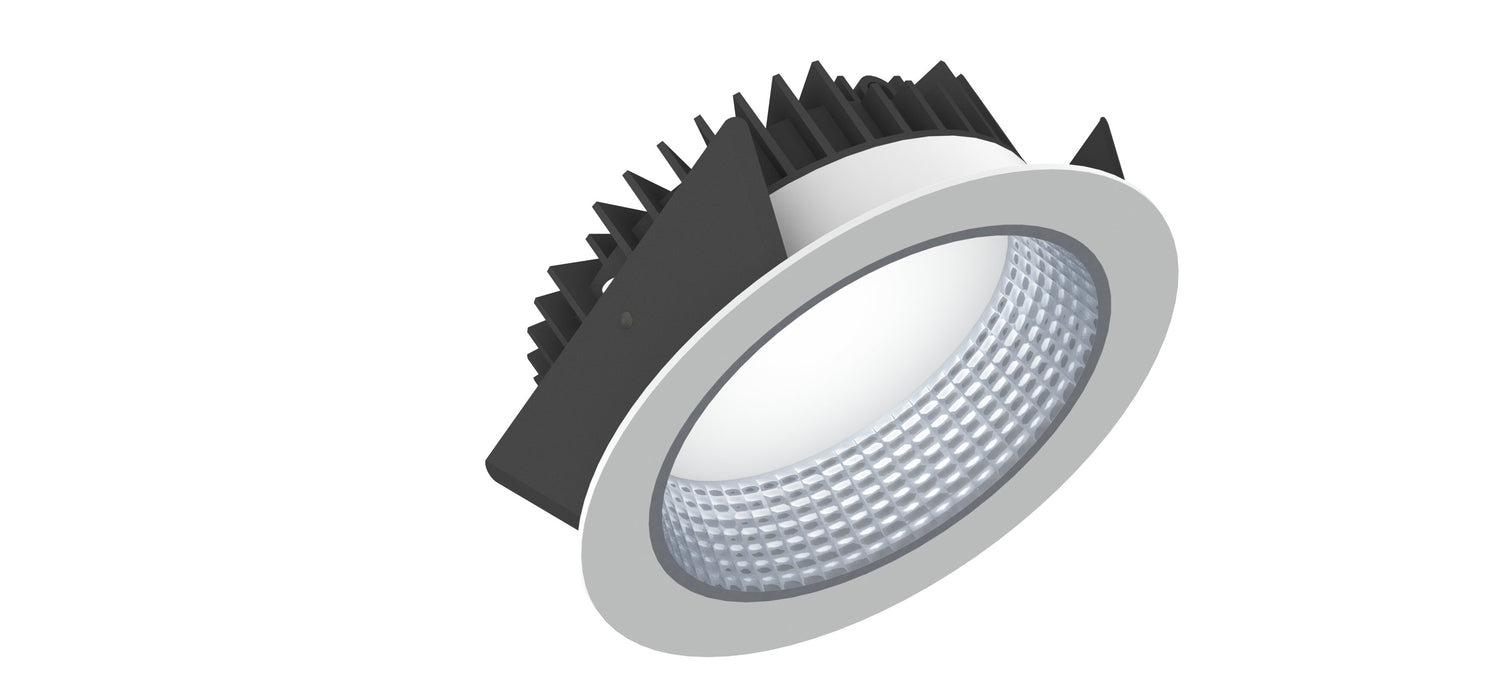

Archilight Curion 185 Downlight 12.7W
Log in to see priceSpecifications
Specifications
- Order code
- 956903MW6702
- Input
- 230VAC
- Power rating
- 12.7W
- Beam angle
- 80°
- Brightness
- 1400/2200/4500lm
- Efficacy
- ≥85lm/W
- Colour render index(CRI)
- ≥90
- Colour temperature
- 3000K/ 4000K
- UGR
- <19
- IP level
- IP20
- Temperature range
- -20°C~45°C
- Dimming control
- Dimmable(Dimmer optional)
- Tiltable
- Fixed
- Mounting
- Recessed
- Driver
- Driver included
- Warranty
- 7 years
- Lifetime
- 70,000hrs
- Material
- Die-Cast Aluminum
- Finish
- White, Black
- Voltage
- 220-240V
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F
Technical drawings
Downloads
Datasheet1
FAQ
What type of product is the Archilight Curion 185 Downlight 12.7W?
The Archilight Curion 185 is a recessed LED downlight for interior lighting applications. It is part of the Curion family and is designed as a compact, high-end luminaire with a Holland-made fitting.
What are the key performance specifications of the Curion 185 family?
This parent model is rated at 12.7W and the listed variant delivers 5500 lumens with a CRI of 82. It also has a 70,000-hour lifetime and is backed by a 7-year warranty.
Is the Archilight Curion 185 downlight dimmable?
Yes, the Curion 185 family is listed as dimmable optional. That means dimming capability is available for this product family, but it is not described here as a standard built-in control method.
What light color and beam angle are available in the listed Curion 185 variant?
The variant shown for this parent model is specified at 4000K with an 80-degree beam angle. No other color temperatures or beam spreads are provided in the data shown here.
Where can the Curion 185 be used, and what is its IP rating?
The Curion 185 is intended for interior use and is rated IP44 under a specific condition. According to the product description, it may be exposed to water splashes only when installed in a closed ceiling, and only on the front side.
What are the dimensions and cut-out size for the Curion 185?
The parent model dimensions are 230 mm by 230 mm with a height of 85 mm, and the listed weight is 1.4 kg. The available child data shows a cut-out size of 185 mm.
