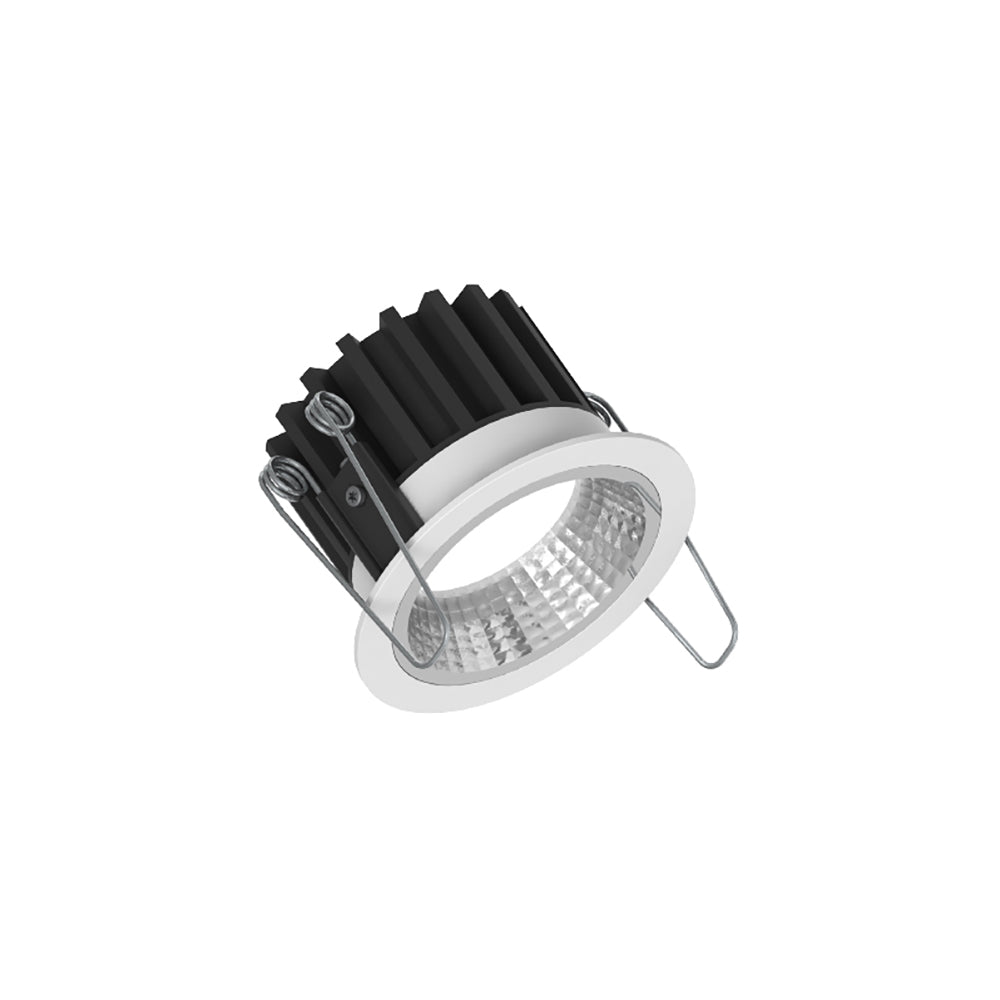

Archilight Curion 75 Series 16W Recessed Downlight

SKU 947803BL6902

Log in to see price Trade pricing & online ordering for account holders

Configure — 5 variants

947803BL6902

LED Colour

Finish Colour

5 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

Available to order

Overview

Downlight

Specifications

Archilight Curion 75 Series 16W Recessed DownlightSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU	LED Colour	Finish Colour
947803BL6902	Warm White 3000K	Black
947803BL7002	Natural White 4000K	Black
947803GR6802	Warm White 2700K	Grey
947803GR6902	Warm White 3000K	Grey
947803MW6902	Warm White 3000K	White

Specifications

Input: 500mA
Power rating: 16W
Beam angle: 60°
Efficacy: ≥85lm/W
Colour render index(CRI): ≥80
UGR: <19
IP level: IP20
Temperature range: -20°C~45°C
Dimming control: Dimmable(Dimmer optional)
Tiltable: Fixed
Mounting: Recessed
Driver: Driver Included
Warranty: 7 years
Lifetime: 70,000hrs
Material: Aluminum
Voltage: 220-240V

Certifications & ratings

Certification marks: CE, CB, TÜV, CCC, SAA, IC-F

Technical drawings

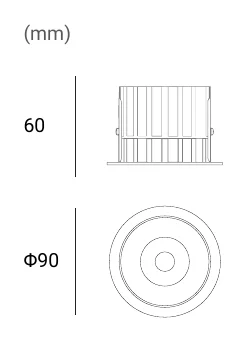

Archilight Curion 75 Series 16W Recessed Downlight Dimensions (mm) — Dimensions (mm)

Downloads

Datasheet1

Archilight Curion 75 Series 16W Recessed Downlight datasheetCurion_75.pdf PDF Download

FAQ

What type of spaces is the Archilight Curion 75 Series 16W Recessed Downlight designed for?

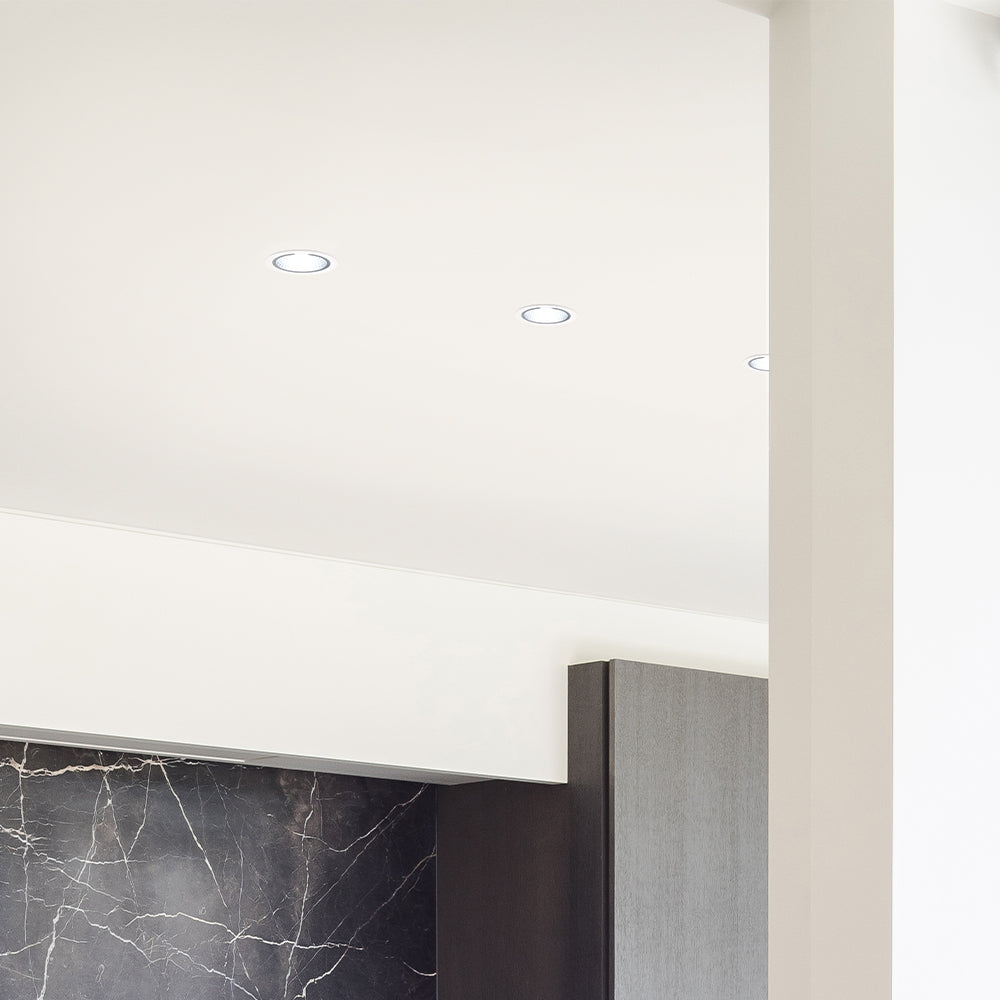

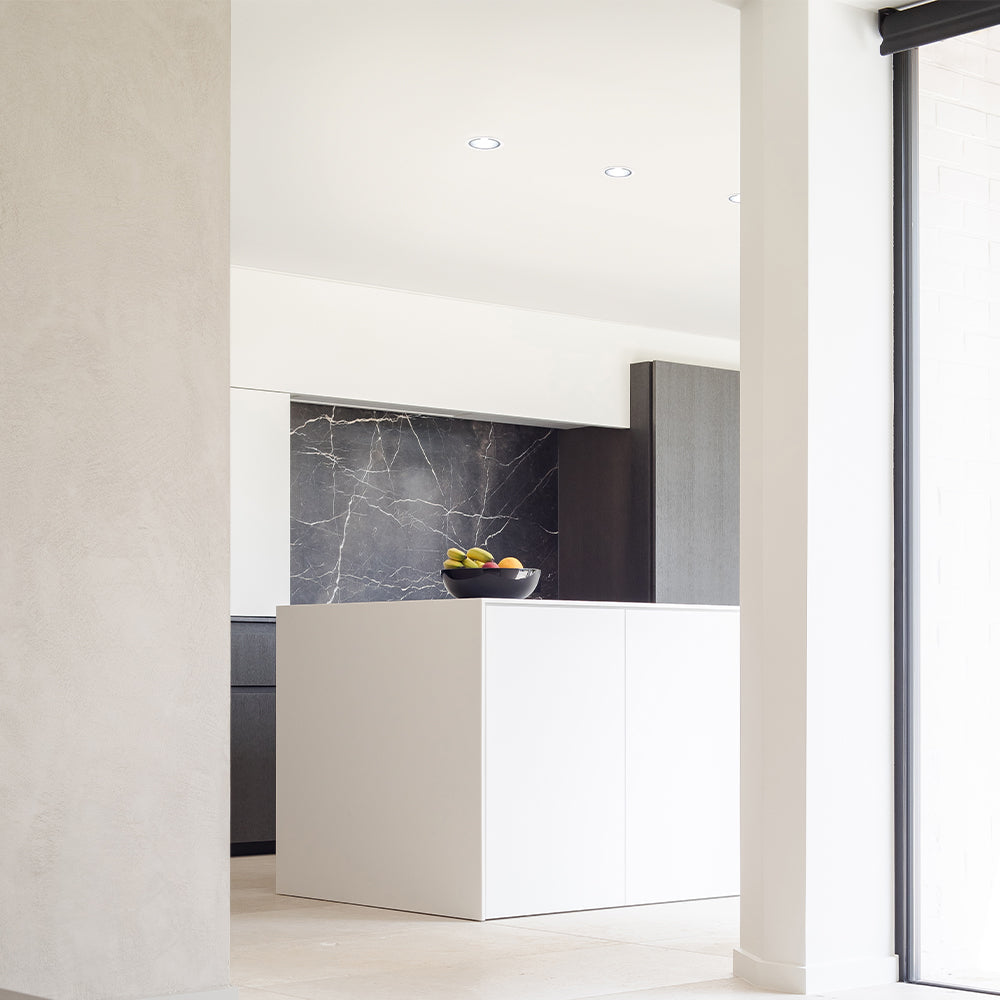

This is a recessed LED downlight intended for interior commercial and architectural lighting applications. Its compact 90 x 90 x 60 mm body and recessed format make it suitable for projects that need a clean, integrated ceiling appearance.

What options are available across the Curion 75 family?

The family includes variants in black, grey, and white finishes. Available color temperatures in the listed variants are 2700K, 3000K, and 4000K, and the shown beam angle is 60 degrees across the child models provided.

Does the Curion 75 downlight include a driver, and is it dimmable?

The driver is not included with this product family. The range is listed as dimmable optional, so dimming depends on using a compatible optional dimming solution rather than being built in as a standard included component.

What ceiling cut-out size is this downlight compatible with?

Across the child variants provided, the cut-out range is 75 mm to 85 mm. That makes the Curion 75 family relevant for projects matching that recessed opening range.

Is the Curion 75 suitable for damp or splash-prone areas?

The product is rated IP44 only when installed in a closed ceiling. In that condition, it may be exposed to water splashes on the front side only, so it is important to match the product to the intended indoor environment.

What are the main performance specifications of the Curion 75 family?

This product family is rated at 16W with CRI 80, a 70,000-hour lifetime, and a 7-year warranty. The description also states color consistency at MacAdam step 3 SDCM, supporting a more uniform lighting appearance across installations.
