Archilight

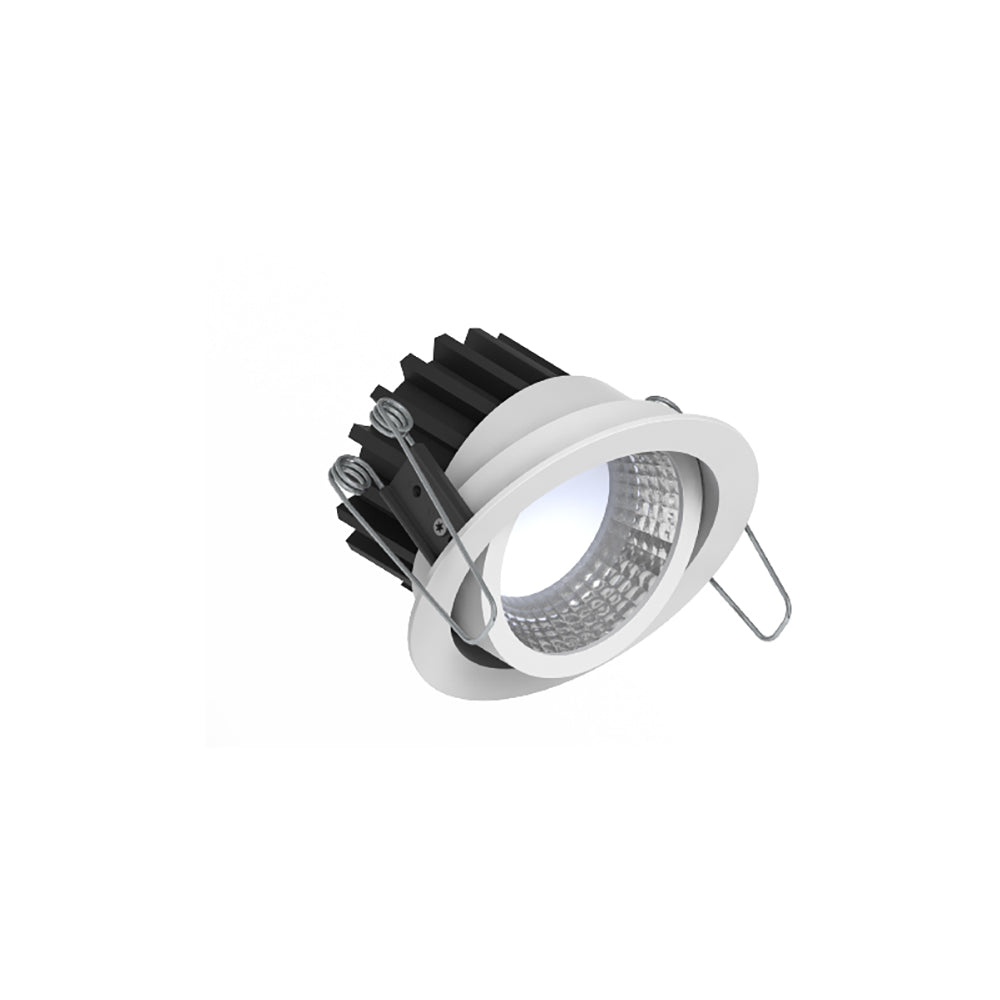

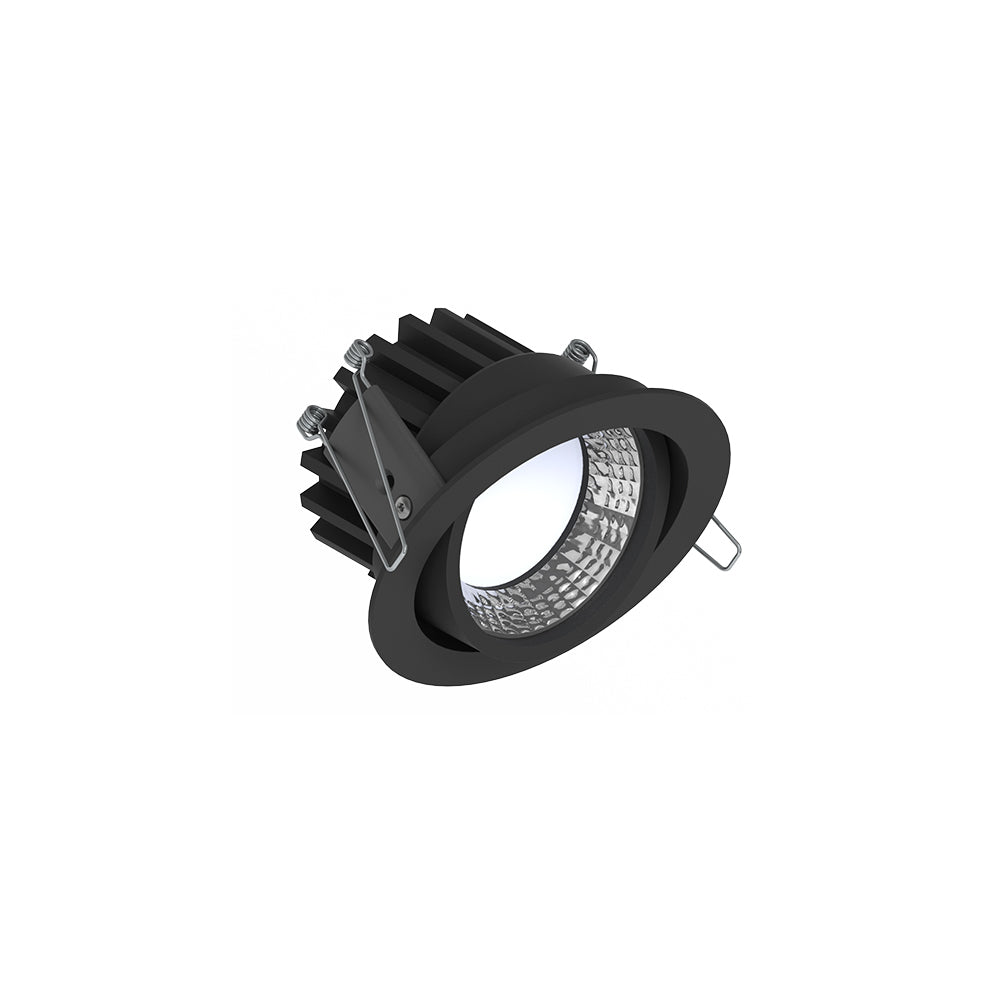

Archilight Curion 90 Downlight 16W

SKU 948803BL6902
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 4 variants

948803BL6902
LED Colour
Finish Colour
4 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
In stock
|

Overview

Downlight

Specifications

Archilight Curion 90 Downlight 16WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKULED ColourBrightnessFinish Colour
948803BL6902Warm White 3000K1,250 lmBlack
948803BL7002Natural White 4000K1,500 lmBlack
948803MW6902Warm White 3000K1,250 lmWhite
948803MW7002Natural White 4000K1,500 lmWhite

Specifications

Input
230VAC
Power rating
16W
Beam angle
60°
Efficacy
≥85lm/W
Colour render index(CRI)
≥82
UGR
<19
IP level
IP20
Temperature range
-20°C~45°C
Dimming control
Dimmable(Dimmer optional)
Tiltable
Fixed
Mounting
Recessed
Driver
Driver Included
Warranty
7 years
Lifetime
70,000hrs
Material
Die-Cast Aluminum
Voltage
220-240V

Certifications & ratings

Certification marks
CE, CB, TÜV, CCC, SAA, IC-F

Technical drawings

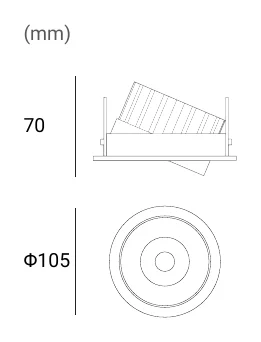

Archilight Curion 90 Downlight 16W Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What type of project is the Archilight Curion 90 Downlight 16W designed for?

This is a recessed LED downlight intended for interior commercial lighting applications where a compact, high-end fitting is needed. The product is positioned as a space-efficient luminaire with a consistent light output and a Holland-made design. It is suitable for buyers looking for a professional downlight family rather than a decorative residential-only fitting.

What variant options are available in the Curion 90 Downlight 16W family?

The family is offered in black and white finishes, with 3000K and 4000K colour temperature options. All variants use a 60 degree beam angle and 16W power rating. Output differs by colour temperature, with the 3000K versions rated at 1250 lm and the 4000K versions rated at 1500 lm.

How do I choose between the 3000K and 4000K versions?

The 3000K option provides a warmer light appearance, while the 4000K option provides a cooler neutral white appearance. In this family, the 4000K variants also deliver more light output at 1500 lm compared with 1250 lm for the 3000K variants. That makes the colour temperature choice relevant for both ambience and brightness.

Is the Archilight Curion 90 Downlight dimmable, and is a driver included?

Yes, the Curion 90 Downlight family includes a driver and supports optional dimming. That means the product range is suitable for projects that may require dimming capability, while not every installation has to use it. The driver-included specification applies across the parent family shown here.

What are the key size and cut-out details for this downlight family?

The parent model dimensions are 90 mm by 90 mm with a height of 70 mm, and the product weight is 0.46 kg. Across the listed child variants, the cut-out range is 90 mm to 95 mm. This makes the family relevant where a compact recessed opening is required.

Is the Curion 90 Downlight suitable for areas exposed to moisture?

The product is rated IP44 only when installed in a closed ceiling, and only the front side may be exposed to water splashes. That means it is intended for interior environments with limited splash exposure rather than unrestricted wet-area use. Buyers should assess the surrounding ceiling condition and exposure level accordingly.

What can buyers expect for colour consistency, lifetime, and warranty?

The Curion family is specified with MacAdam step 3 SDCM for consistent colour performance. It has a rated lifetime of 70,000 hours and is backed by a 7-year warranty. Those specifications support long-term commercial use where consistency and service life matter.
