Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

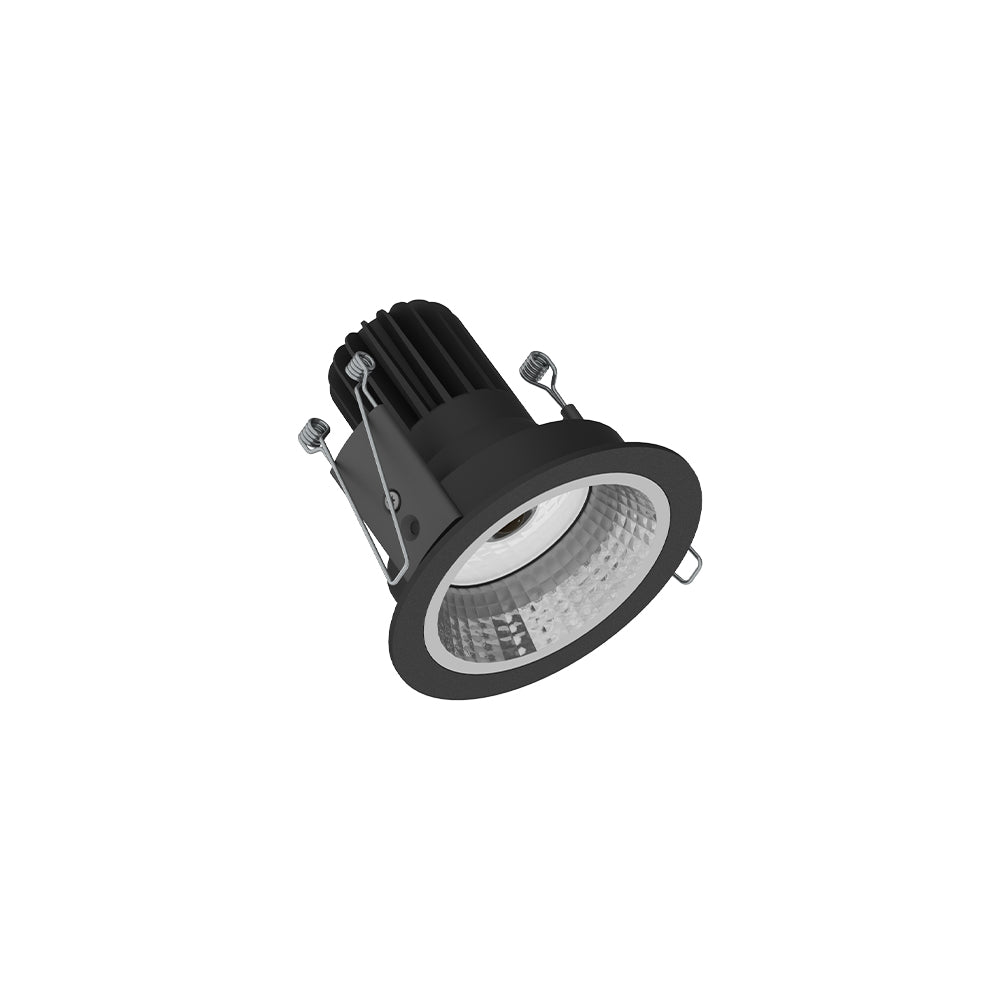

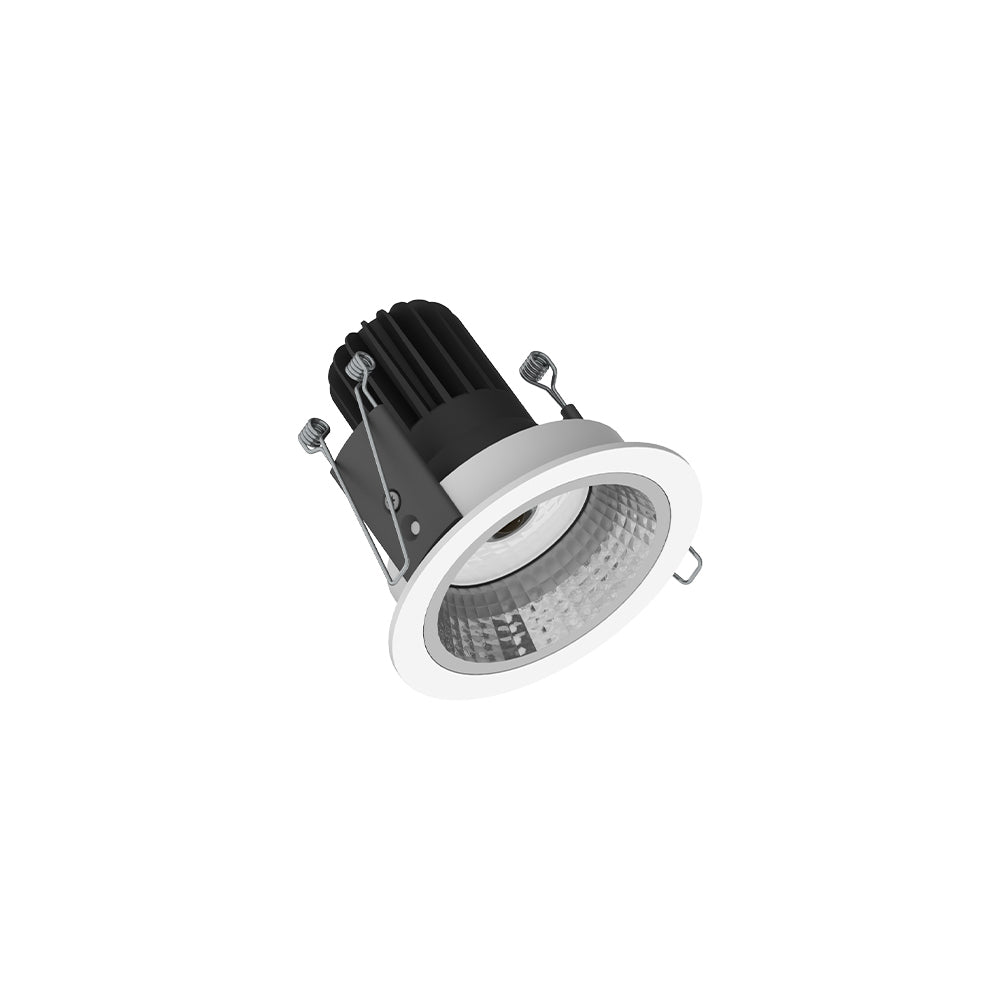

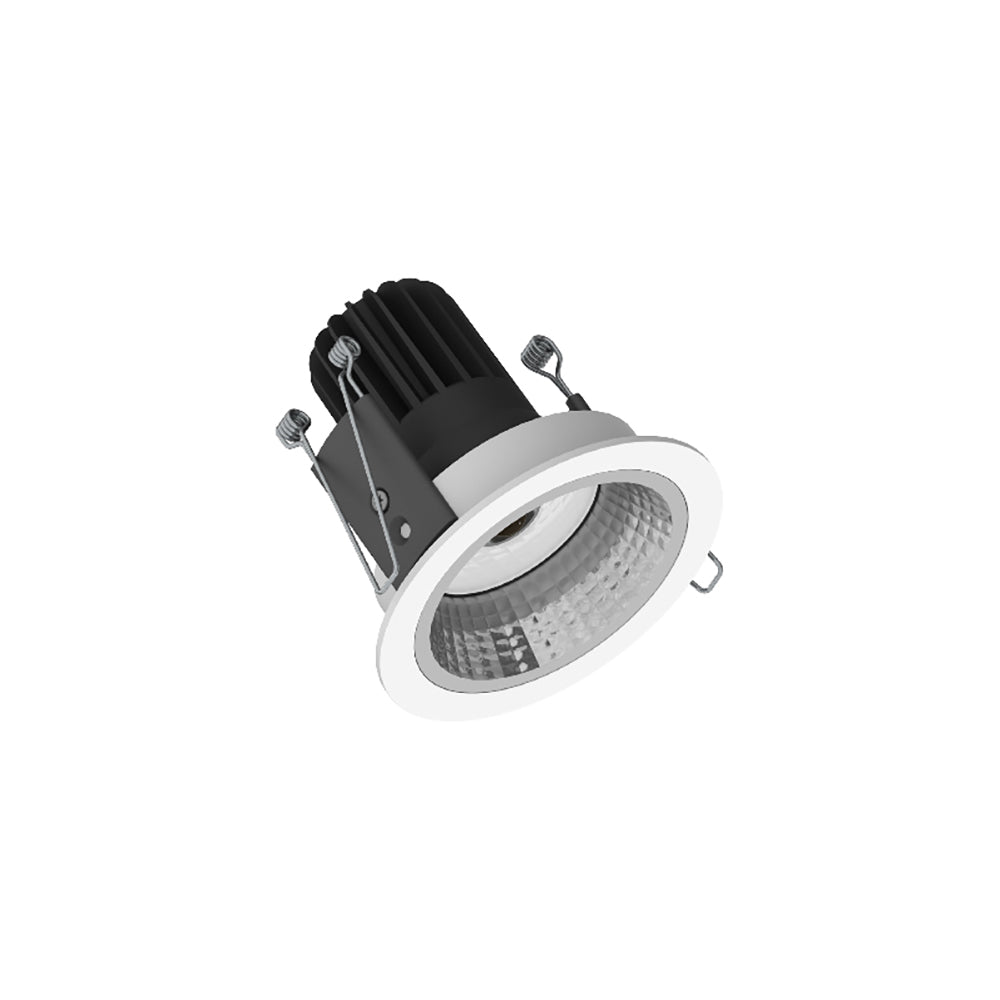

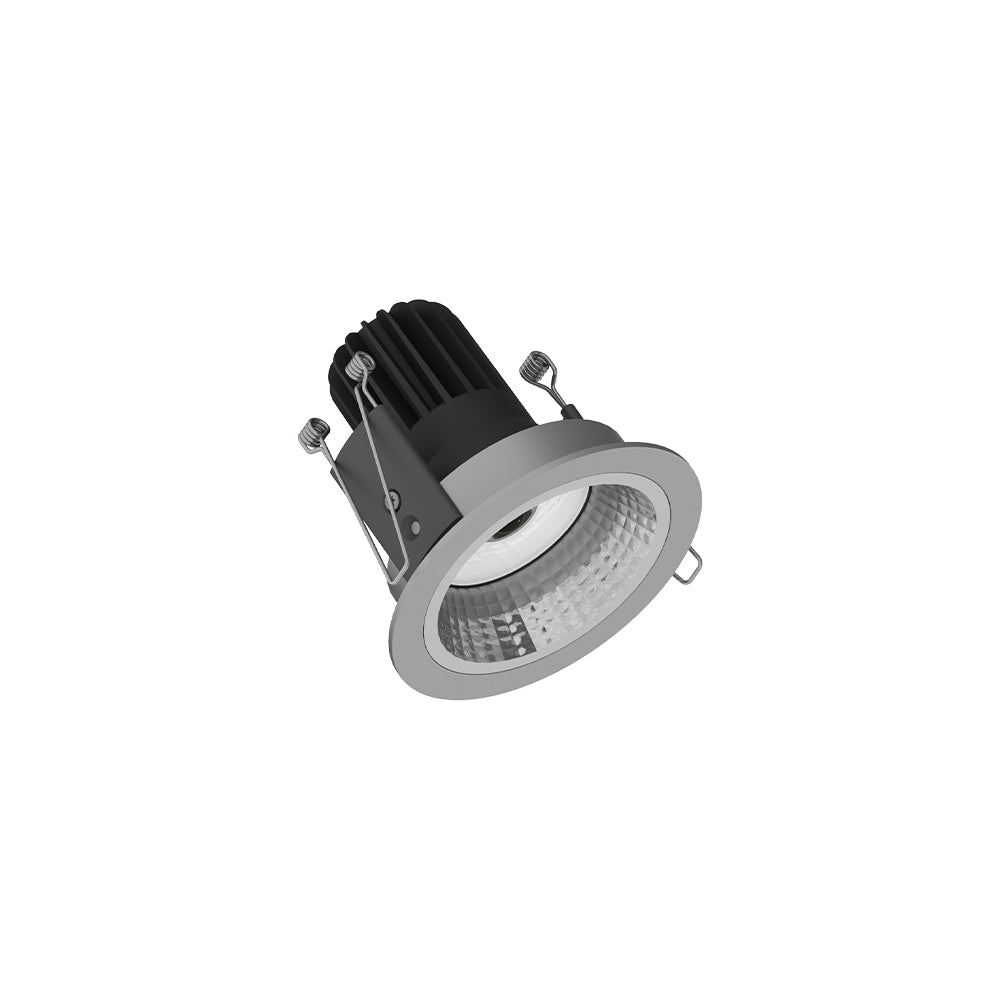

Archilight 7W Sensor-Equiped Recessed Downlight

SKU:

947203BL8302

Log in to see price Trade pricing & online ordering for account holders

Configure — 6 variants

947203BL8302

LED Colour

Finish Colour

Beam Angle

6 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

Notify me when it's back in stock

At Archilight we research and provide inventive lighting solutions, which offer as much comfort and ease as possible, all without damaging the environment on a day to day basis. After many years of experience in product development our results show in a range of completely self-developed, high-end luminaires.

This powerful LED down light comes in two colors and has a built-in sensor to detect user movements. Once any movement is detected, sensor luminaries turn on for 4 minutes. A different time can be set for large orders.

Frequently Asked Questions

What is the Archilight 7W Sensor-Equiped Recessed Downlight designed for?

This is a recessed LED downlight for interior lighting applications where automatic motion-based activation is useful. It is suited to commercial and professional spaces that benefit from added convenience, energy-conscious operation, and a clean recessed finish.

How does the built-in sensor work on this downlight?

The luminaire includes a built-in sensor that detects user movement. When motion is detected, the light turns on for 4 minutes as standard. The product description also notes that a different time setting may be available for large orders.

What variant options are available in this product family?

This parent family includes variants in black, grey, and white finishes. It is also offered with either a 24 degree or 60 degree beam angle, so buyers can choose between a narrower or wider light distribution depending on the project requirement.

What are the core performance specifications across the full family?

All listed variants in this family are rated at 7W and CRI 80. They also share a 70,000 hour lifetime, a 7 year warranty period, an included driver, and optional dimming capability.

What color temperature does this downlight family use?

All child variants shown for this family use a 3000K color temperature. That makes the range consistent for projects that want the same warm white appearance across different finish or beam-angle selections.

What cut-out size is this recessed downlight family made for?

The listed variants all show a 75 mm cut-out size, with both minimum and maximum cut-out values at 75 mm. This makes the family consistent when comparing finish and beam-angle options within the same parent model.

What are the physical dimensions of the parent model?

The parent product data lists the downlight as 90 mm long, 90 mm wide, and 82 mm high, with a weight of 0.3 kg. These dimensions support compact recessed use while keeping the family in a small-format architectural downlight category.

Is this downlight suitable for buyers who want long service life and reduced maintenance?

Yes. The family is specified with a 70,000 hour lifetime and a 7 year warranty period, which makes it relevant for commercial environments where maintenance intervals matter. Those shared specifications apply across the listed variants in this parent range.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	CRI	Dimming	Cut-out
Archilight Curion 185 Downlight 12.7W	12.7W	82	Optional	185 Millimeter	View
Archilight Curion 90 Downlight 16W	16W	82	Optional	90 Millimeter	View
Archilight Curion 75 Series 16W Recessed Downlight	16W	80	Optional	75 Millimeter	View
