Mean Well SKMW20F-03 DC-DC Converter - 20W - 9~36V in 3.3V out 4.5A

SKU SKMW20F-03

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

SKMW20F-03 is the 3.3V output model of this series: rated power 20W, typical efficiency 87%.

SKMW20 and DKMW20 series are 20W isolated and regulated module type DC-DC converter with DIP 1"x1" package. It features international standard pins, a high efficiency up to 89%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without additional components, continuous-mode short circuit, overload, over temperature, input under voltage protection, remote ON/OFF and trimmable output voltage etc. The models account for different input voltage 9~36V and 18~75V 4:1 ultrawide input range, and various output voltage, 3.3V /5V/12V/15V for single output and ±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

DIP 1"x1" package with industry standard pinout
4:1 ultrawide input range
Operating temperature range -40 ~ +85℃
No minimum load required
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 89%
Protections: Short circuit (Continuous) / Overload / Over voltage / Input under voltage
1.5KVDC I/O isolation
Remote ON/OFF control and Triming output (±10%)
3 years warranty

Specifications

SKMW20F-03Specifications from the official datasheet (2024-04-30 edition)

INPUT

INPUT VOLTAGE (RANGE): 24V (9 ~ 36V)
INPUT CURRENT NO LOAD: 10mA
INPUT CURRENT FULL LOAD: 781mA
VOLTAGE RANGE: 9~36Vdc ,
SURGE VOLTAGE (100ms max.): 24Vin models : 50Vdc, 48Vin models : 100Vdc
FILTER: Pi type
PROTECTION: Fuse recommended. 24Vin models: 3A delay time Type, 48Vin models: 1.5A delay time Type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

OUTPUT VOLTAGE: 3.3V
OUTPUT CURRENT: 0~4500mA
EFFICIENCY (TYP.): 87%
CAPACITOR LOAD (MAX.)^{* For each output}: 5000μF
VOLTAGE ACCURACY: ±1.5%
RATED POWER: 20W
RIPPLE & NOISE^Note.2: 3.3/5Vout models: 75mVp-p, other models:100mVp-p
LINE REGULATION^Note.3: ±0.2%
LOAD REGULATION^Note.4: Single output models: ±0.2%, Dual output models:±1%
SWITCHING FREQUENCY (Typ.): 3.3/5Vout models: 270KHz, other models: 330KHz
EXTERNAL TRIM ADJ. RANGE (Typ.): ±10% (Single output model only)

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: 110 ~ 170% rated output power Protection type : Recovers automatically after fault condition is removed
OVER VOLTAGE: Protection type : Clamp by diode
UNDER VOLTAGE LOCKOUT Start-up voltage: 24Vin (F-type): 8.8Vdc, 48Vin (G-type): 17Vdc
UNDER VOLTAGE LOCKOUT Shutdown voltage: 24Vin (F-type): 8Vdc, 48Vin (G-type): 16Vdc

FUNCTION

REMOTE CONTROL: Power ON: R.C. ~ -Vin >3.5~75Vdc or open circuit ; Power OFF: R.C. ~ -Vin <1.2Vdc or short

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +85℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +105℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 60℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 5 sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 1500pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class A

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV
Surge	BS EN/EN61000-4-5	Level 1, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 2, 3A/m

OTHERS

MTBF: 3.3/5Vout models: 910Khrs, Other models: 1220Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 25.4*25.4*10.2mm (1*1*0.4 inch)
CASE MATERIAL: Black coated copper with non-conductive base

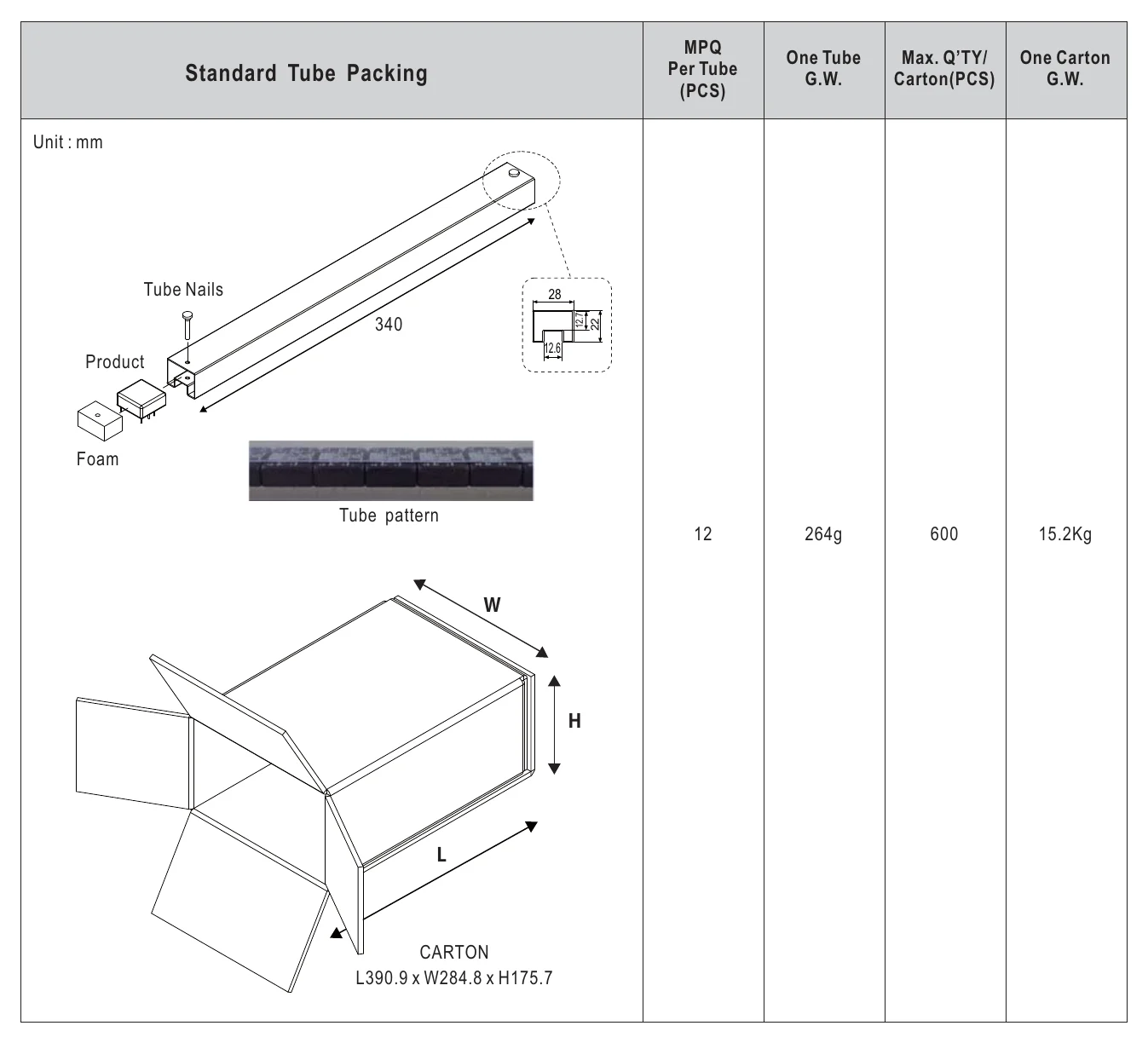

PACKING: 19g ; 12pcs/per tube, 600pcs/50 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input(F:24Vdc, G:48Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 0% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

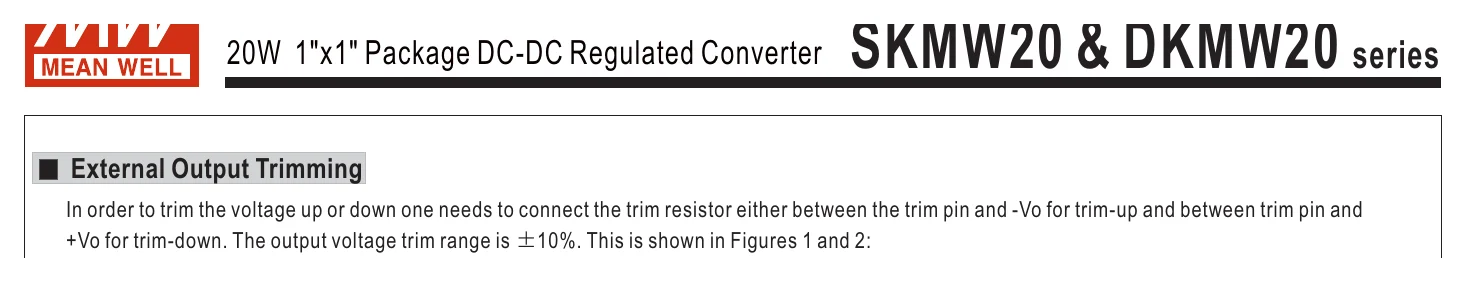

SKMW20F-03 SKMW20 & DKMW20 series — SKMW20 & DKMW20 series

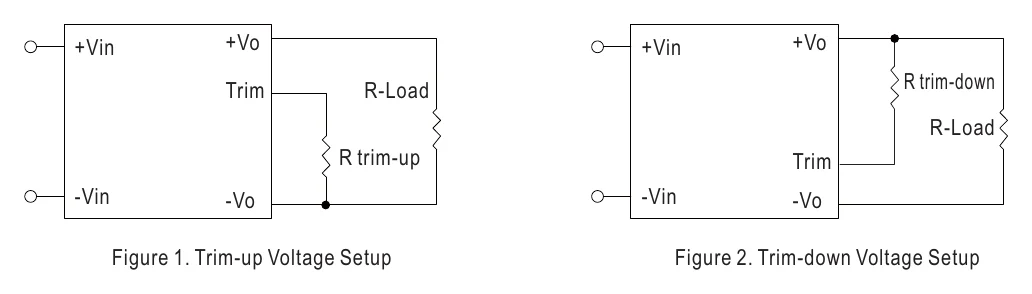

SKMW20F-03 SKMW20 & DKMW20 series (2) — SKMW20 & DKMW20 series (2)

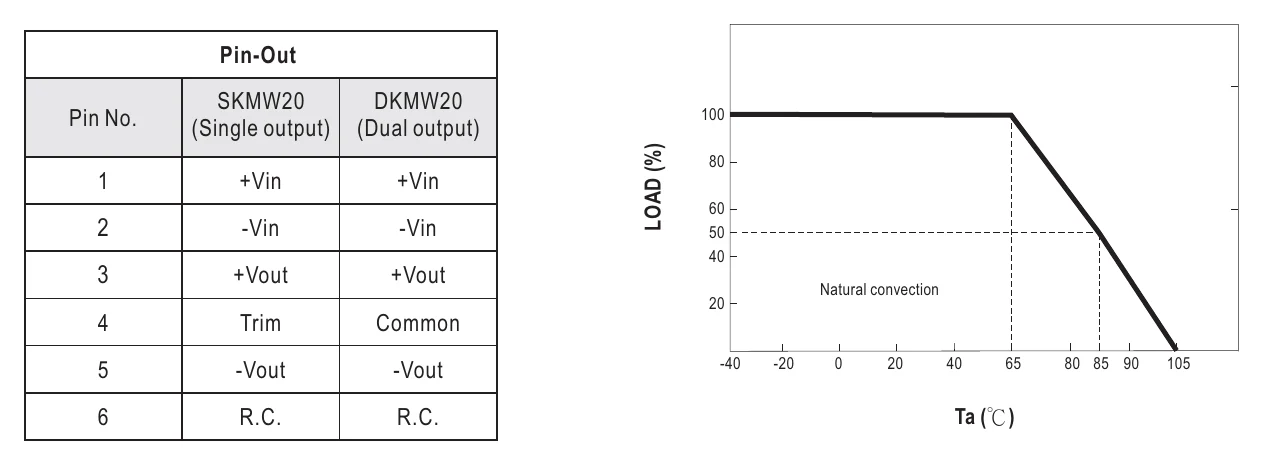

SKMW20F-03 Plug Assignment — Plug Assignment

Typical applications

Downloads

Certificates2

Certificate (SKMW20-DKMW20-CE-dec)(EN) PDF Download

Certificate (SKMW-DKMW20-UK-dec)(EN) PDF Download

Test reports1

Test Report (SKMW20F-03)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the SKMW20F-03 to power 3.3V microcontrollers or logic boards from a 9-36VDC source?

Yes, this model is built for constant-voltage 3.3V output across a 9-36VDC input range. It can provide up to 4.5A with a 20W rating, which suits many 3.3V control and logic applications within that load limit.

Is the SKMW20F-03 suitable for embedded or IoT hardware that needs a regulated 3.3V rail?

It can be a strong fit for embedded electronics that require constant 3.3V power and do not exceed 4.5A or 20W. Its compact 25.4 × 25.4 × 10.2 mm size also helps where PCB area or enclosure volume is limited.

Can this converter support 3.3V industrial communications or processor modules in automation equipment?

Yes, provided the modules require a constant 3.3V supply and the total demand stays within 4.5A and 20W. The 9-36VDC input range gives more flexibility than narrower-input designs in mixed industrial or embedded systems.

Is the SKMW20F-03 a reasonable choice for low-voltage instrumentation electronics in compact devices?

It is designed for compact low-voltage conversion, with a body size of 25.4 × 25.4 × 10.2 mm and a weight of 0.018 kg. That makes it relevant for space-constrained devices needing a constant 3.3V output up to 4.5A.

How does the SKMW20F-03 compare with the other SKMW20F models?

The listed SKMW20F family members all share a 20W rating, but the outputs differ. The SKMW20F-03 is 3.3V at 4.5A, the SKMW20F-05 is 5V at 4A, the SKMW20F-12 is 12V at 1.67A, and the SKMW20F-15 is 15V at 1.33A. Model selection depends on the output voltage and current your load needs.

Can the SKMW20F-03 handle demanding temperatures, and is it suitable for outdoor conditions?

This model has a published operating temperature range of -40°C to +85°C, which is wider than many compact converters. The specs shown do not include an IP rating, so temperature capability is defined, but exposed outdoor use is not confirmed by the listed data.
