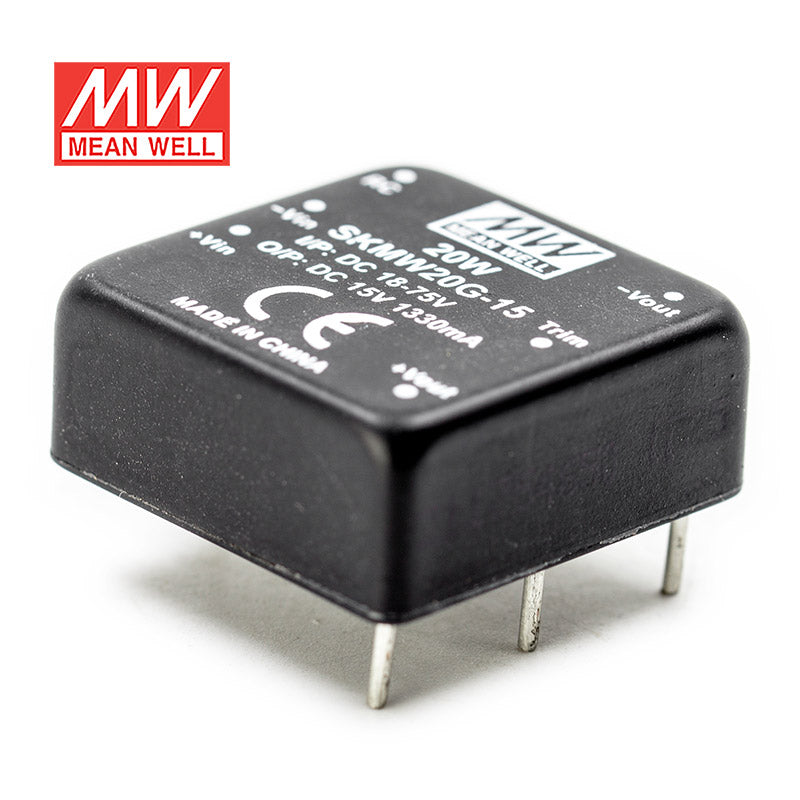

Mean Well SKMW20G-15 DC-DC Converter - 20W - 18~75V in 15V out
Please Login for Pricing
Description
Description
Remote ON/OFF control and trimming output (±10%)
3 years warranty
Key Features
- ✓DIP 1"x1" package with industry-standard pinout
- ✓Operating temperature range -40~+85°C
- ✓4:1 ultrawide input range
- ✓No minimum load required
- ✓Comply to BS EN/EN55032 radiated Class A without additional components
- ✓High efficiency up to 89%
- ✓Protection: Short circuit(continuous)/Overload/Over voltage/Input under voltage
- ✓1.5KVDC I/O isolation
- ✓Remote ON/OFF control and trimming output (±10%)
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSKMW Series
-
Power Rating20 Watt
-
Output Voltage15 Volt
-
Rated Current1.33 Ampere
-
Input Voltage18V~75V
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length2.54 cm
-
Width2.54 cm
-
Height1.02 cm
-
Weight0.02 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKMW20G-15 for a 15V industrial sensor or control circuit?
Yes, this unit delivers a constant 15V output and is rated for 20W with up to 1.33A output current. It is intended for applications that need a regulated 15V supply and fit within those electrical limits.
Is the SKMW20G-15 a good fit for compact embedded systems that require 15V power?
It is designed for compact installations with dimensions of 25.4 × 25.4 × 10.2 mm and a weight of 0.018 kg. The regulated 15V output can support embedded or control hardware that needs constant voltage within the 20W rating.
Can this model power low-current 15V automation devices from a broad input range?
Yes, the specified input range is 18-75VAC, and the output is 15V constant voltage at up to 1.33A. That makes it relevant for 15V automation devices that do not exceed 20W.
How does the SKMW20G-15 compare with other SKMW20G converters?
The SKMW20G-15 is a 20W converter with 15V output at 1.33A. Other listed SKMW20G models are the SKMW20G-03 at 3.3V and 4.5A, the SKMW20G-05 at 5V and 4A, and the SKMW20G-12 at 12V and 1.67A. All are in the same 20W series.
Can the SKMW20G-15 be used in hot, cold, or outdoor equipment enclosures?
The published operating temperature range is -40°C to +85°C, which supports use across a wide temperature span. No IP rating is provided, so resistance to dust or water exposure is not defined in the product specs.
Other SKMW20 Models
11 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well SKMW20W8-15 20W DC-DC Converter 15VDC | — | — | — | Indoor | View |
| Mean Well SKMW20W8-12 20W DC-DC Converter 12VDC | — | — | — | Indoor | View |
| Mean Well SKMW20W8-05 20W DC-DC Converter 5VDC | — | — | — | Indoor | View |
| Mean Well SKMW20W8-03 20W DC-DC Converter 3.3VDC | — | — | — | Indoor | View |
| Mean Well SKMW20G-12 DC-DC Converter - 20W - 18~75V in 12V out | 20W | 12V | 1.67A | Indoor | View |
| Mean Well SKMW20G-05 DC-DC Converter - 20W - 18~75V in 5V out | 20W | 5V | 4A | Indoor | View |
| Mean Well SKMW20G-03 DC-DC Converter - 20W - 18~75V in 3.3V out | 20W | 3.3V | 4.5A | Indoor | View |
| Mean Well SKMW20F-15 DC-DC Converter - 20W - 9~36V in 15V out | 20W | 15V | 1.33A | Indoor | View |
| Mean Well SKMW20F-12 DC-DC Converter - 20W - 9~36V in 12V out | 20W | 12V | 1.67A | Indoor | View |
| Mean Well SKMW20F-05 DC-DC Converter - 20W - 9~36V in 5V out | 20W | 5V | 4A | Indoor | View |
| Mean Well SKMW20F-03 DC-DC Converter - 20W - 9~36V in 3.3V out | 20W | 3.3V | 4.5A | Indoor | View |
