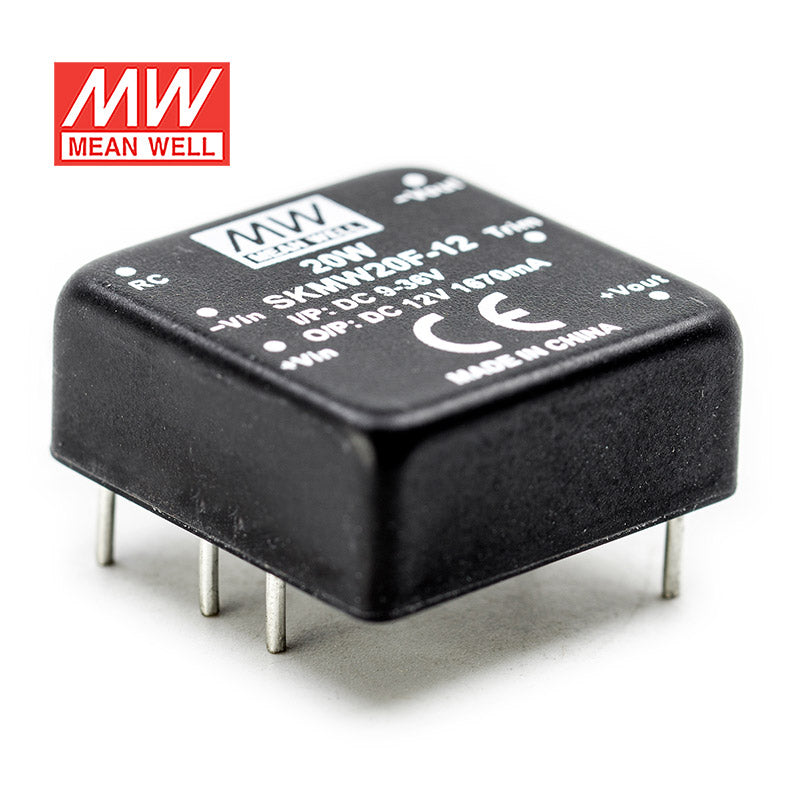

Mean Well SKMW20F-12 DC-DC Converter - 20W - 9~36V in 12V out
Please Login for Pricing
Description
Description
Remote ON/OFF control and trimming output (±10%)
3 years warranty
Key Features
- ✓DIP 1"x1" package with industry-standard pinout
- ✓Operating temperature range -40~+85°C
- ✓4:1 ultrawide input range
- ✓No minimum load required
- ✓Comply to BS EN/EN55032 radiated Class A without additional components
- ✓High efficiency up to 89%
- ✓Protection: Short circuit(continuous)/Overload/Over voltage/Input under voltage
- ✓1.5KVDC I/O isolation
- ✓Remote ON/OFF control and trimming output (±10%)
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSKMW Series
-
Power Rating20 Watt
-
Output Voltage12 Volt
-
Rated Current1.67 Ampere
-
Input Voltage9V~36V
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length2.54 cm
-
Width2.54 cm
-
Height1.02 cm
-
Weight0.02 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKMW20F-12 for a 12V PLC accessory or industrial interface module?
Yes, if the load requires constant 12V and stays at or below 1.67A. This converter is rated for 20W and accepts a 9-36V input range.
Is the SKMW20F-12 a good fit for 12V embedded or edge-computing hardware inside industrial equipment?
It is suitable when the hardware needs a regulated 12V output rather than a variable supply. The unit provides constant-voltage 12V output, and its 25.4 × 25.4 × 10.2 mm size supports compact embedded designs.
Can this model be used for 12V control electronics on a 9-36V power bus?
Yes, that is the kind of voltage conversion this model is specified for. It takes 9-36V input and delivers 12V output up to 1.67A, with a total power limit of 20W.
Is the SKMW20F-12 suitable for outdoor equipment or only protected enclosures?
The operating temperature range is -40°C to +85°C, which supports use in equipment exposed to wide temperature swings. No IP rating is listed in the specs, so the environmental sealing level is not defined for outdoor exposure.
How does the SKMW20F-12 compare with the other SKMW20F output options?
Each model in the SKMW20F group is rated at 20W, but the output differs by version. The sibling models are 3.3V at 4.5A, 5V at 4A, and 15V at 1.33A, while this version provides 12V at 1.67A.
Other SKMW20 Models
11 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well SKMW20W8-15 20W DC-DC Converter 15VDC | — | — | — | Indoor | View |
| Mean Well SKMW20W8-12 20W DC-DC Converter 12VDC | — | — | — | Indoor | View |
| Mean Well SKMW20W8-05 20W DC-DC Converter 5VDC | — | — | — | Indoor | View |
| Mean Well SKMW20W8-03 20W DC-DC Converter 3.3VDC | — | — | — | Indoor | View |
| Mean Well SKMW20G-15 DC-DC Converter - 20W - 18~75V in 15V out | 20W | 15V | 1.33A | Indoor | View |
| Mean Well SKMW20G-12 DC-DC Converter - 20W - 18~75V in 12V out | 20W | 12V | 1.67A | Indoor | View |
| Mean Well SKMW20G-05 DC-DC Converter - 20W - 18~75V in 5V out | 20W | 5V | 4A | Indoor | View |
| Mean Well SKMW20G-03 DC-DC Converter - 20W - 18~75V in 3.3V out | 20W | 3.3V | 4.5A | Indoor | View |
| Mean Well SKMW20F-15 DC-DC Converter - 20W - 9~36V in 15V out | 20W | 15V | 1.33A | Indoor | View |
| Mean Well SKMW20F-05 DC-DC Converter - 20W - 9~36V in 5V out | 20W | 5V | 4A | Indoor | View |
| Mean Well SKMW20F-03 DC-DC Converter - 20W - 9~36V in 3.3V out | 20W | 3.3V | 4.5A | Indoor | View |
