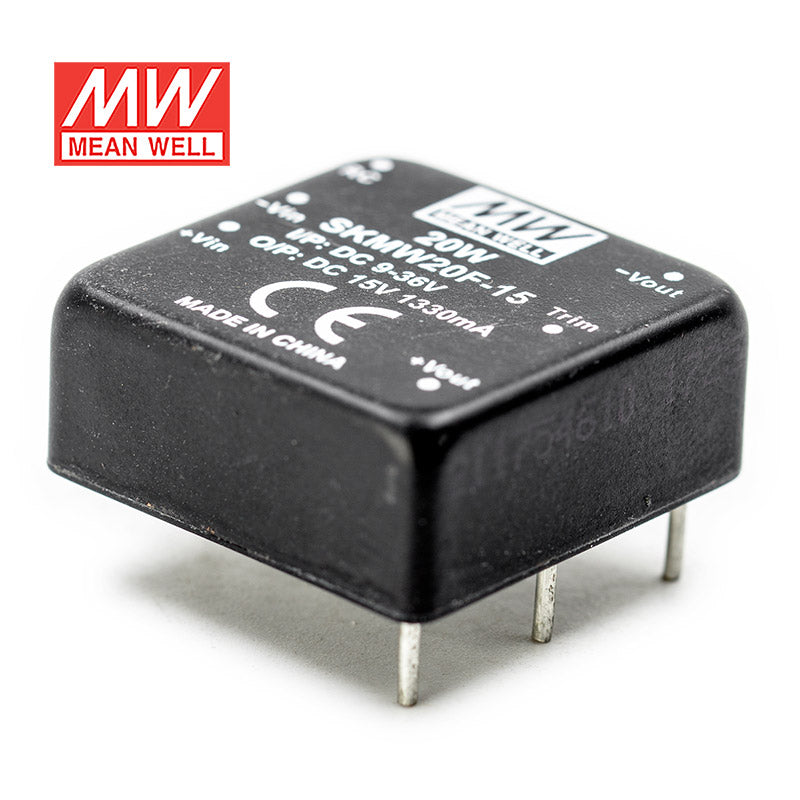

Mean Well SKMW20F-15 DC-DC Converter - 20W - 9~36V in 15V out
Please Login for Pricing
Description
Description
Remote ON/OFF control and trimming output (±10%)
3 years warranty
Key Features
- ✓DIP 1"x1" package with industry-standard pinout
- ✓Operating temperature range -40~+85°C
- ✓4:1 ultrawide input range
- ✓No minimum load required
- ✓Comply to BS EN/EN55032 radiated Class A without additional components
- ✓High efficiency up to 89%
- ✓Protection: Short circuit(continuous)/Overload/Over voltage/Input under voltage
- ✓1.5KVDC I/O isolation
- ✓Remote ON/OFF control and trimming output (±10%)
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSKMW Series
-
Power Rating20 Watt
-
Output Voltage15 Volt
-
Rated Current1.33 Ampere
-
Input Voltage9V~36V
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length2.54 cm
-
Width2.54 cm
-
Height1.02 cm
-
Weight0.02 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKMW20F-15 for 15V industrial control or measurement electronics?
Yes, if the equipment needs constant 15V output and the load does not exceed 1.33A. This converter is rated for 20W and accepts a 9-36V input range.
Is the SKMW20F-15 appropriate for compact embedded equipment that needs 15V power conversion?
It can be a good match for compact designs that need a regulated 15V rail within a 20W budget. The module measures 25.4 × 25.4 × 10.2 mm and weighs 0.018 kg.
Can this converter support automation devices that require stable 15V from a variable input source?
Yes, the listed input range is 9-36V and the output mode is constant voltage at 15V. It supports loads up to 1.33A, with a maximum power rating of 20W.
Is the SKMW20F-15 suitable for harsh indoor environments with low or high ambient temperatures?
The specified operating temperature range is -40°C to +85°C, so it is rated for wide temperature conditions. The provided specs do not include an IP rating, so enclosure-level moisture or dust protection is not specified.
What separates the SKMW20F-15 from the other SKMW20F versions?
The series keeps the same 20W platform while changing the output rating. The sibling options are 3.3V at 4.5A, 5V at 4A, and 12V at 1.67A, while this model is 15V at 1.33A.
Other SKMW20 Models
11 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well SKMW20W8-15 20W DC-DC Converter 15VDC | — | — | — | Indoor | View |
| Mean Well SKMW20W8-12 20W DC-DC Converter 12VDC | — | — | — | Indoor | View |
| Mean Well SKMW20W8-05 20W DC-DC Converter 5VDC | — | — | — | Indoor | View |
| Mean Well SKMW20W8-03 20W DC-DC Converter 3.3VDC | — | — | — | Indoor | View |
| Mean Well SKMW20G-15 DC-DC Converter - 20W - 18~75V in 15V out | 20W | 15V | 1.33A | Indoor | View |
| Mean Well SKMW20G-12 DC-DC Converter - 20W - 18~75V in 12V out | 20W | 12V | 1.67A | Indoor | View |
| Mean Well SKMW20G-05 DC-DC Converter - 20W - 18~75V in 5V out | 20W | 5V | 4A | Indoor | View |
| Mean Well SKMW20G-03 DC-DC Converter - 20W - 18~75V in 3.3V out | 20W | 3.3V | 4.5A | Indoor | View |
| Mean Well SKMW20F-12 DC-DC Converter - 20W - 9~36V in 12V out | 20W | 12V | 1.67A | Indoor | View |
| Mean Well SKMW20F-05 DC-DC Converter - 20W - 9~36V in 5V out | 20W | 5V | 4A | Indoor | View |
| Mean Well SKMW20F-03 DC-DC Converter - 20W - 9~36V in 3.3V out | 20W | 3.3V | 4.5A | Indoor | View |
